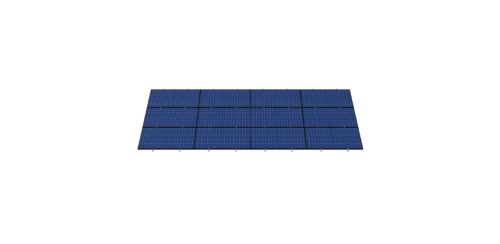

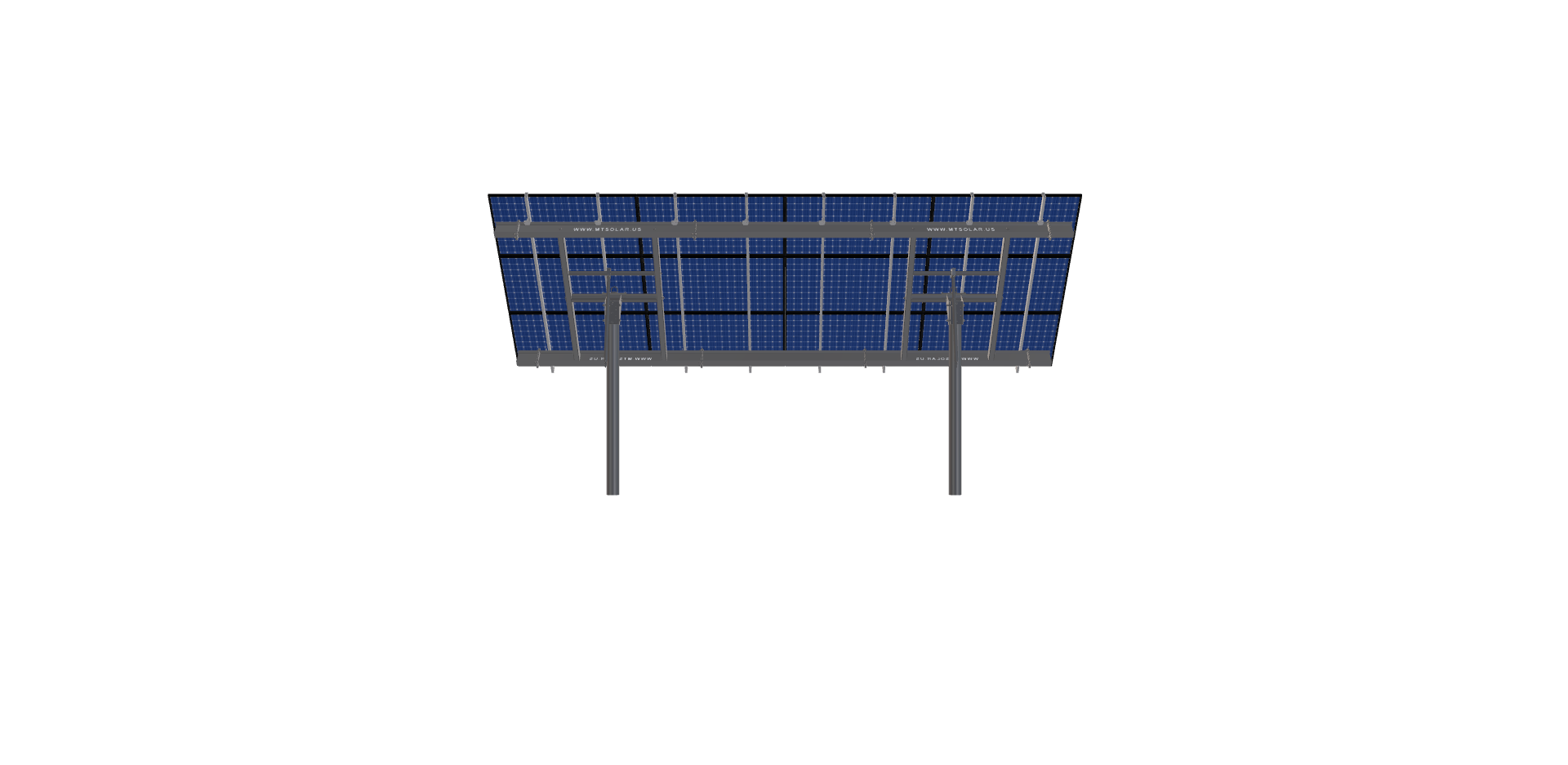

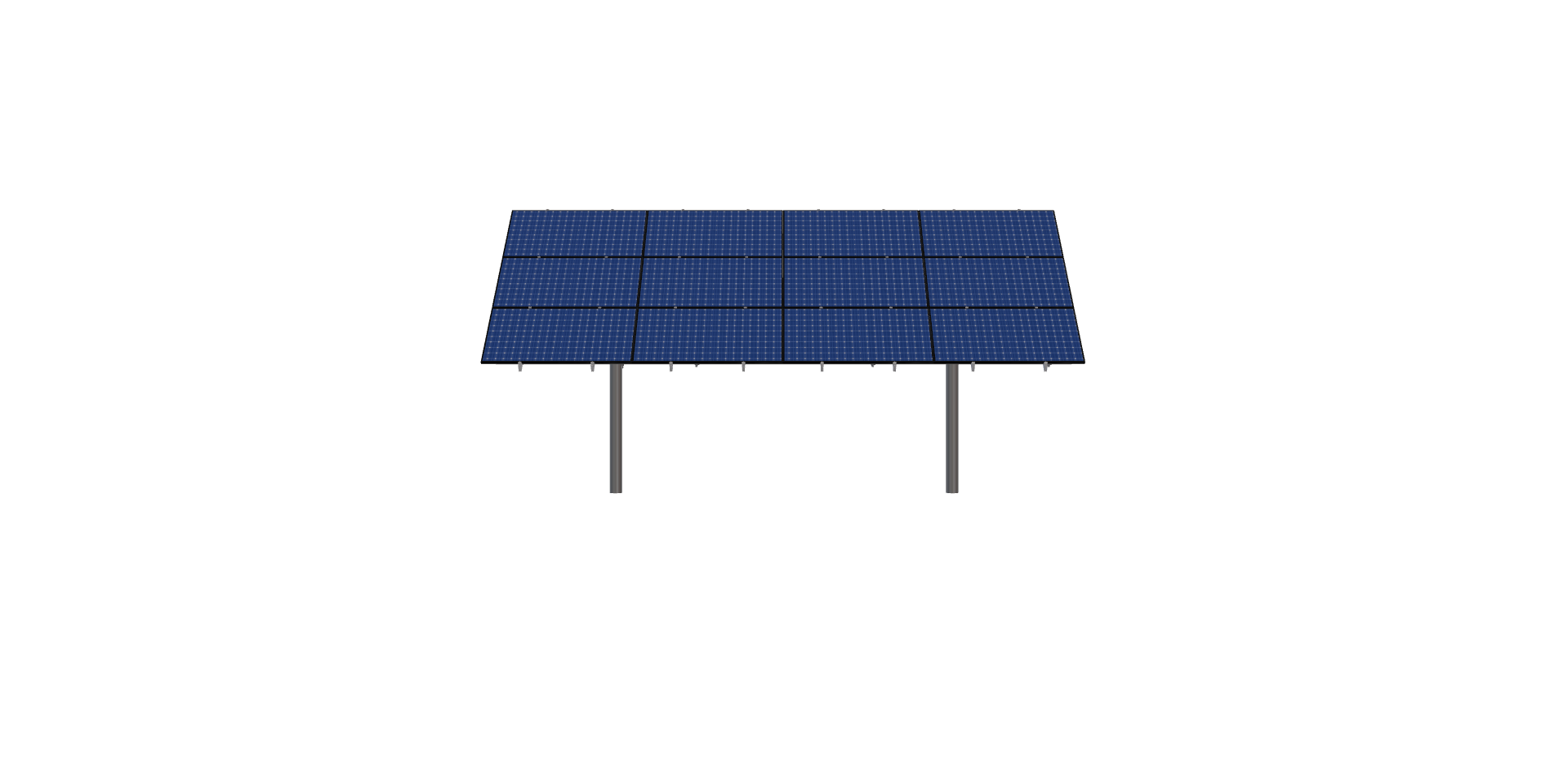

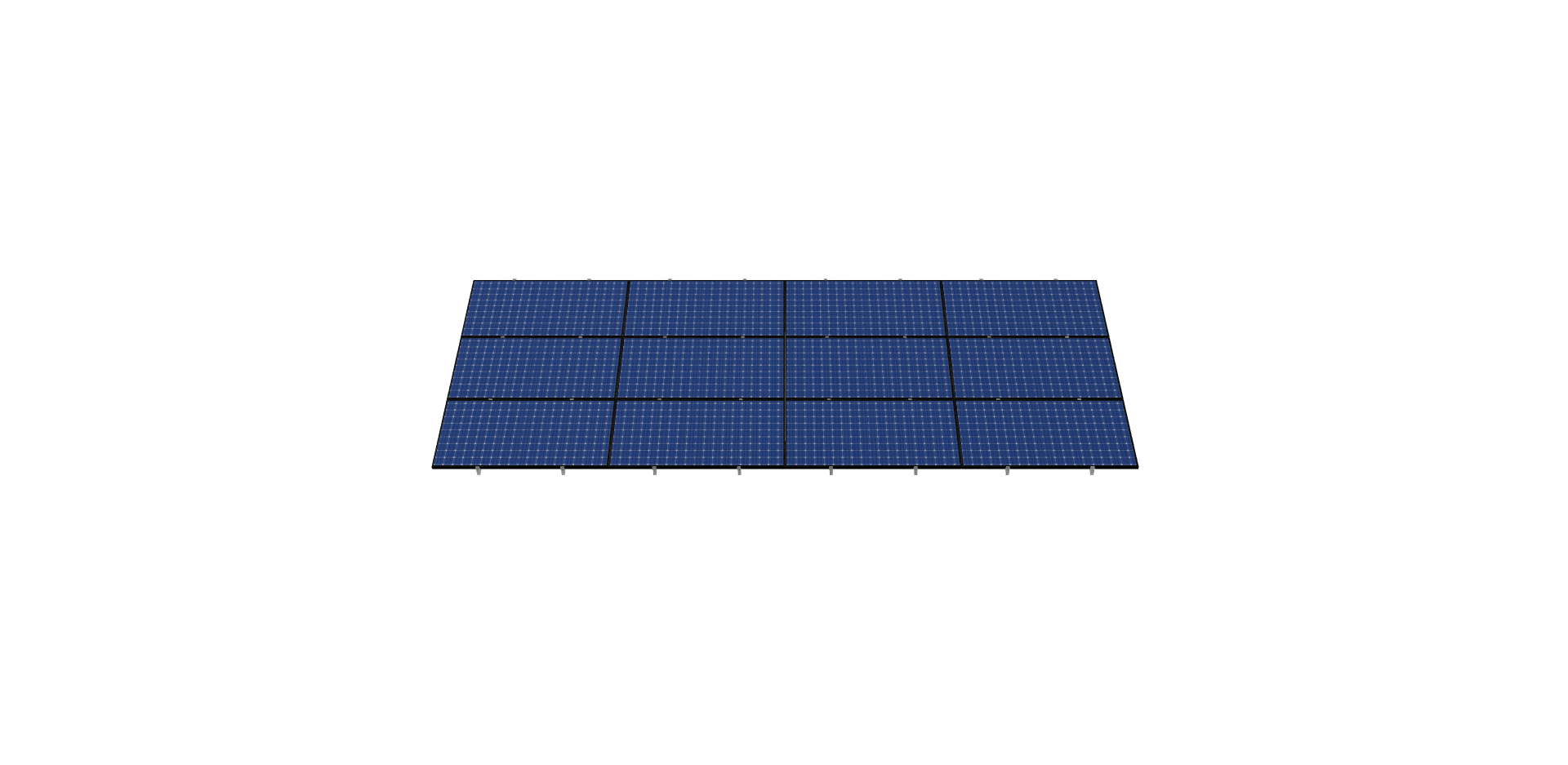

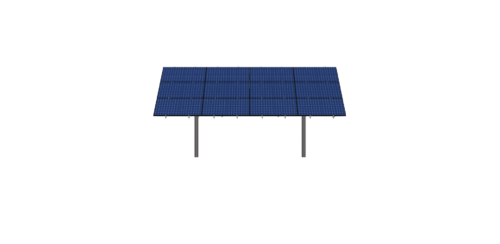

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75 inches by 41 inches and an array layout of 4 wide by 3 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Faison MT RevD
$7,789.60
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75 inches by 41 inches and an array layout of 4 wide by 3 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1346.8200000000002 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-15-6TOP-HD-12-L-3HX4W-L088 |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 15.00 |
| POLE HEIGHT | 8.67 |
| WING SPAN | 12.00 |
| MAX FOUNDATION DEPTH | 7.75 |

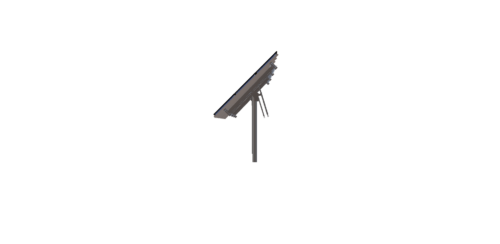

| TILT ANGLE | 45.00 |
| CANTILEVER | 294.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 2.00 |
| MODULE AREA | 262.83 |
| ARRAY WIDTH | 25.33 |
| ARRAY HEIGHT | 10.38 |
| RAIL LENGTH | 124.50 |
| MODULE LENGTH | 75.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 24.50 |
| GROUND TO TOP | 12.29 |
| PROJECTED PANEL HEIGHT | 7.25 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | FAISON, MT, REVD |
| SITE ADDRESS | MALTA, MT, 59538, USA |
| MODULE WIDTH | 41.00 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 4.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | HD |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 7418.67 |
| TOTAL WEIGHT | 1346.82 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/77c6dda7-775e-43a5-a520-158e924505f6.pdf |
|
| ID | 1828.00 |
| CAD URL | |
| 3D Solar link |
