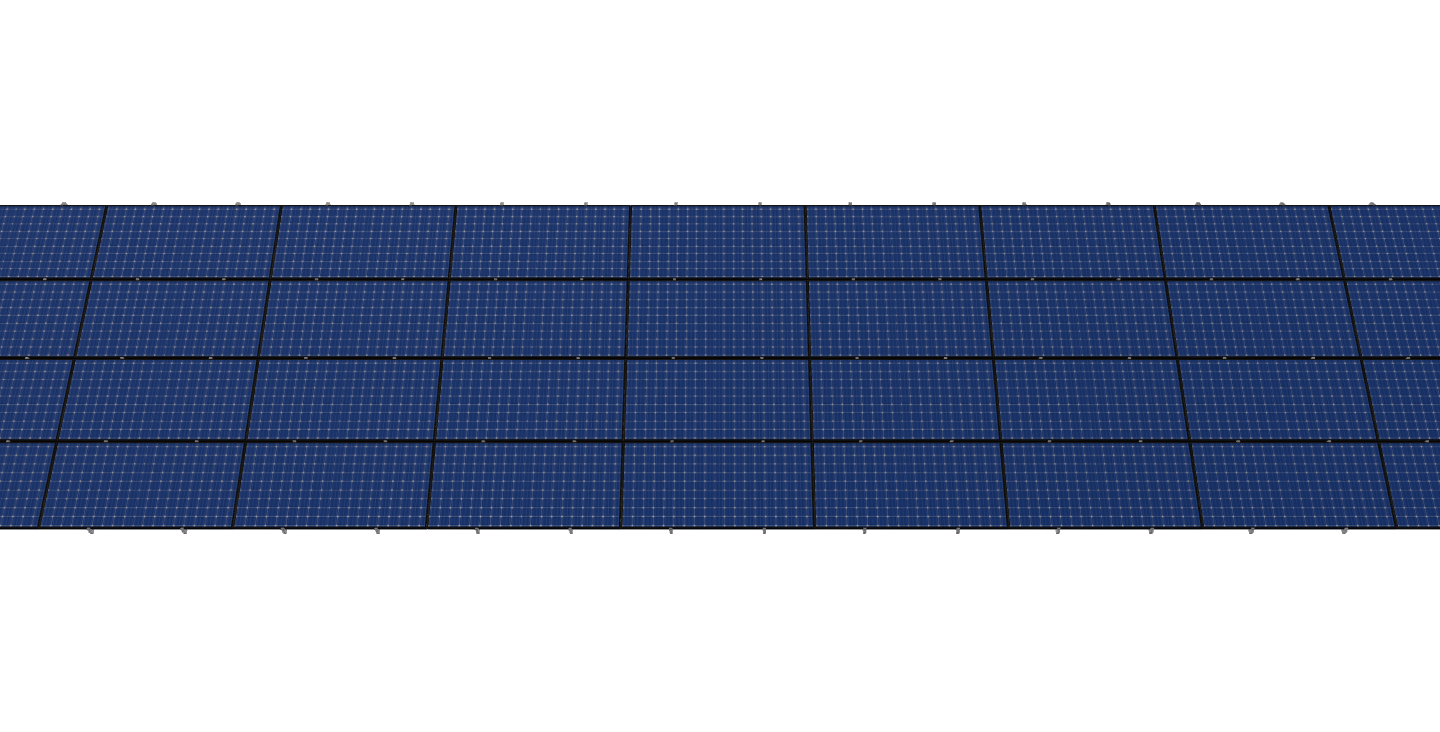

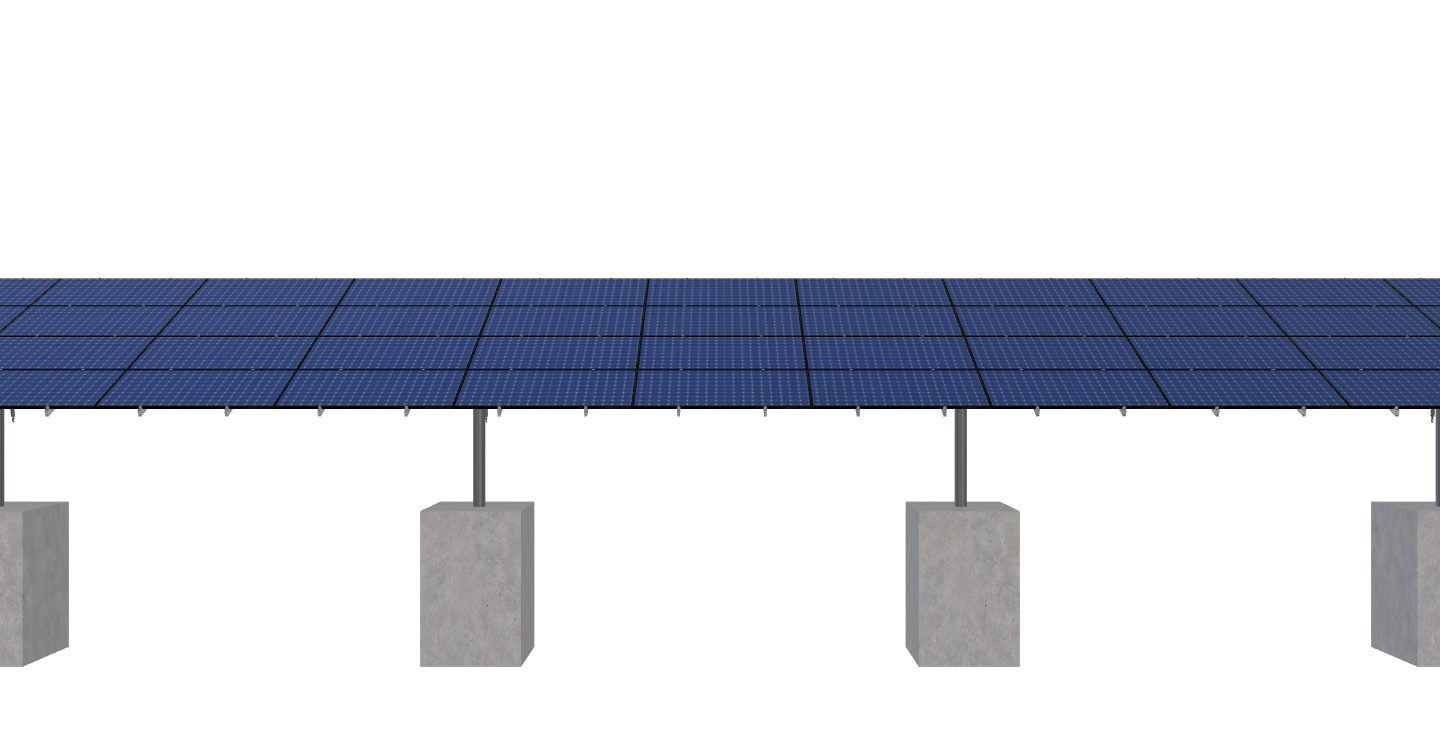

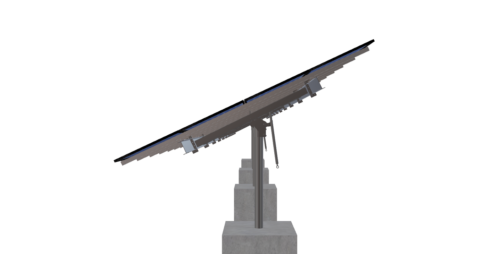

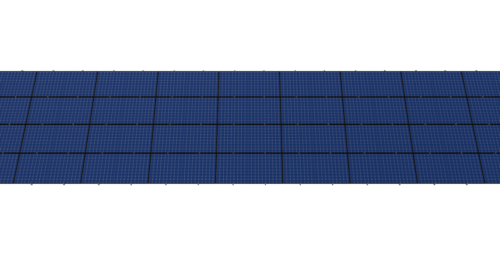

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89 inches by 44 inches and an array layout of 11 wide by 4 high.
This mount fits on 4 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
FarmerWarren-RevA
$23,355.02
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89 inches by 44 inches and an array layout of 11 wide by 4 high.
This mount fits on 4 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 4236.42 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-22.5-10TOP-XD-45-L-4HX11W-3HG2 |
| DUTY SIZE | XD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 7.13 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 7.00 |
| TILT ANGLE | 25.00 |
| CANTILEVER | 990.00 |
| GROUND CLEARANCE | 4.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1223.75 |
| ARRAY WIDTH | 82.50 |
| ARRAY HEIGHT | 14.83 |
| RAIL LENGTH | 178.00 |
| MODULE LENGTH | 89.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 82.50 |
| GROUND TO TOP | 10.23 |
| PROJECTED PANEL HEIGHT | 6.20 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | FARMERWARREN-REVA |
| SITE ADDRESS | 209, FAIRFIELD, RD, ST, GEORGE, SC, 29477, USA |
| MODULE WIDTH | 44.00 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 11.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | XD |
| POLE OVERRIDE | 10, 40 |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 22242.88 |
| TOTAL WEIGHT | 4236.42 |
| TOTAL PALLETS | 4.00 |
