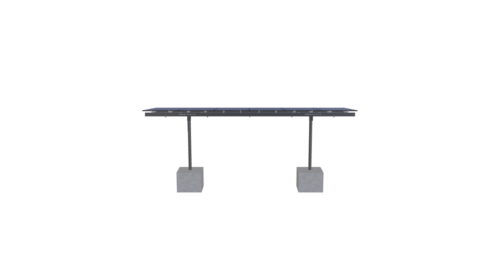

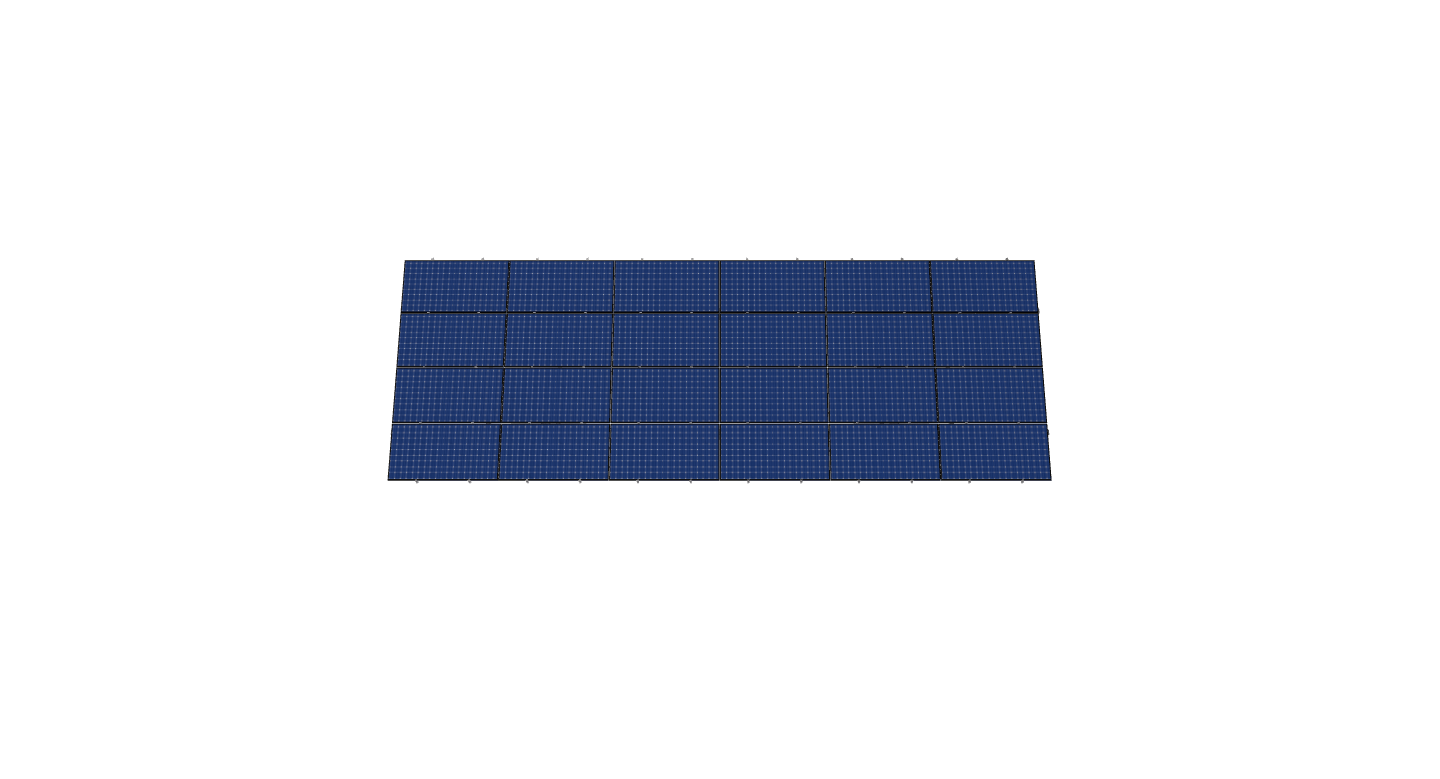

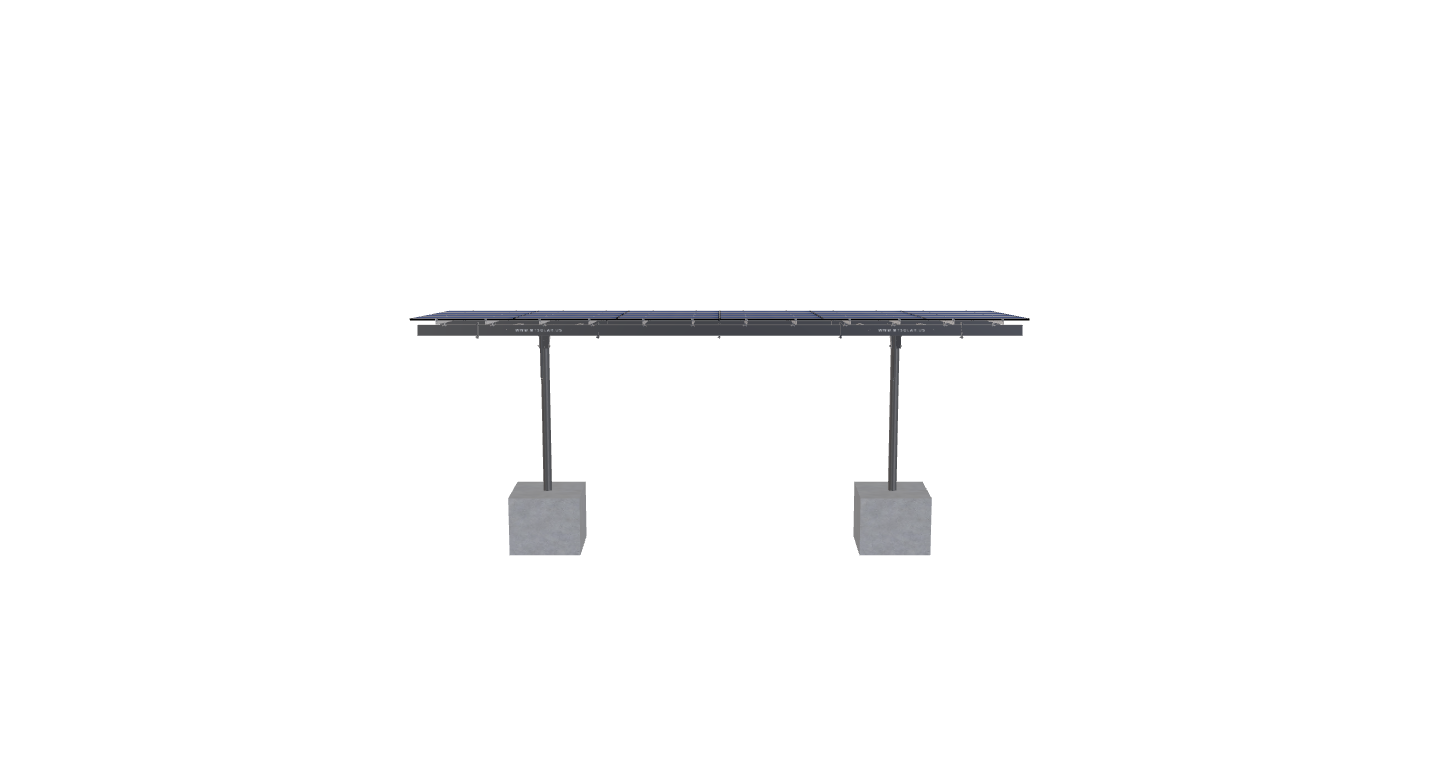

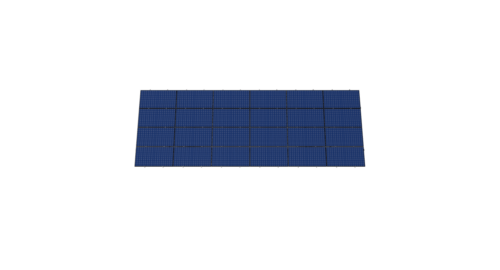

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41.1 inches and an array layout of 6 wide by 4 high.

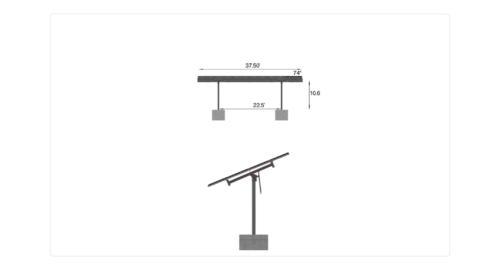

This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Fenton TOP24 – RevB – Jb
$8,359.90
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41.1 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 1486.32 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 2P-22.5-6TOP-SD-45-L-4HX6W-GF05 |
DUTY SIZE | SD |
POLE SIZE | 6IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 2.00 |
POLE SPACING | 22.50 |
POLE HEIGHT | 10.60 |
WING SPAN | 45.00 |
MAX FOUNDATION DEPTH | 3.75 |
TILT ANGLE | 5.00 |
CANTILEVER | 450.00 |
GROUND CLEARANCE | 10.00 |
NO POLES | 2.00 |
MODULE AREA | 520.00 |
ARRAY WIDTH | 37.50 |
ARRAY HEIGHT | 13.87 |
RAIL LENGTH | 166.40 |
MODULE LENGTH | 74.00 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 37.50 |
GROUND TO TOP | 11.20 |
PROJECTED PANEL HEIGHT | 1.19 |
WIND SPEED OVERRIDE | NULL |
SNOW LOAD OVERRIDE | NULL |
DIRECT SNOW LOAD | FALSE |
ADD ANGLE BRACE | FALSE |
PROJECT ID | FENTON, TOP24, -, REVB, -, JB |
SITE ADDRESS | 1638, 8TH, AVE, OLIVEHURST, CA, 95961, USA |
MODULE WIDTH | 41.10 |
NUMBER ROWS | 4.00 |
NUMBER COLUMNS | 6.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | B |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
TOTAL PRICE | 8359.90 |
TOTAL WEIGHT | 1486.32 |
TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/c5f2dbc1-5823-419b-84d6-15a701e85ec2.pdf |
|
ID | 6489.00 |
3D Solar link |
