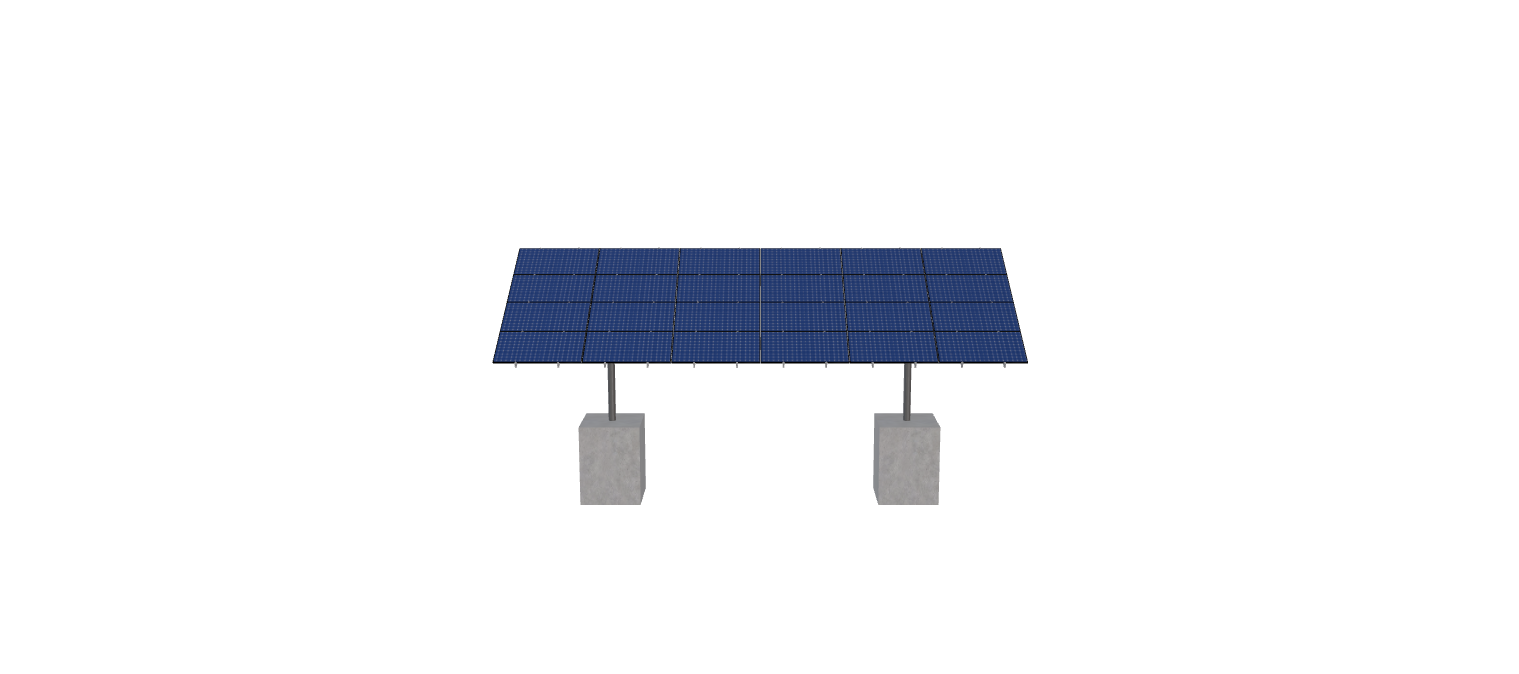

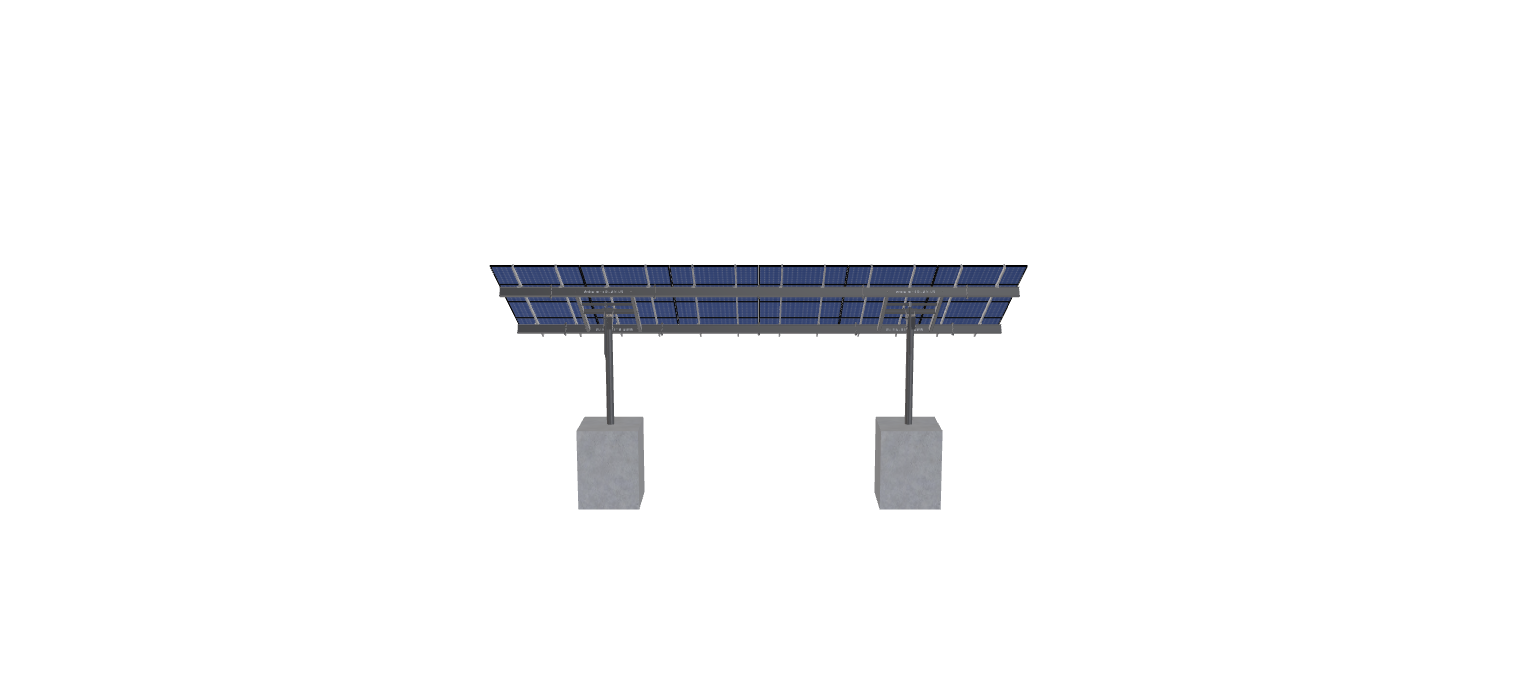

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.08 inches by 41.5 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Flying A Cattle RevA- GS
$9,586.45
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.08 inches by 41.5 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 1767.5 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 2P-22.5-8TOP-HD-45-L-4HX6W-5BHD |
DUTY SIZE | HD |
POLE SIZE | 8IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 2.00 |
POLE SPACING | 22.50 |
POLE HEIGHT | 8.50 |
WING SPAN | 45.00 |
MAX FOUNDATION DEPTH | 6.00 |
TILT ANGLE | 30.00 |
CANTILEVER | 450.00 |
GROUND CLEARANCE | 5.00 |
NO POLES | 2.00 |
MODULE AREA | 532.56 |
ARRAY WIDTH | 38.04 |
ARRAY HEIGHT | 14.00 |
RAIL LENGTH | 168.00 |
MODULE LENGTH | 75.08 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 37.50 |
GROUND TO TOP | 11.96 |
PROJECTED PANEL HEIGHT | 6.92 |
WIND SPEED OVERRIDE | NULL |
SNOW LOAD OVERRIDE | NULL |
DIRECT SNOW LOAD | FALSE |
PROJECT ID | FLYING, A, CATTLE, REVA-, GS |
SITE ADDRESS | 12201, WABASH, CIR, NORMAN, OK, 73026, USA |
MODULE WIDTH | 41.50 |
NUMBER ROWS | 4.00 |
NUMBER COLUMNS | 6.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | C |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
TOTAL PRICE | 9586.45 |
TOTAL WEIGHT | 1767.50 |
TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/cb717631-b559-43ec-a7fc-e8acf87820e6.pdf |
|
ID | 2179.00 |
3D Solar link |
