This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.37 inches by 44.65 inches and an array layout of 4 wide by 3 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

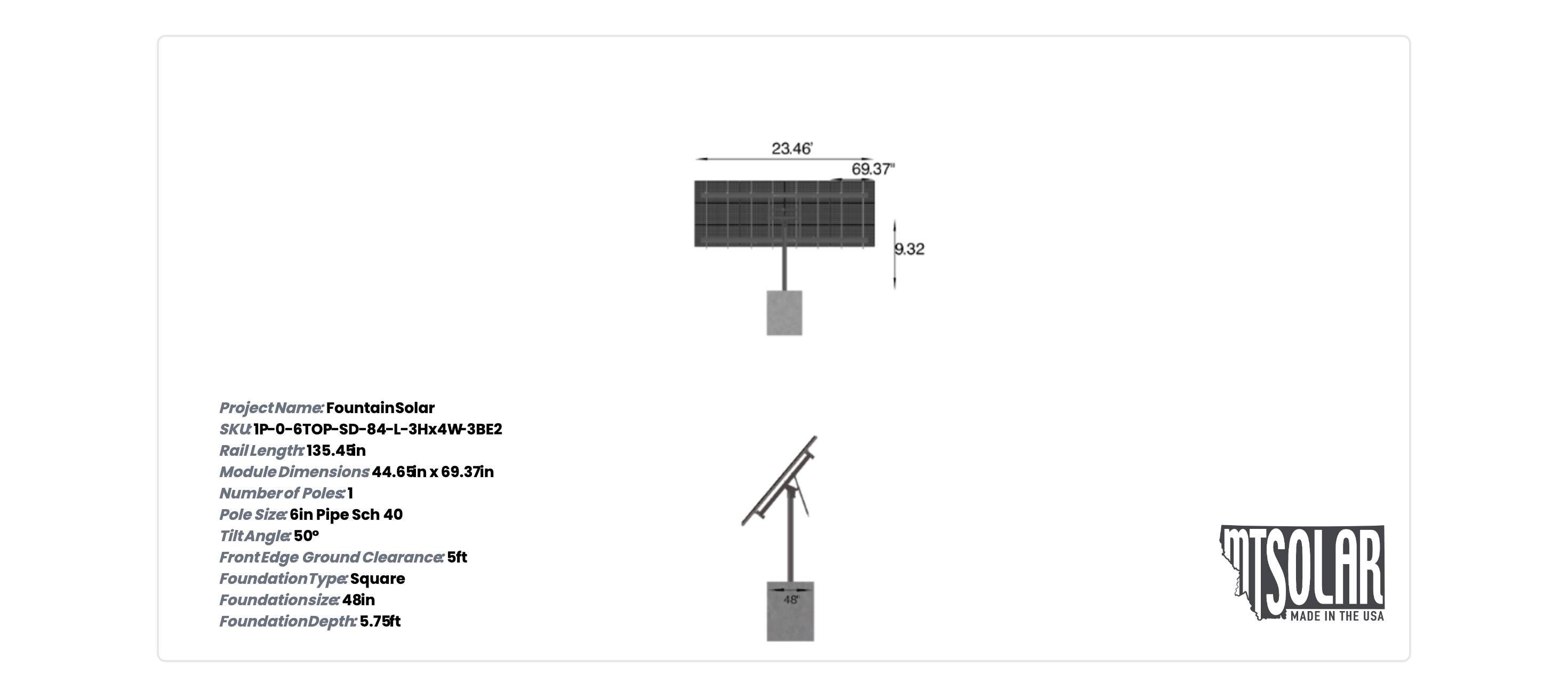

See 3D Model Here
Fountain Solar
$4,435.12
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.37 inches by 44.65 inches and an array layout of 4 wide by 3 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 792.1800000000001 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 1P-0-6TOP-SD-84-L-3HX4W-3BE2 |
DUTY SIZE | SD |
POLE SIZE | 6IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 1.00 |
POLE SPACING | 0.00 |
POLE HEIGHT | 9.32 |
WING SPAN | 84.00 |
MAX FOUNDATION DEPTH | 5.75 |
TILT ANGLE | 50.00 |
CANTILEVER | 258.00 |
GROUND CLEARANCE | 5.00 |
NO POLES | 1.00 |
MODULE AREA | 264.77 |
ARRAY WIDTH | 23.46 |
ARRAY HEIGHT | 11.29 |
RAIL LENGTH | 135.45 |
MODULE LENGTH | 69.37 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 21.50 |
GROUND TO TOP | 13.65 |
PROJECTED PANEL HEIGHT | 8.65 |
DESIGNER NAME | ADEBAYO, AJIFOLOKUN |
DESIGNER EMAIL | |
DESIGNER PHONE | 2026151090.00 |
PROJECT ID | FOUNTAIN, SOLAR |
SITE ADDRESS | 6922, FOUNTAIN, PK, DR, GLENN, DALE, MD, 20769, USA |
MODULE WIDTH | 44.65 |
NUMBER ROWS | 3.00 |
NUMBER COLUMNS | 4.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | B |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
WIND SPEED OVERRIDE | 115.00 |
SNOW LOAD OVERRIDE | 30.00 |
DIRECT SNOW LOAD | FALSE |
ADD ANGLE BRACE | FALSE |
TOTAL PRICE | 4435.12 |
TOTAL WEIGHT | 792.18 |
TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/67c28d91-815c-4525-90da-7722b87146e9.pdf |
|
ID | 8706.00 |
3D Solar link |
