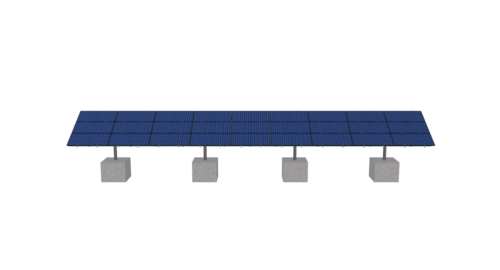

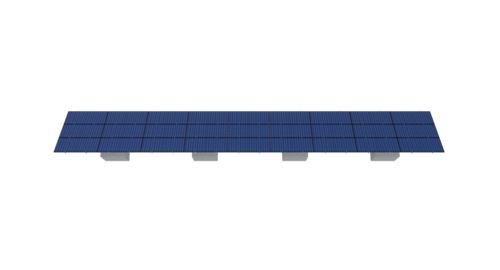

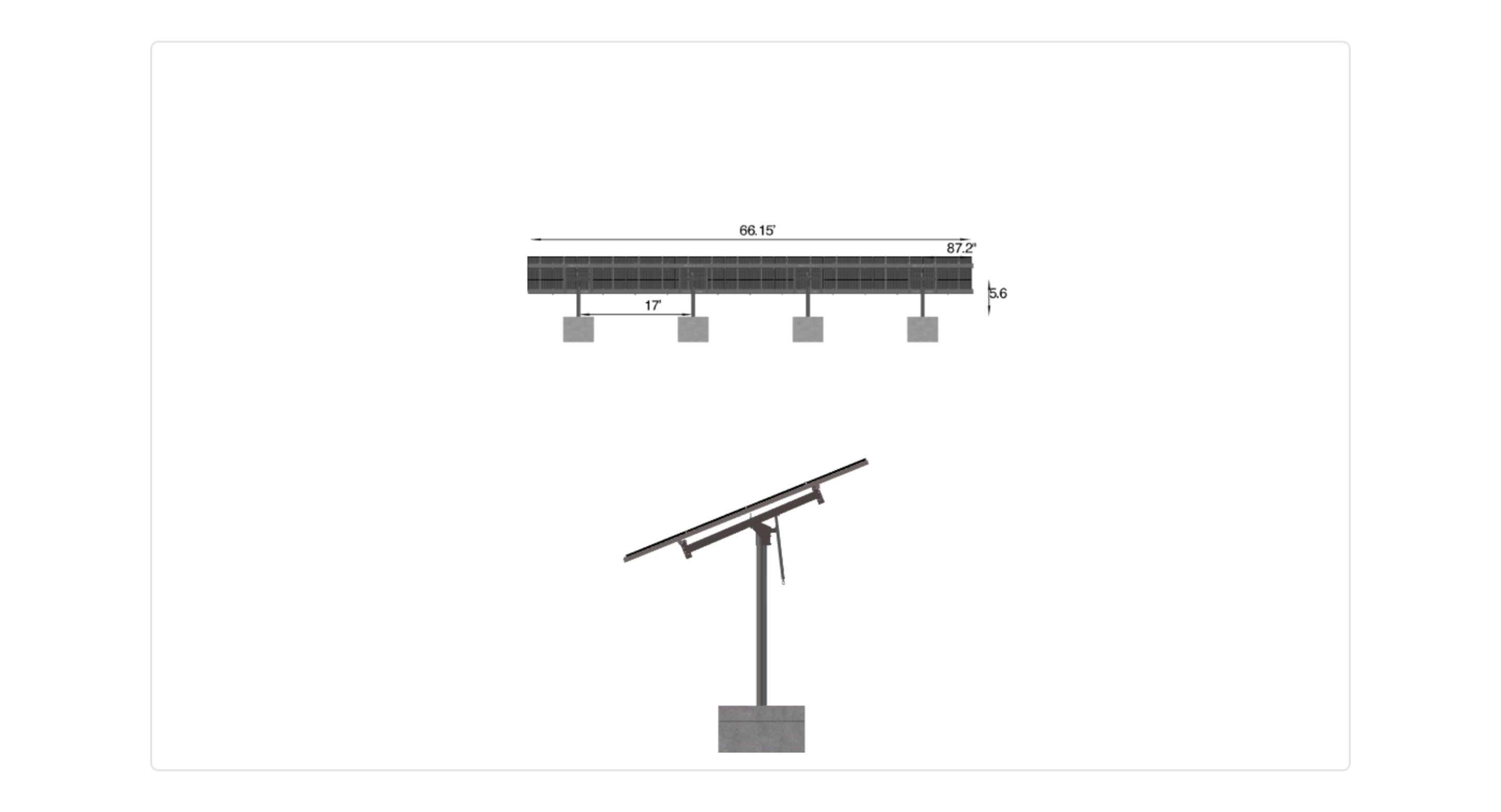

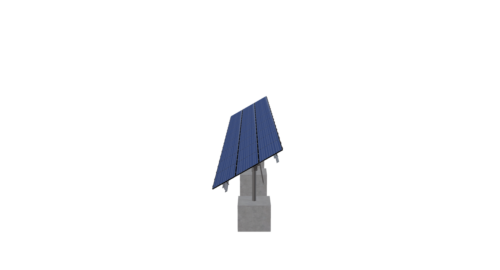

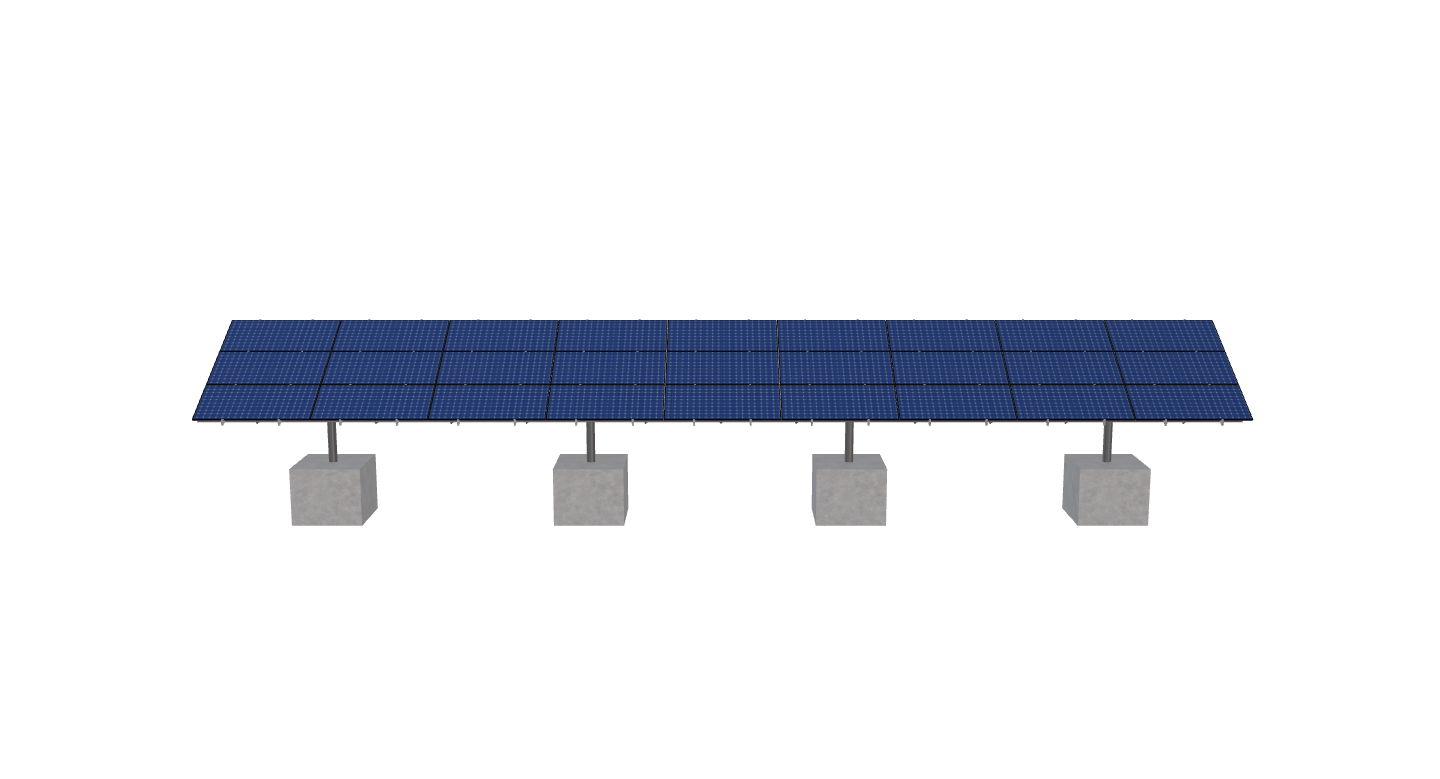

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.2 inches by 41.1 inches and an array layout of 9 wide by 3 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Gow-RevA-JB
$16,896.30
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.2 inches by 41.1 inches and an array layout of 9 wide by 3 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 3146.5200000000004 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 4P-17-6TOP-HD-45-L-3HX9W-DFD8 |
DUTY SIZE | HD |
POLE SIZE | 6IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 4.00 |
POLE SPACING | 17.00 |
POLE HEIGHT | 5.60 |
WING SPAN | 45.00 |
MAX FOUNDATION DEPTH | 3.75 |
TILT ANGLE | 30.00 |
CANTILEVER | 792.00 |
GROUND CLEARANCE | 3.00 |
NO POLES | 4.00 |
MODULE AREA | 687.96 |
ARRAY WIDTH | 66.15 |
ARRAY HEIGHT | 10.40 |
RAIL LENGTH | 124.80 |
MODULE LENGTH | 87.20 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 66.00 |
GROUND TO TOP | 8.17 |
PROJECTED PANEL HEIGHT | 5.14 |
WIND SPEED OVERRIDE | 86.00 |
SNOW LOAD OVERRIDE | 76.00 |
DIRECT SNOW LOAD | FALSE |
ADD ANGLE BRACE | FALSE |
PROJECT ID | GOW-REVA-JB |
SITE ADDRESS | 5811, TWIN, CREEK, RD, SALT, LAKE, CITY, UT, 84108, USA |
MODULE WIDTH | 41.10 |
NUMBER ROWS | 3.00 |
NUMBER COLUMNS | 9.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | B |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
TOTAL PRICE | 16896.30 |
TOTAL WEIGHT | 3146.52 |
TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/34a8b48e-f509-4ee8-aa1d-4cf4b9f4f8ba.pdf |
|
ID | 5021.00 |
3D Solar link |
