GreenspaceCanopy-JB-RevA

$9,273.54

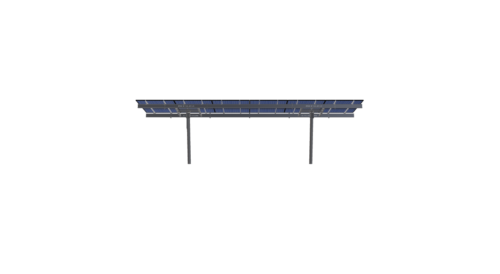

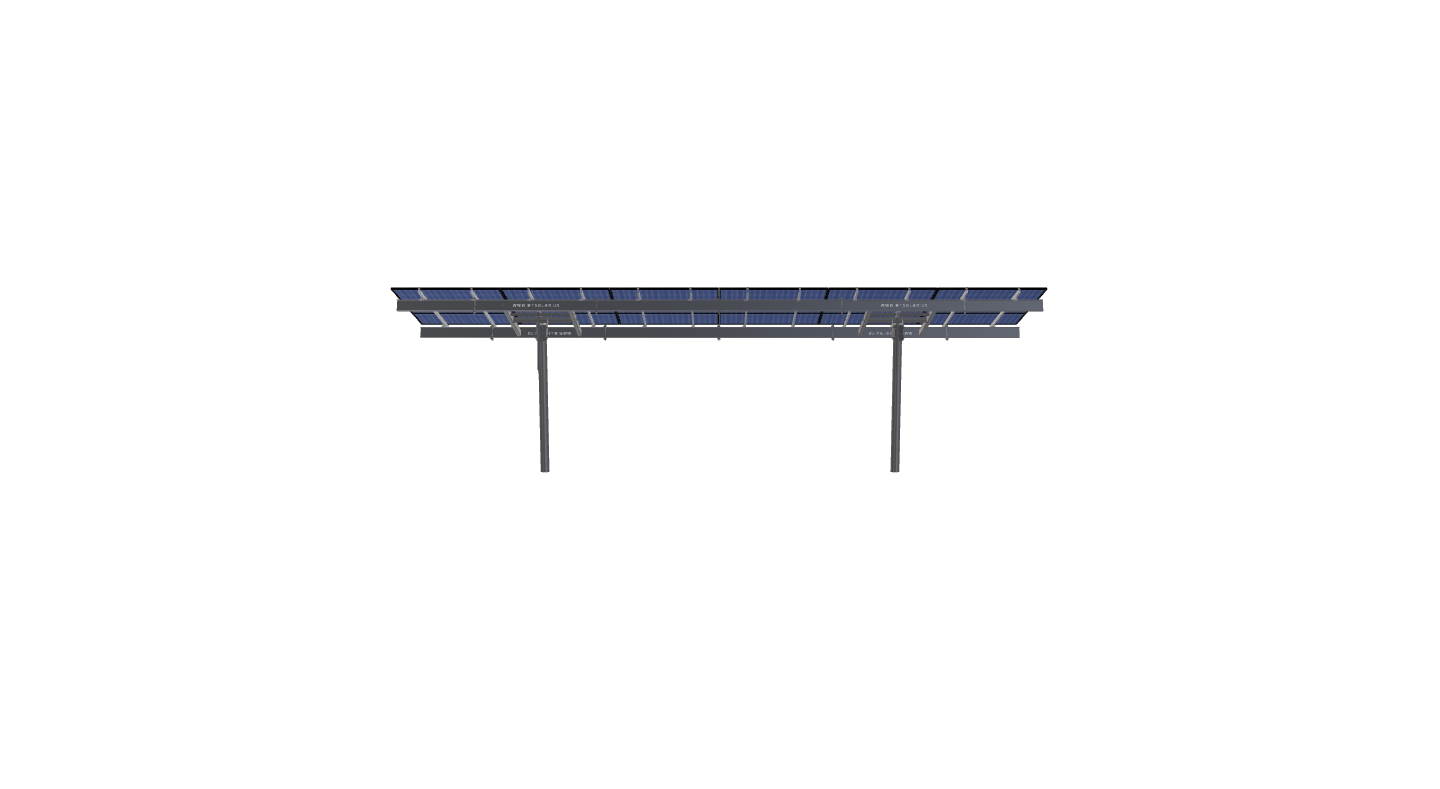

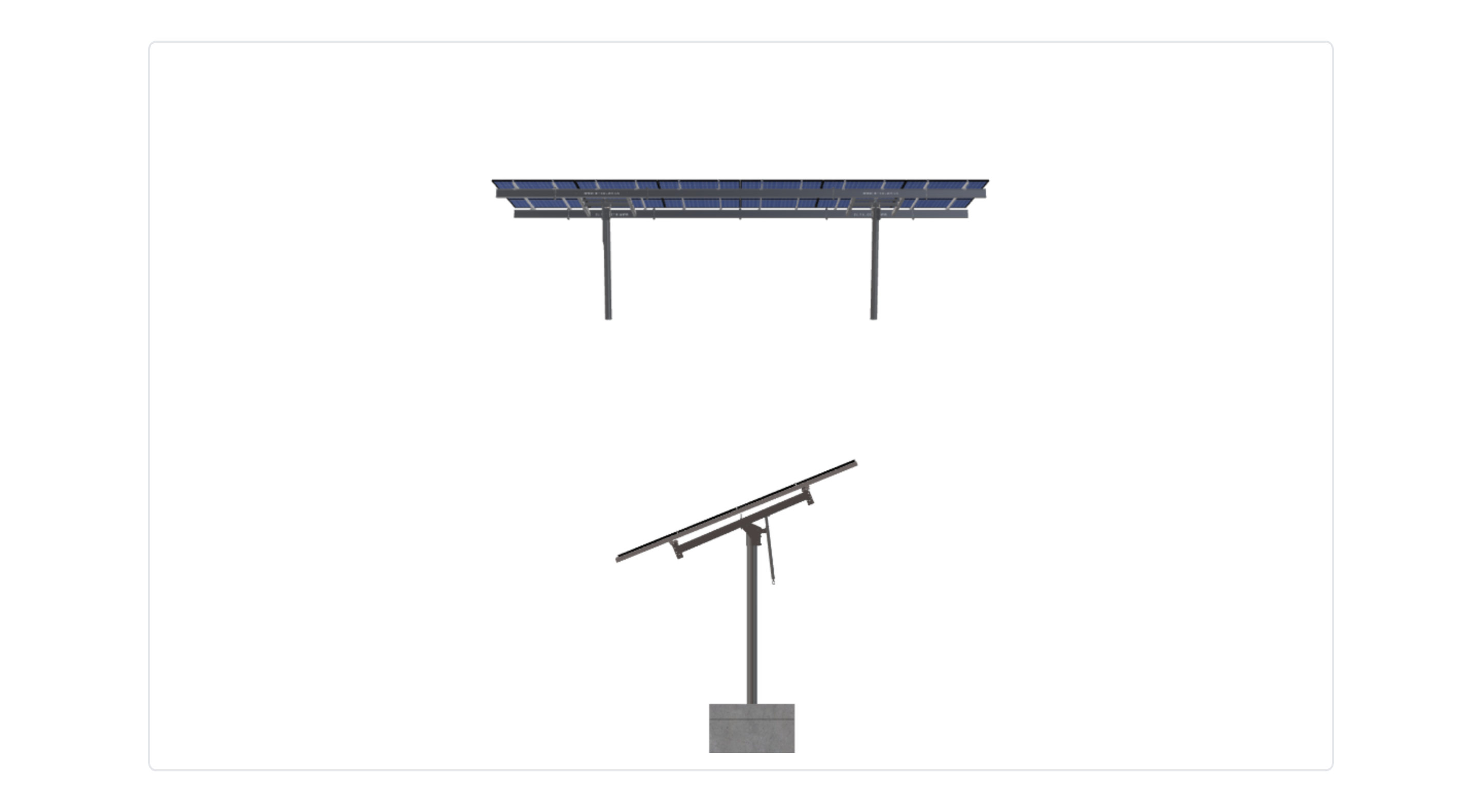

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 79 inches by 40 inches and an array layout of 6 wide by 3 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

SKU: 2P-22.5-6TOP-HD-57-L-3Hx6W-G262 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 79 inches by 40 inches and an array layout of 6 wide by 3 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 1733.7 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

2P-22.5-6TOP-HD-57-L-3HX6W-G262

DUTY SIZE

HD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

2.00

POLE SPACING

22.50

POLE HEIGHT

9.73

WING SPAN

57.00

MAX FOUNDATION DEPTH

7.75

TILT ANGLE

20.00

CANTILEVER

474.00

GROUND CLEARANCE

8.00

NO POLES

2.00

MODULE AREA

405.00

ARRAY WIDTH

40.00

ARRAY HEIGHT

10.13

RAIL LENGTH

121.50

MODULE LENGTH

79.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

39.50

GROUND TO TOP

11.44

PROJECTED PANEL HEIGHT

3.42

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

PROJECT ID

GREENSPACECANOPY-JB-REVA

SITE ADDRESS

14, MARSH, CT, MADISON, WI, 53718, USA

MODULE WIDTH

40.00

NUMBER ROWS

3.00

NUMBER COLUMNS

6.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

36, ROUND

FOUNDATION TYPE

ROUND

FOUNDATION SIZE

36.00

CHECK RAILS

FALSE

TOTAL PRICE

9273.54

TOTAL WEIGHT

1733.70

TOTAL PALLETS

2.00
