Guffey-CO 10k Array-v1CU

$11,043.76

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.13 inches by 41.5 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

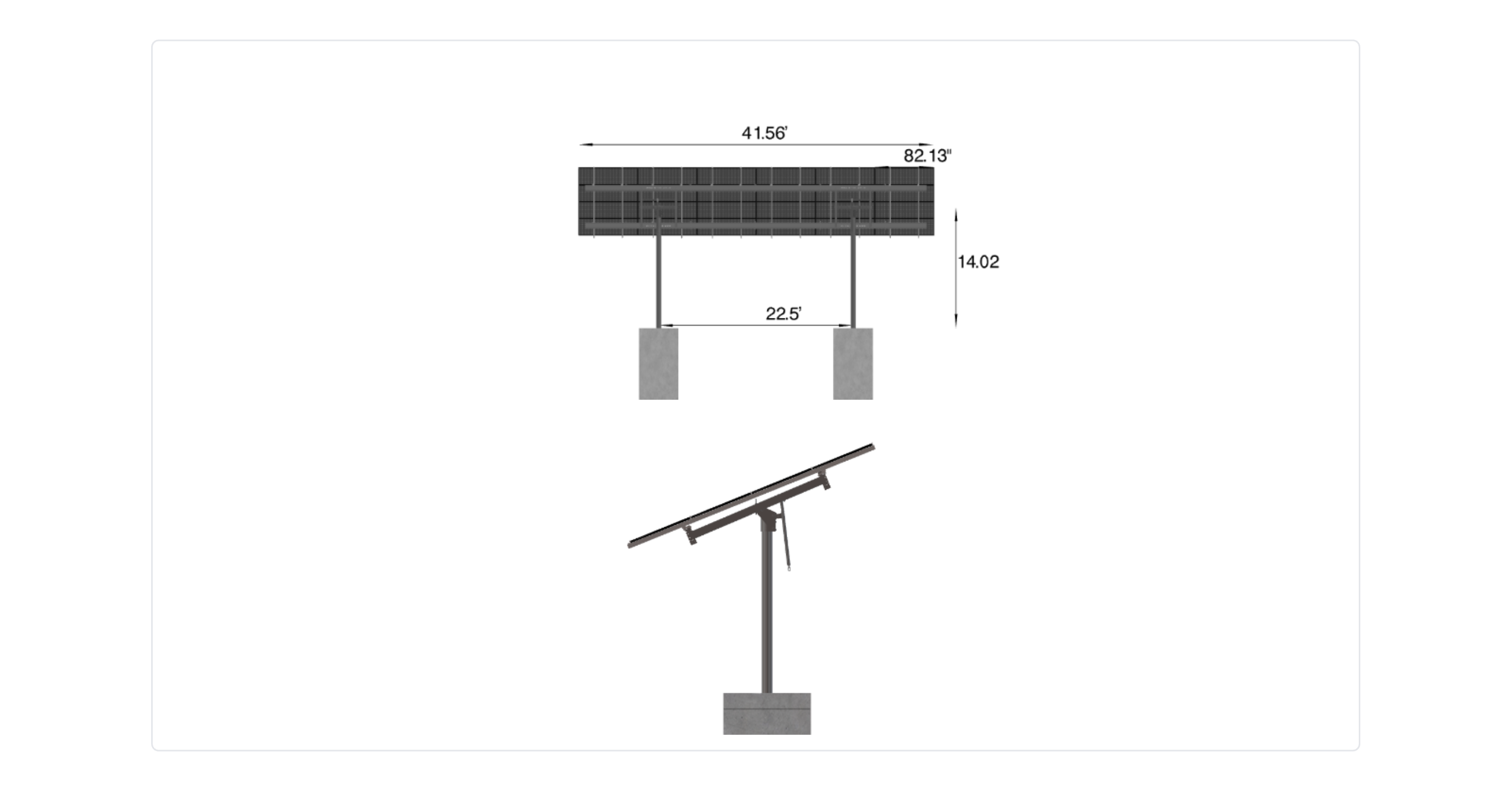

See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 2P-22.5-10TOP-XD-57-L-4Hx6W-A1F8 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.13 inches by 41.5 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 2078.02 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

2P-22.5-10TOP-XD-57-L-4HX6W-A1F8

DUTY SIZE

XD

POLE SIZE

10IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

2.00

POLE SPACING

22.50

POLE HEIGHT

14.02

WING SPAN

57.00

MAX FOUNDATION DEPTH

8.75

TILT ANGLE

35.00

CANTILEVER

474.00

GROUND CLEARANCE

10.00

NO POLES

2.00

MODULE AREA

581.91

ARRAY WIDTH

41.56

ARRAY HEIGHT

14.00

RAIL LENGTH

168.00

MODULE LENGTH

82.13

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

39.50

GROUND TO TOP

17.98

PROJECTED PANEL HEIGHT

7.93

PROJECT ID

GUFFEY-CO, 10K, ARRAY-V1CU

SITE ADDRESS

PF77+F4, GUFFEY, CO, 80820, USA

MODULE WIDTH

41.50

NUMBER ROWS

4.00

NUMBER COLUMNS

6.00

RISK CATEGORY

II

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

TRUE

WIND SPEED OVERRIDE

110.00

SNOW LOAD OVERRIDE

35.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

11043.76

TOTAL WEIGHT

2078.02

TOTAL PALLETS

2.00
