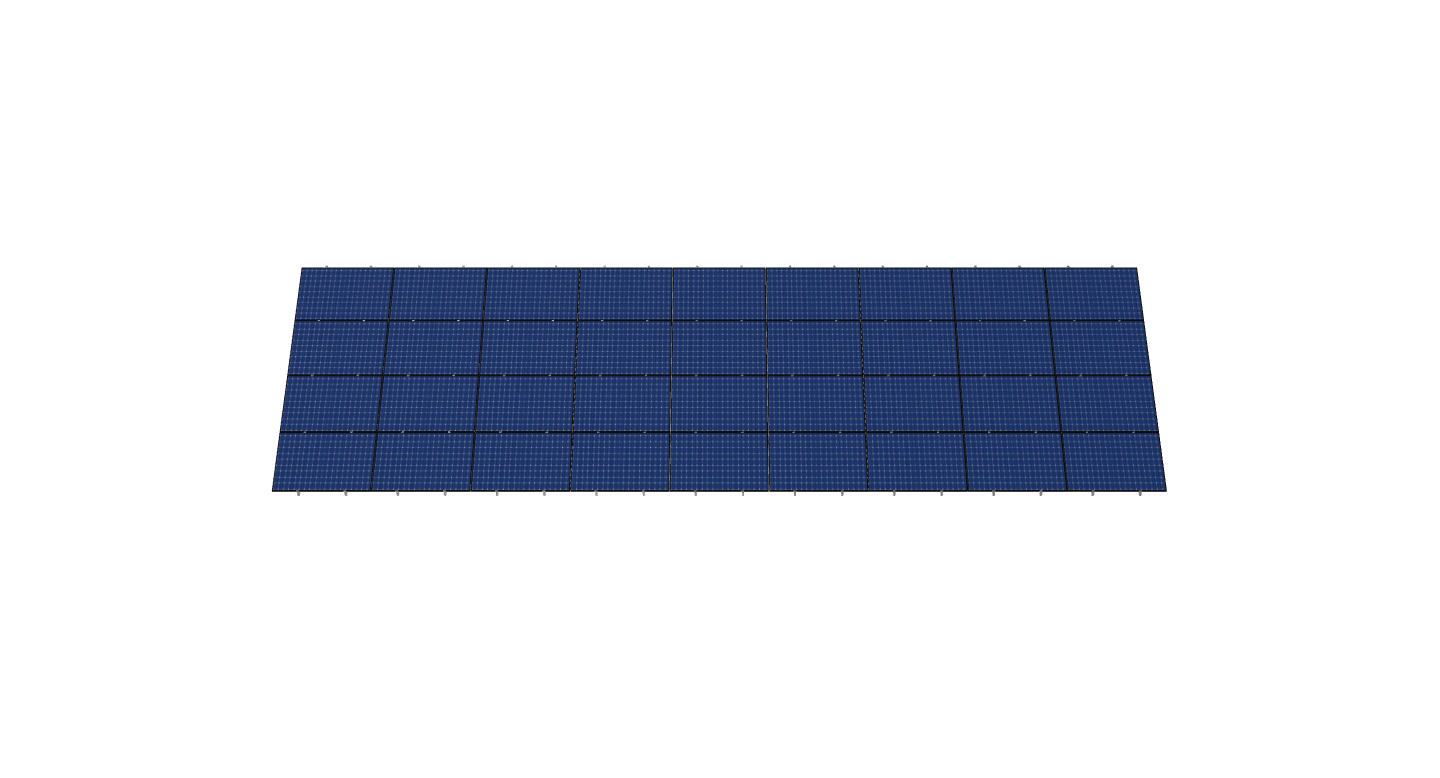

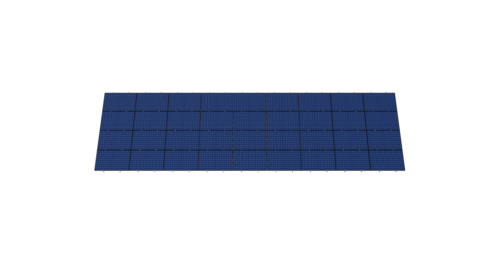

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.65 inches and an array layout of 9 wide by 4 high.

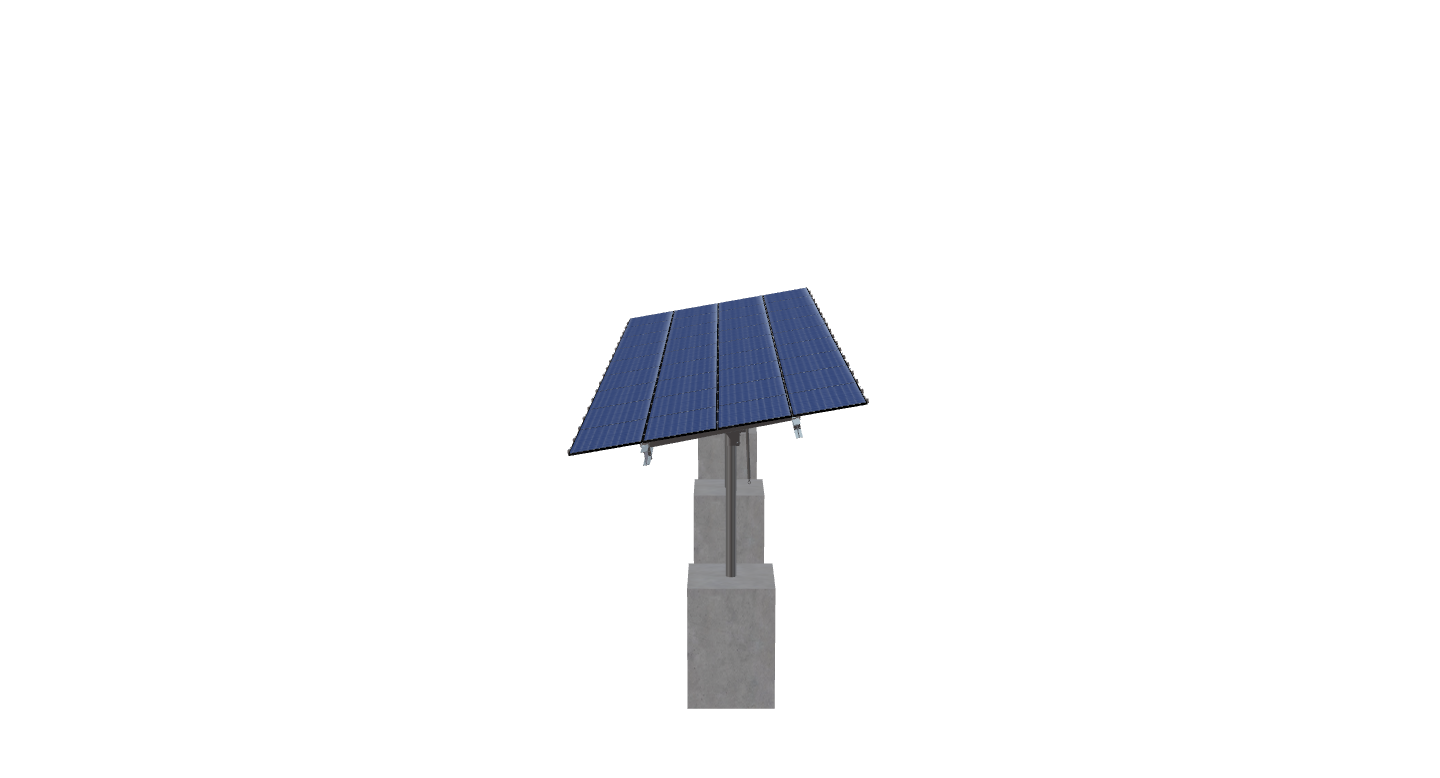

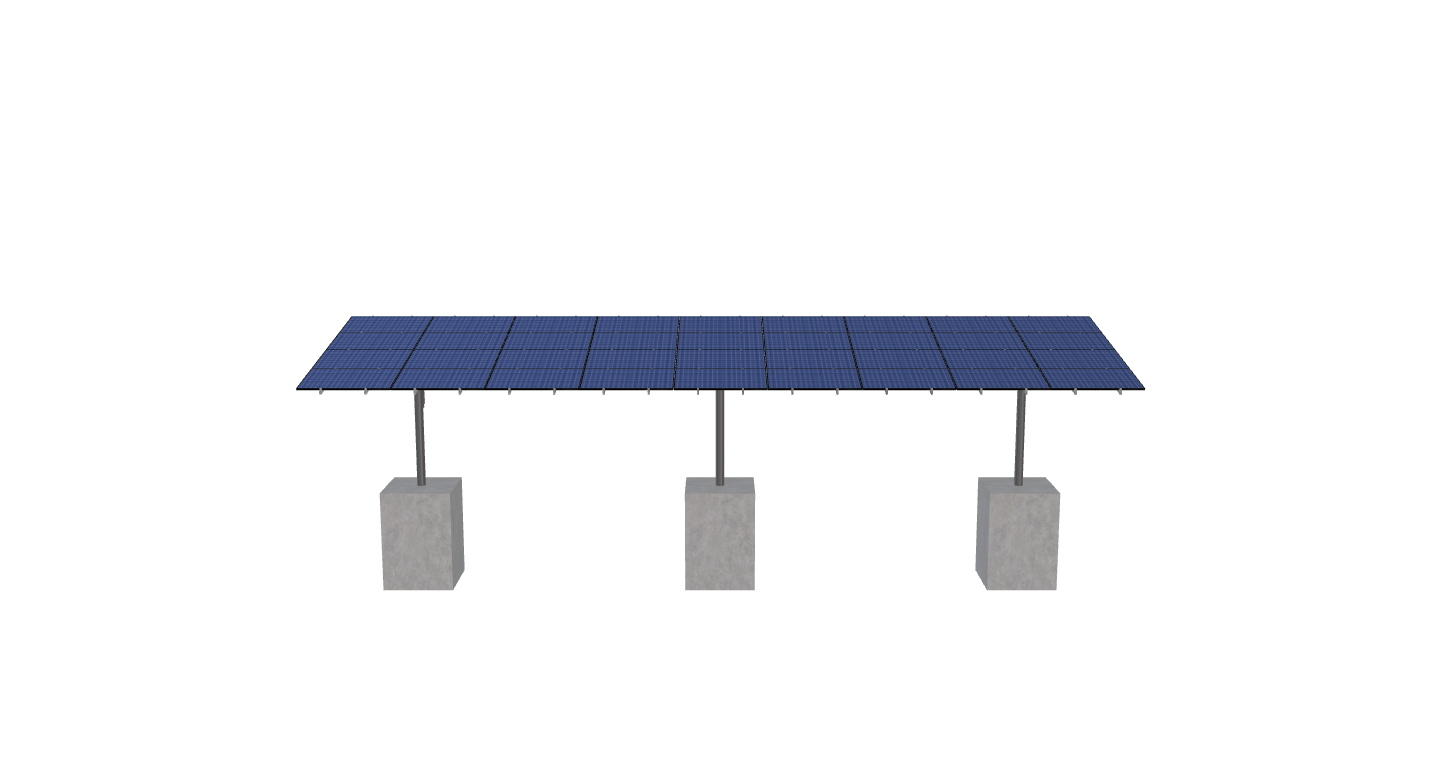

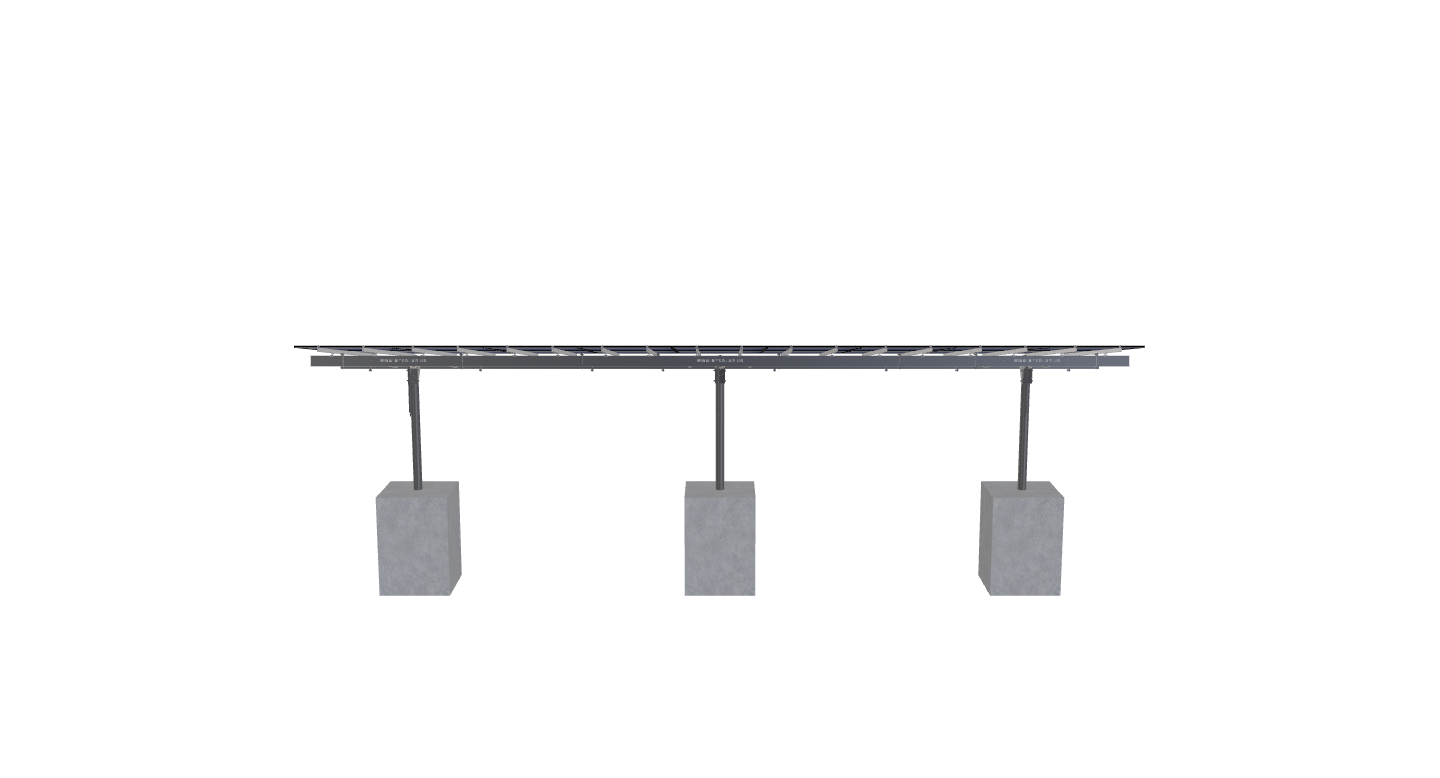

This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
GYung – 36 mods – expsC- V1Jb
$16,415.74
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.65 inches and an array layout of 9 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information

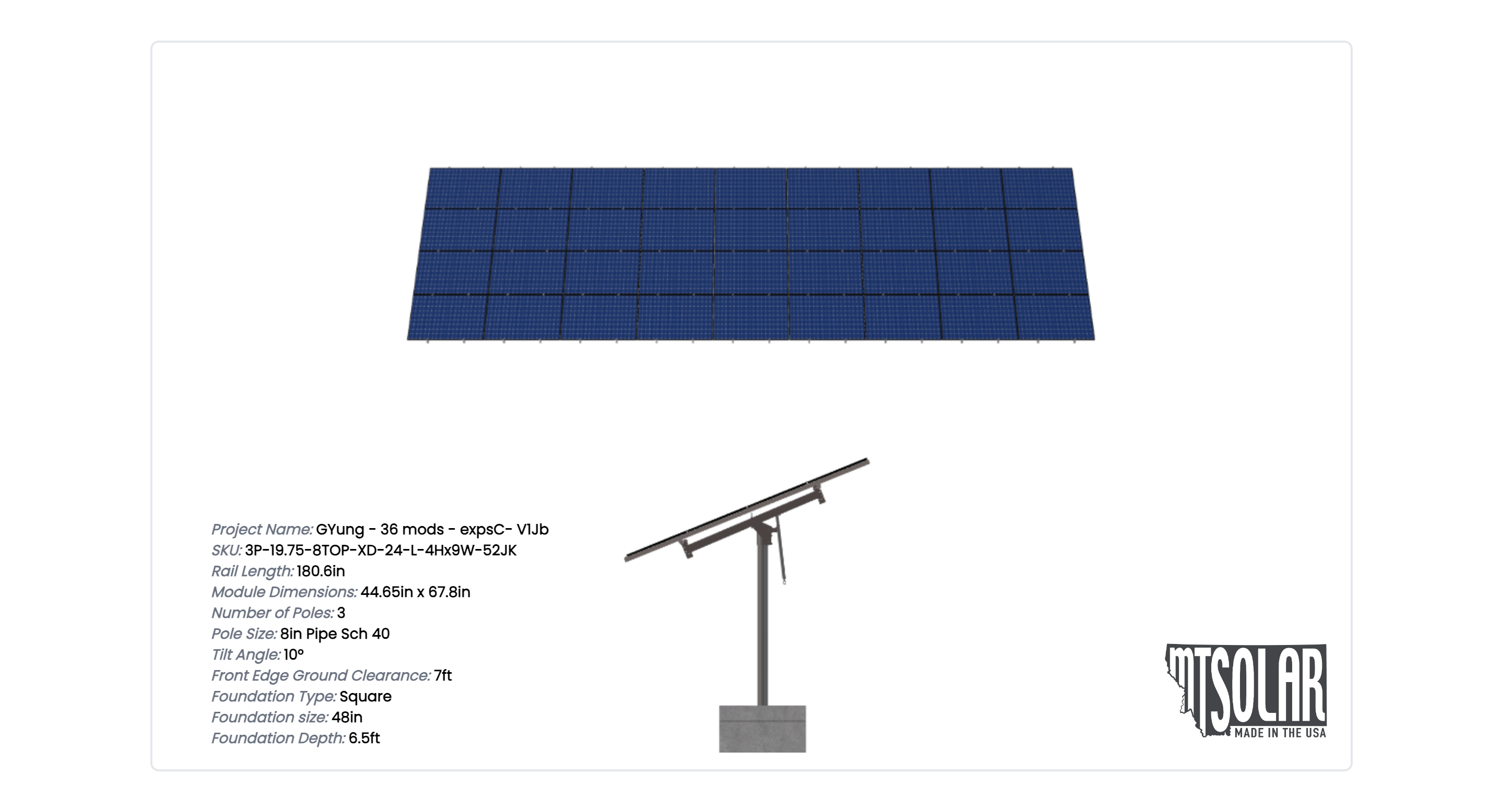

| Weight | 2890.83 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-19.75-8TOP-XD-24-L-4HX9W-52JK |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 8.31 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 6.50 |
| TILT ANGLE | 10.00 |
| CANTILEVER | 612.00 |
| GROUND CLEARANCE | 7.00 |
| NO POLES | 3.00 |
| MODULE AREA | 776.58 |
| ARRAY WIDTH | 51.60 |
| ARRAY HEIGHT | 15.05 |
| RAIL LENGTH | 180.60 |
| MODULE LENGTH | 67.80 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 51.00 |
| GROUND TO TOP | 9.61 |
| PROJECTED PANEL HEIGHT | 2.61 |
| WIND SPEED OVERRIDE | 150.00 |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | TRUE |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | GYUNG, -, 36, MODS, -, EXPSC-, V1JB |
| SITE ADDRESS | 405, OVERHILL, DR, BRANDON, FL, 33511, USA |
| MODULE WIDTH | 44.65 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 9.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | XD |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 15634.04 |
| TOTAL WEIGHT | 2890.83 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/97a5ae39-6043-4cb6-9b24-13be6904d36e.pdf |
|
| ID | 9065.00 |
| 3D Solar link |
