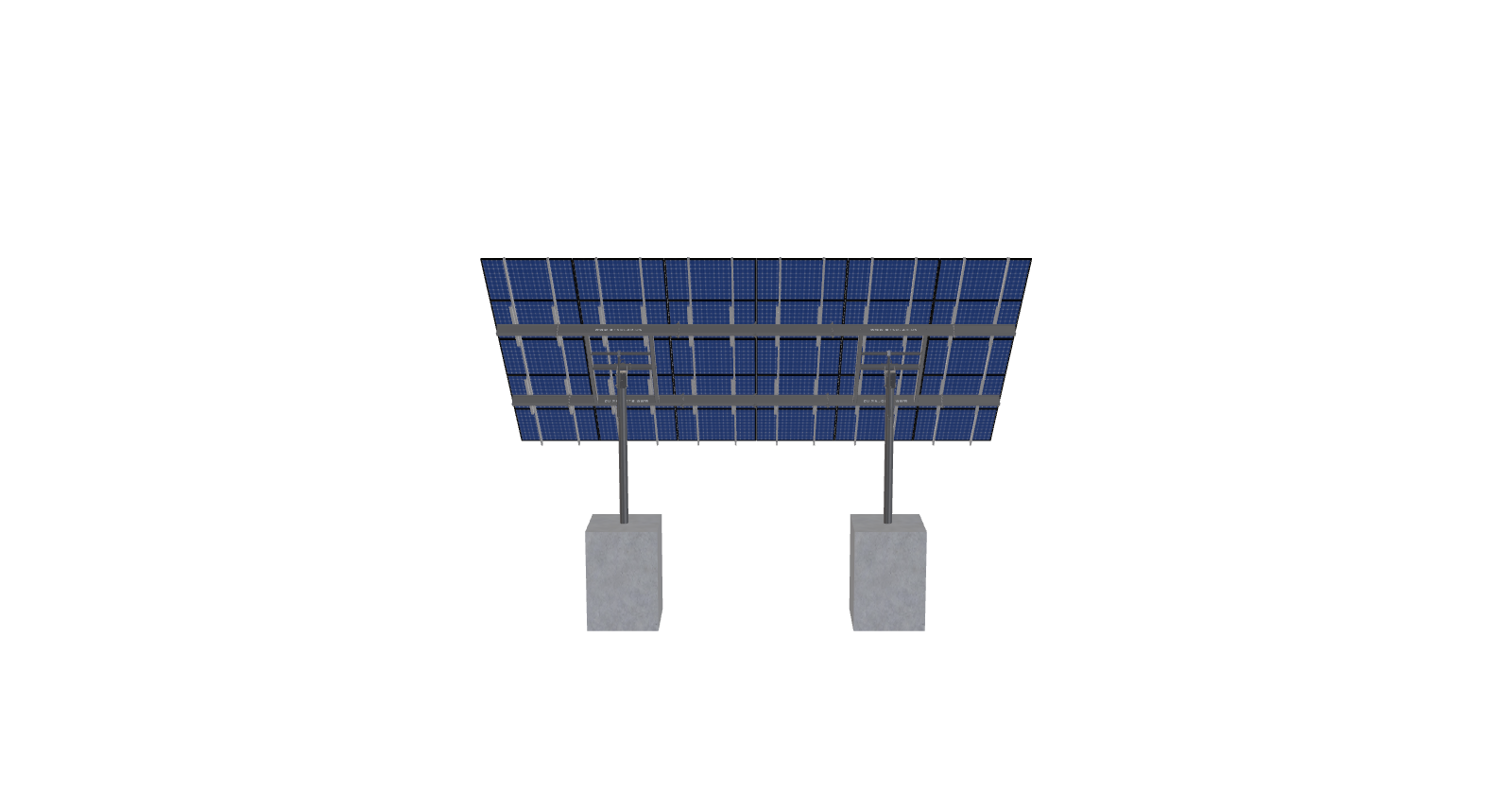

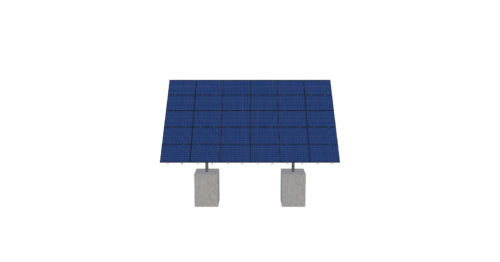

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 64.7 inches by 47.4 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
HarmonyEnergyWorks|RandazzoW10278|3219|RevA
$10,249.20
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 64.7 inches by 47.4 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2042.8600000000001 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-17-8TOP-HD-45-L-5HX6W-D6CF |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 10.06 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 6.50 |
| TILT ANGLE | 45.00 |
| CANTILEVER | 384.00 |
| GROUND CLEARANCE | 3.00 |
| NO POLES | 2.00 |
| MODULE AREA | 655.63 |
| ARRAY WIDTH | 32.85 |
| ARRAY HEIGHT | 19.96 |
| RAIL LENGTH | 239.50 |
| MODULE LENGTH | 64.70 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 32.00 |
| GROUND TO TOP | 17.04 |
| PROJECTED PANEL HEIGHT | 13.97 |
| WIND SPEED OVERRIDE | 90.00 |
| SNOW LOAD OVERRIDE | 70.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | HARMONYENERGYWORKS, RANDAZZOW10278, 3219, REVA |
| SITE ADDRESS | 14, WHITEHOUSE, RD, ROCHESTER, NH, 03867, USA |
| MODULE WIDTH | 47.40 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 10249.20 |
| TOTAL WEIGHT | 2042.86 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/0284d001-2203-4045-a874-da7134b385f8.pdf |
|
| ID | 6094.00 |
| 3D Solar link |
