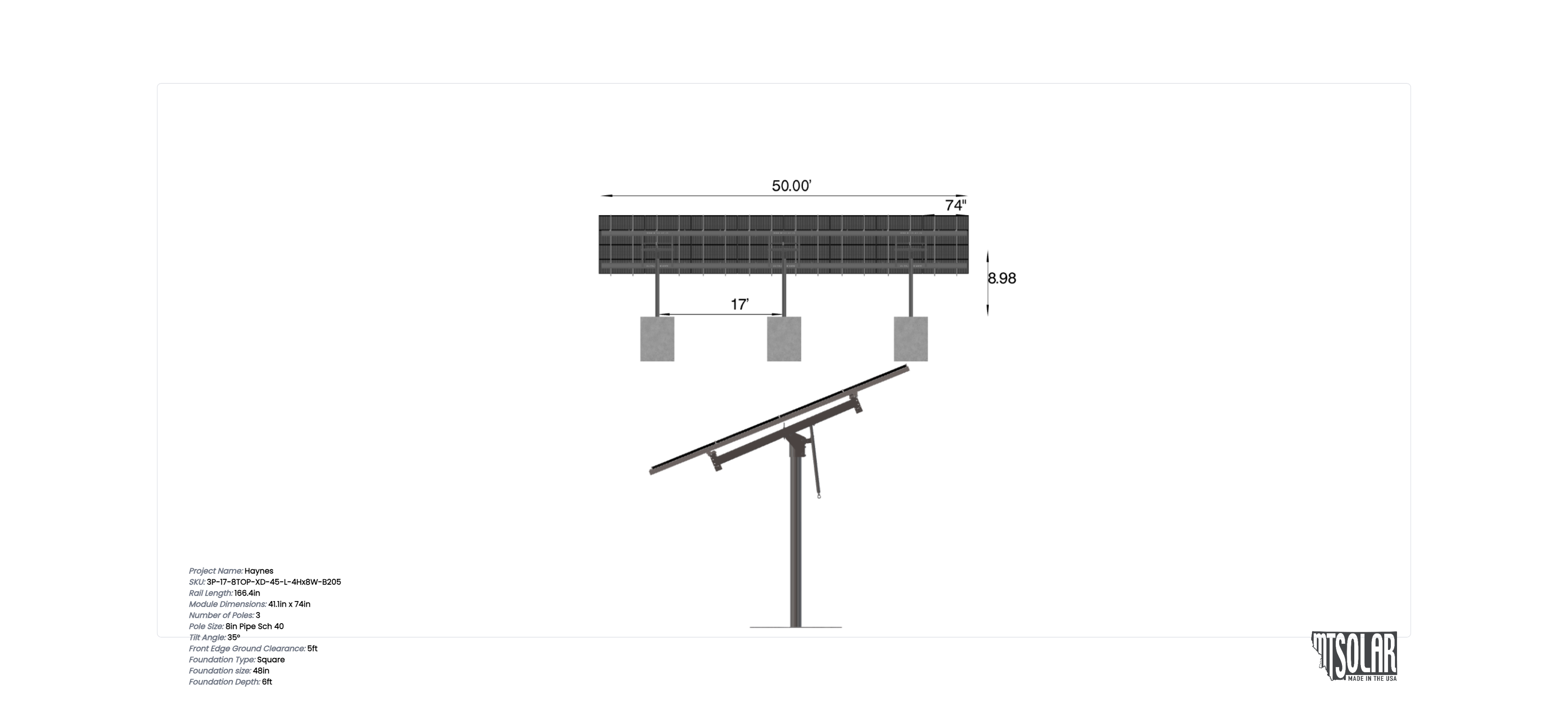

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41.1 inches and an array layout of 8 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

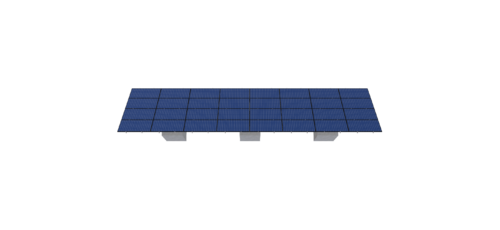

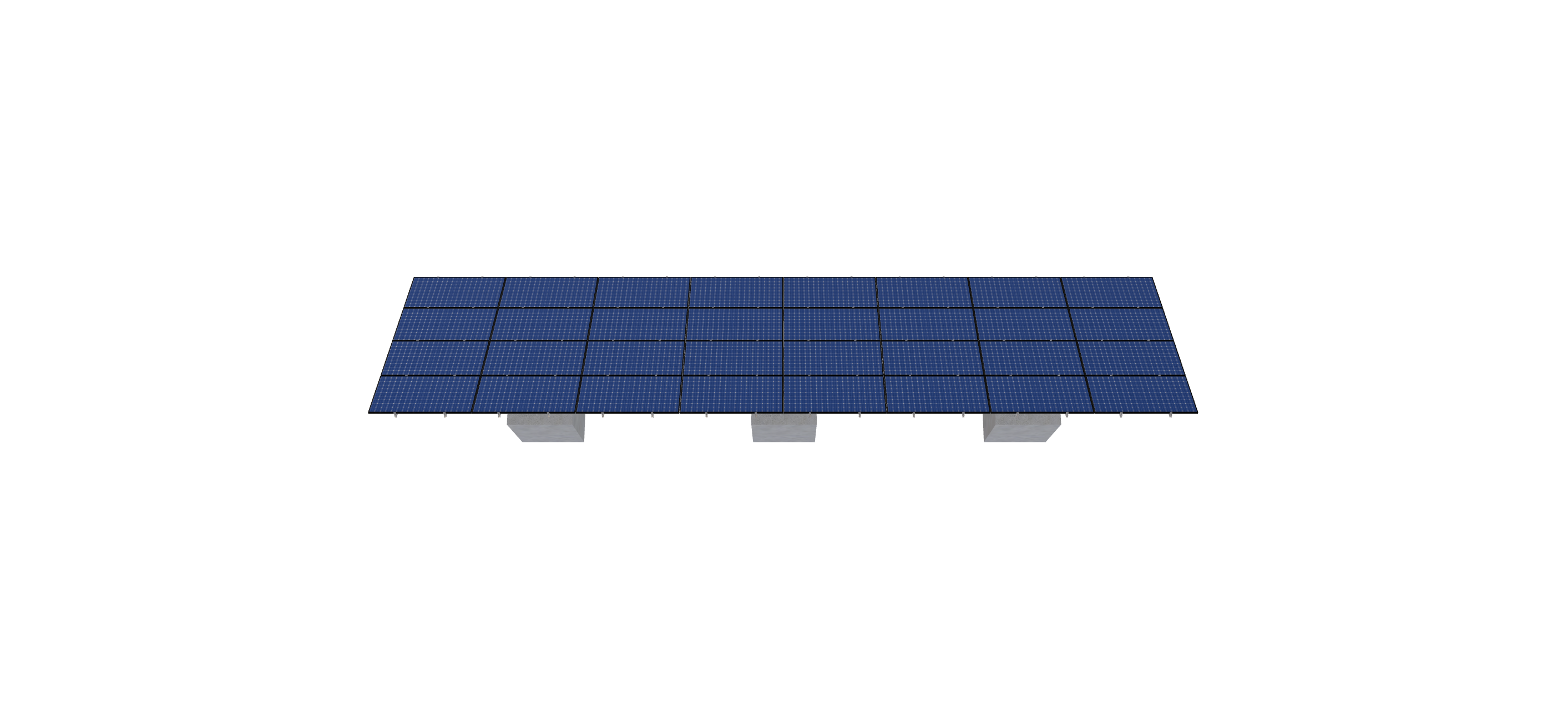

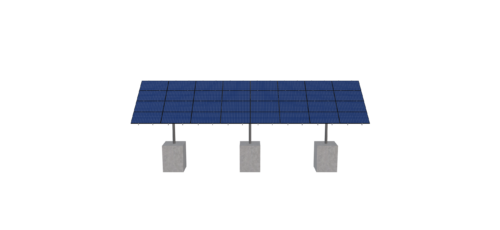

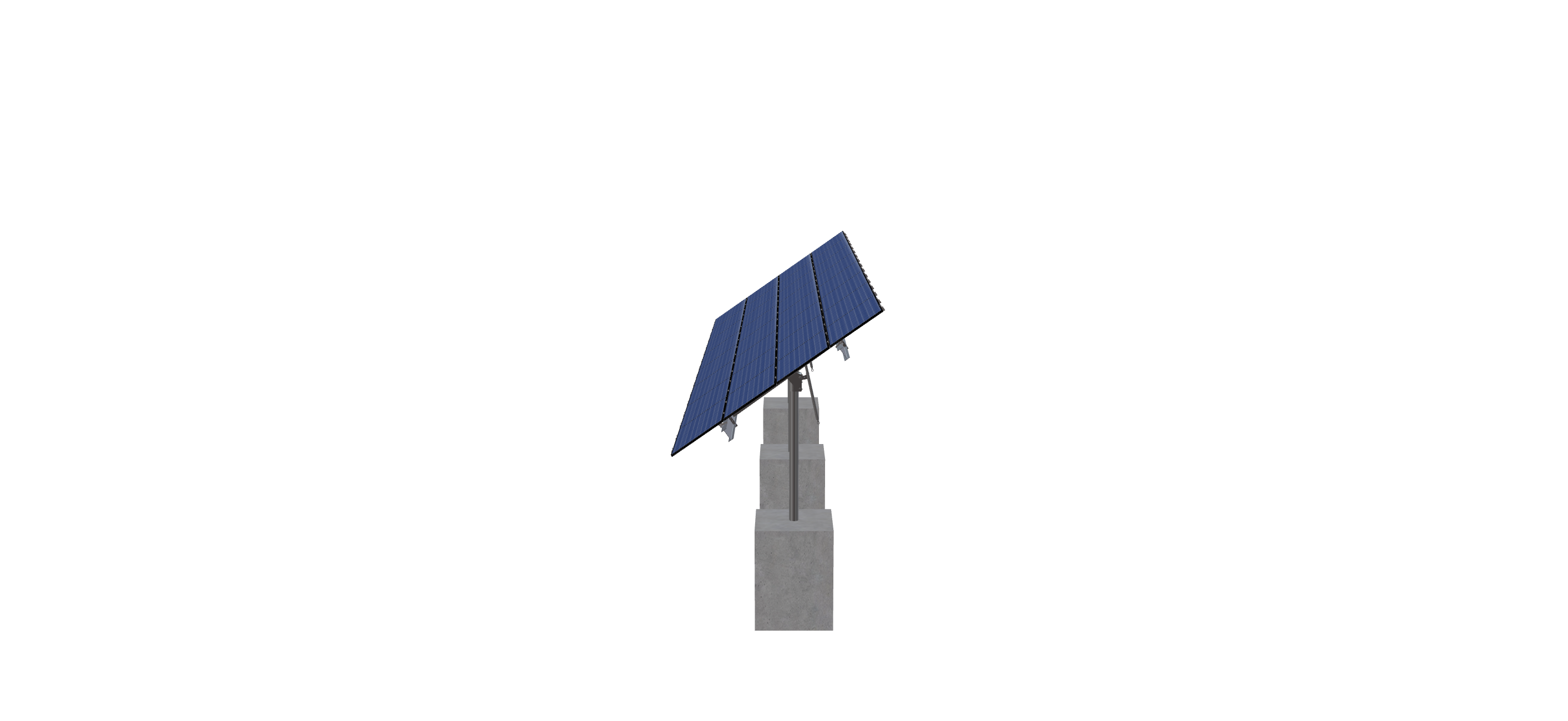

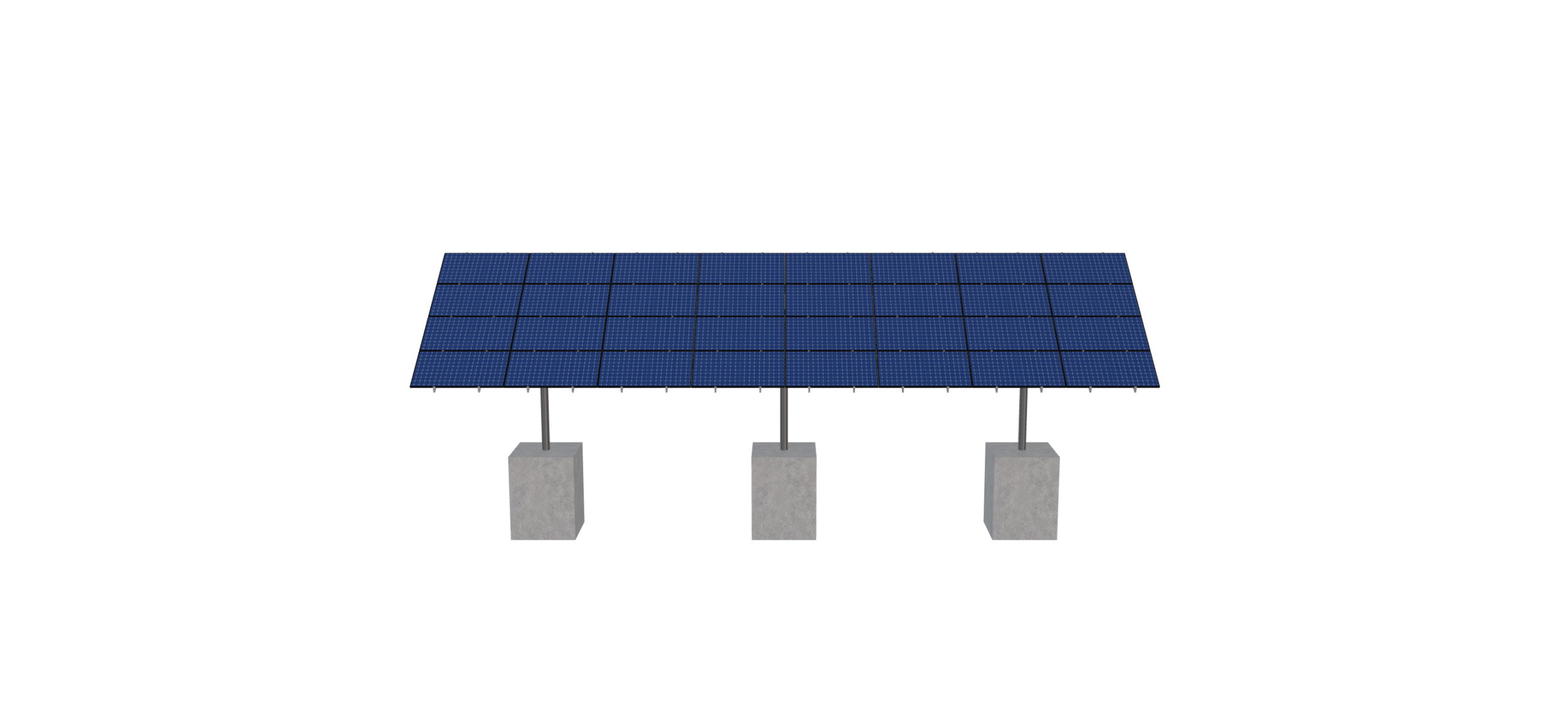

See 3D Model Here
Haynes
$15,133.72
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41.1 inches and an array layout of 8 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2805.6099999999997 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-17-8TOP-XD-45-L-4HX8W-B205 |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 8.98 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 6.00 |
| TILT ANGLE | 35.00 |
| CANTILEVER | 588.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 3.00 |
| MODULE AREA | 693.33 |
| ARRAY WIDTH | 50.00 |
| ARRAY HEIGHT | 13.87 |
| RAIL LENGTH | 166.40 |
| MODULE LENGTH | 74.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 49.00 |
| GROUND TO TOP | 12.95 |
| PROJECTED PANEL HEIGHT | 7.95 |
| DESIGNER NAME | COLIN, MCCAULLEY |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 970-819-0840 |
| PROJECT ID | HAYNES |
| SITE ADDRESS | 70, DEER, CLOVER, LN, STEAMBOAT, SPRINGS, CO, 80487, USA |
| MODULE WIDTH | 41.10 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 8.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 115.00 |
| SNOW LOAD OVERRIDE | 120.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 15133.72 |
| TOTAL WEIGHT | 2805.61 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/c9ea3a1f-5638-48fd-b5ac-de96844f5629.pdf |
|
| ID | 8629.00 |
| 3D Solar link |
