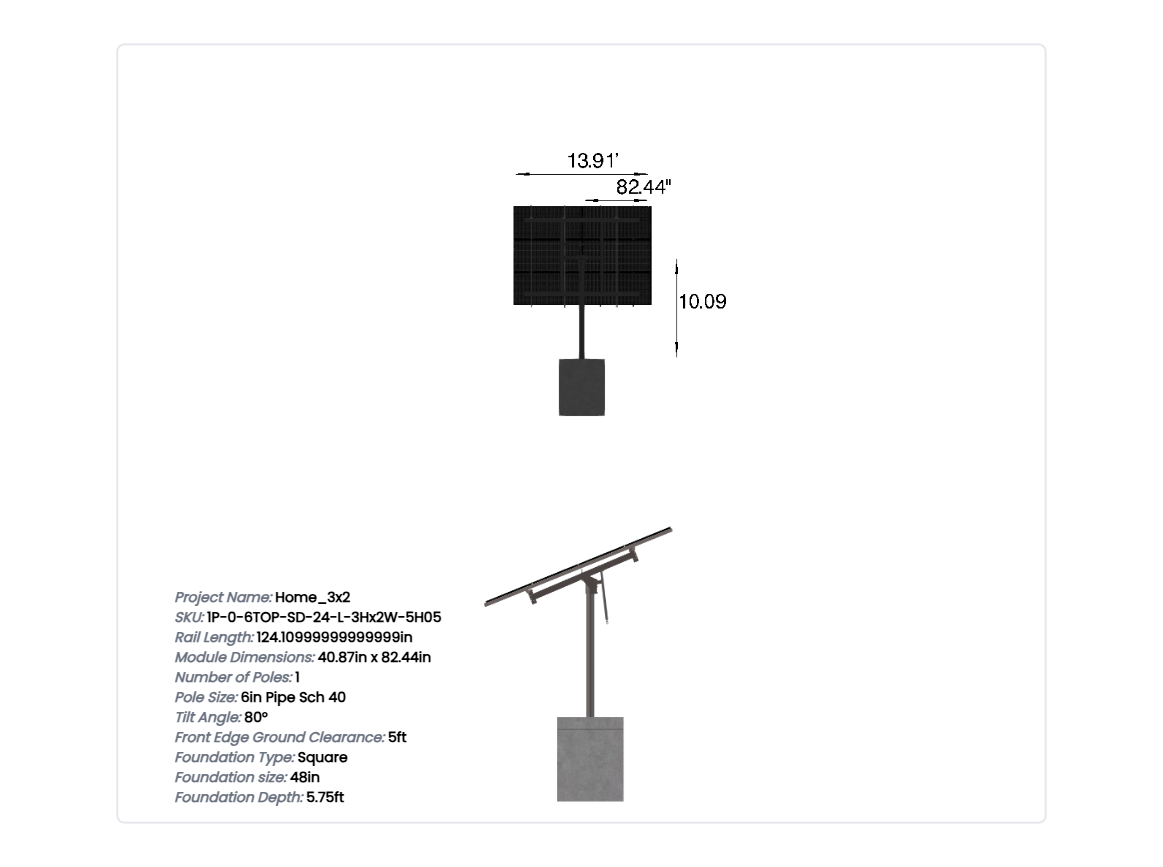

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.44 inches by 40.87 inches and an array layout of 2 wide by 3 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

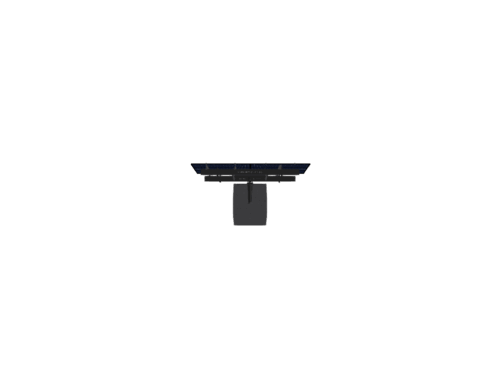

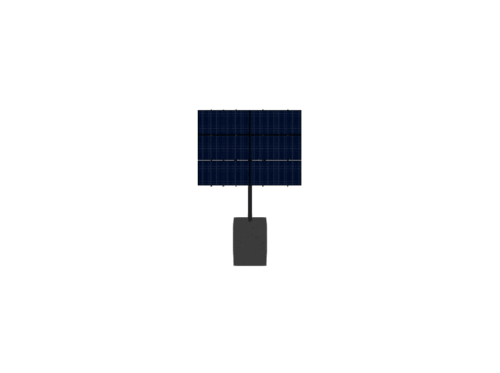

See 3D Model Here
Home_3x2
$3,343.55
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.44 inches by 40.87 inches and an array layout of 2 wide by 3 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 548.84 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-6TOP-SD-24-L-3HX2W-5H05 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 10.09 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 5.75 |
| TILT ANGLE | 80.00 |
| CANTILEVER | 138.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 1.00 |
| MODULE AREA | 143.83 |
| ARRAY WIDTH | 13.91 |
| ARRAY HEIGHT | 10.34 |
| RAIL LENGTH | 124.11 |
| MODULE LENGTH | 82.44 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 11.50 |
| GROUND TO TOP | 15.19 |
| PROJECTED PANEL HEIGHT | 10.19 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | JOSHUA, SMITH |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 4256281603.00 |
| PROJECT ID | HOME, 3X2 |
| SITE ADDRESS | 1206, LOG, CABIN, RD, BONNERS, FERRY, ID, 83805, USA |
| MODULE INFO | BSM460M-72HBD |
| MODULE WIDTH | 40.87 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 2.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 3343.55 |
| TOTAL WEIGHT | 548.84 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/4437788c-3f39-4360-b13f-170869dfaa41.pdf |
|
| ID | 12210.00 |
| 3D Solar link |
