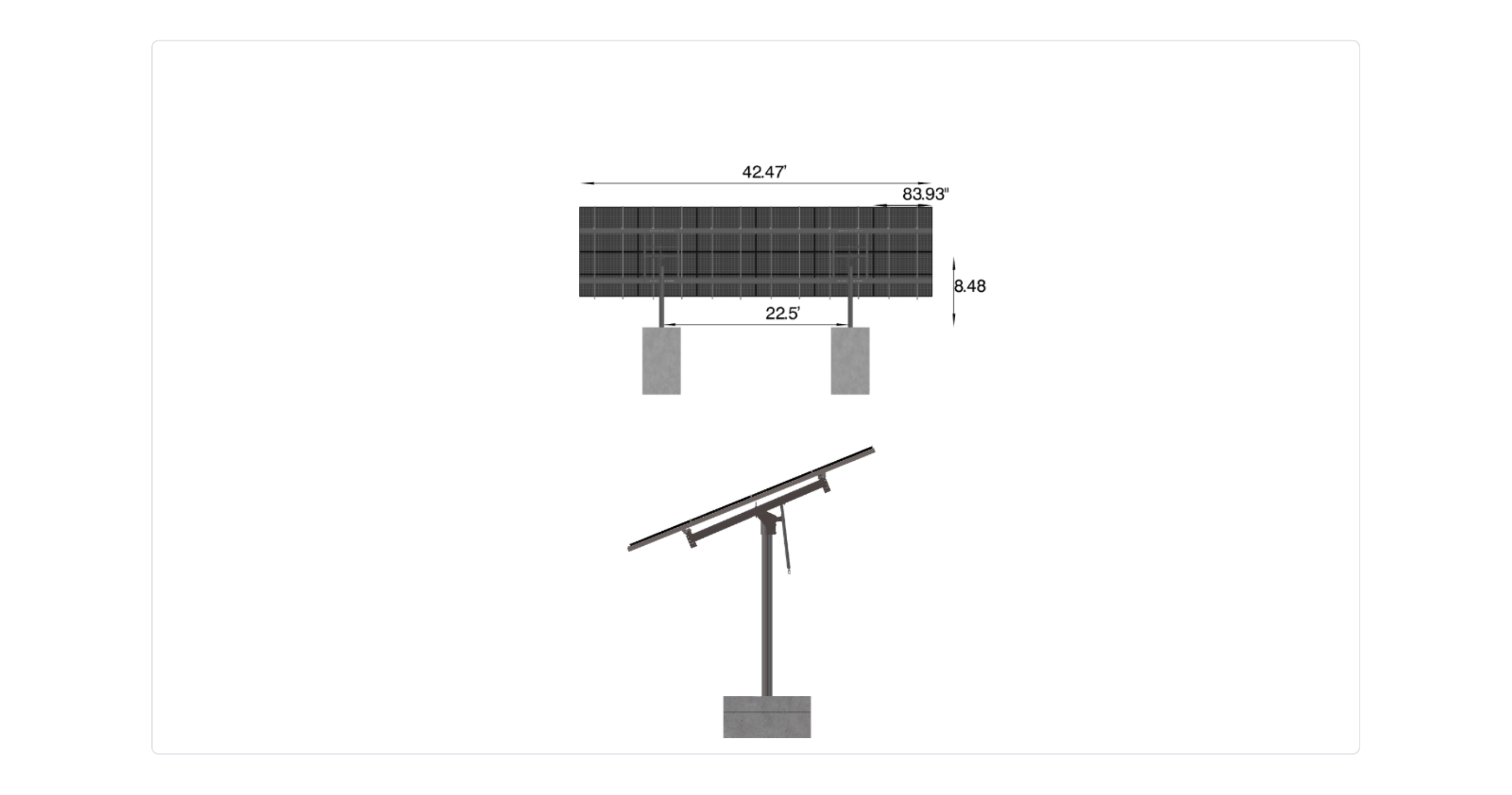

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 83.93 inches by 41.25 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

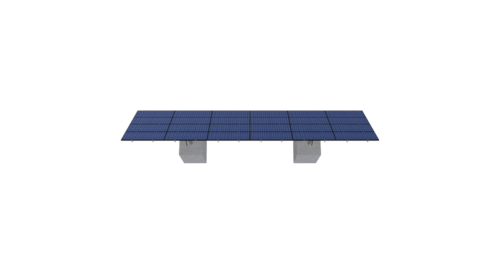

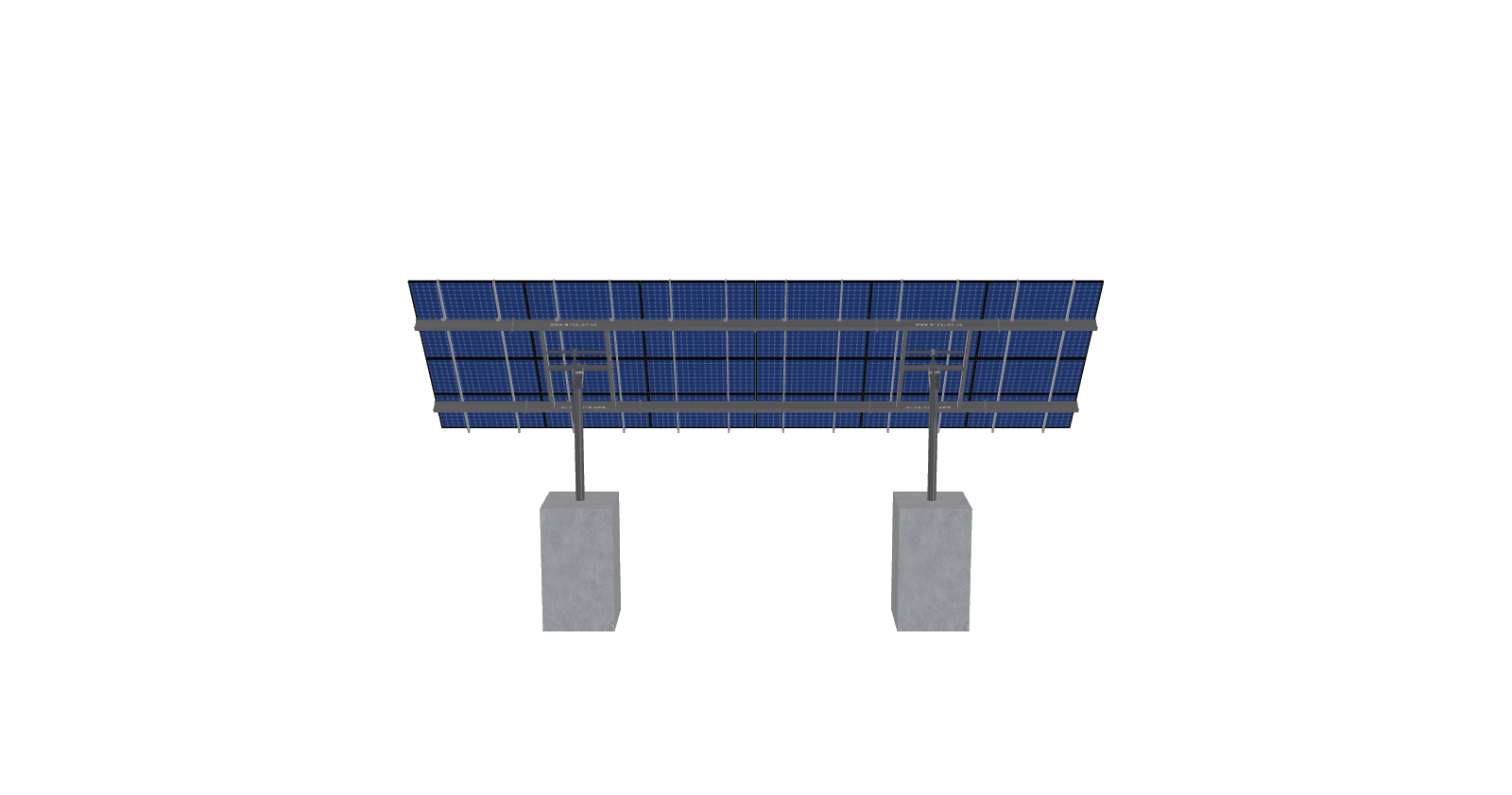

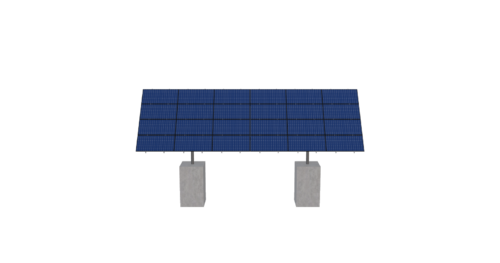

See 3D Model Here
Huck 4×6 52 deg 3ft clear
$10,427.56
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 83.93 inches by 41.25 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1857.4599999999998 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-22.5-8TOP-HD-72-L-4HX6W-G7L6 |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 8.48 |
| WING SPAN | 72.00 |
| MAX FOUNDATION DEPTH | 8.00 |
| TILT ANGLE | 52.00 |
| CANTILEVER | 504.00 |
| GROUND CLEARANCE | 3.00 |
| NO POLES | 2.00 |
| MODULE AREA | 590.97 |
| ARRAY WIDTH | 42.47 |
| ARRAY HEIGHT | 13.92 |
| RAIL LENGTH | 167.00 |
| MODULE LENGTH | 83.93 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 42.00 |
| GROUND TO TOP | 13.90 |
| PROJECTED PANEL HEIGHT | 10.84 |
| WIND SPEED OVERRIDE | 101.00 |
| SNOW LOAD OVERRIDE | 64.00 |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | HUCK, 4X6, 52, DEG, 3FT, CLEAR |
| SITE ADDRESS | HP9R+3C, PALMDALE, CA, USA |
| MODULE WIDTH | 41.25 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | III |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | CLAY |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 9931.01 |
| TOTAL WEIGHT | 1857.46 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/936f0205-5abe-4ef7-be20-984d9e248d76.pdf |
|
| ID | 2469.00 |
| 3D Solar link |
