$15,698.25
This Pole Mount is designed for modules with dimensions of 80″ by 49″ and an array layout of 5 high by 9 wide.

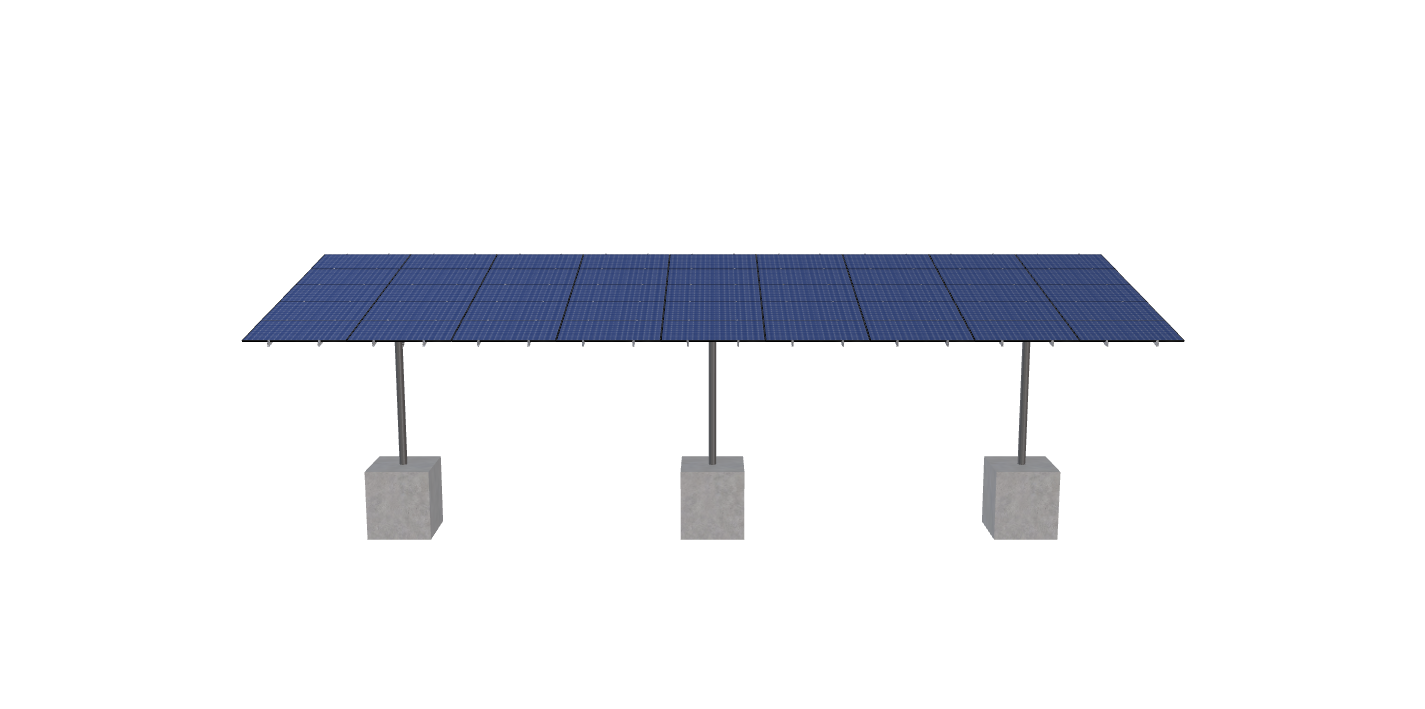

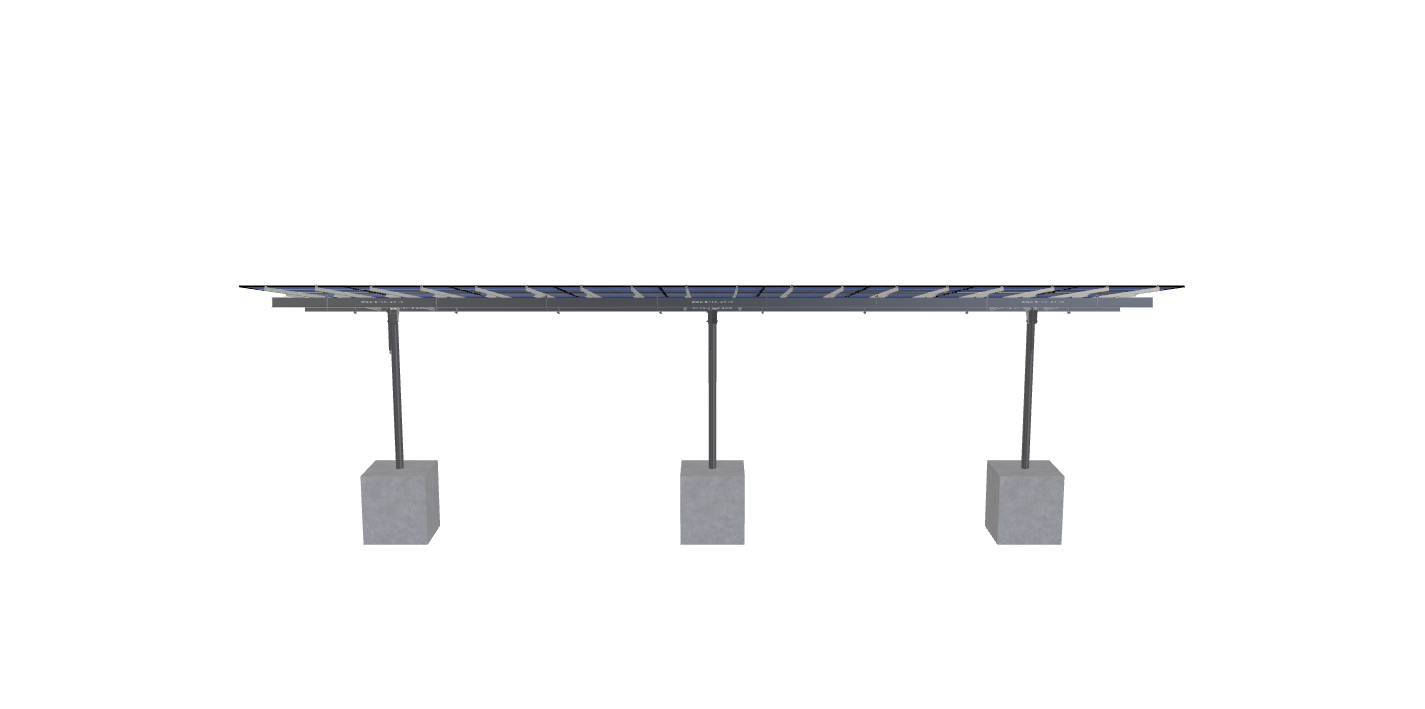

This mount fits on 3 – 6″ Sch 40 steel poles with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
SKU: 3P-19.75-6TOP-HD-72-L-5Hx9W-9E0I
This Pole Mount is designed for modules with dimensions of 80″ by 49″ and an array layout of 5 high by 9 wide.
This mount fits on 3 – 6″ Sch 40 steel poles with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
SKU: 3P-19.75-6TOP-HD-72-L-5Hx9W-9E0I
| Weight | 3273.61 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-22.5-6TOP-HD-45-L-5HX9W-16II |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 11.79 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 5.00 |
| TILT ANGLE | 10.00 |
| CANTILEVER | 720.00 |
| GROUND CLEARANCE | 10.00 |
| NO POLES | 3.00 |
| MODULE AREA | 1252.97 |
| ARRAY WIDTH | 60.75 |
| ARRAY HEIGHT | 20.63 |
| RAIL LENGTH | 247.50 |
| MODULE LENGTH | 80.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 60.00 |
| GROUND TO TOP | 13.56 |
| PROJECTED PANEL HEIGHT | 3.55 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER EMAIL | |

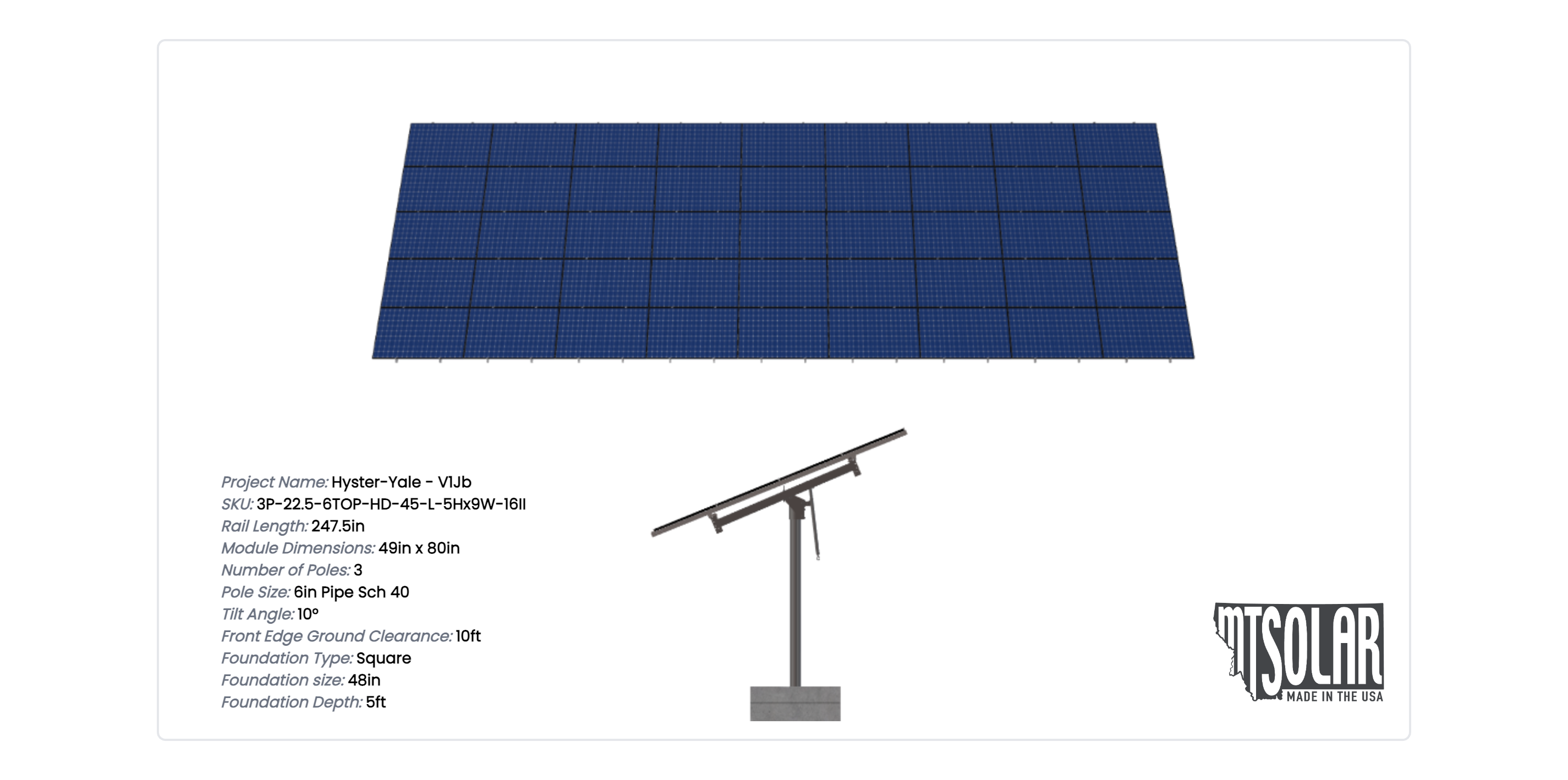

| PROJECT ID | HYSTER-YALE, -, V1JB |
| SITE ADDRESS | 4000, NE, BLUE, LAKE, RD, FAIRVIEW, OR, 97024, USA |
| MODULE WIDTH | 49.00 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 9.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 16171.31 |
| TOTAL WEIGHT | 3273.61 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/784a7972-bc3a-468f-a573-88cd040940aa.pdf |
|
| ID | 8074.00 |
| 3D Solar link |
