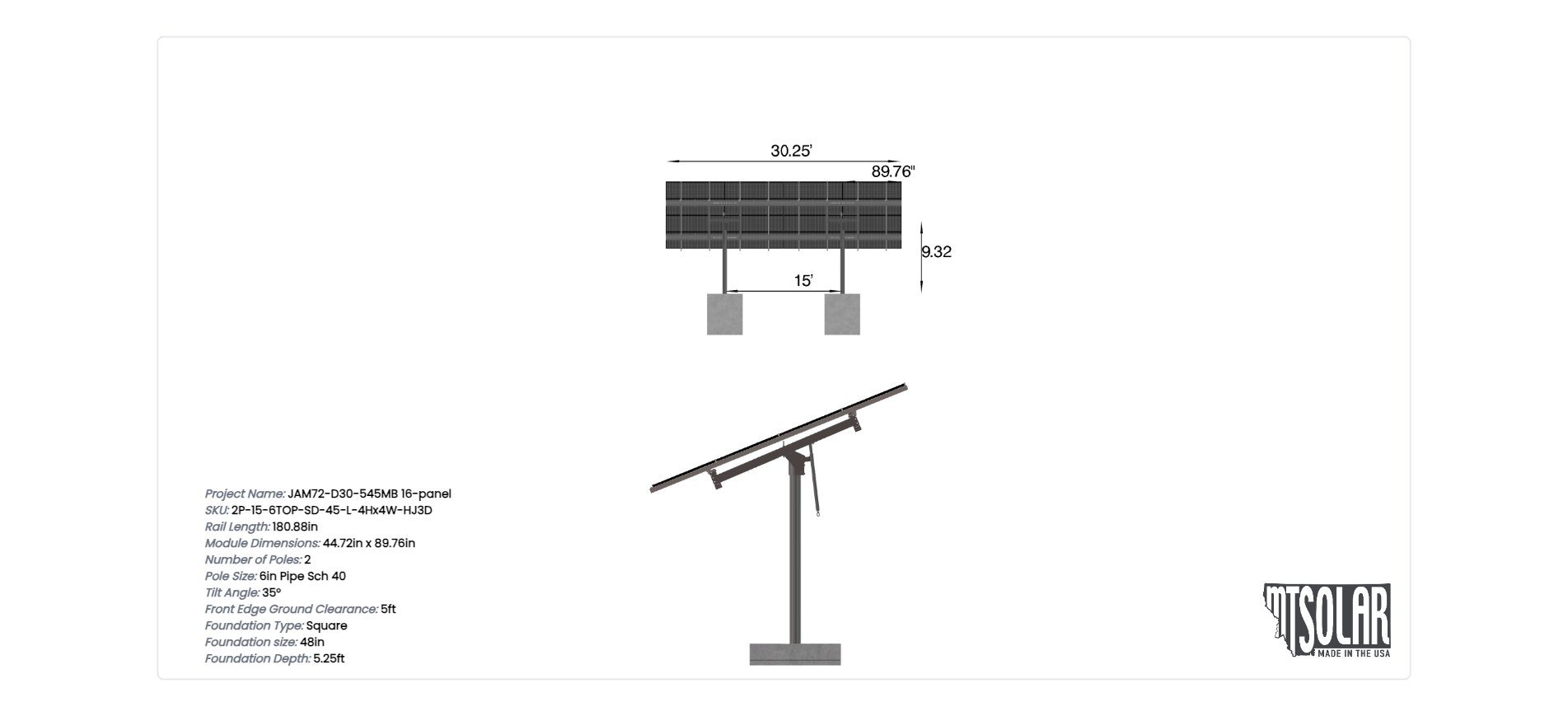

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.76 inches by 44.72 inches and an array layout of 4 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
JAM72-D30-545MB 16-panel
$7,433.45
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.76 inches by 44.72 inches and an array layout of 4 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1254.38 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-15-6TOP-SD-45-L-4HX4W-HJ3D |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 15.00 |
| POLE HEIGHT | 9.32 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 5.25 |
| TILT ANGLE | 35.00 |
| CANTILEVER | 360.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 2.00 |
| MODULE AREA | 456.02 |
| ARRAY WIDTH | 30.25 |
| ARRAY HEIGHT | 15.07 |
| RAIL LENGTH | 180.88 |
| MODULE LENGTH | 89.76 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 30.00 |
| GROUND TO TOP | 13.60 |
| PROJECTED PANEL HEIGHT | 8.55 |
| PROJECT ID | JAM72-D30-545MB, 16-PANEL |
| SITE ADDRESS | CUSTER, SD, 57730, USA |
| MODULE WIDTH | 44.72 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 4.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 105.00 |
| SNOW LOAD OVERRIDE | 30.00 |
| DIRECT SNOW LOAD | FALSE |
| TOTAL PRICE | 7079.48 |
| TOTAL WEIGHT | 1254.38 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/d1135260-6345-49aa-8c82-0921c7ce5479.pdf |
|
| ID | 2419.00 |
| 3D Solar link |
