Jamie Fath 24 Module

$10,761.33

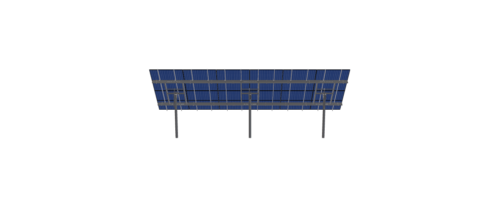

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.2 inches by 41.1 inches and an array layout of 6 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 3P-17-6TOP-SD-12-L-4Hx6W-6IBL Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.2 inches by 41.1 inches and an array layout of 6 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 1900.32 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

3P-17-6TOP-SD-12-L-4HX6W-6IBL

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

3.00

POLE SPACING

17.00

POLE HEIGHT

10.31

WING SPAN

12.00

MAX FOUNDATION DEPTH

7.50

TILT ANGLE

50.00

CANTILEVER

522.00

GROUND CLEARANCE

5.00

NO POLES

3.00

MODULE AREA

611.52

ARRAY WIDTH

44.10

ARRAY HEIGHT

13.87

RAIL LENGTH

166.40

MODULE LENGTH

87.20

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

43.50

GROUND TO TOP

15.56

PROJECTED PANEL HEIGHT

10.49

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

JAMIE, FATH, 24, MODULE

SITE ADDRESS

1640, CO, RD, C, ST, GERMAIN, WI, 54558, USA

MODULE WIDTH

41.10

NUMBER ROWS

4.00

NUMBER COLUMNS

6.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

36, ROUND

FOUNDATION TYPE

ROUND

FOUNDATION SIZE

36.00

CHECK RAILS

FALSE

TOTAL PRICE

10761.33

TOTAL WEIGHT

1900.32

TOTAL PALLETS

3.00
