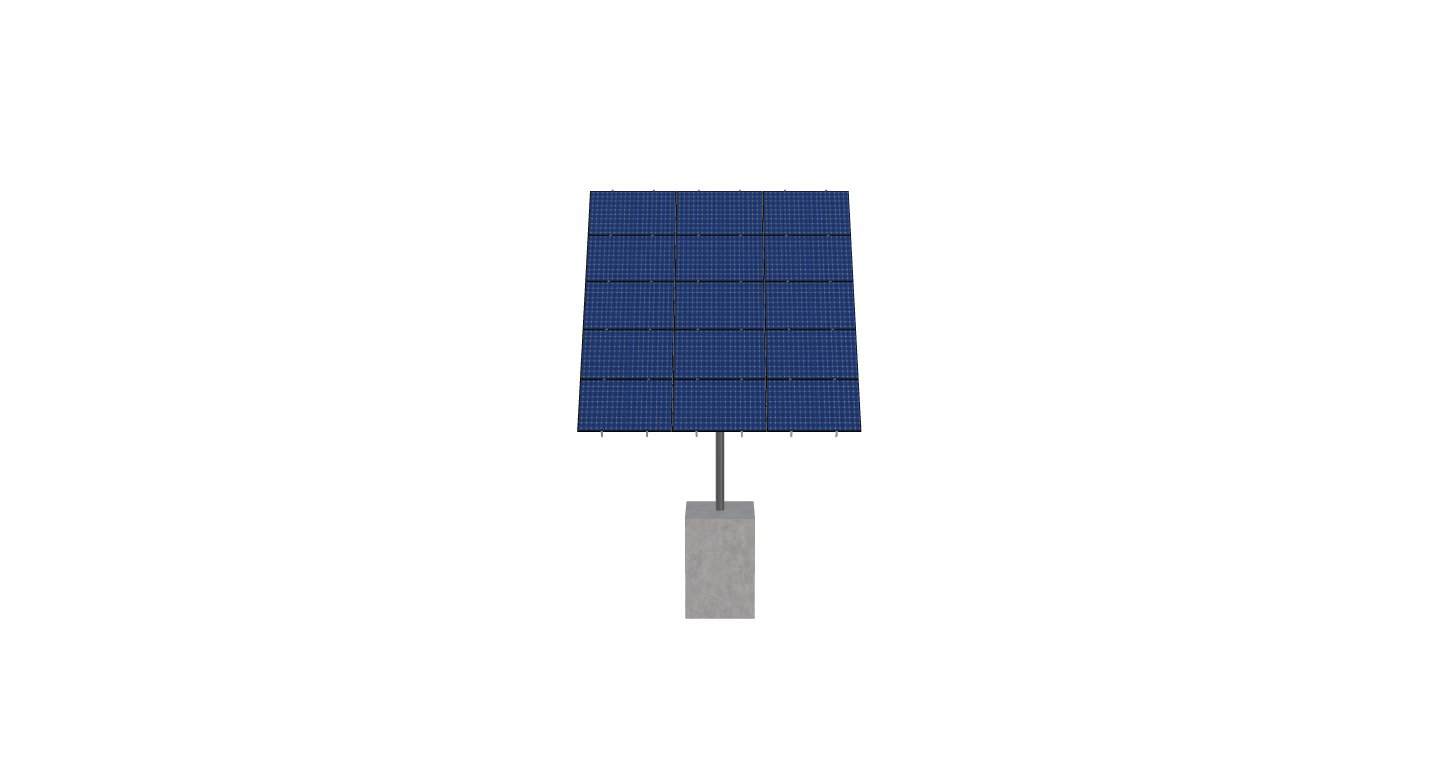

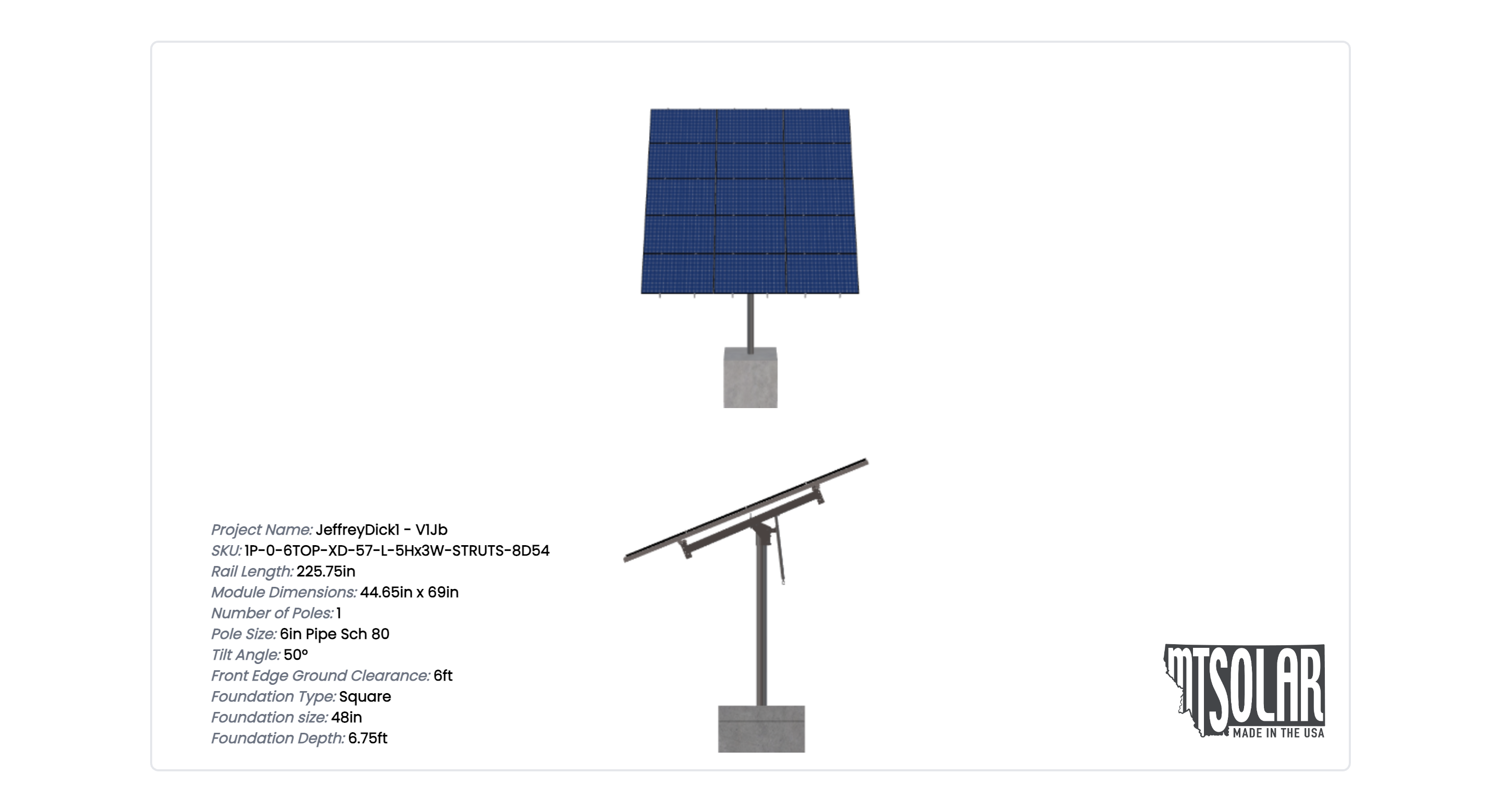

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69 inches by 44.65 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
JeffreyDick1 – V1Jb
$5,596.13
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69 inches by 44.65 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1118.8700000000001 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-6TOP-XD-57-L-5HX3W-STRUTS-8D54 |
| DUTY SIZE | XD |
| POLE SIZE | 6IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 13.21 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 6.75 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 204.00 |
| GROUND CLEARANCE | 6.00 |
| NO POLES | 1.00 |
| MODULE AREA | 329.22 |
| ARRAY WIDTH | 17.50 |
| ARRAY HEIGHT | 18.81 |
| RAIL LENGTH | 225.75 |
| MODULE LENGTH | 69.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 17.00 |
| GROUND TO TOP | 20.33 |
| PROJECTED PANEL HEIGHT | 14.25 |
| DESIGNER NAME | BRANDON |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | JEFFREYDICK1, -, V1JB |
| SITE ADDRESS | 72, RIDGEVIEW, LOOP, RD, BIG, SKY, MT, 59716, USA |
| MODULE WIDTH | 44.65 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 120.00 |
| SNOW LOAD OVERRIDE | 200.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | TRUE |
| TOTAL PRICE | 5596.13 |
| TOTAL WEIGHT | 1118.87 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/02de1adb-0255-4736-a408-0be5f222ec94.pdf |
|
| ID | 7937.00 |
| 3D Solar link |
