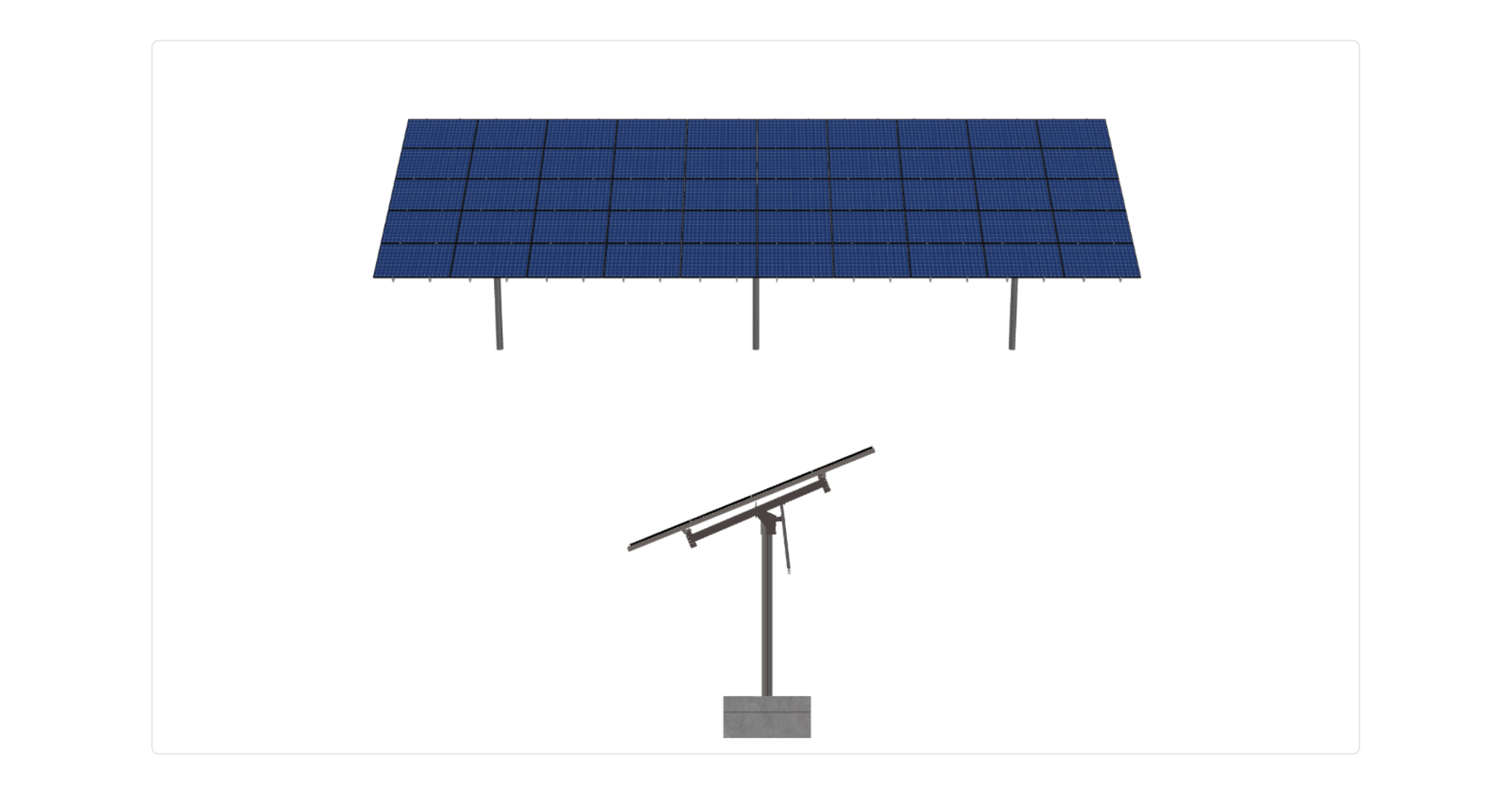

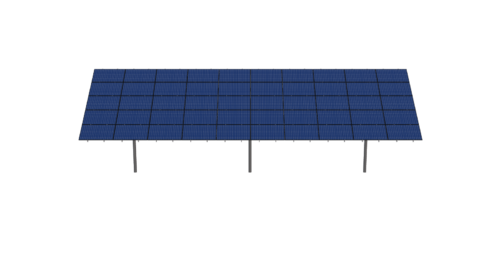

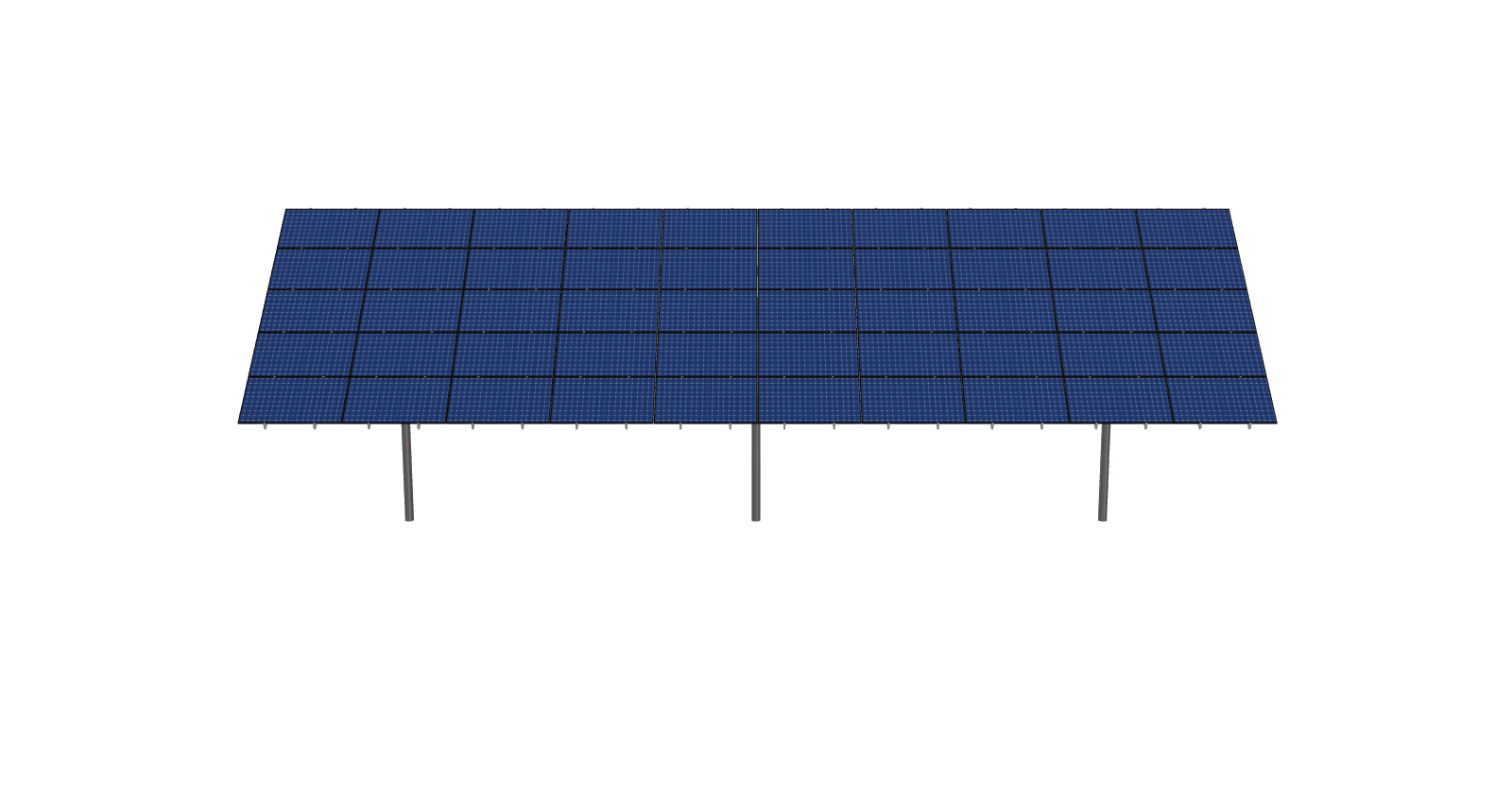

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41 inches and an array layout of 10 wide by 5 high.
This mount fits on 3 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
JJ 3
$15,133.19
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41 inches and an array layout of 10 wide by 5 high.
This mount fits on 3 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3024.4 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-22.5-6TOP-SD-57-L-5HX10W-1BB8 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 13.22 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 66.00 |
| TILT ANGLE | 46.00 |
| CANTILEVER | 744.00 |
| GROUND CLEARANCE | 7.00 |
| NO POLES | 3.00 |
| MODULE AREA | 1080.73 |
| ARRAY WIDTH | 62.50 |
| ARRAY HEIGHT | 17.29 |
| RAIL LENGTH | 207.50 |
| MODULE LENGTH | 74.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 62.00 |
| GROUND TO TOP | 19.36 |
| PROJECTED PANEL HEIGHT | 12.29 |
| WIND SPEED OVERRIDE | 90.00 |
| SNOW LOAD OVERRIDE | 30.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | JJ, 3 |
| SITE ADDRESS | MONTROSE, CO, 81401, USA |
| MODULE WIDTH | 41.00 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 10.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | ISOLATED |
| FOUNDATION SIZE | 48.00 |
| ISOLATED FOUNDATION THICKNESS | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 15133.19 |
| TOTAL WEIGHT | 3024.40 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/16cc032c-f10a-41d8-967e-aa6d98cb3319.pdf |
|
| ID | 2237.00 |
| 3D Solar link |
