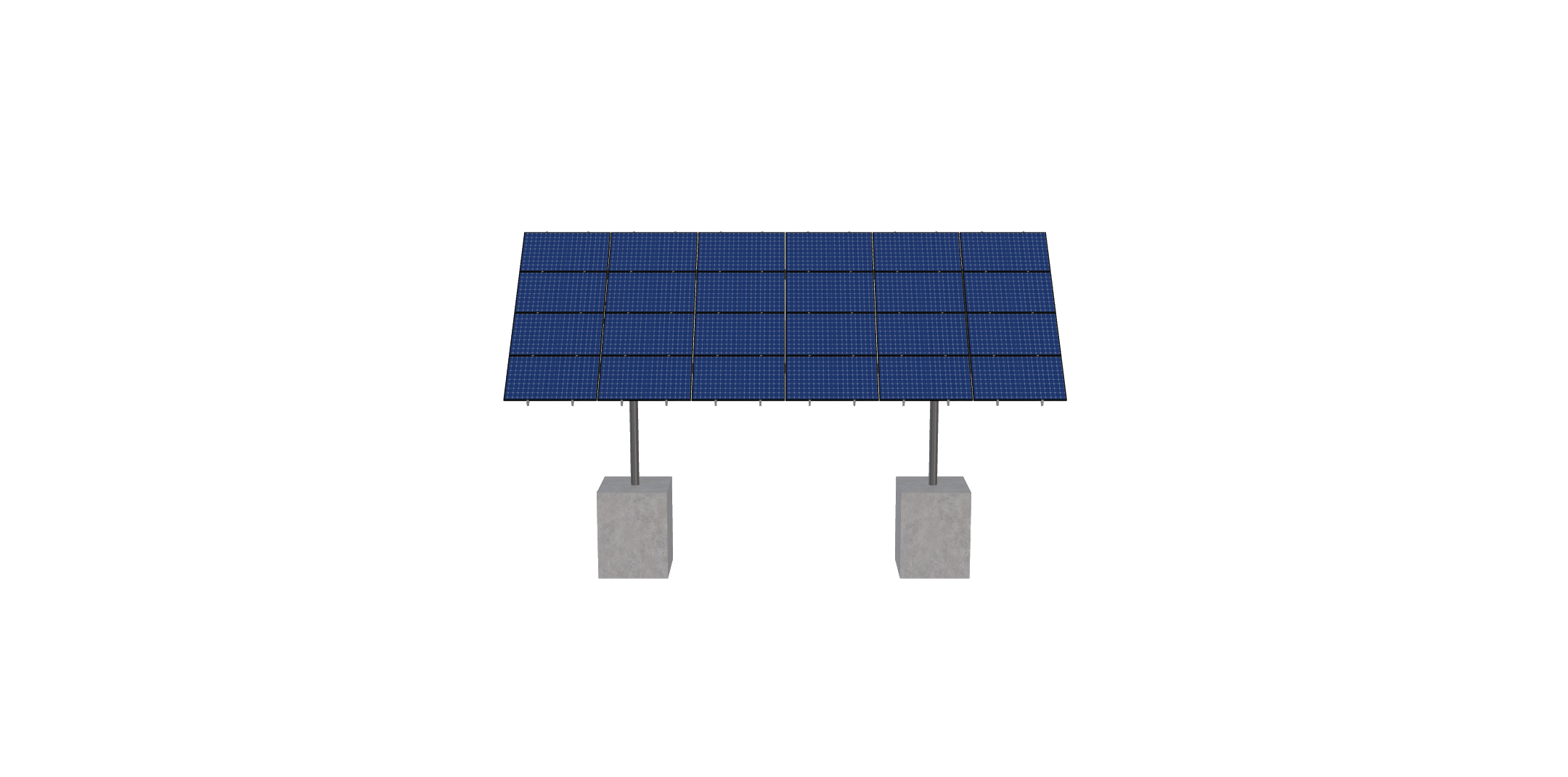

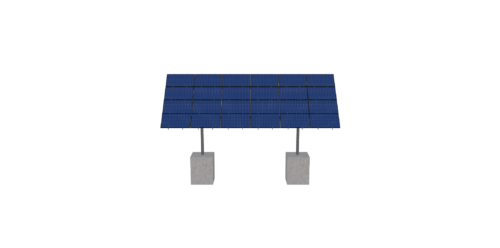

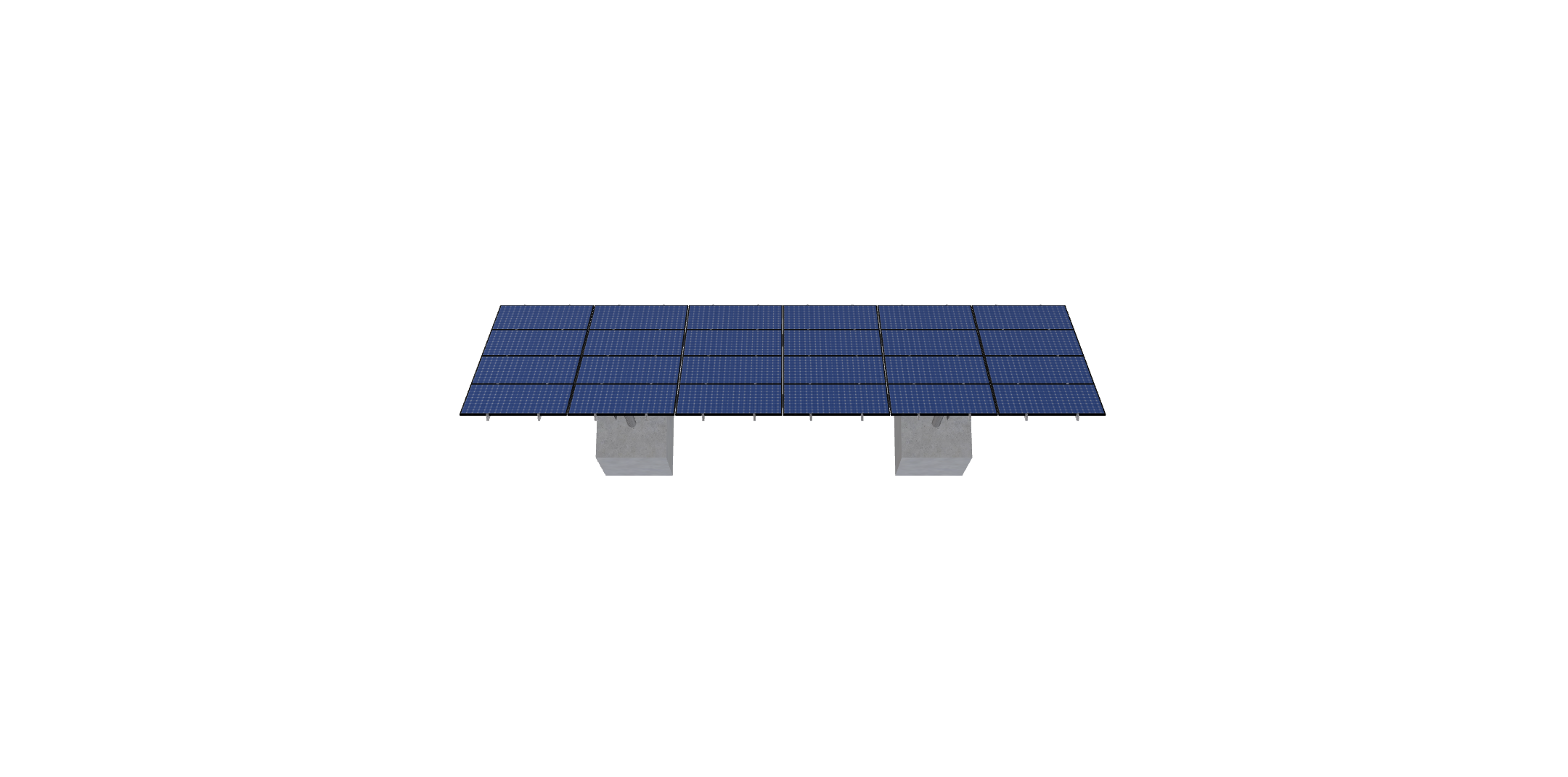

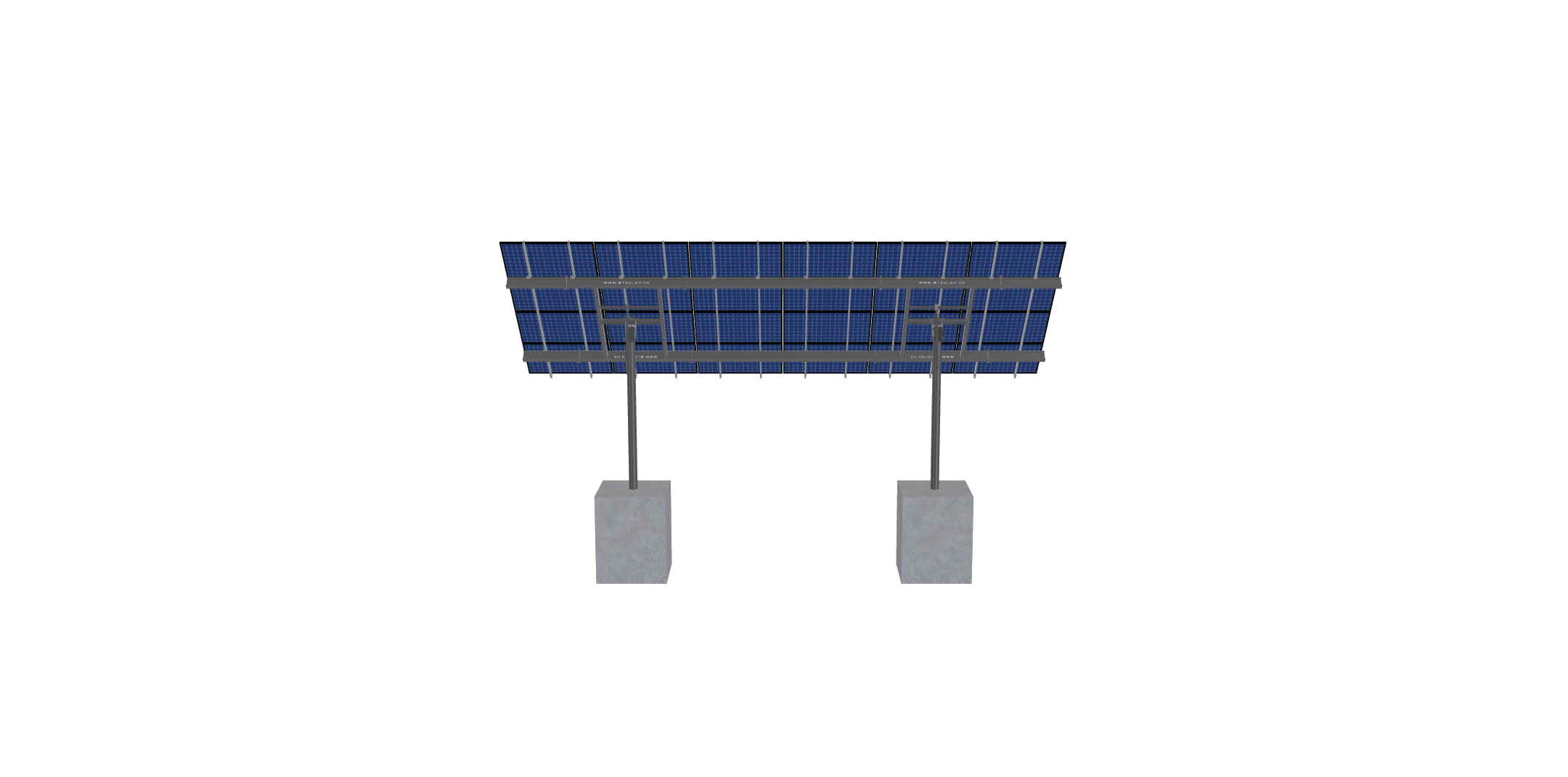

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.1 inches by 40.94 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

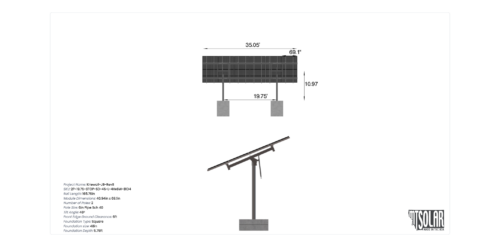

See 3D Model Here
Kriewall-JB-RevB
$8,573.06
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.1 inches by 40.94 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1436.82 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-19.75-6TOP-SD-45-L-4HX6W-B1D4 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 10.97 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 5.75 |
| TILT ANGLE | 46.00 |
| CANTILEVER | 417.00 |
| GROUND CLEARANCE | 6.00 |
| NO POLES | 2.00 |
| MODULE AREA | 484.16 |
| ARRAY WIDTH | 35.05 |
| ARRAY HEIGHT | 13.81 |
| RAIL LENGTH | 165.76 |
| MODULE LENGTH | 69.10 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 34.75 |
| GROUND TO TOP | 15.88 |
| PROJECTED PANEL HEIGHT | 9.82 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | KRIEWALL-JB-REVB |
| SITE ADDRESS | 25105, 74TH, PL, SE, MONROE, WA, 98272, USA |
| MODULE WIDTH | 40.94 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | CLAY |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 8164.82 |
| TOTAL WEIGHT | 1436.82 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/dfc92a50-4cf7-46b1-afcf-6ff4e84cda55.pdf |
|
| ID | 2572.00 |
| 3D Solar link |
