Krozel 2

$11,201.39

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 70 inches by 41 inches and an array layout of 7 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

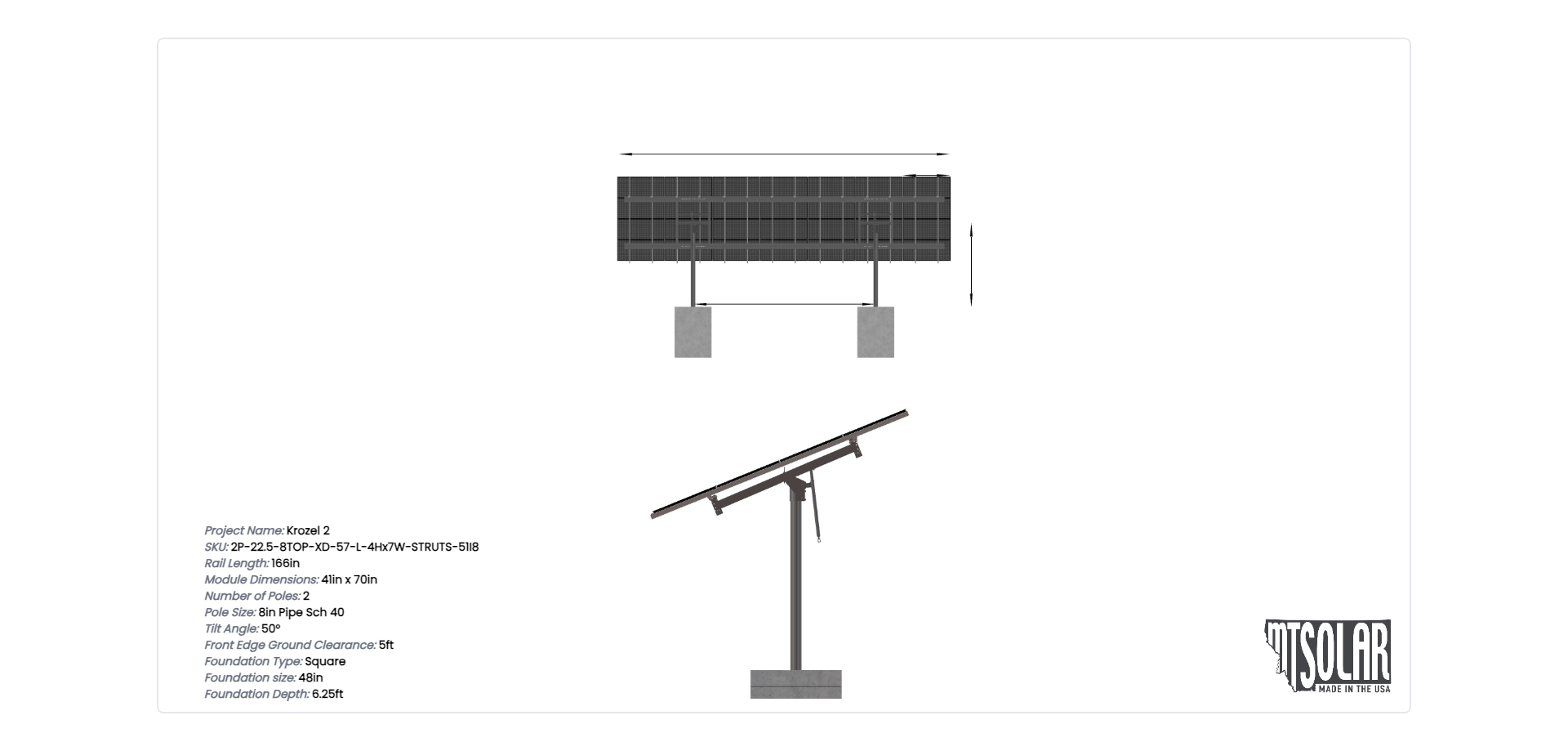

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 2P-22.5-8TOP-XD-57-L-4Hx7W-STRUTS-51I8 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 70 inches by 41 inches and an array layout of 7 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 2085.24 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

2P-22.5-8TOP-XD-57-L-4HX7W-STRUTS-51I8

DUTY SIZE

XD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

2.00

POLE SPACING

22.50

POLE HEIGHT

10.30

WING SPAN

57.00

MAX FOUNDATION DEPTH

6.25

TILT ANGLE

50.00

CANTILEVER

474.00

GROUND CLEARANCE

5.00

NO POLES

2.00

MODULE AREA

572.93

ARRAY WIDTH

41.42

ARRAY HEIGHT

13.83

RAIL LENGTH

166.00

MODULE LENGTH

70.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

39.50

GROUND TO TOP

15.53

PROJECTED PANEL HEIGHT

10.47

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

TRUE

PROJECT ID

KROZEL, 2

SITE ADDRESS

6301, N, TALGACH, VIEW, DR, WASILLA, AK, 99654, USA

MODULE WIDTH

41.00

NUMBER ROWS

4.00

NUMBER COLUMNS

7.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

8, 40

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

11201.39

TOTAL WEIGHT

2085.24

TOTAL PALLETS

2.00
