This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.565 inches by 41.5 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

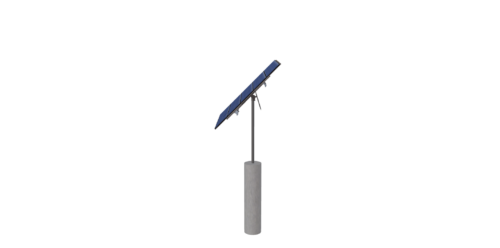

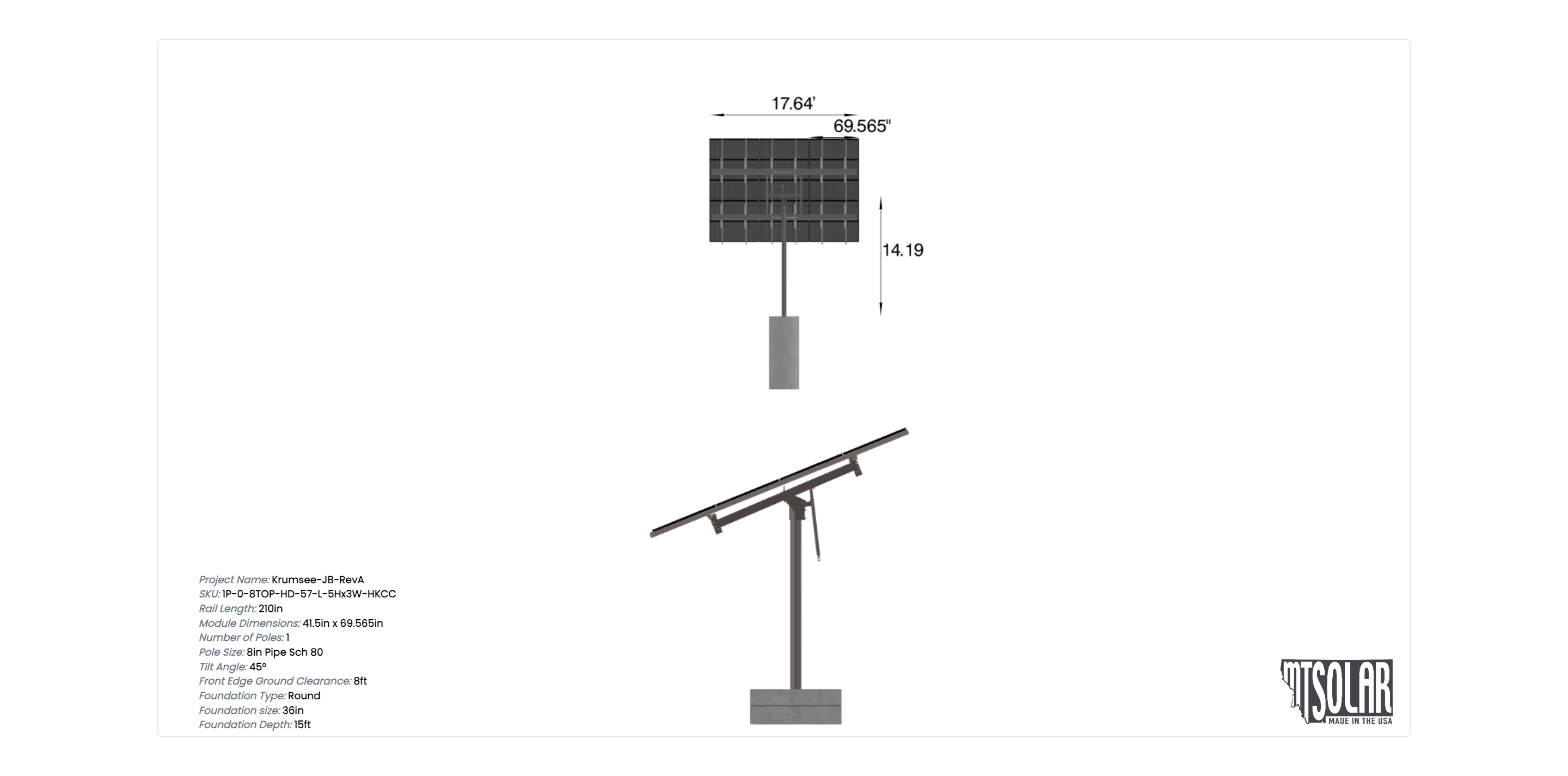

See 3D Model Here
Krumsee-JB-RevA
$5,385.25
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.565 inches by 41.5 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1027.03 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-8TOP-HD-57-L-5HX3W-HKCC |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 14.19 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 15.00 |
| TILT ANGLE | 45.00 |
| CANTILEVER | 204.00 |
| GROUND CLEARANCE | 8.00 |
| NO POLES | 1.00 |
| MODULE AREA | 308.72 |
| ARRAY WIDTH | 17.64 |
| ARRAY HEIGHT | 17.50 |
| RAIL LENGTH | 210.00 |
| MODULE LENGTH | 69.56 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 17.00 |
| GROUND TO TOP | 20.30 |
| PROJECTED PANEL HEIGHT | 12.23 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | KRUMSEE-JB-REVA |
| SITE ADDRESS | NICOLAY, SHRS, RD, SCANDINAVIA, WI, 54977, USA |
| MODULE WIDTH | 41.50 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 5128.81 |
| TOTAL WEIGHT | 1027.03 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/dd526371-6c6e-4c1b-ba23-b536625e67d8.pdf |
|
| ID | 2574.00 |
| 3D Solar link |
