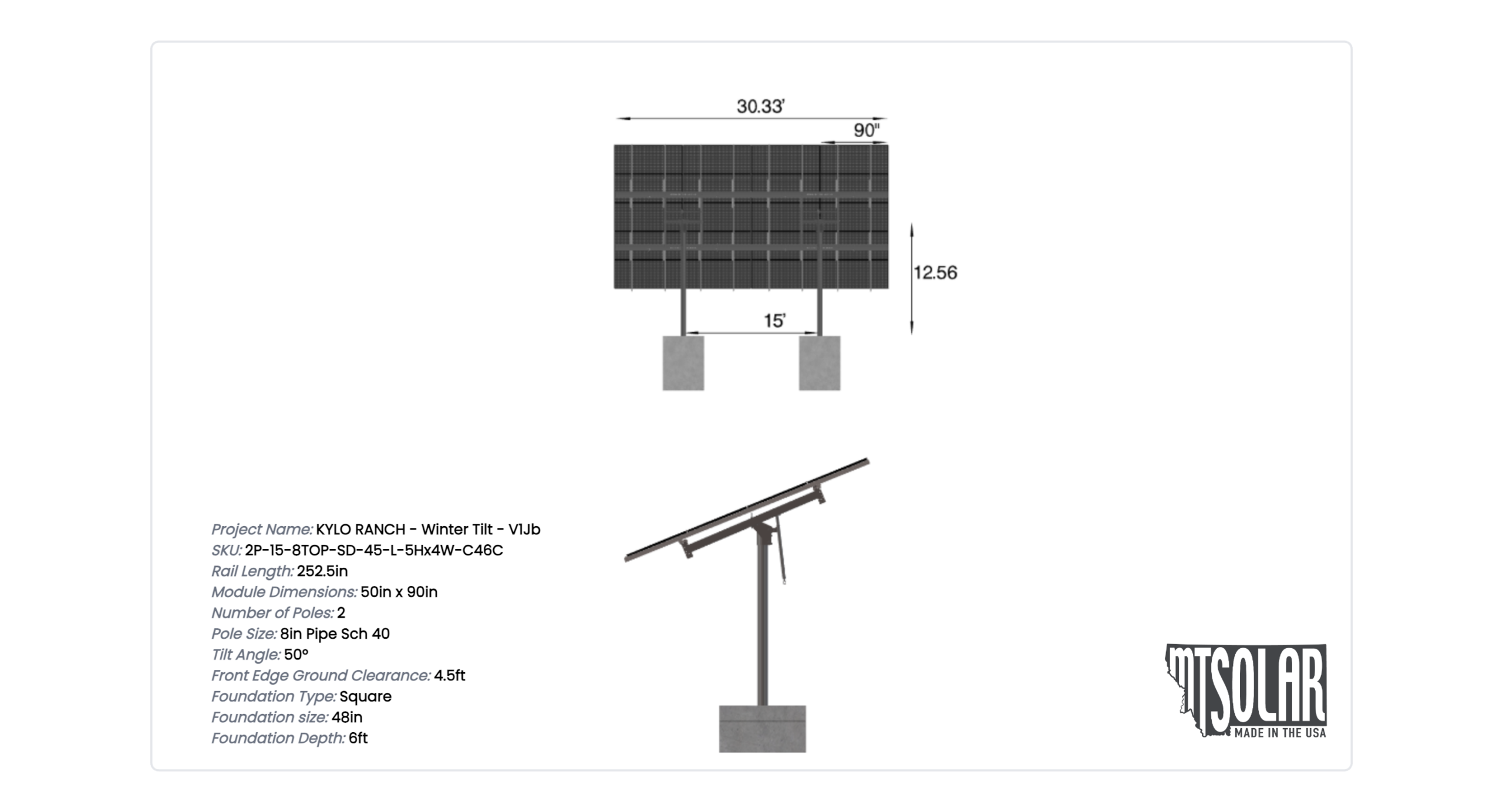

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 90 inches by 50 inches and an array layout of 4 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

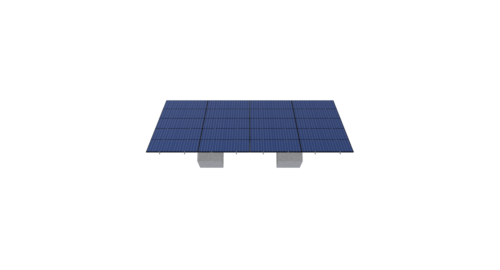

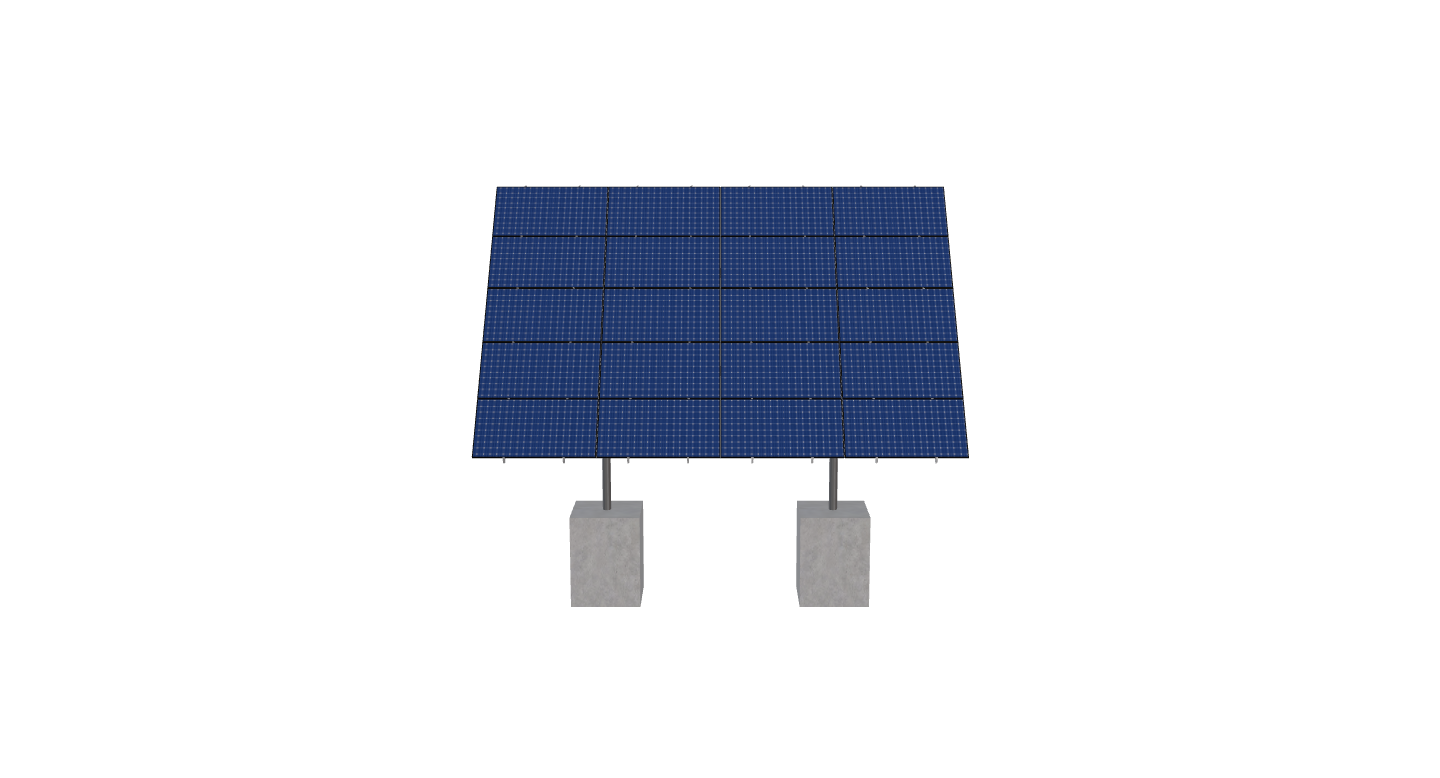

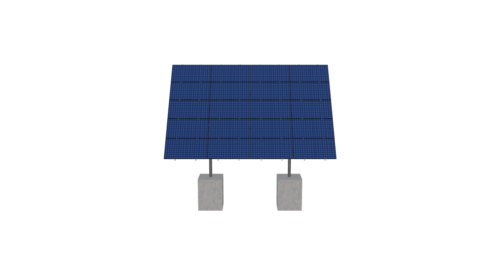

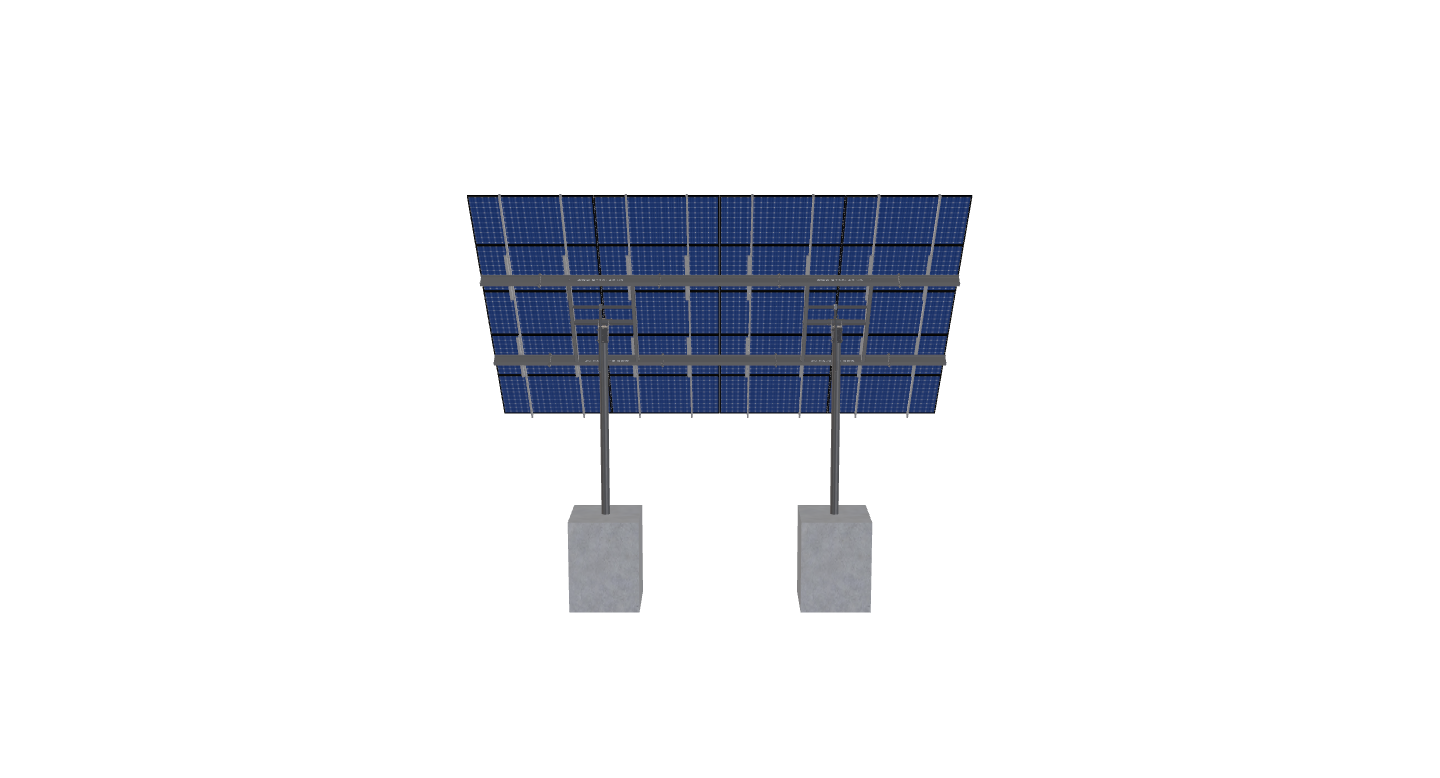

See 3D Model Here
KYLO RANCH – Winter Tilt – V1Jb
$7,958.94
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 90 inches by 50 inches and an array layout of 4 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1541.26 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-15-8TOP-SD-45-L-5HX4W-C46C |
| DUTY SIZE | SD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 15.00 |
| POLE HEIGHT | 12.56 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 6.00 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 360.00 |
| GROUND CLEARANCE | 4.50 |
| NO POLES | 2.00 |
| MODULE AREA | 638.26 |
| ARRAY WIDTH | 30.33 |
| ARRAY HEIGHT | 21.04 |
| RAIL LENGTH | 252.50 |
| MODULE LENGTH | 90.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 30.00 |
| GROUND TO TOP | 20.62 |
| PROJECTED PANEL HEIGHT | 16.12 |
| WIND SPEED OVERRIDE | 95.00 |
| SNOW LOAD OVERRIDE | 55.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | KYLO, RANCH, -, WINTER, TILT, -, V1JB |
| SITE ADDRESS | DANVILLE, WA, 99121, USA |
| MODULE WIDTH | 50.00 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 4.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 7958.94 |
| TOTAL WEIGHT | 1541.26 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/656fb069-fd48-4ddd-bc26-fca4c7b529df.pdf |
|
| ID | 8701.00 |
| 3D Solar link |
