This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 40 inches and an array layout of 13 wide by 5 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

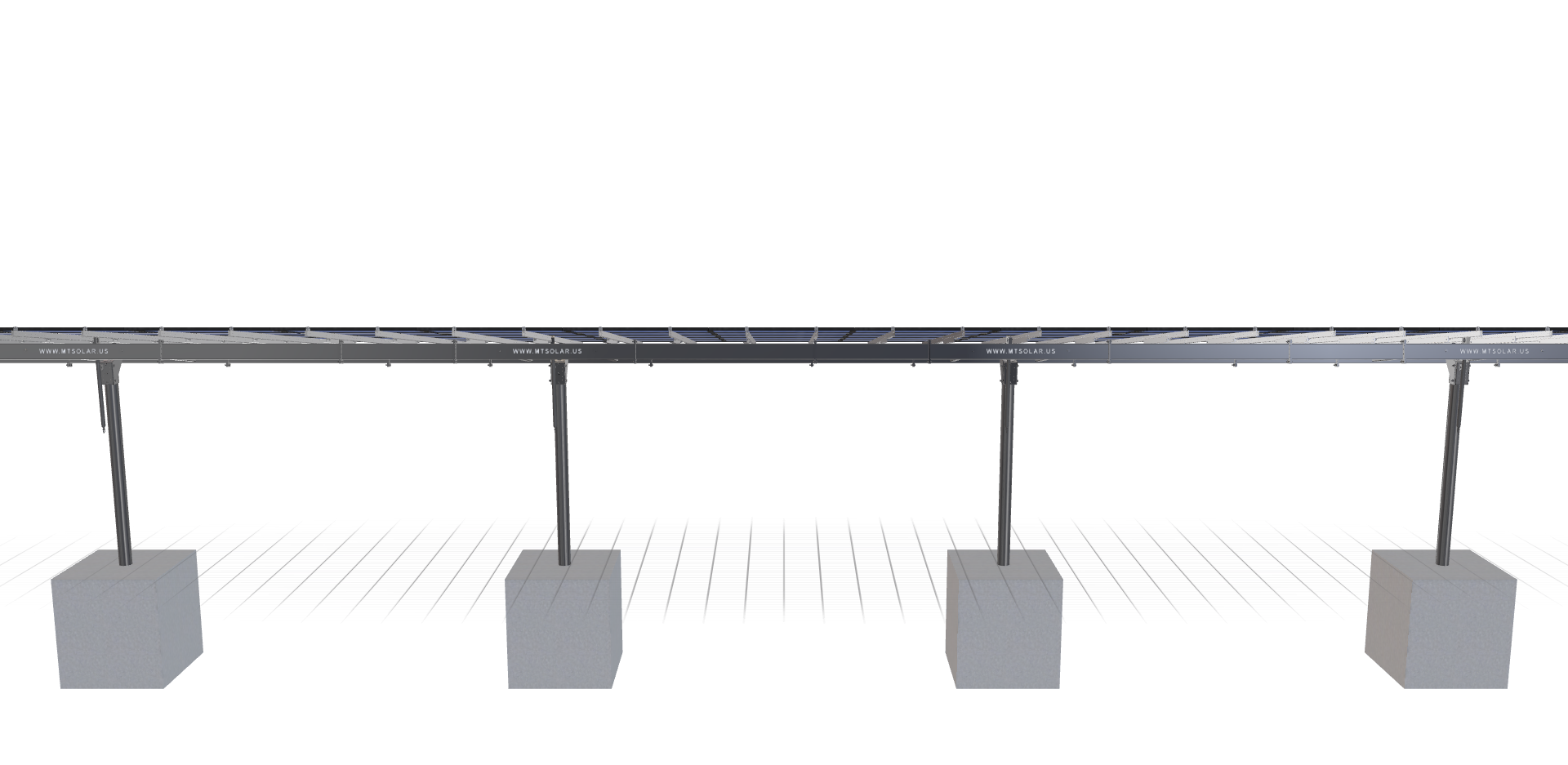

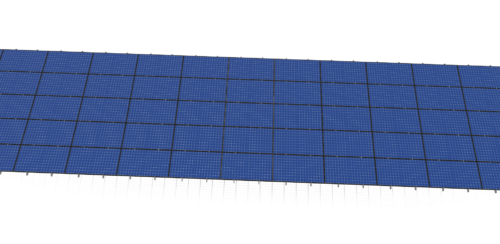

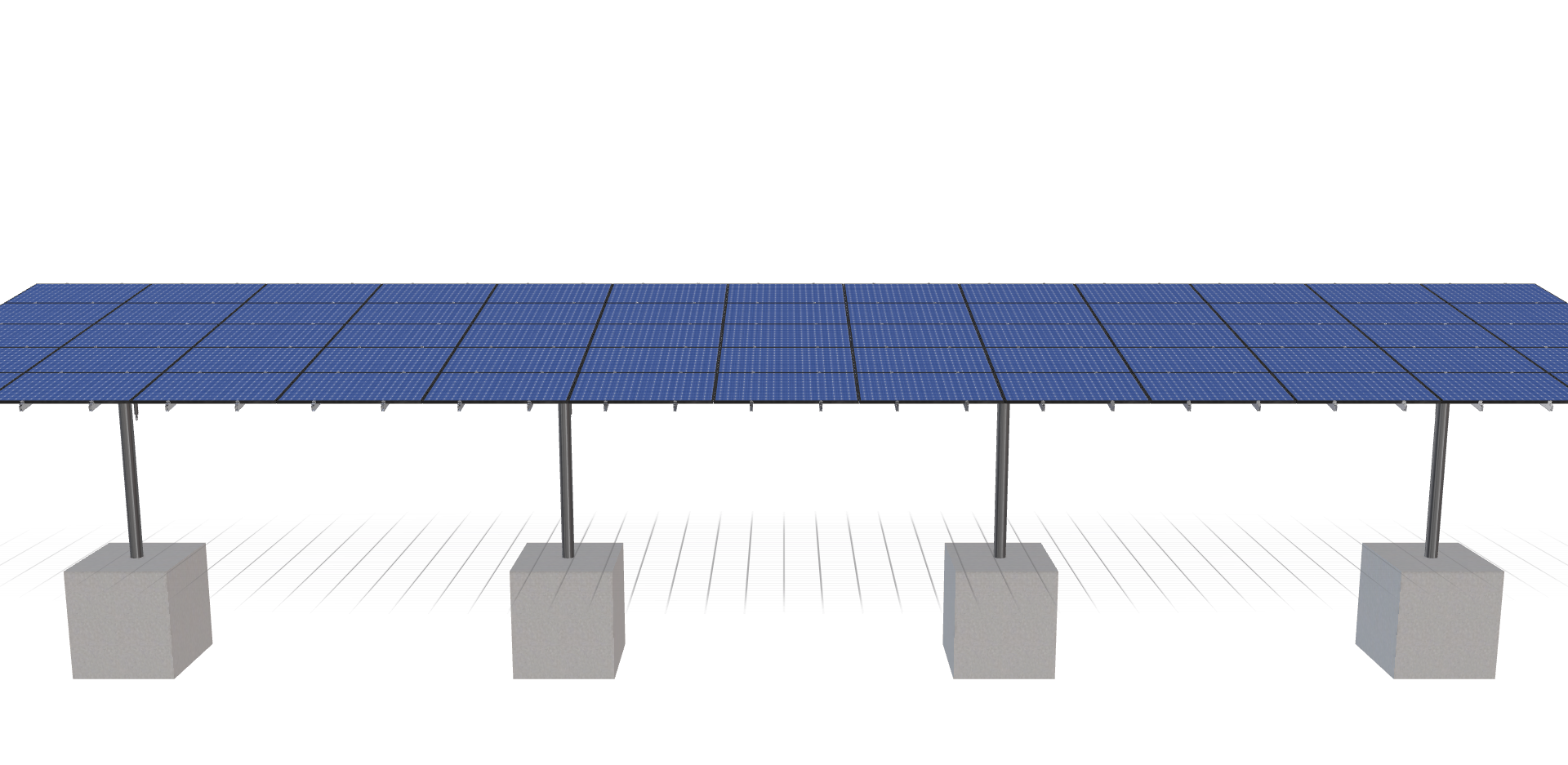

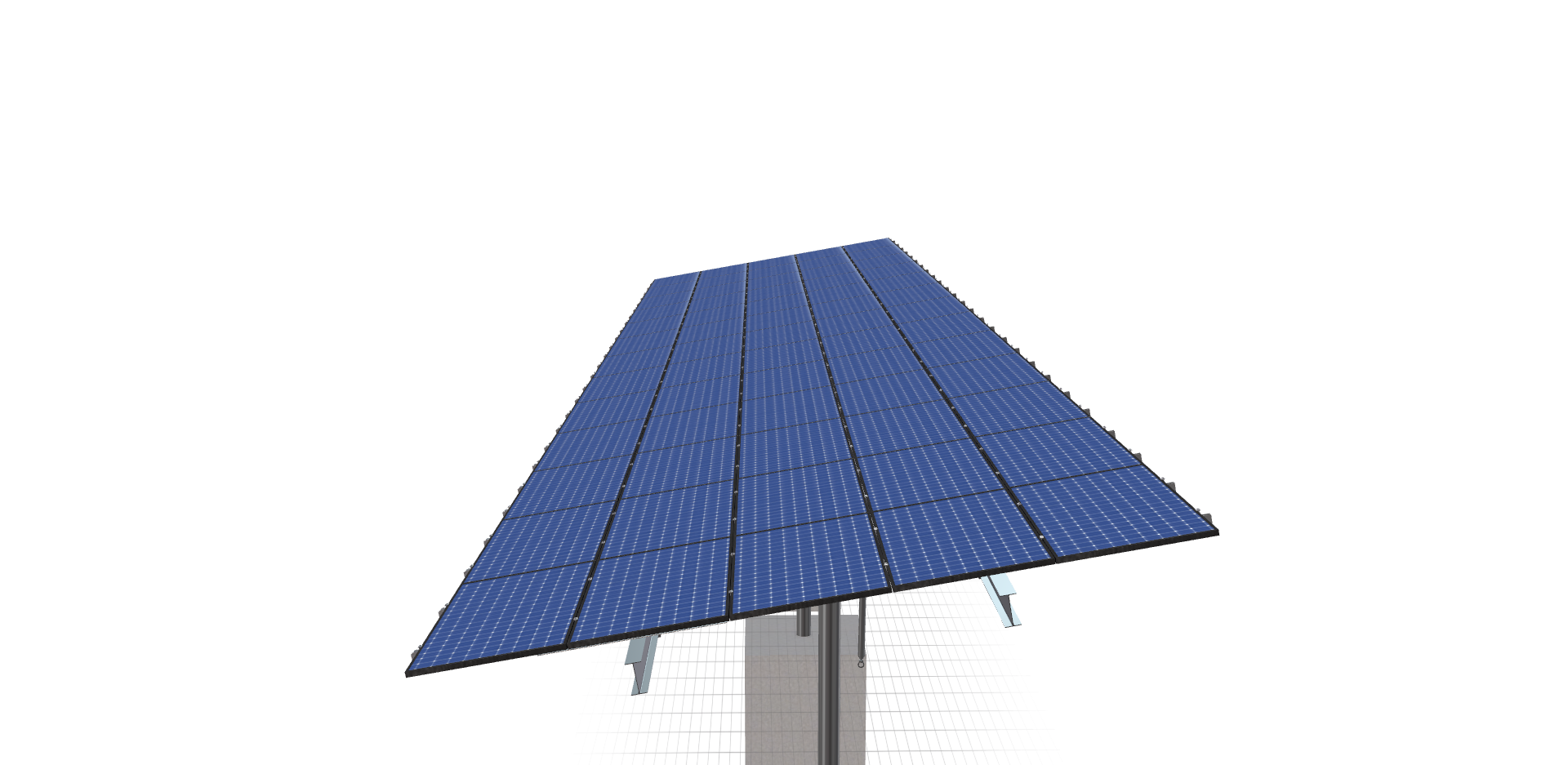

See 3D Model Here
MACEDONIA BAPTIST CHURCH REVISION
$20,429.25
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 40 inches and an array layout of 13 wide by 5 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3855.2200000000003 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-19.75-6TOP-SD-45-L-5HX13W-KDJE |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 9.47 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 5.00 |
| TILT ANGLE | 10.00 |
| CANTILEVER | 891.00 |
| GROUND CLEARANCE | 8.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1257.75 |
| ARRAY WIDTH | 74.53 |
| ARRAY HEIGHT | 16.88 |
| RAIL LENGTH | 202.50 |
| MODULE LENGTH | 67.80 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 74.25 |
| GROUND TO TOP | 10.91 |
| PROJECTED PANEL HEIGHT | 2.89 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | MACEDONIA, BAPTIST, CHURCH, REVISION |
| SITE ADDRESS | 2600, CLAYTON, ST, NORTH, LAS, VEGAS, NV, 89032, USA |
| MODULE WIDTH | 40.00 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 13.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 19456.43 |
| TOTAL WEIGHT | 3855.22 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/afd36703-2960-483c-a04a-22d6fb999c4a.pdf |
|
| ID | 1161.00 |
