This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 90 inches by 45 inches and an array layout of 12 wide by 4 high.
This mount fits on 5 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

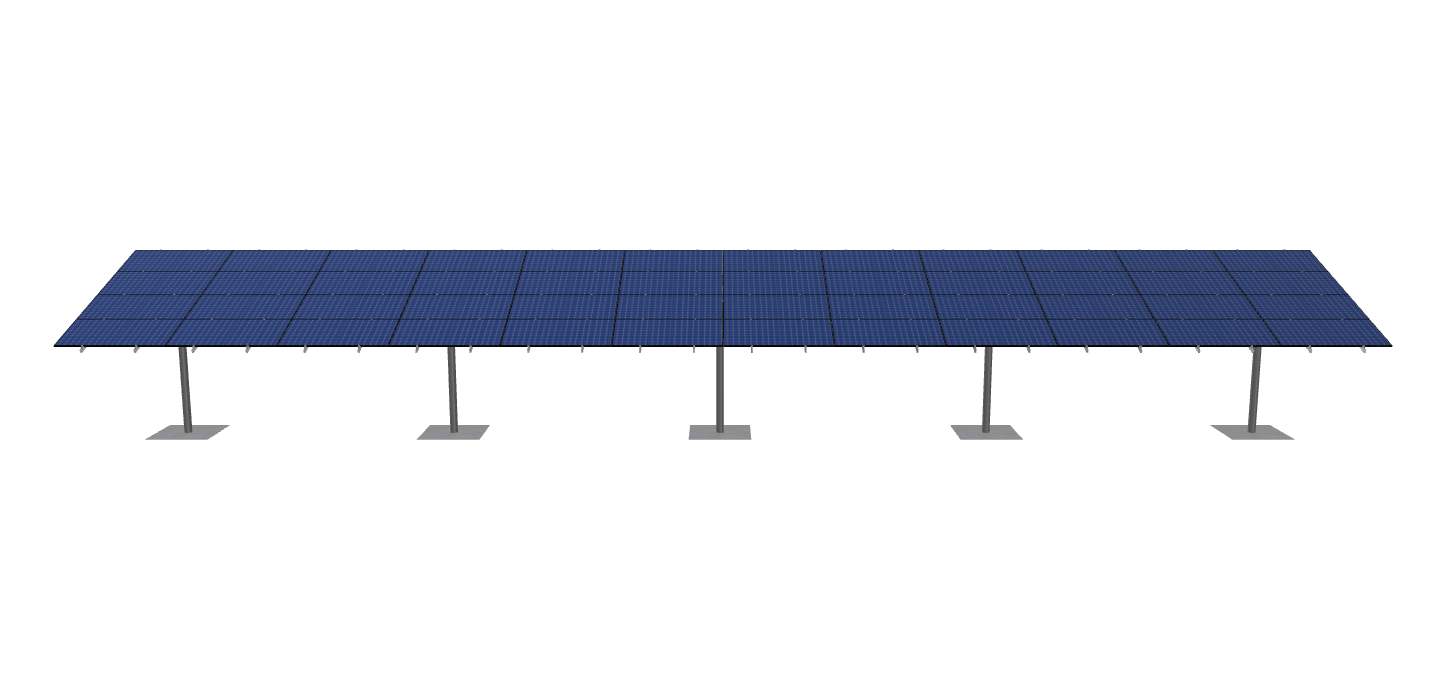

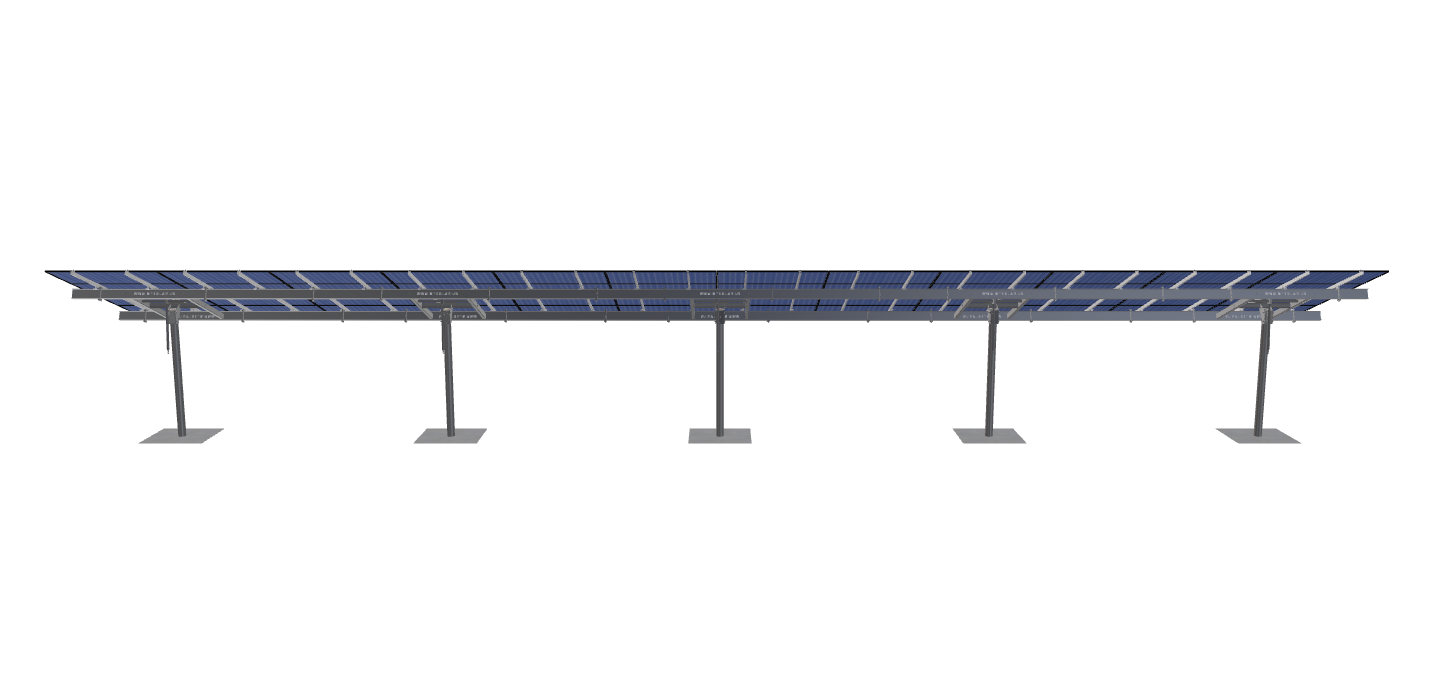

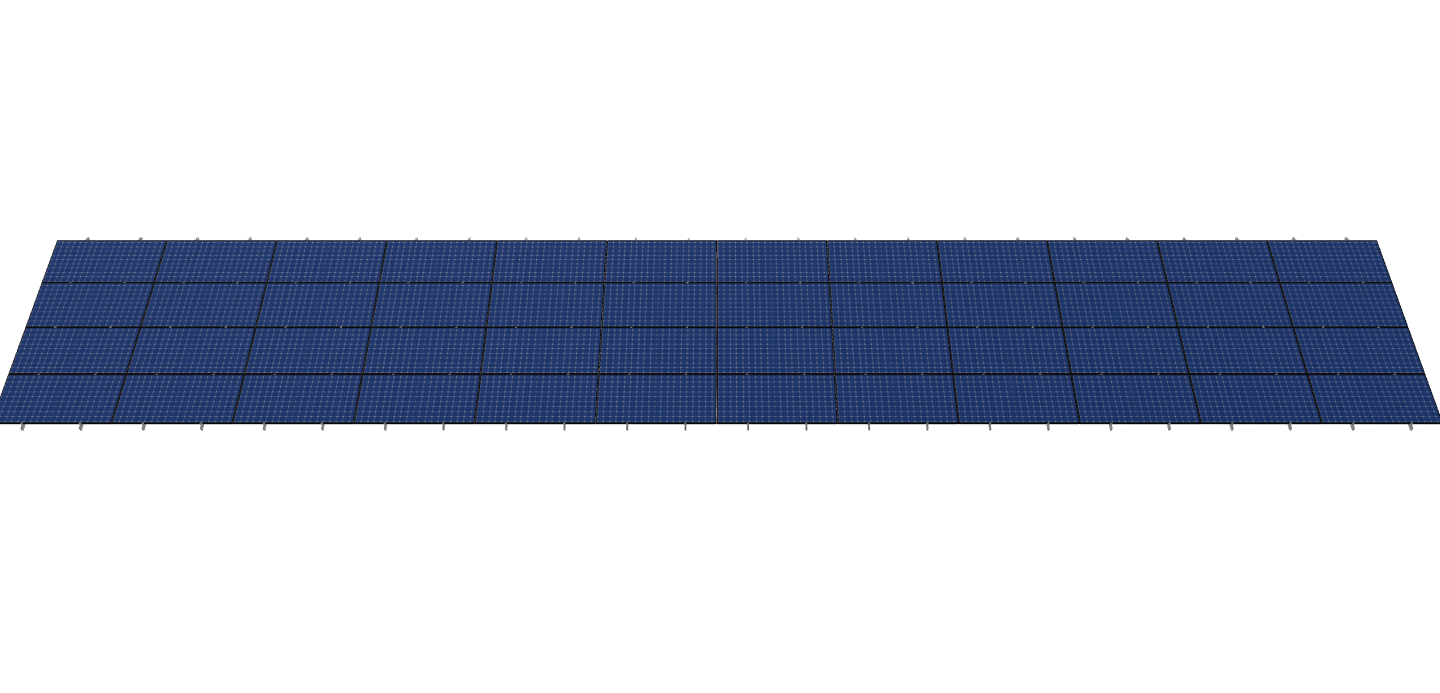

See 3D Model Here
Marion Parkade
$21,385.17
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 90 inches by 45 inches and an array layout of 12 wide by 4 high.
This mount fits on 5 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3655.56 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |

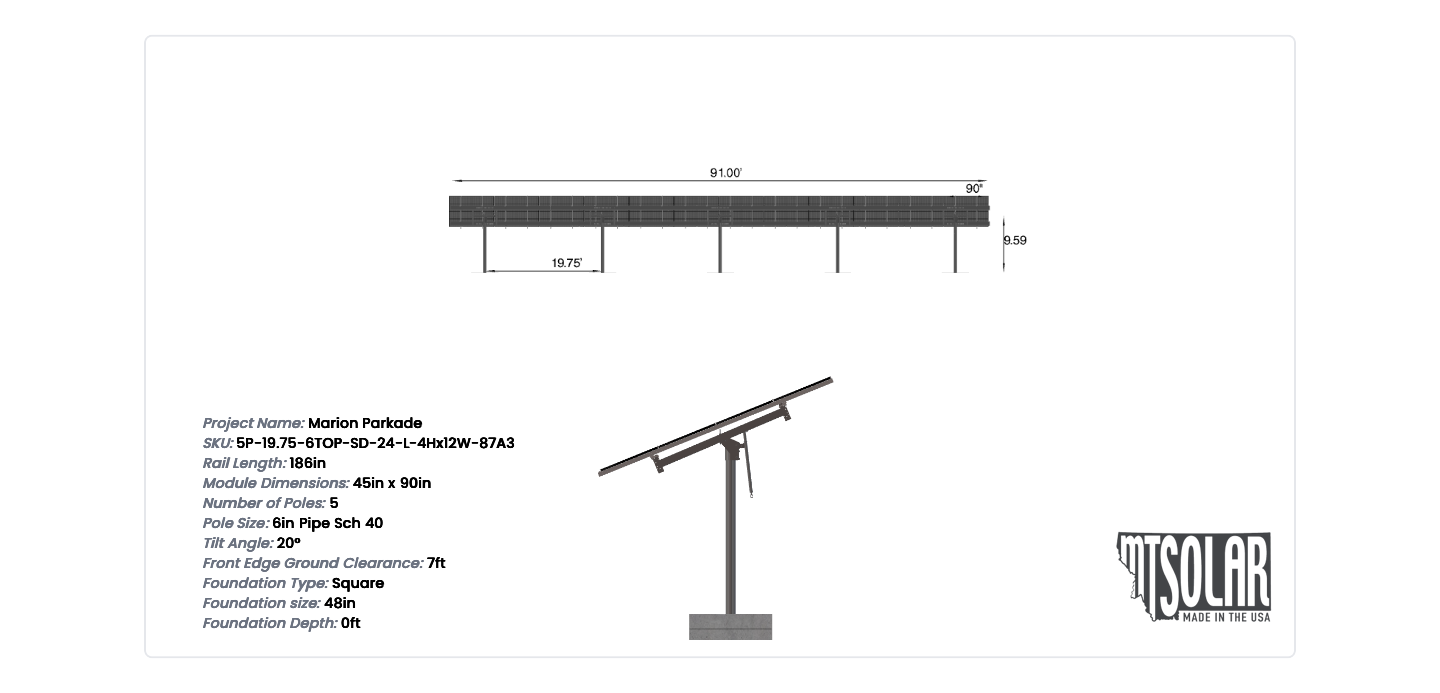

| SKU CODE | 5P-19.75-6TOP-SD-24-L-4HX12W-87A3 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 5.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 9.59 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 0.00 |
| TILT ANGLE | 20.00 |
| CANTILEVER | 1086.00 |
| GROUND CLEARANCE | 7.00 |
| NO POLES | 5.00 |
| MODULE AREA | 1380.17 |
| ARRAY WIDTH | 91.00 |
| ARRAY HEIGHT | 15.17 |
| RAIL LENGTH | 186.00 |
| MODULE LENGTH | 90.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 90.50 |
| GROUND TO TOP | 12.19 |
| PROJECTED PANEL HEIGHT | 5.19 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | CALLEY |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | MARION, PARKADE |
| SITE ADDRESS | MARION, ST, BRIDGE, SALEM, OR, USA |
| MODULE INFO | CANADIAN, SOLAR, 595W |
| MODULE WIDTH | 45.00 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 12.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 21385.17 |
| TOTAL WEIGHT | 3655.56 |
| TOTAL PALLETS | 5.00 |
https://skycivquotes.s3.amazonaws.com/37fc3f50-8451-48d2-9006-f9efe32b9c4d.pdf |
|
| ID | 13982.00 |
| 3D Solar link |
