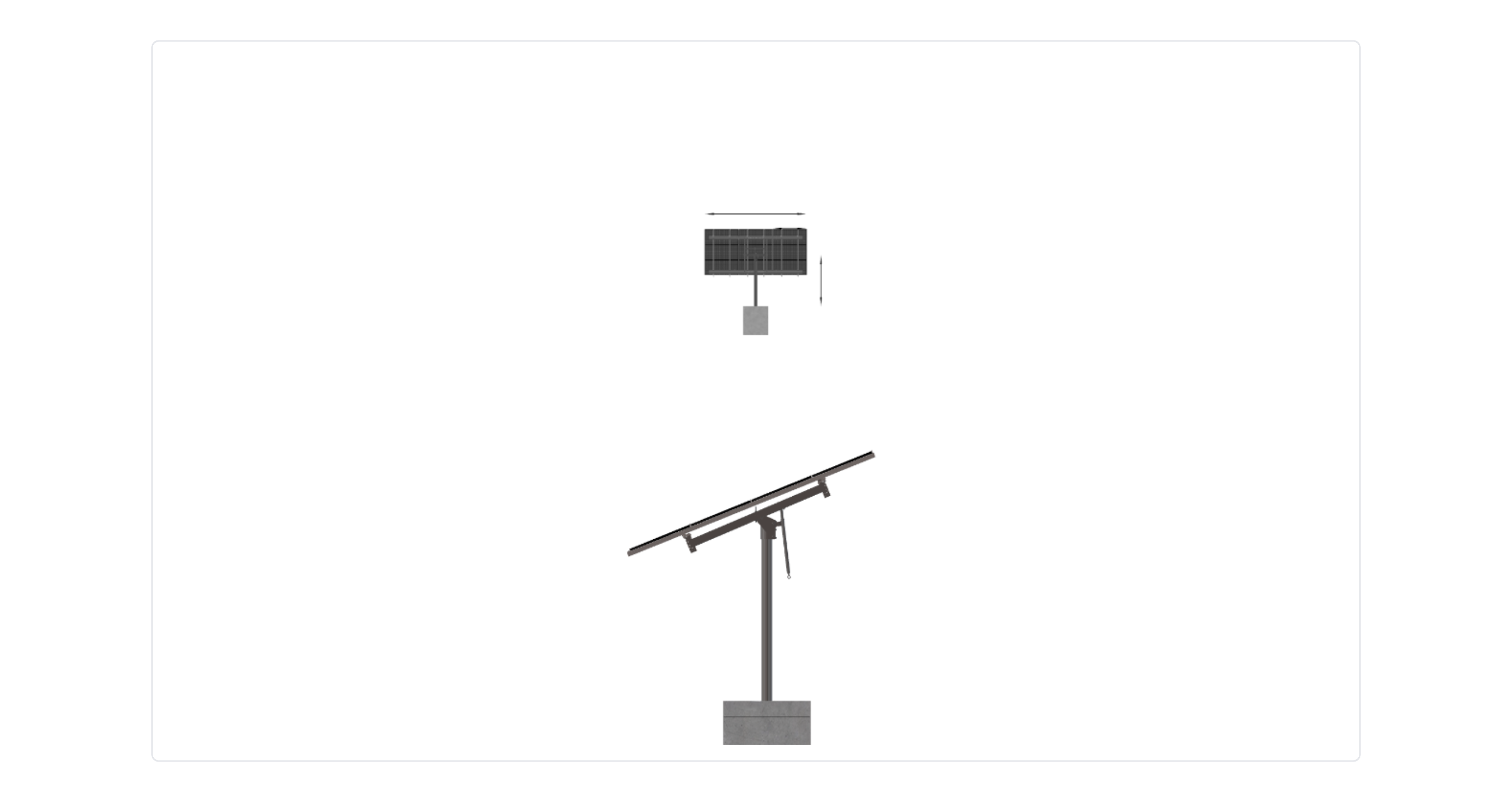

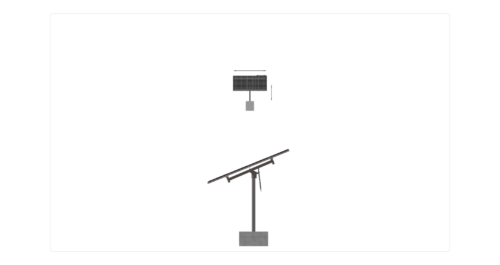

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 73.4 inches by 40.9 inches and an array layout of 3 wide by 3 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
McCoy-Panoramic Rd-CU-A
$3,632.20
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 73.4 inches by 40.9 inches and an array layout of 3 wide by 3 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 649.38 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-6TOP-SD-57-L-3HX3W-BGHE |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 9.24 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 5.25 |
| TILT ANGLE | 55.00 |
| CANTILEVER | 204.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 1.00 |
| MODULE AREA | 192.51 |
| ARRAY WIDTH | 18.60 |
| ARRAY HEIGHT | 10.35 |
| RAIL LENGTH | 124.20 |
| MODULE LENGTH | 73.40 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 17.00 |
| GROUND TO TOP | 13.43 |
| PROJECTED PANEL HEIGHT | 8.38 |
| PROJECT ID | MCCOY-PANORAMIC, RD-CU-A |
| SITE ADDRESS | 80056, PANORAMIC, RD, PORTOLA, CA, 96122, USA |
| MODULE WIDTH | 40.90 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 90.00 |
| SNOW LOAD OVERRIDE | 126.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 3632.20 |
| TOTAL WEIGHT | 649.38 |
| TOTAL PALLETS | 1.00 |
