This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 81.89 inches by 40.55 inches and an array layout of 15 wide by 5 high.
This mount fits on 5 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

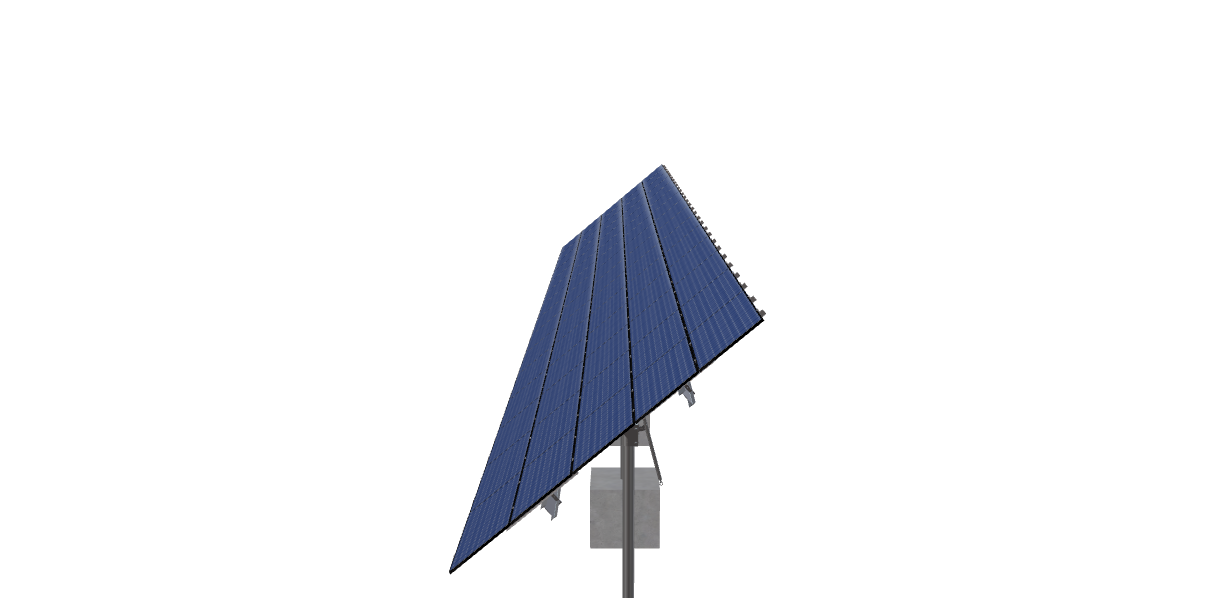

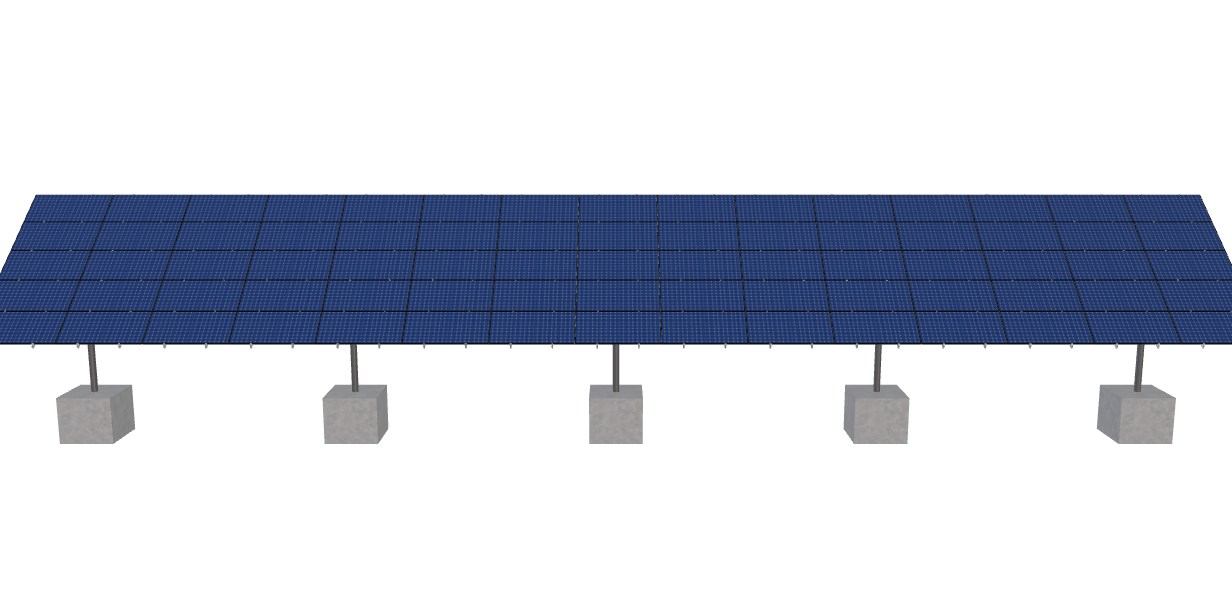

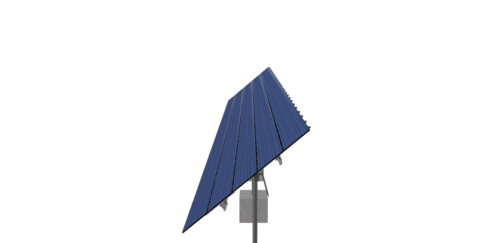

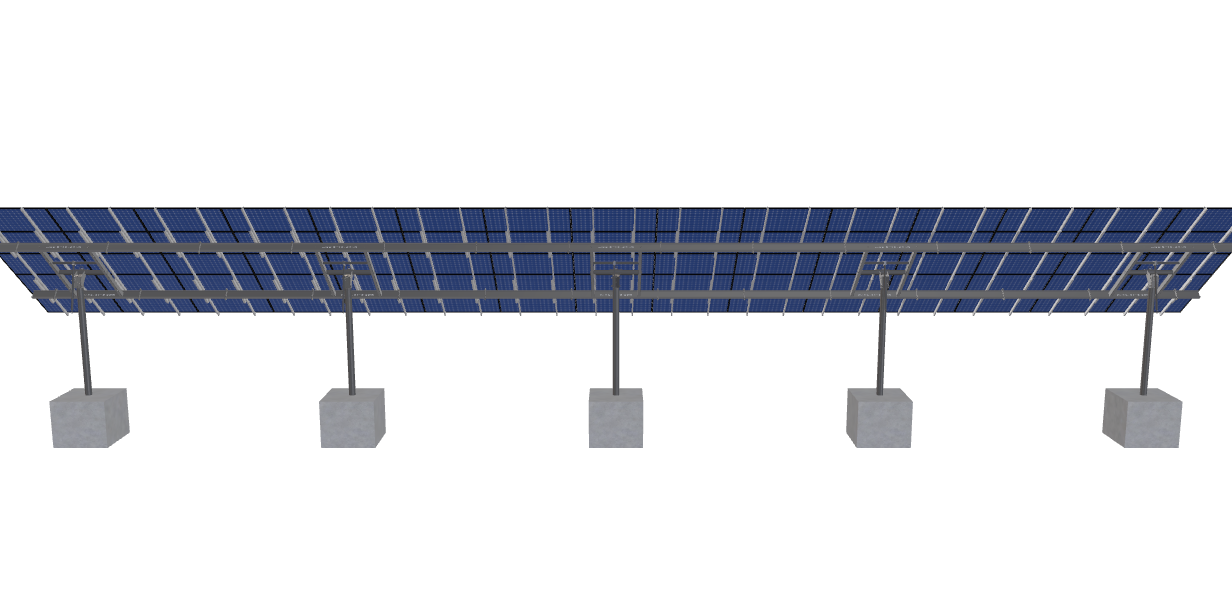

See 3D Model Here
Mini Animal Farm
$27,534.89
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 81.89 inches by 40.55 inches and an array layout of 15 wide by 5 high.
This mount fits on 5 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information

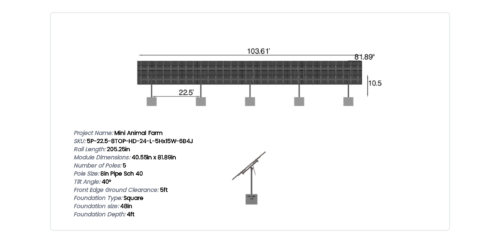

| Weight | 5580.23 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 5P-22.5-8TOP-HD-24-L-5HX15W-6B4J |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 5.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 10.50 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 4.00 |
| TILT ANGLE | 40.00 |
| CANTILEVER | 1218.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 5.00 |
| MODULE AREA | 1772.21 |
| ARRAY WIDTH | 103.61 |
| ARRAY HEIGHT | 17.10 |
| RAIL LENGTH | 205.25 |
| MODULE LENGTH | 81.89 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 101.50 |
| GROUND TO TOP | 15.93 |
| PROJECTED PANEL HEIGHT | 10.86 |
| PROJECT ID | MINI, ANIMAL, FARM |
| SITE ADDRESS | 173, DUTCHER, RD, FREEVILLE, NY, 13068, USA |
| MODULE WIDTH | 40.55 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 15.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 30.00 |
| SNOW LOAD OVERRIDE | 41.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 27534.89 |
| TOTAL WEIGHT | 5580.23 |
| TOTAL PALLETS | 5.00 |
https://skycivquotes.s3.amazonaws.com/822f7927-39d7-4aa0-8a05-40cc6393f83c.pdf |
|
| ID | 5315.00 |
| 3D Solar link |
