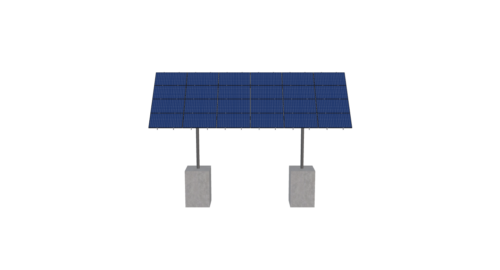

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 71.5 inches by 40 inches and an array layout of 6 wide by 4 high.

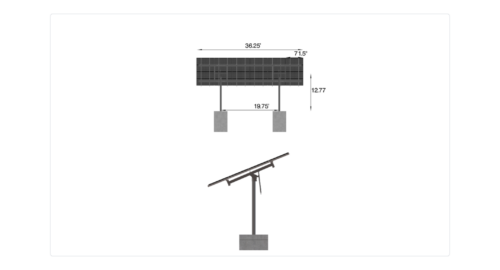

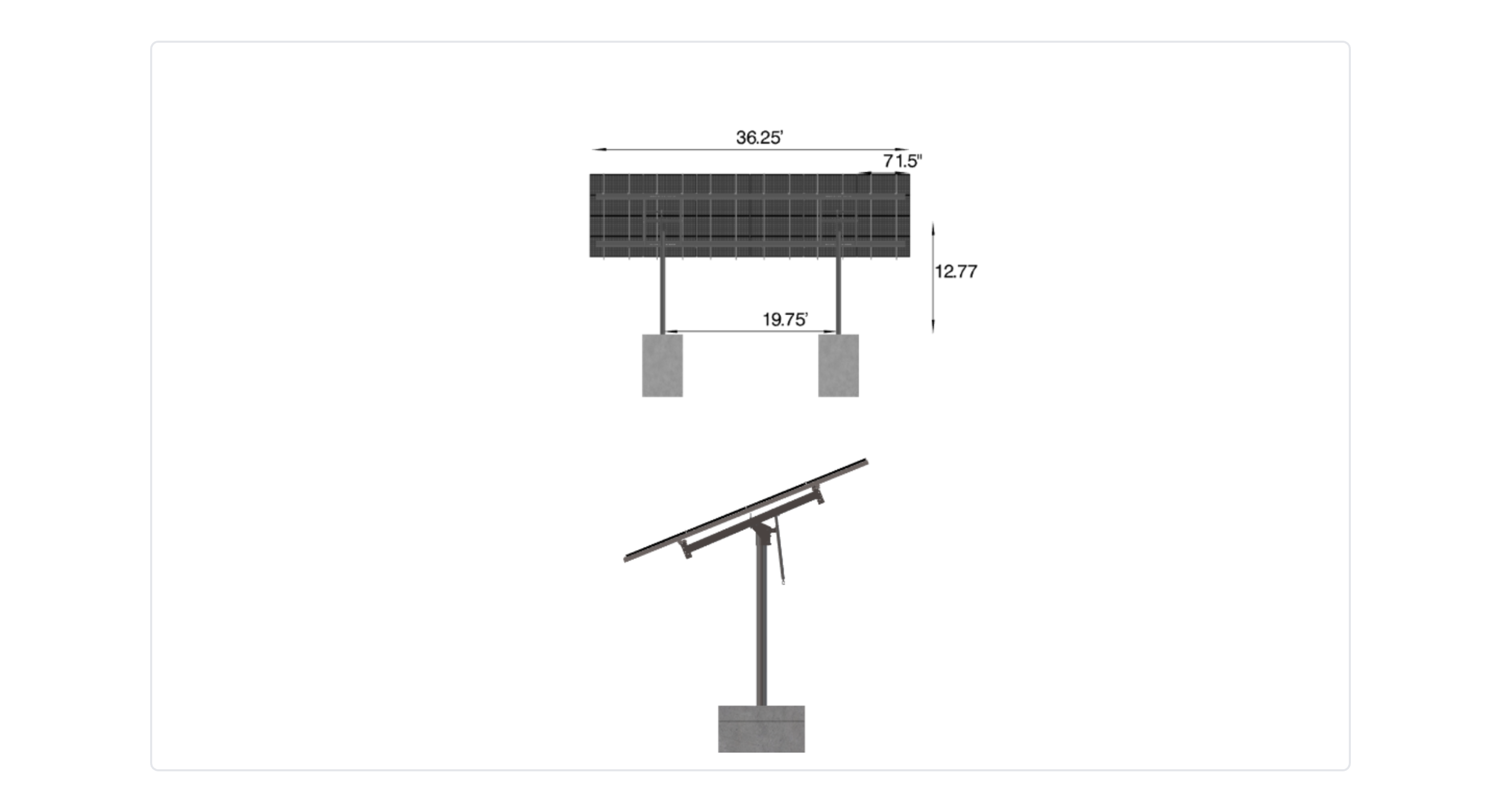

This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Mize-24 mods
$8,312.45
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 71.5 inches by 40 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 1466.82 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 2P-19.75-8TOP-SD-45-L-4HX6W-EJA9 |
DUTY SIZE | SD |
POLE SIZE | 8IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 2.00 |
POLE SPACING | 19.75 |
POLE HEIGHT | 12.77 |
WING SPAN | 45.00 |
MAX FOUNDATION DEPTH | 7.00 |
TILT ANGLE | 45.00 |
CANTILEVER | 417.00 |
GROUND CLEARANCE | 8.00 |
NO POLES | 2.00 |
MODULE AREA | 489.38 |
ARRAY WIDTH | 36.25 |
ARRAY HEIGHT | 13.50 |
RAIL LENGTH | 162.00 |
MODULE LENGTH | 71.50 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 34.75 |
GROUND TO TOP | 17.49 |
PROJECTED PANEL HEIGHT | 9.43 |
WIND SPEED OVERRIDE | NULL |
SNOW LOAD OVERRIDE | NULL |
DIRECT SNOW LOAD | FALSE |
ADD ANGLE BRACE | FALSE |
PROJECT ID | MIZE-24, MODS |
SITE ADDRESS | 901, E, MAIN, ST, ALHAMBRA, IL, 62001, USA |
MODULE WIDTH | 40.00 |
NUMBER ROWS | 4.00 |
NUMBER COLUMNS | 6.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | B |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
TOTAL PRICE | 8312.45 |
TOTAL WEIGHT | 1466.82 |
TOTAL PALLETS | 2.00 |
