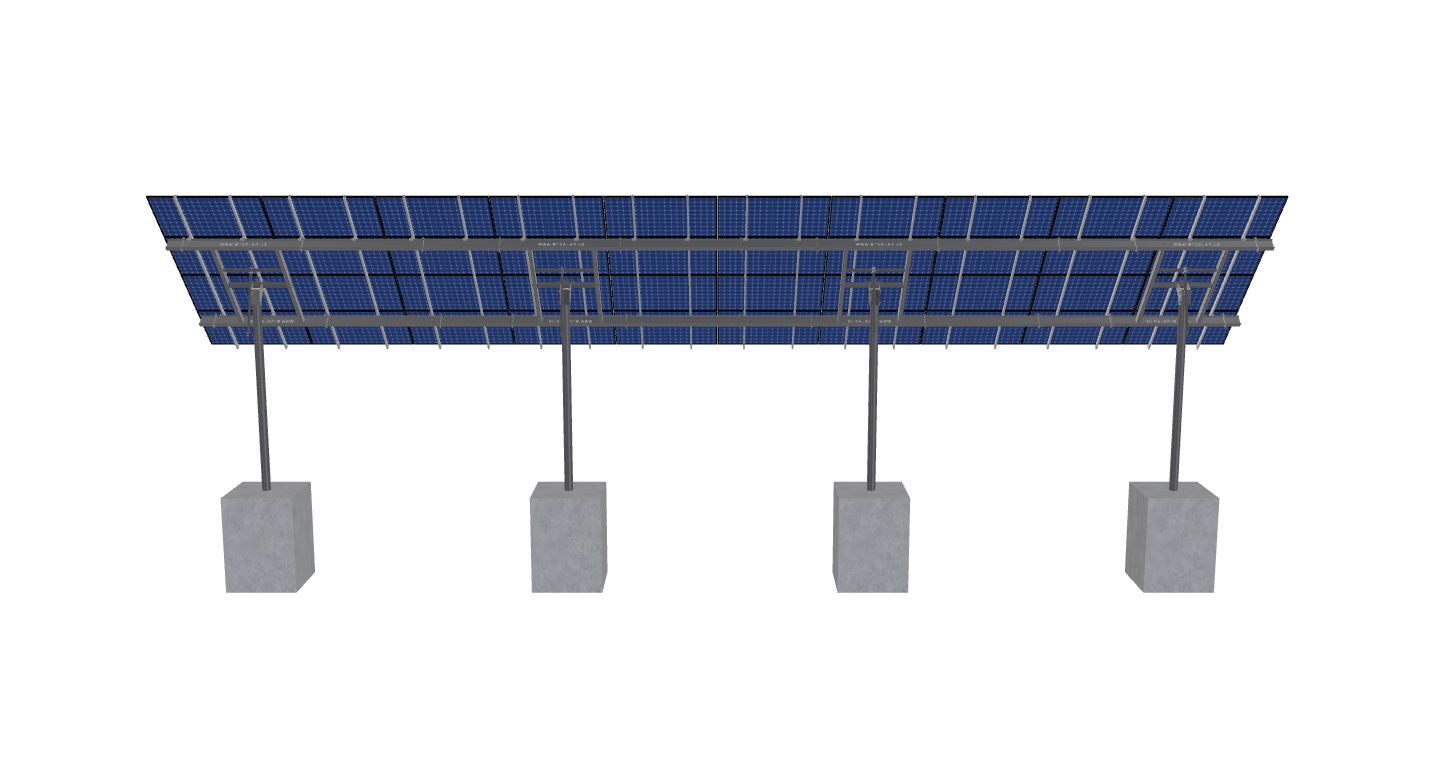

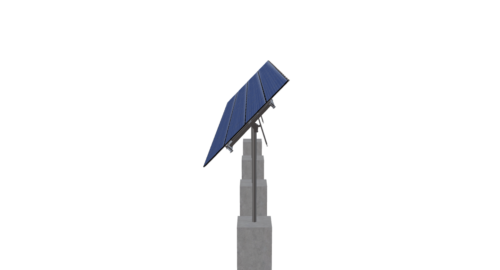

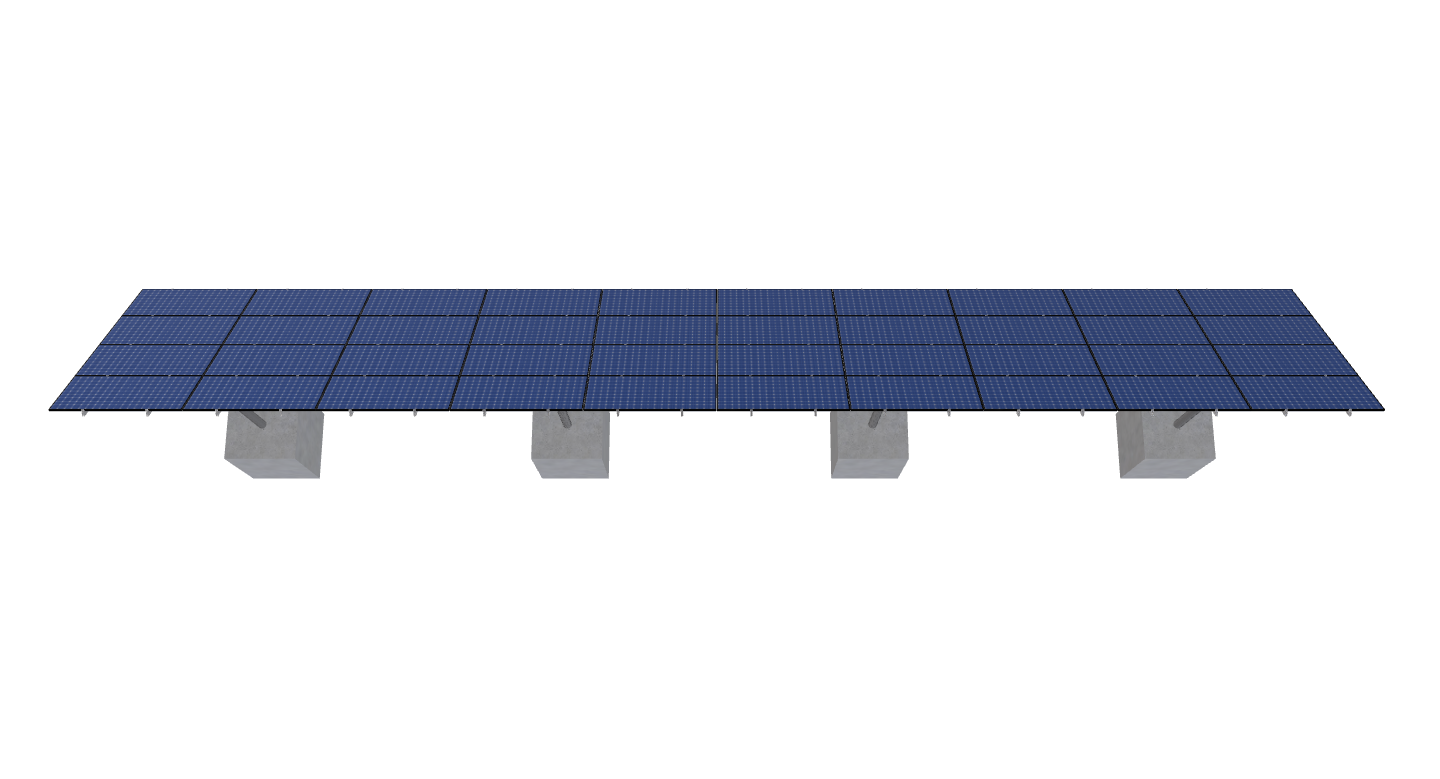

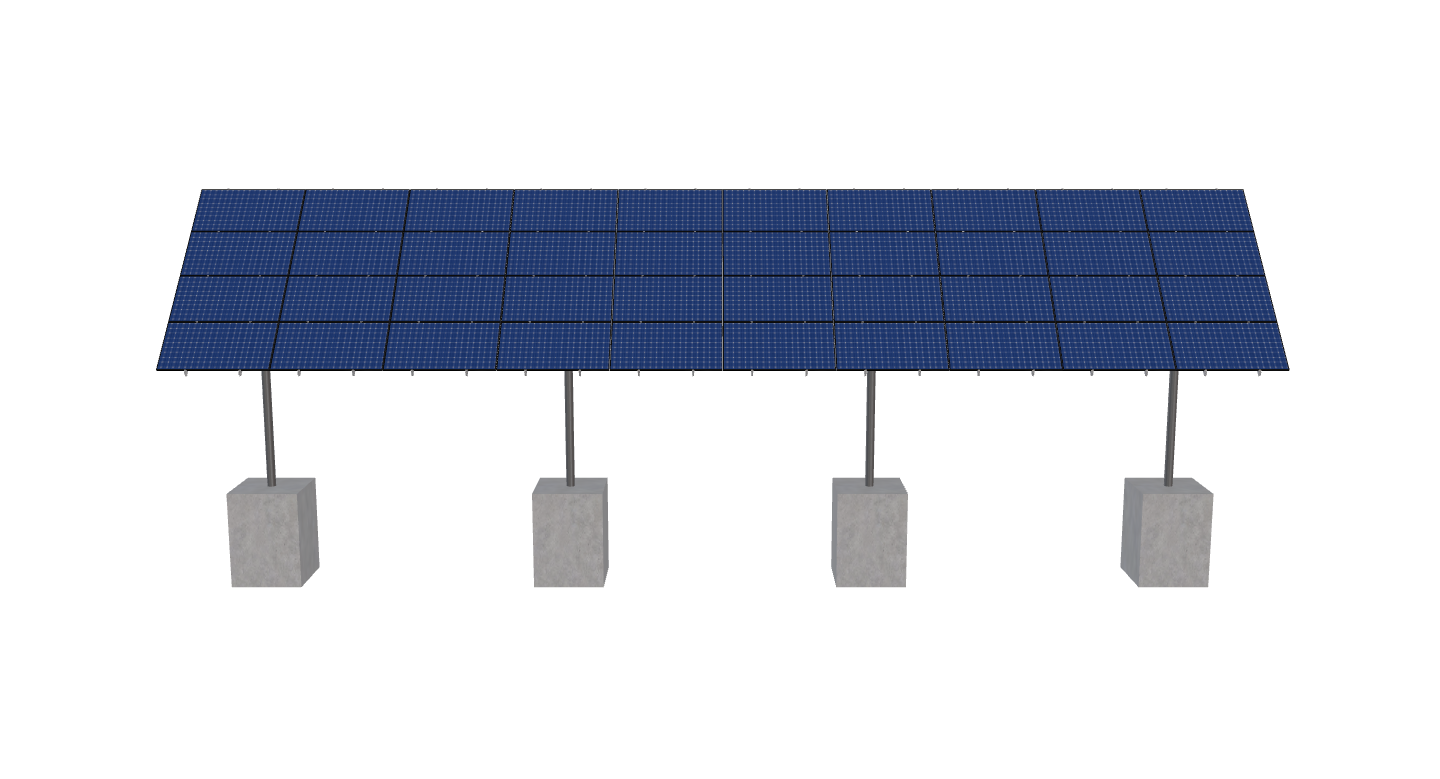

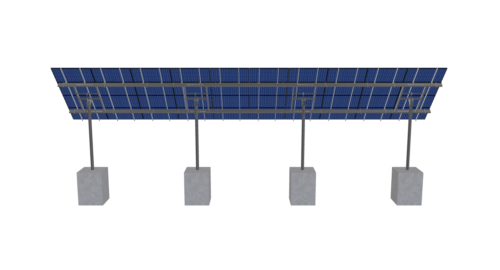

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.5 inches by 44.5 inches and an array layout of 10 wide by 4 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Monner – 8in – V2Jb
$16,058.57
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.5 inches by 44.5 inches and an array layout of 10 wide by 4 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information

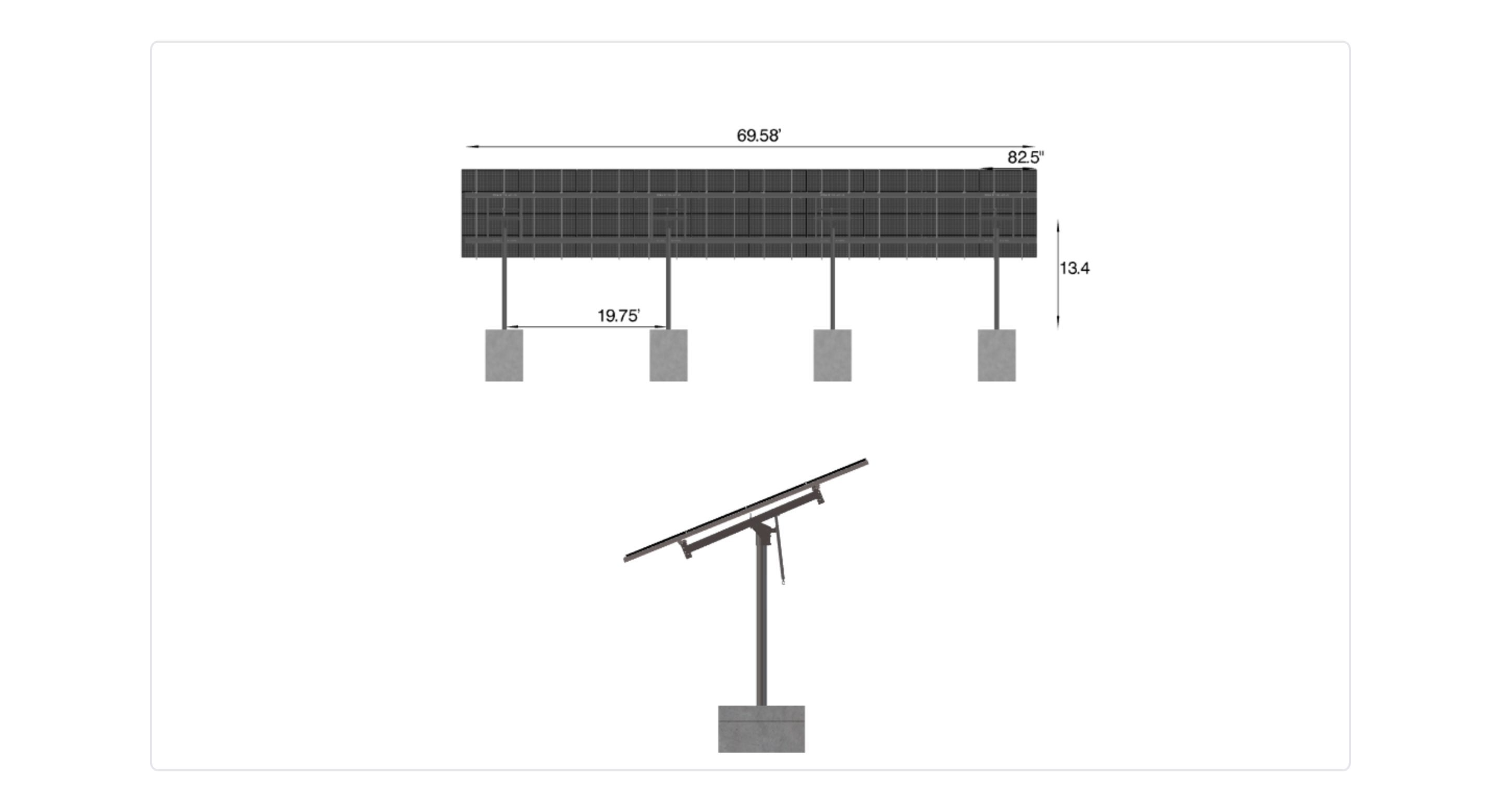

Weight | 2869.7 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 4P-19.75-8TOP-SD-12-L-4HX10W-ILAB |
DUTY SIZE | SD |
POLE SIZE | 8IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 4.00 |
POLE SPACING | 19.75 |
POLE HEIGHT | 13.40 |
WING SPAN | 12.00 |
MAX FOUNDATION DEPTH | 6.25 |
TILT ANGLE | 46.00 |
CANTILEVER | 825.00 |
GROUND CLEARANCE | 8.00 |
NO POLES | 4.00 |
MODULE AREA | 1043.75 |
ARRAY WIDTH | 69.58 |
ARRAY HEIGHT | 15.00 |
RAIL LENGTH | 180.00 |
MODULE LENGTH | 82.50 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 68.75 |
GROUND TO TOP | 18.73 |
PROJECTED PANEL HEIGHT | 10.67 |
WIND SPEED OVERRIDE | NULL |
SNOW LOAD OVERRIDE | NULL |
DIRECT SNOW LOAD | FALSE |
ADD ANGLE BRACE | FALSE |
PROJECT ID | MONNER, -, 8IN, -, V2JB |
SITE ADDRESS | 14805, MINK, RD, NE, WOODINVILLE, WA, 98077, USA |
MODULE WIDTH | 44.50 |
NUMBER ROWS | 4.00 |
NUMBER COLUMNS | 10.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | B |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | 8, 40 |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
TOTAL PRICE | 16058.57 |
TOTAL WEIGHT | 2869.70 |
TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/6d96fca2-3c32-4db8-abc7-d4f9866020fa.pdf |
|
ID | 6887.00 |
3D Solar link |
