This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 73.4 inches by 47.8 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

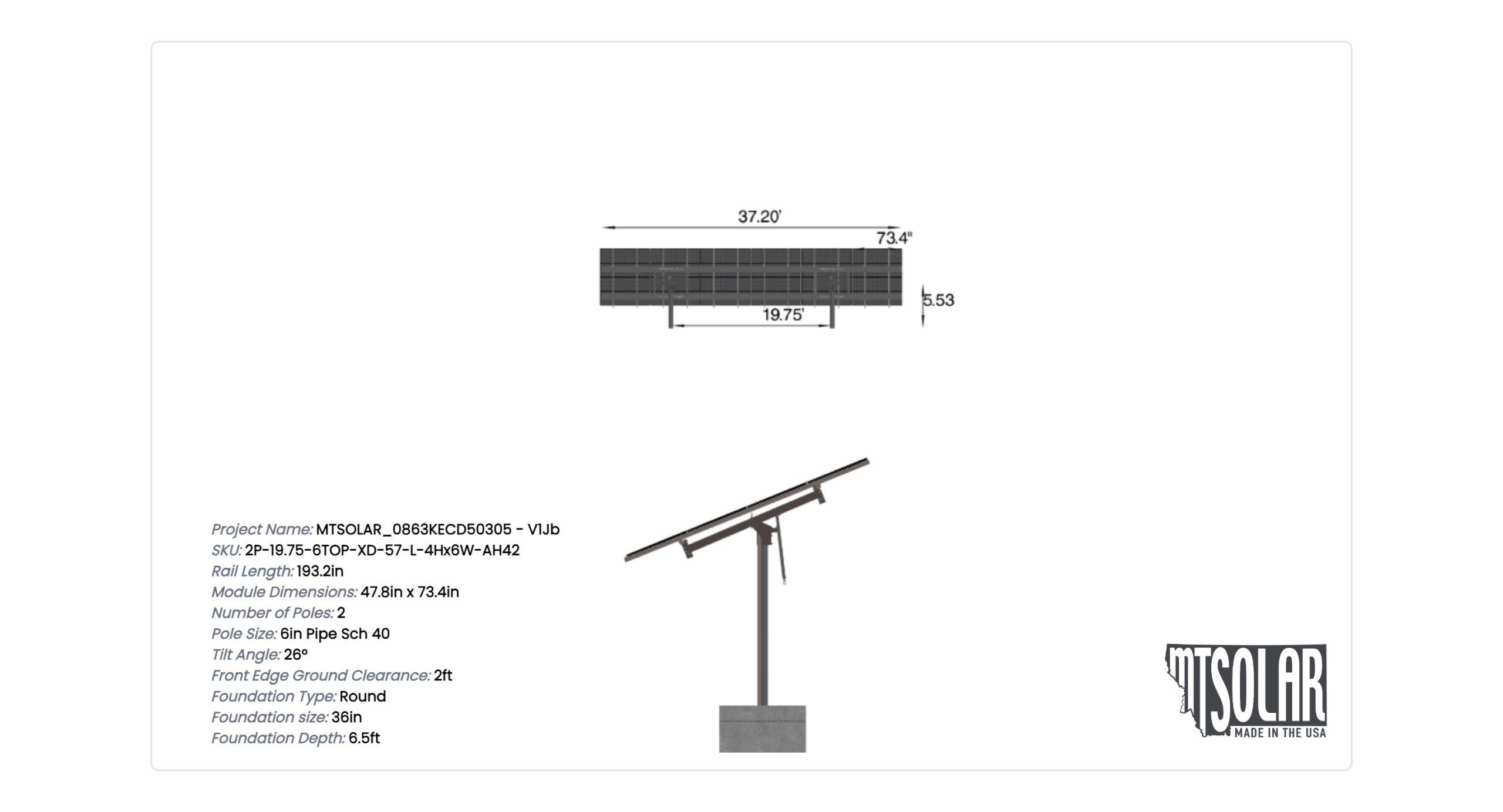

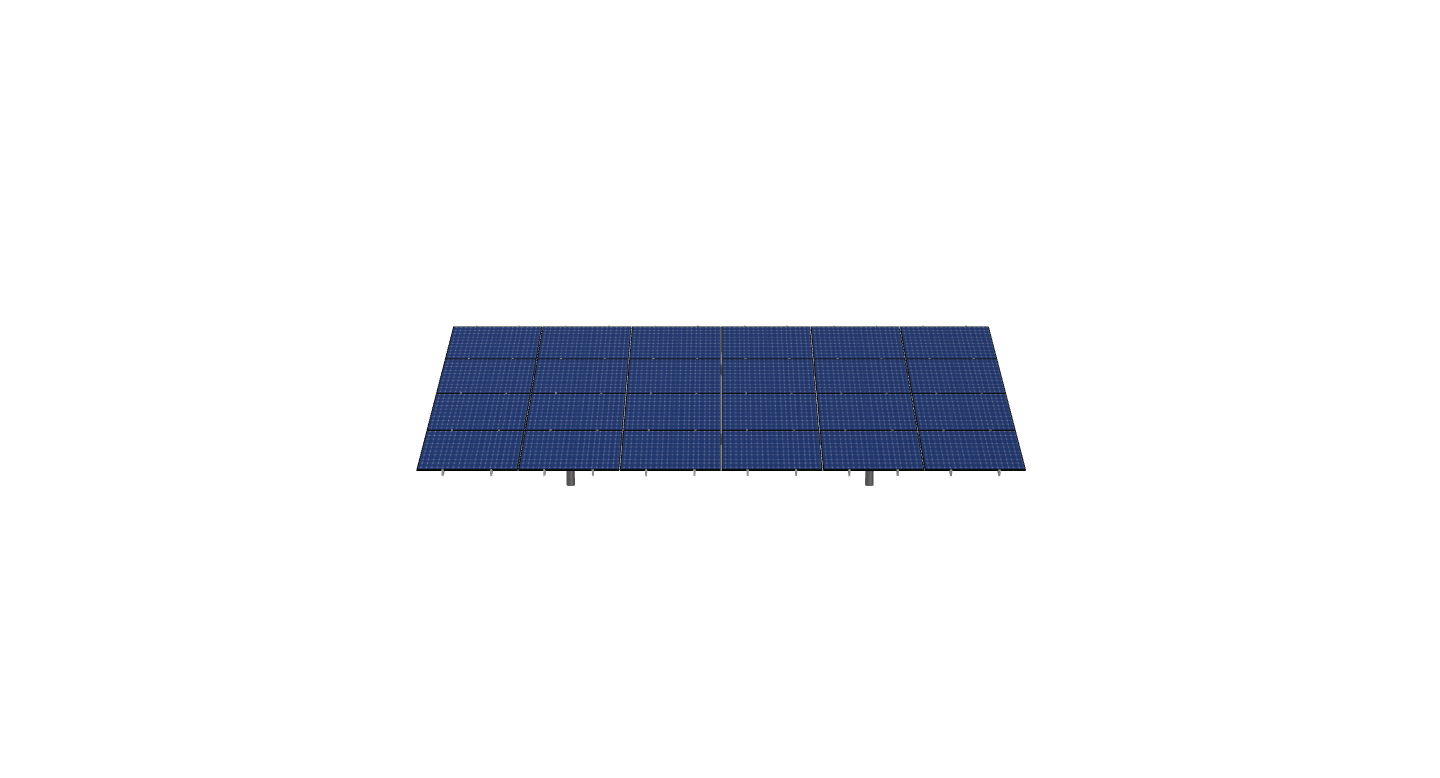

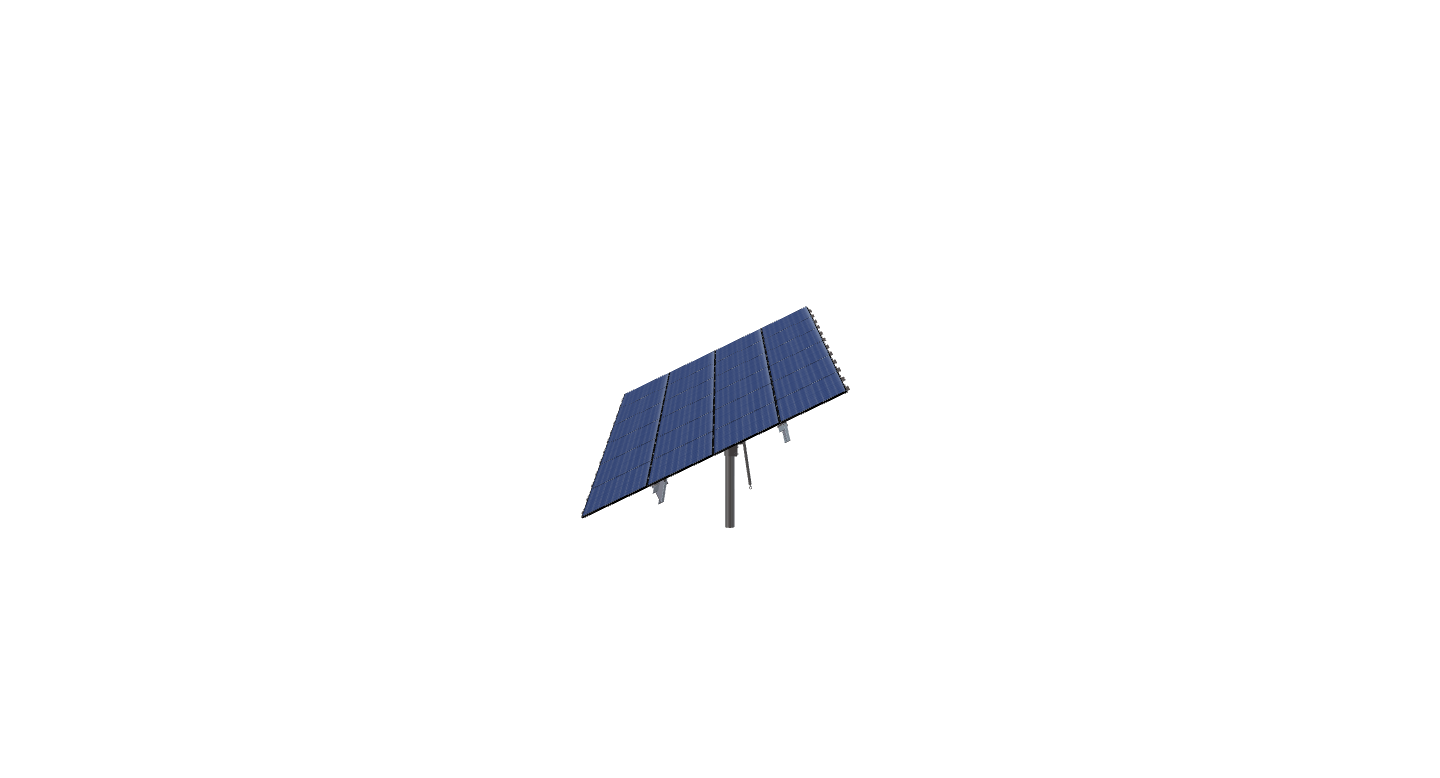

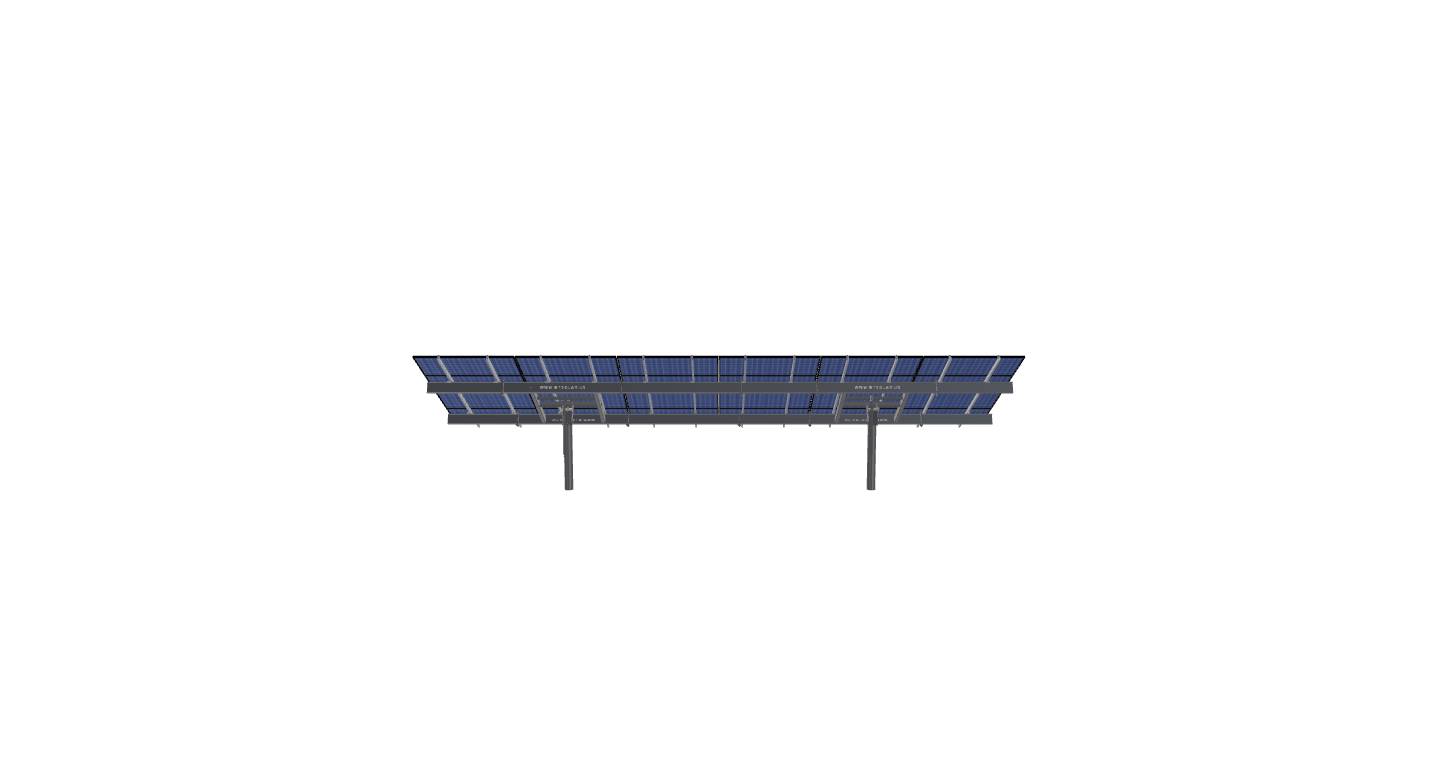

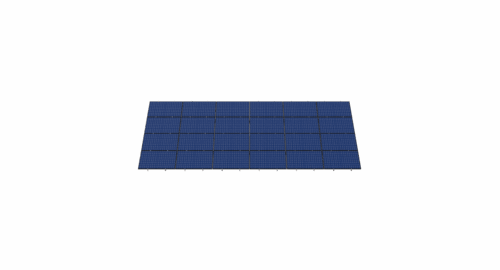

See 3D Model Here
MTSOLAR_0863KECD50305 – V1Jb
$10,947.51
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 73.4 inches by 47.8 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1988.9799999999998 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-19.75-6TOP-XD-57-L-4HX6W-AH42 |
| DUTY SIZE | XD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 5.53 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 6.50 |
| TILT ANGLE | 26.00 |
| CANTILEVER | 441.00 |
| GROUND CLEARANCE | 2.00 |
| NO POLES | 2.00 |
| MODULE AREA | 598.92 |
| ARRAY WIDTH | 37.20 |
| ARRAY HEIGHT | 16.10 |
| RAIL LENGTH | 193.20 |
| MODULE LENGTH | 73.40 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 36.75 |
| GROUND TO TOP | 9.06 |
| PROJECTED PANEL HEIGHT | 7.06 |
| WIND SPEED OVERRIDE | 100.00 |
| SNOW LOAD OVERRIDE | 70.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | JIM, ADCOX |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 7192468537.00 |
| PROJECT ID | MTSOLAR, 0863KECD50305, -, V1JB |
| SITE ADDRESS | 239, WILDLIFE, POINT, DIVIDE, CO, 80814, USA |
| MODULE INFO | REC420AA-PURE, 2 |
| MODULE WIDTH | 47.80 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 10947.51 |
| TOTAL WEIGHT | 1988.98 |
| TOTAL PALLETS | 2.00 |
