This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.7 inches by 44.6 inches and an array layout of 8 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

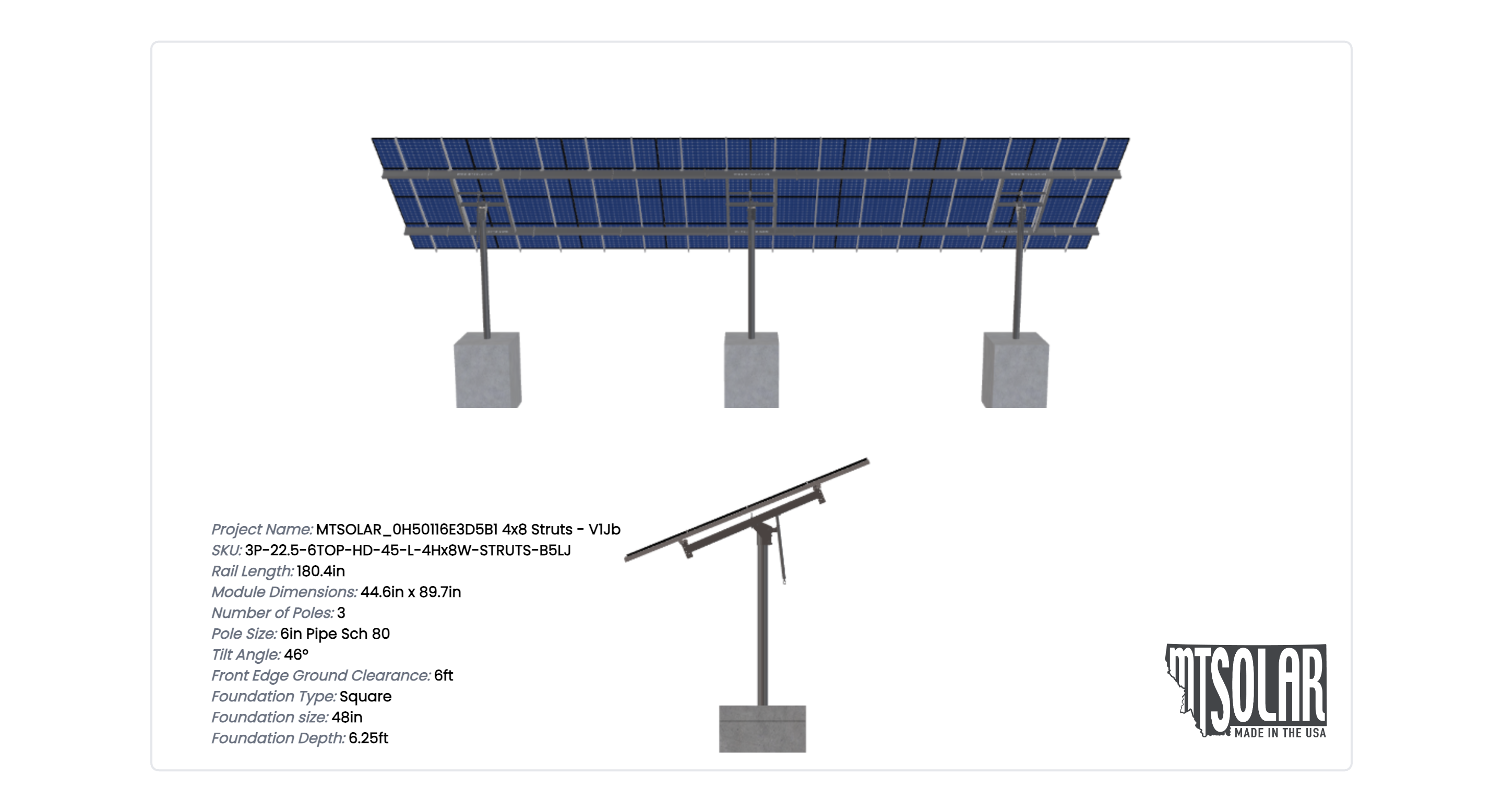

See 3D Model Here
MTSOLAR_0H50116E3D5B1 4×8 Struts – V1Jb
$14,924.87
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.7 inches by 44.6 inches and an array layout of 8 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2658.41 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-22.5-6TOP-HD-45-L-4HX8W-STRUTS-B5LJ |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 11.41 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 6.25 |
| TILT ANGLE | 46.00 |
| CANTILEVER | 720.00 |
| GROUND CLEARANCE | 6.00 |
| NO POLES | 3.00 |
| MODULE AREA | 909.02 |
| ARRAY WIDTH | 60.47 |
| ARRAY HEIGHT | 15.03 |
| RAIL LENGTH | 180.40 |
| MODULE LENGTH | 89.70 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 60.00 |
| GROUND TO TOP | 16.81 |
| PROJECTED PANEL HEIGHT | 10.81 |
| WIND SPEED OVERRIDE | 110.00 |
| SNOW LOAD OVERRIDE | 93.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | TRUE |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 5092706000.00 |
| PROJECT ID | MTSOLAR, 0H50116E3D5B1, 4X8, STRUTS, -, V1JB |
| SITE ADDRESS | 5220, GOVERNMENT, WAY, SPOKANE, WA, 99224, USA |
| MODULE WIDTH | 44.60 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 8.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 14214.16 |
| TOTAL WEIGHT | 2658.41 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/f201a69b-be00-4666-9254-aabfeb16a326.pdf |
|
| ID | 10785.00 |
| 3D Solar link |
