This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65 inches by 40 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 10in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

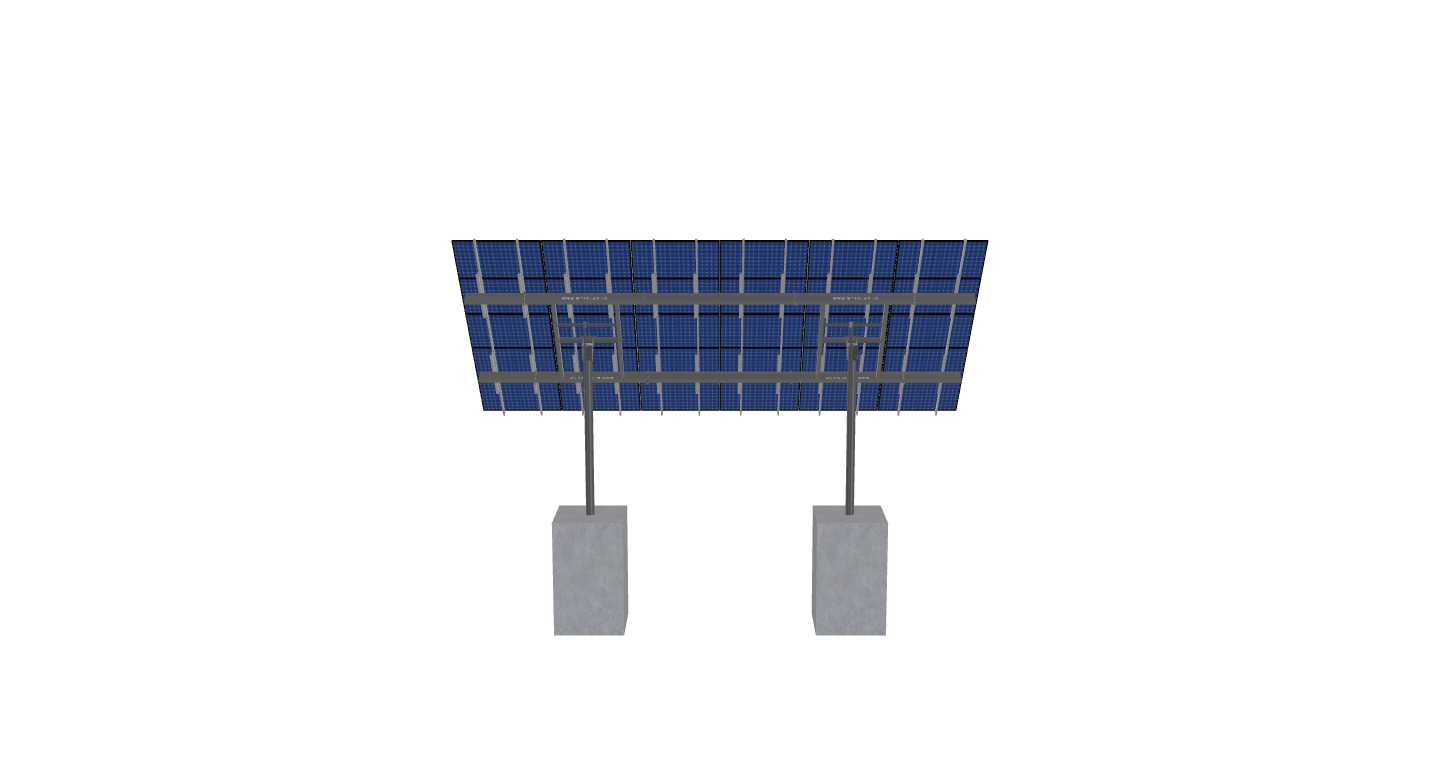

See 3D Model Here
MTSOLAR_11A47EG7J7H0F – RevA – Jb
$11,441.86
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65 inches by 40 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 10in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

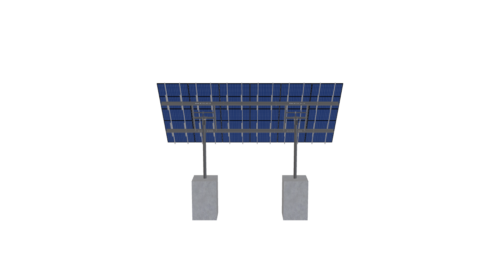

See 3D Model Here
Additional information
Weight | 2283.3399999999997 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 2P-17-10TOP-XD-45-L-5HX6W-2I64 |
DUTY SIZE | XD |
POLE SIZE | 10IN, PIPE, SCH, 80 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 2.00 |
POLE SPACING | 17.00 |
POLE HEIGHT | 11.46 |
WING SPAN | 45.00 |
MAX FOUNDATION DEPTH | 7.50 |
TILT ANGLE | 50.00 |
CANTILEVER | 384.00 |
GROUND CLEARANCE | 5.00 |
NO POLES | 2.00 |
MODULE AREA | 556.88 |
ARRAY WIDTH | 33.00 |
ARRAY HEIGHT | 16.88 |
RAIL LENGTH | 202.50 |
MODULE LENGTH | 65.00 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 32.00 |
GROUND TO TOP | 17.85 |
PROJECTED PANEL HEIGHT | 12.77 |
PROJECT ID | MTSOLAR, 11A47EG7J7H0F, -, REVA, -, JB |
SITE ADDRESS | 7362, GREAT, DIVIDE, DR, MARYSVILLE, MT, 59640, USA |
MODULE WIDTH | 40.00 |
NUMBER ROWS | 5.00 |
NUMBER COLUMNS | 6.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | C |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
WIND SPEED OVERRIDE | 105.00 |
SNOW LOAD OVERRIDE | 30.00 |
DIRECT SNOW LOAD | FALSE |
ADD ANGLE BRACE | FALSE |
TOTAL PRICE | 11441.86 |
TOTAL WEIGHT | 2283.34 |
TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/486a666e-4e79-41f6-9bdf-0decd6dbc345.pdf |
|
ID | 6490.00 |
3D Solar link |
