MTSOLAR_1ICL96IH3H53H

$9,902.48

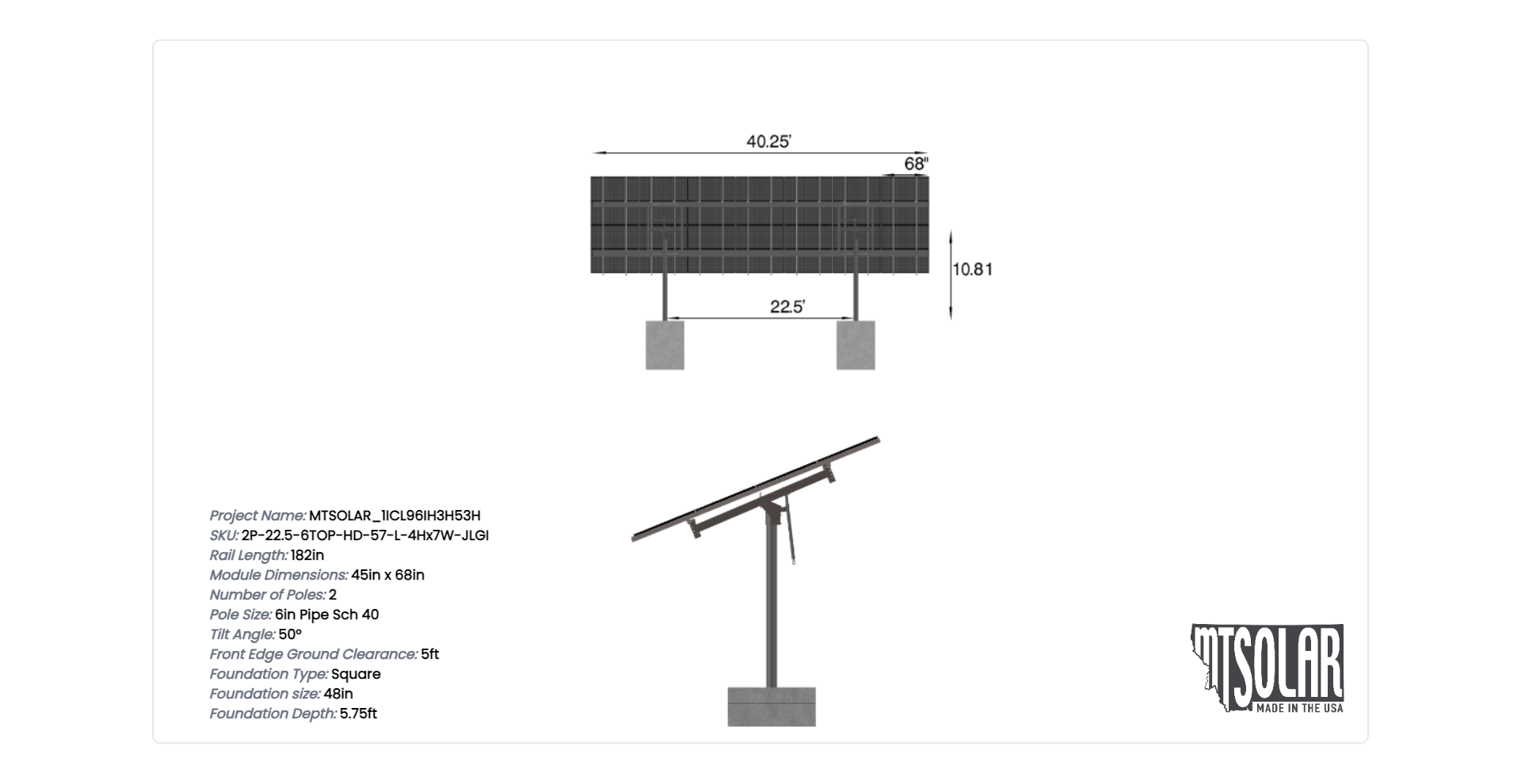

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 45 inches and an array layout of 7 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

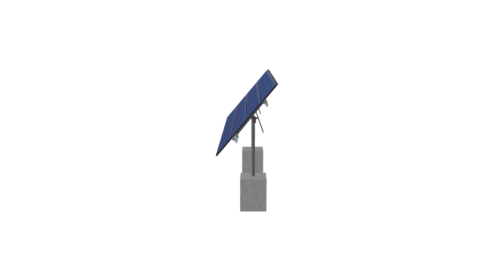

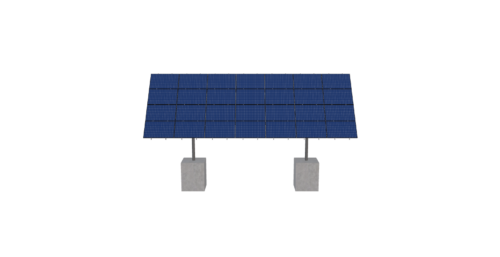

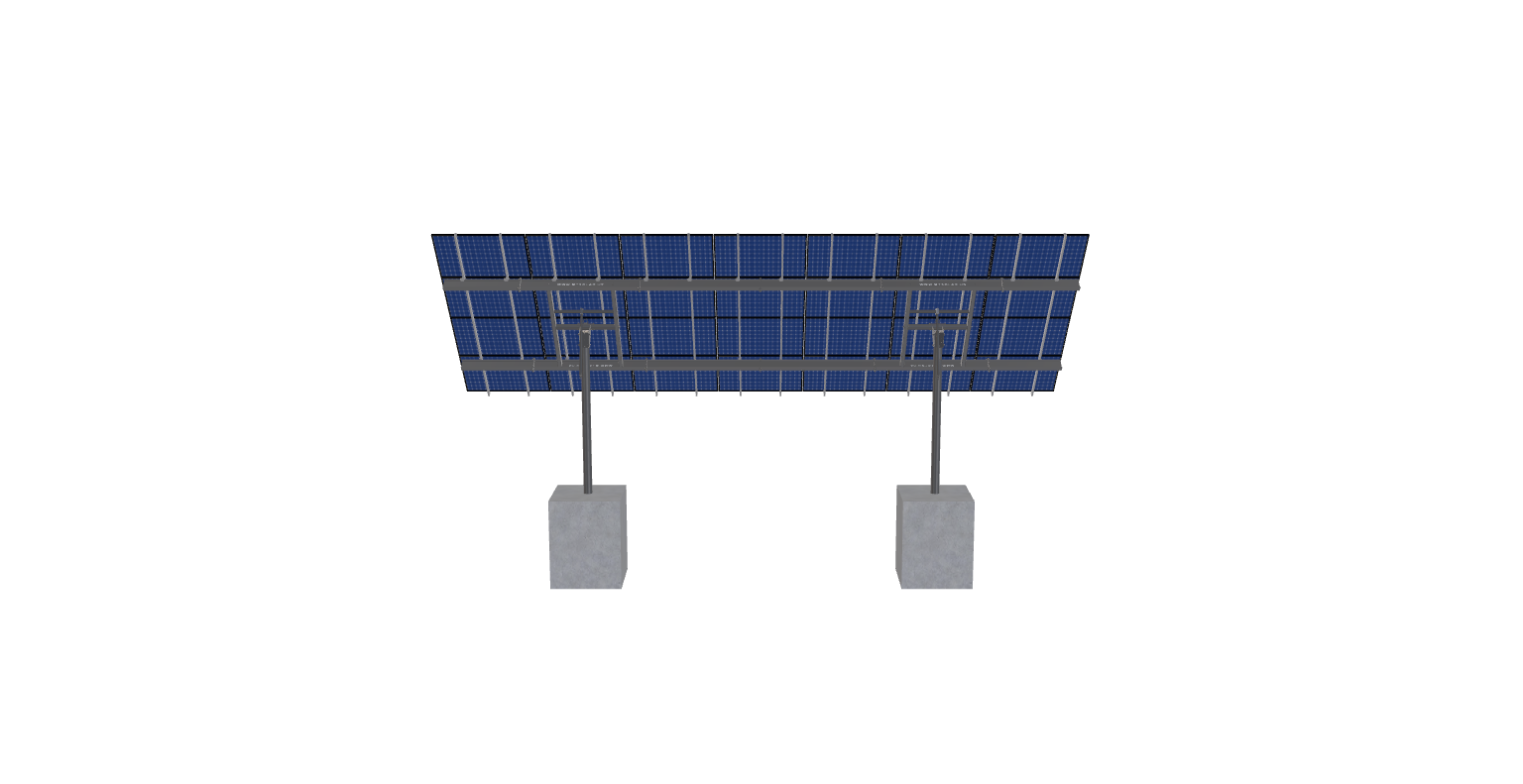

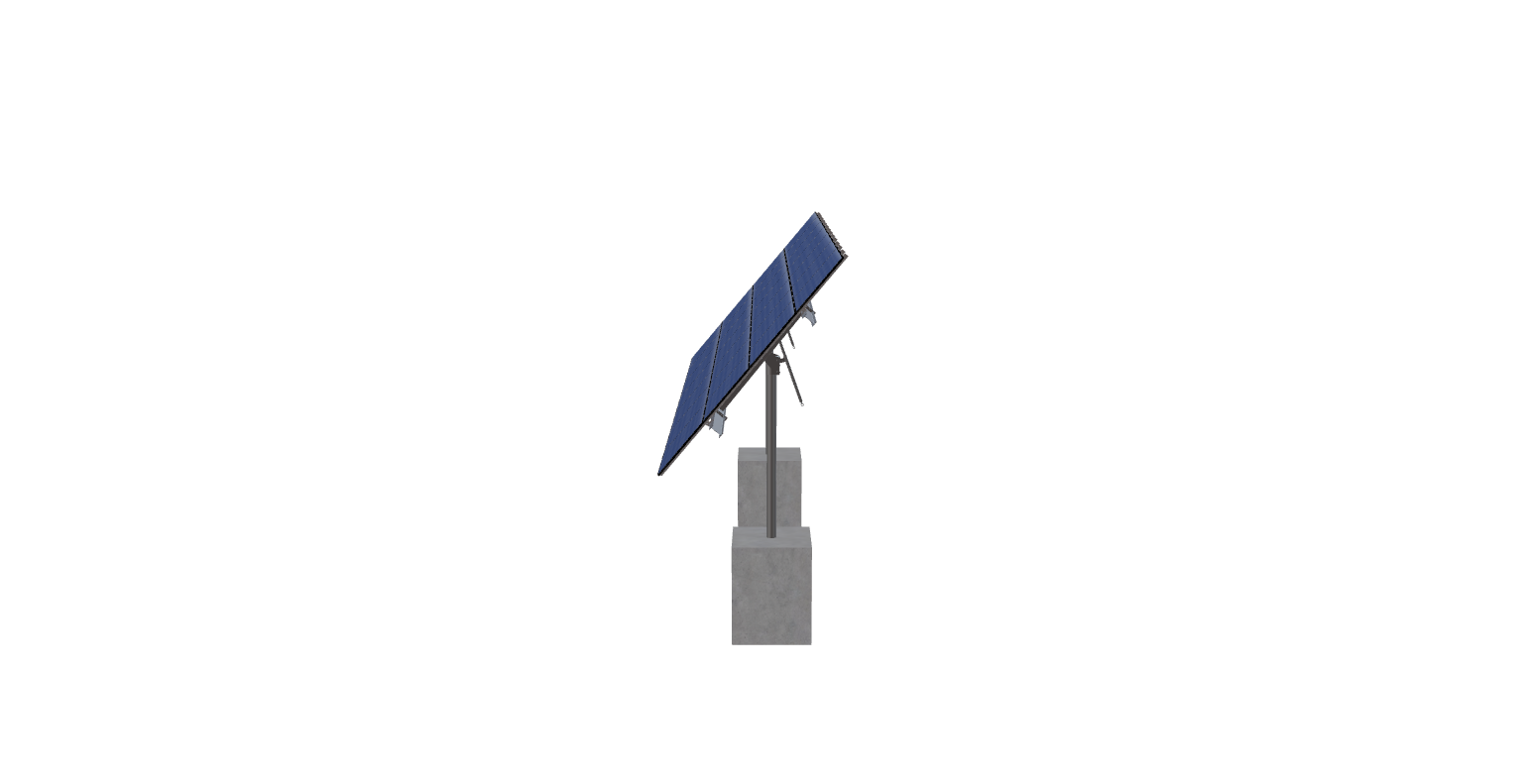

See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 2P-22.5-6TOP-HD-57-L-4Hx7W-JLGI Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 45 inches and an array layout of 7 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 1814.72 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

2P-22.5-6TOP-HD-57-L-4HX7W-JLGI

DUTY SIZE

HD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

2.00

POLE SPACING

22.50

POLE HEIGHT

10.81

WING SPAN

57.00

MAX FOUNDATION DEPTH

5.75

TILT ANGLE

50.00

CANTILEVER

474.00

GROUND CLEARANCE

5.00

NO POLES

2.00

MODULE AREA

610.46

ARRAY WIDTH

40.25

ARRAY HEIGHT

15.17

RAIL LENGTH

182.00

MODULE LENGTH

68.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

39.50

GROUND TO TOP

16.55

PROJECTED PANEL HEIGHT

11.49

PROJECT ID

MTSOLAR, 1ICL96IH3H53H

SITE ADDRESS

TELLURIDE, CO, 81435, USA

MODULE WIDTH

45.00

NUMBER ROWS

4.00

NUMBER COLUMNS

7.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

90.00

SNOW LOAD OVERRIDE

90.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

9902.48

TOTAL WEIGHT

1814.72

TOTAL PALLETS

2.00
