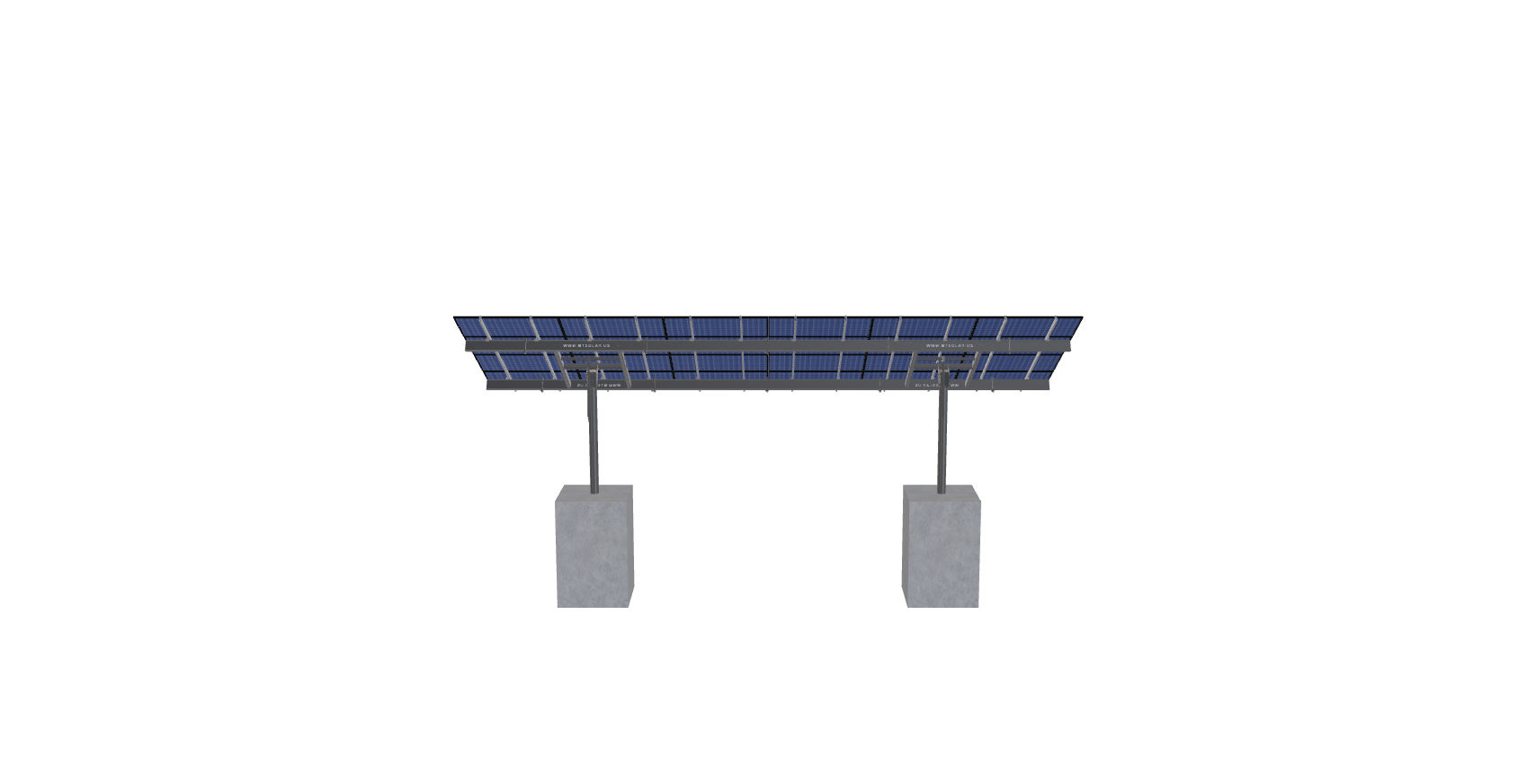

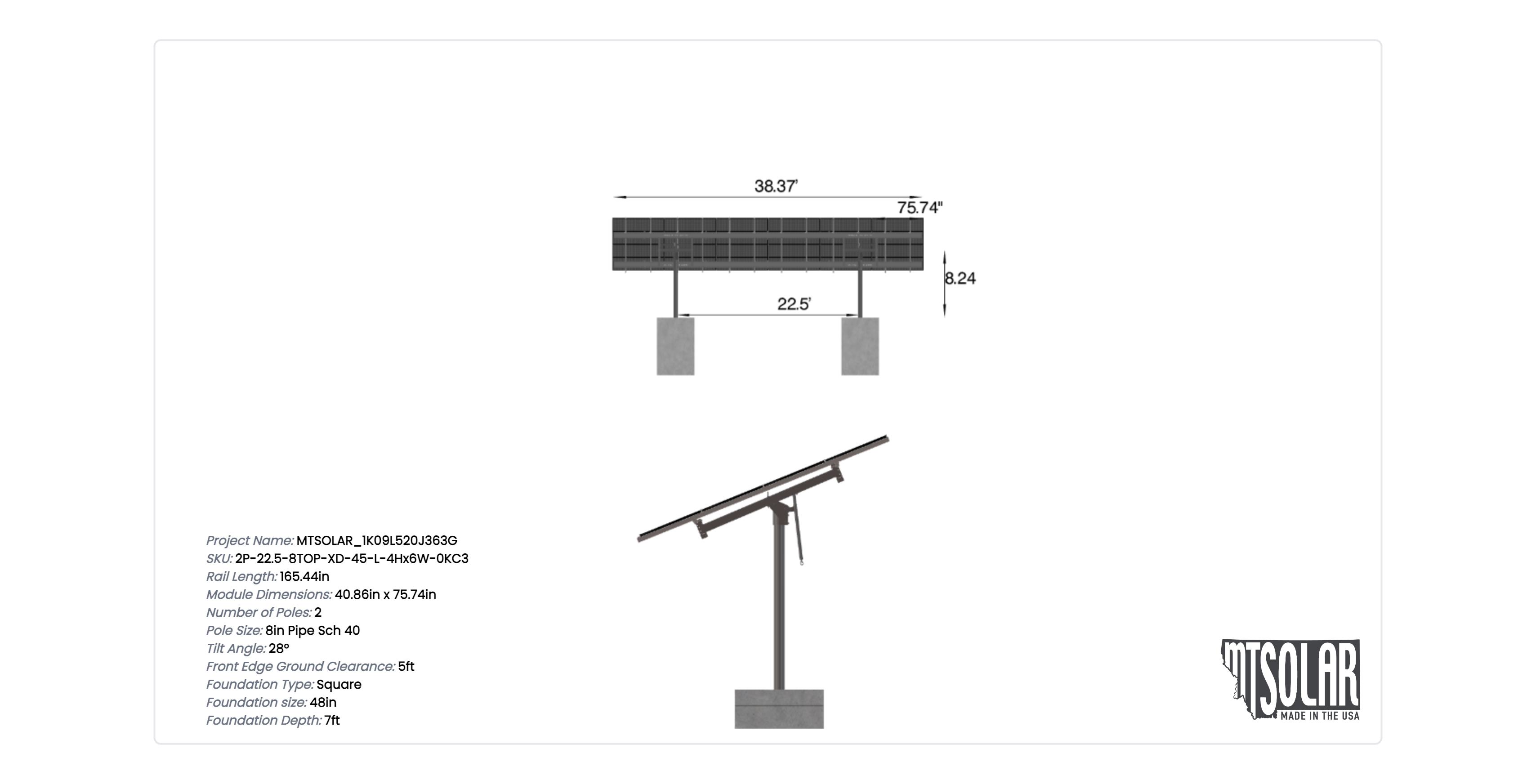

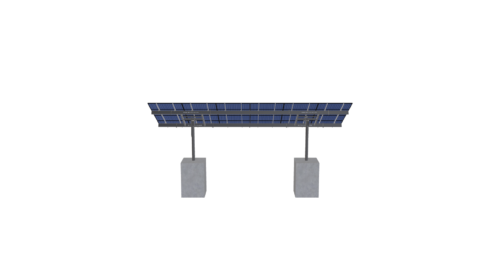

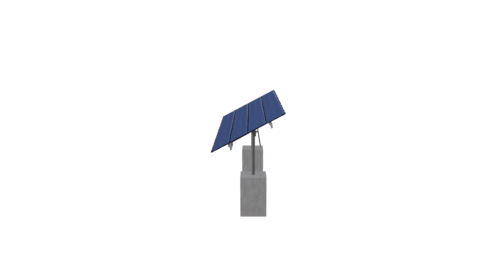

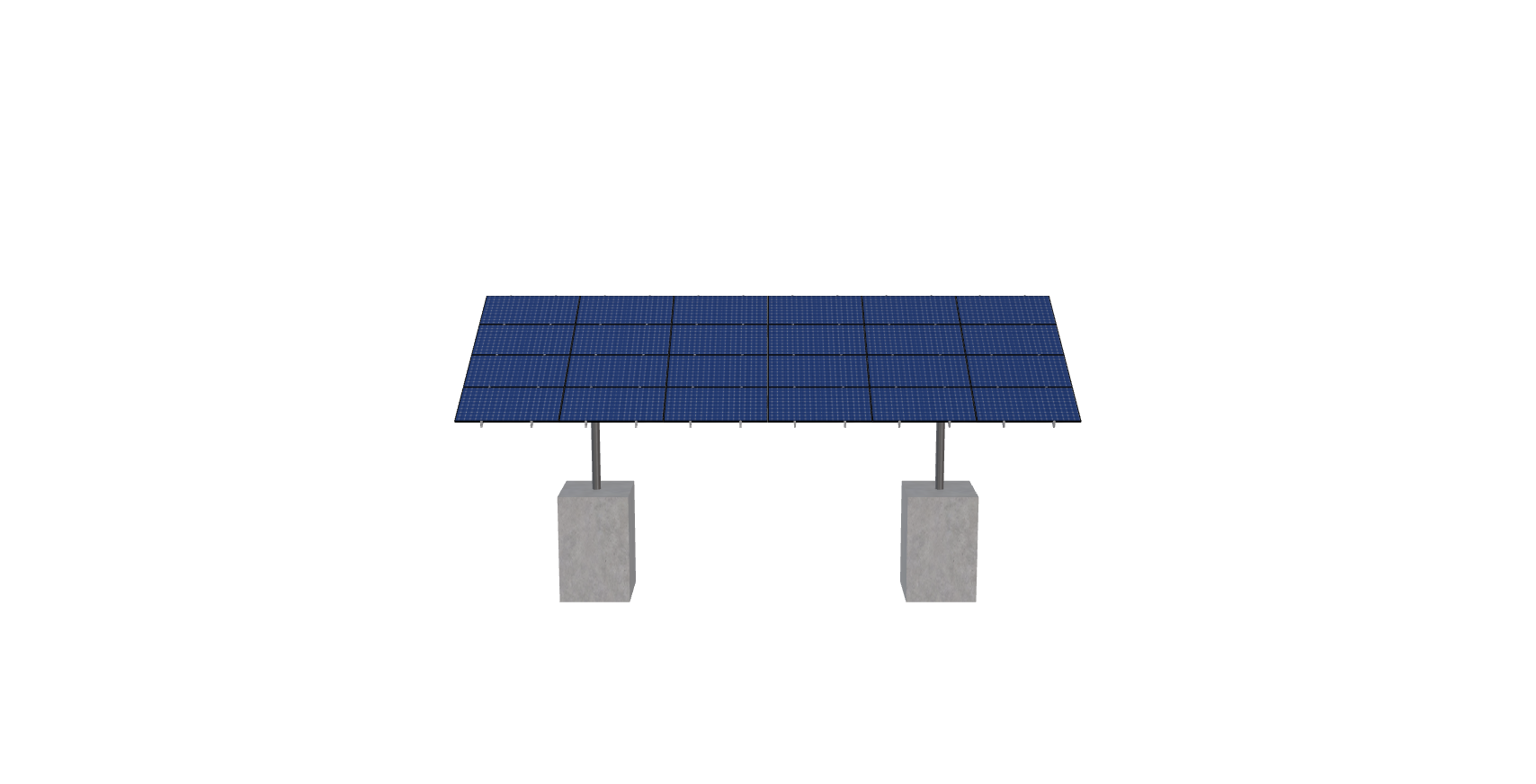

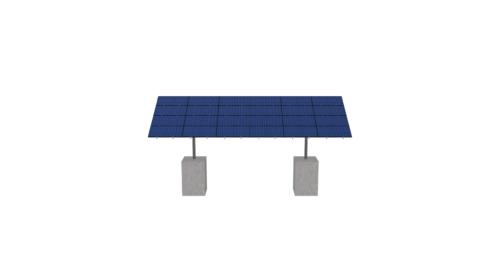

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.74 inches by 40.86 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_1K09L520J363G
$10,708.00
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.74 inches by 40.86 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2000.0199999999998 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-22.5-8TOP-XD-45-L-4HX6W-0KC3 |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 8.24 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 7.00 |
| TILT ANGLE | 28.00 |
| CANTILEVER | 450.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 2.00 |
| MODULE AREA | 528.99 |
| ARRAY WIDTH | 38.37 |
| ARRAY HEIGHT | 13.79 |
| RAIL LENGTH | 165.44 |
| MODULE LENGTH | 75.74 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 37.50 |
| GROUND TO TOP | 11.43 |
| PROJECTED PANEL HEIGHT | 6.39 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | CASPER |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 7272186926.00 |
| PROJECT ID | MTSOLAR, 1K09L520J363G |
| SITE ADDRESS | 17037, PALOMINO, LAKE, DR, DADE, CITY, FL, 33523, USA |
| MODULE WIDTH | 40.86 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 10708.00 |
| TOTAL WEIGHT | 2000.02 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/d6b87d18-5f6b-46f3-a24b-f8f97e50dce1.pdf |
|
| ID | 8059.00 |
| 3D Solar link |
