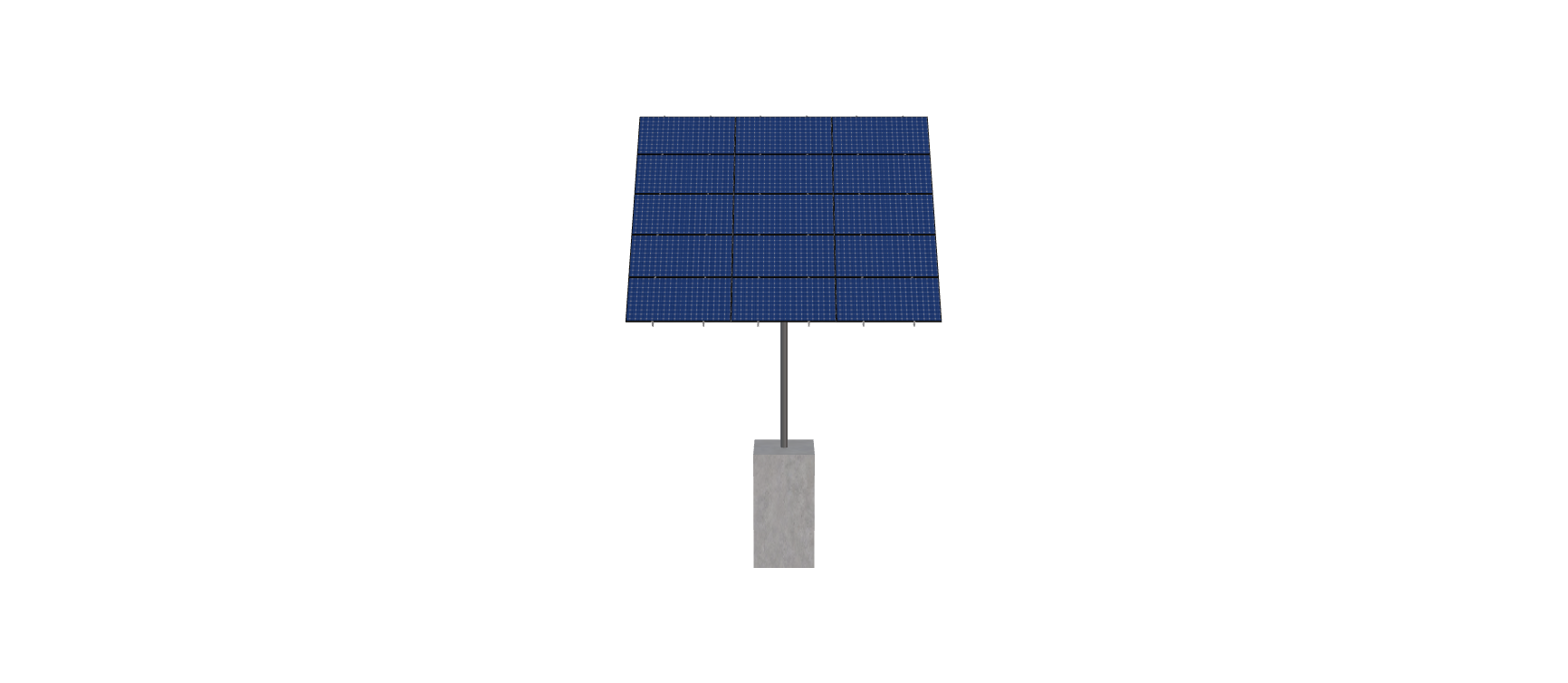

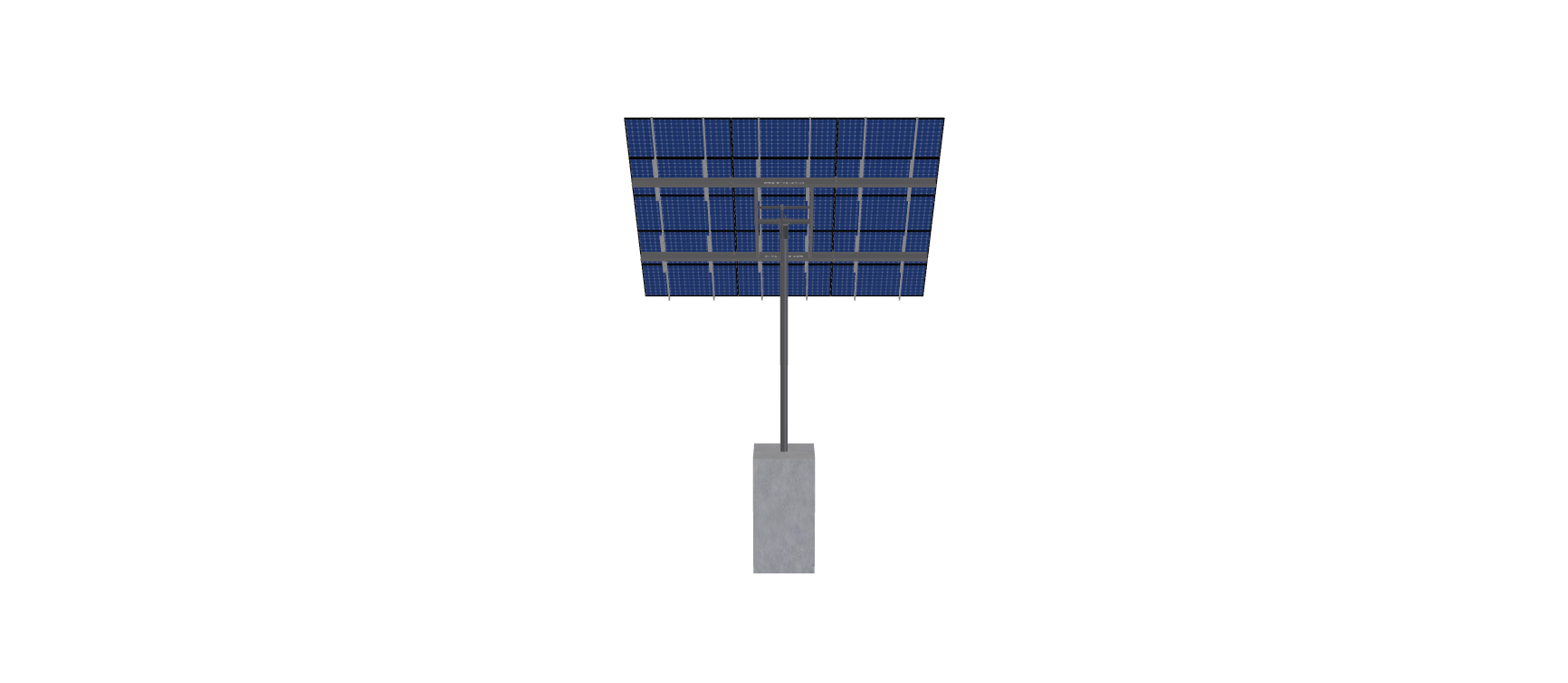

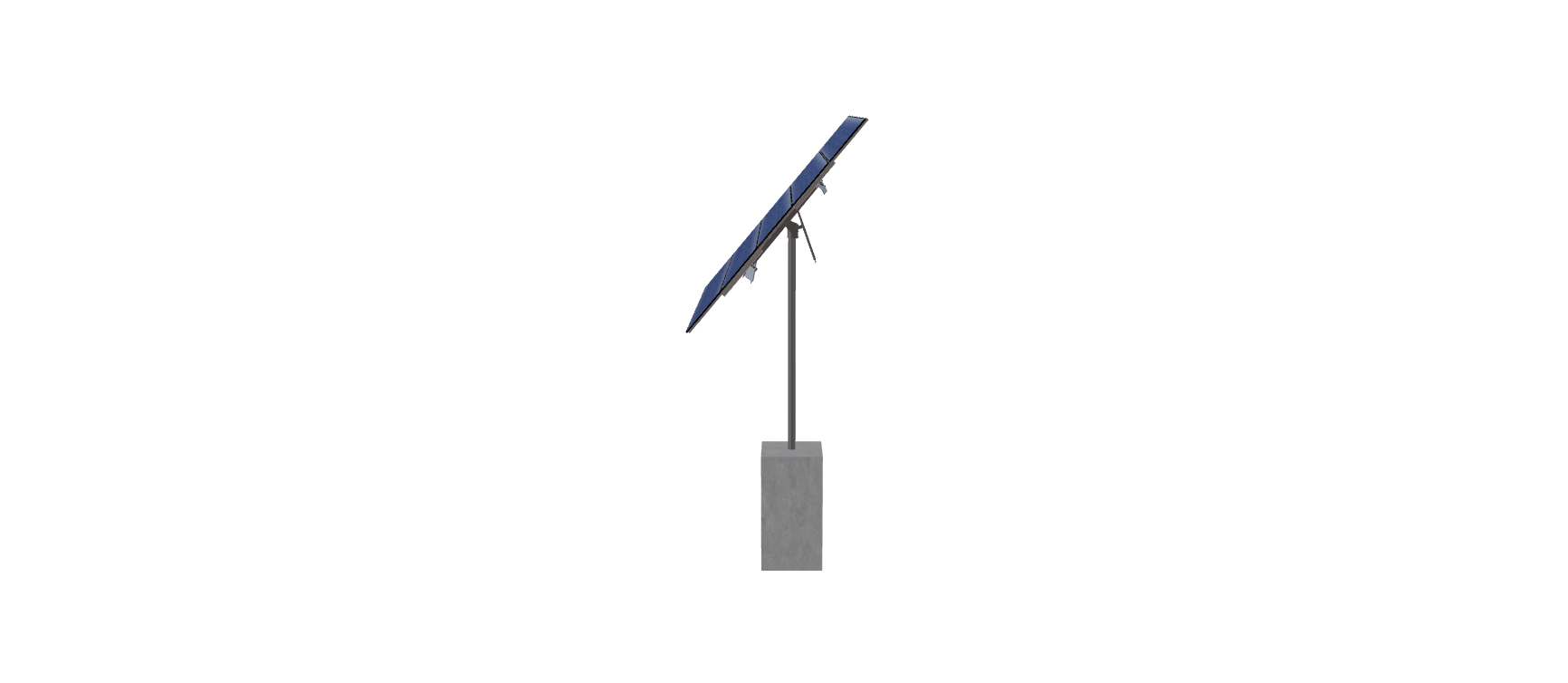

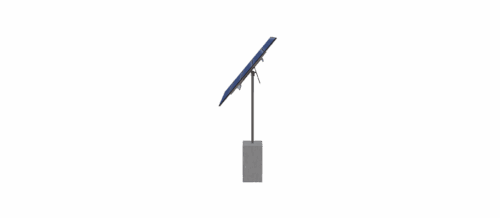

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87 inches by 44 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_20CK85IEGFE95-CV-1-Pole
$5,815.20
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87 inches by 44 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1136.1299999999999 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-10TOP-HD-84-L-5HX3W-31DD |
| DUTY SIZE | HD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 17.10 |
| WING SPAN | 84.00 |
| MAX FOUNDATION DEPTH | 8.75 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 258.00 |
| GROUND CLEARANCE | 10.00 |
| NO POLES | 1.00 |
| MODULE AREA | 407.92 |
| ARRAY WIDTH | 22.00 |
| ARRAY HEIGHT | 18.54 |
| RAIL LENGTH | 222.50 |
| MODULE LENGTH | 87.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 21.50 |
| GROUND TO TOP | 24.20 |
| PROJECTED PANEL HEIGHT | 14.20 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | MTSOLAR, 20CK85IEGFE95-CV-1-POLE |
| SITE ADDRESS | DIX, NE, 69133, USA |
| MODULE INFO | |
| MODULE WIDTH | 44.00 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 5815.20 |
| TOTAL WEIGHT | 1136.13 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/993df079-4302-4be3-8e7f-ccec85b5df47.pdf |
|
| ID | 11491.00 |
| 3D Solar link |
