This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 47.4 inches and an array layout of 4 wide by 3 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

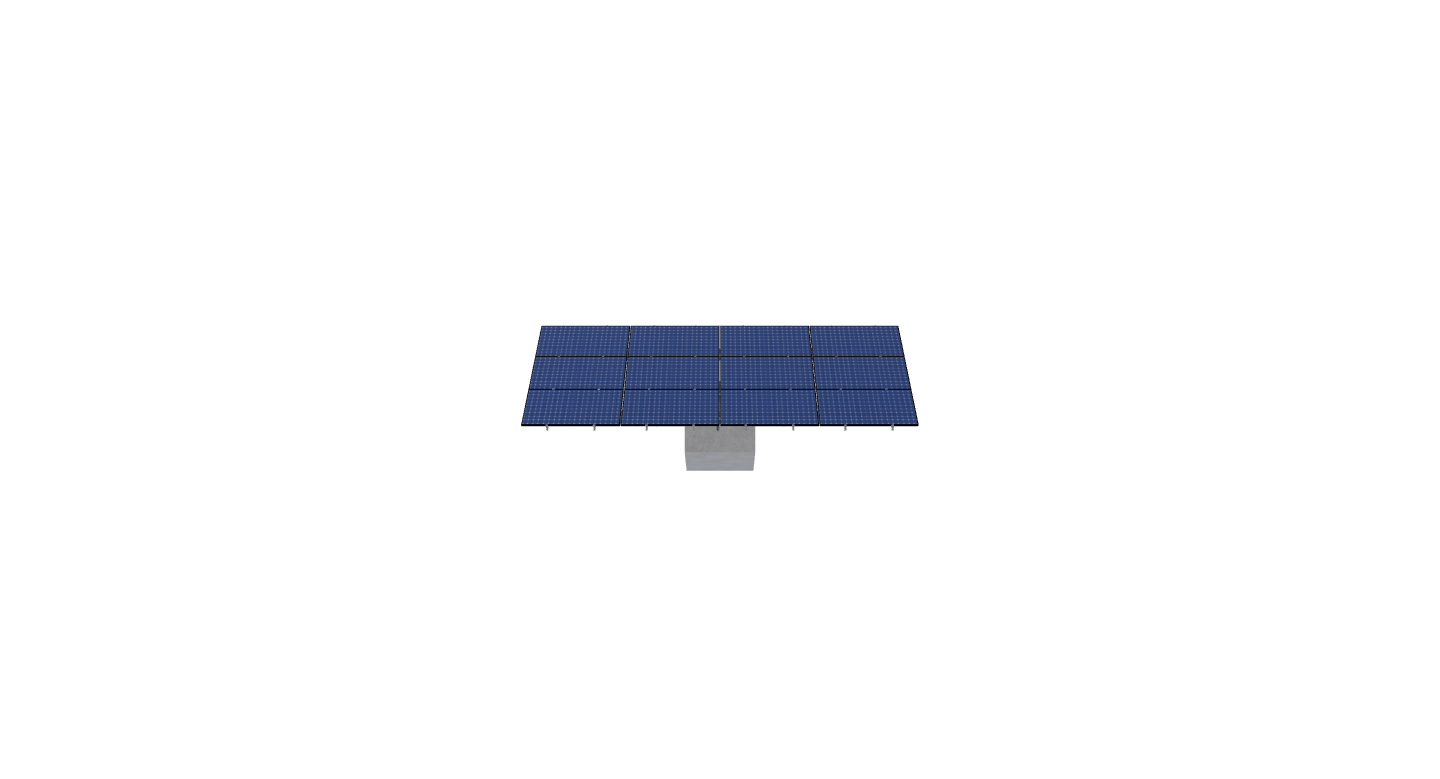

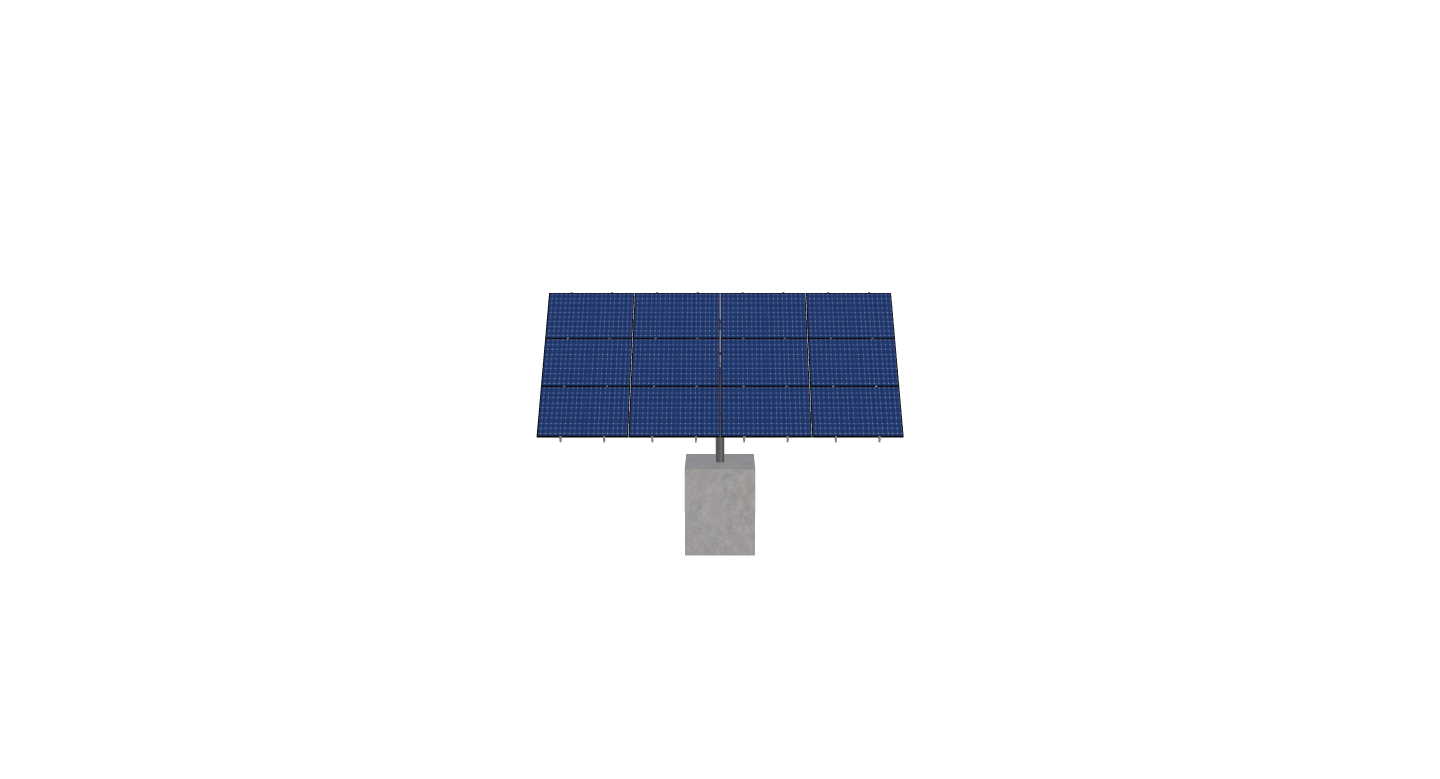

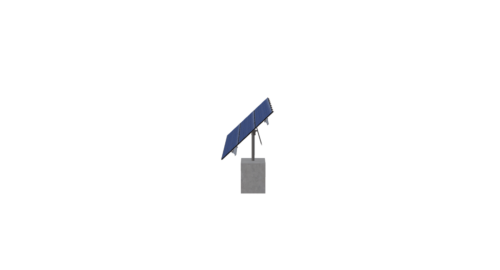

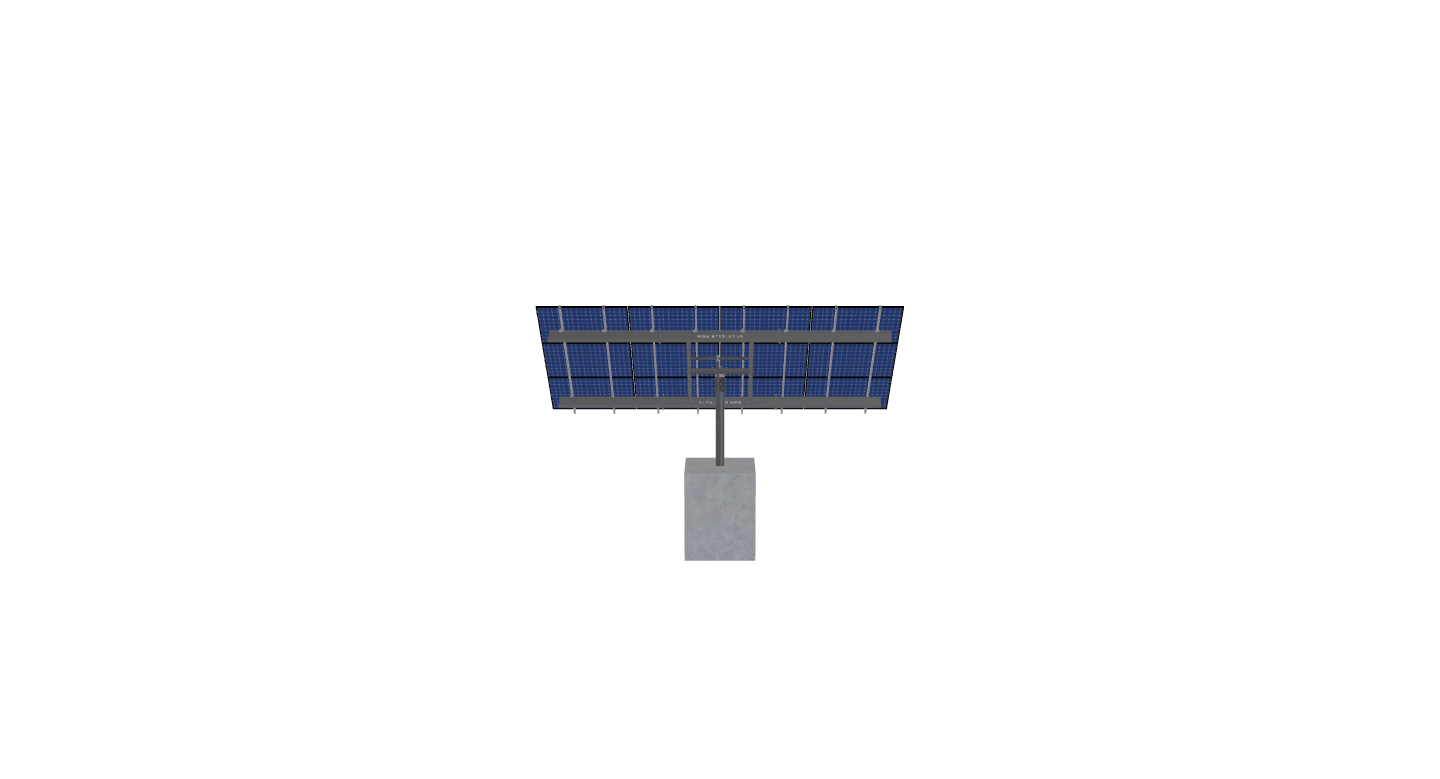

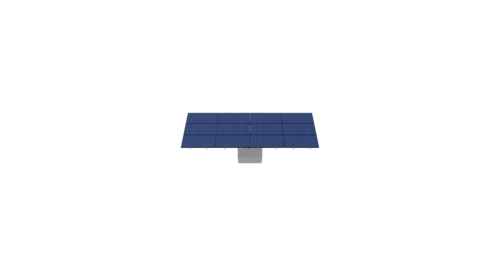

See 3D Model Here
MTSOLAR_2C50D5ID3CA94
$5,310.68
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 47.4 inches and an array layout of 4 wide by 3 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 936.49 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-8TOP-HD-84-L-3HX4W-GI6D |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 6.12 |
| WING SPAN | 84.00 |
| MAX FOUNDATION DEPTH | 5.75 |
| TILT ANGLE | 43.50 |
| CANTILEVER | 258.00 |
| GROUND CLEARANCE | 2.00 |
| NO POLES | 1.00 |
| MODULE AREA | 275.43 |
| ARRAY WIDTH | 23.00 |
| ARRAY HEIGHT | 11.97 |
| RAIL LENGTH | 143.70 |
| MODULE LENGTH | 68.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 21.50 |
| GROUND TO TOP | 10.20 |
| PROJECTED PANEL HEIGHT | 8.16 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | MTSOLAR, 2C50D5ID3CA94 |
| SITE ADDRESS | 3815, VIA, DEL, CAMPO, SAN, CLEMENTE, CA, 92673, USA |
| MODULE WIDTH | 47.40 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 4.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | D |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 5057.79 |
| TOTAL WEIGHT | 936.49 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/a4290428-db4e-49d2-9907-d6e57820382c.pdf |
|
| ID | 7353.00 |
| 3D Solar link |
