MTSOLAR_34837AG74B405

$5,320.23

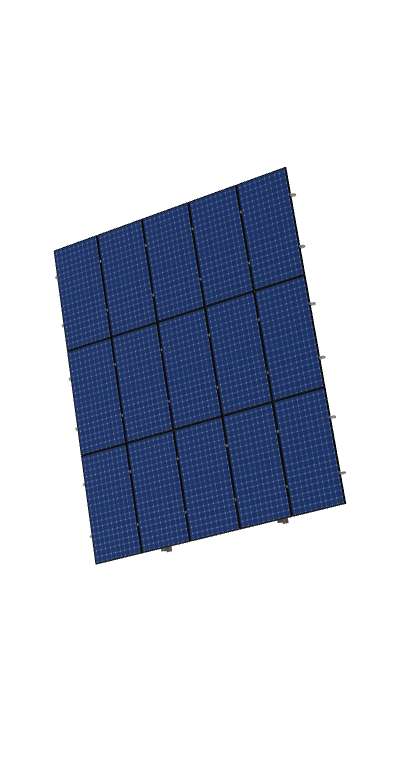

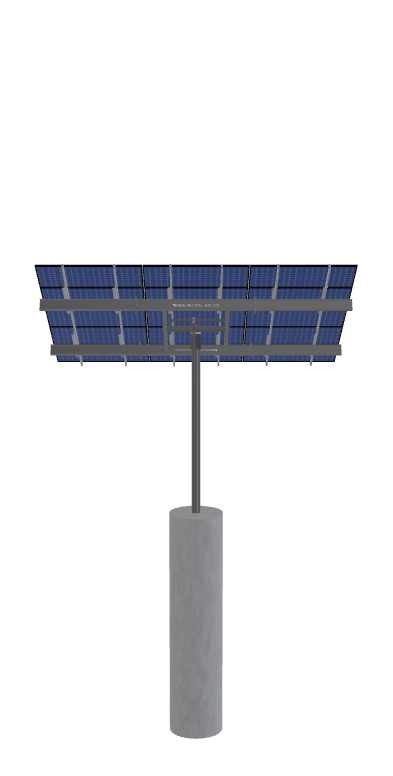

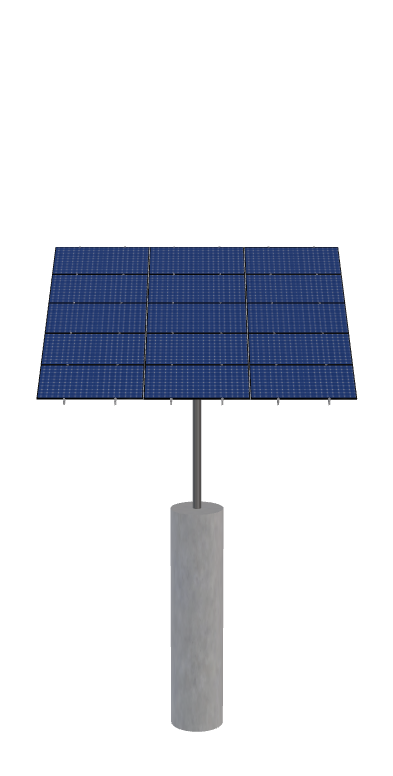

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 77 inches by 39 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 1P-0-8TOP-HD-72-L-5Hx3W-3CED Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 77 inches by 39 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 1076.99 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-8TOP-HD-72-L-5HX3W-3CED

DUTY SIZE

HD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

12.11

WING SPAN

72.00

MAX FOUNDATION DEPTH

15.00

TILT ANGLE

30.00

CANTILEVER

234.00

GROUND CLEARANCE

8.00

NO POLES

1.00

MODULE AREA

320.94

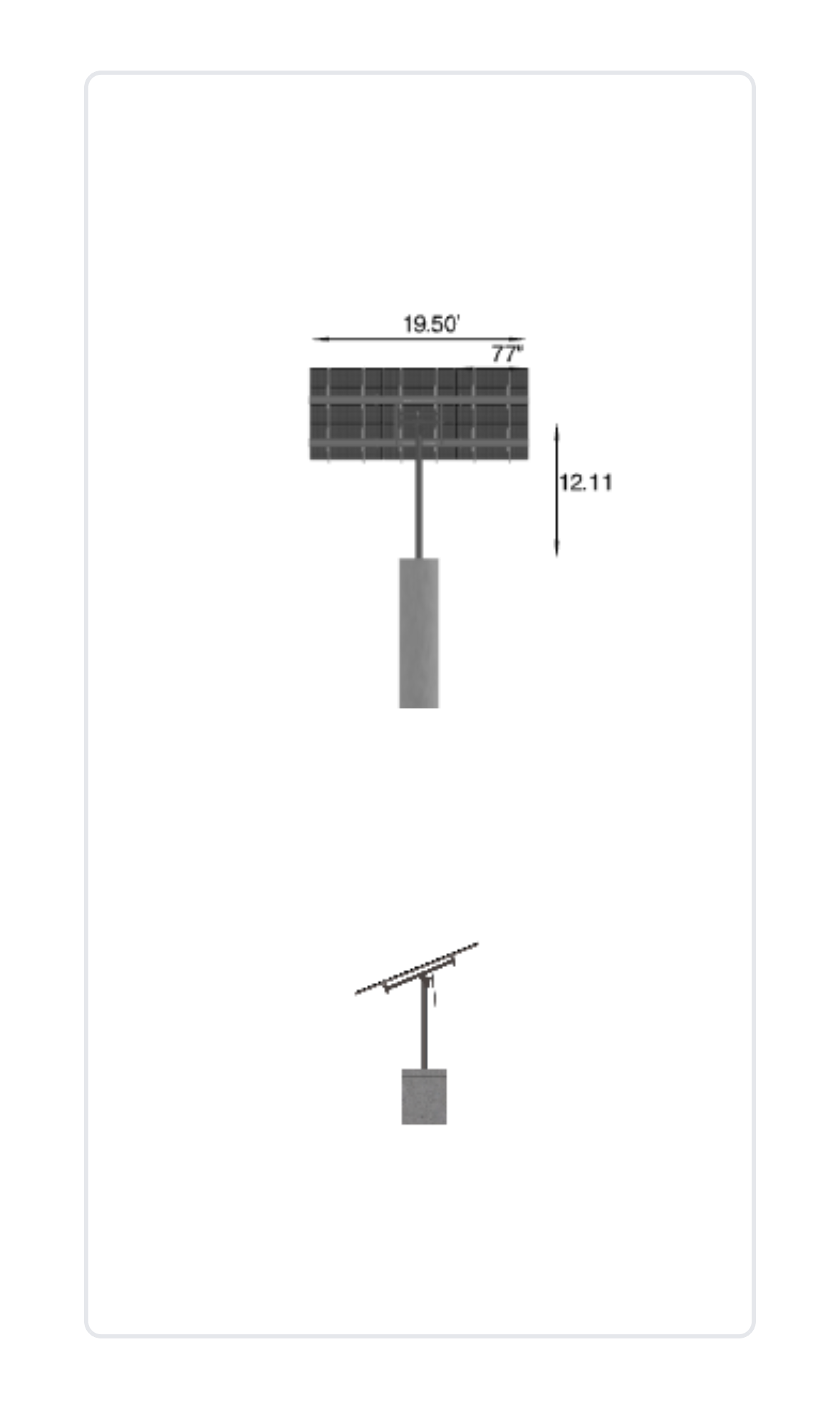

ARRAY WIDTH

19.50

ARRAY HEIGHT

16.46

RAIL LENGTH

197.50

MODULE LENGTH

77.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

19.50

GROUND TO TOP

16.18

PROJECTED PANEL HEIGHT

8.12

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

MTSOLAR, 34837AG74B405

SITE ADDRESS

GAINESVILLE, TX, 76240, USA

MODULE WIDTH

39.00

NUMBER ROWS

5.00

NUMBER COLUMNS

3.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

36, ROUND

FOUNDATION TYPE

ROUND

FOUNDATION SIZE

36.00

CHECK RAILS

FALSE

TOTAL PRICE

5320.23

TOTAL WEIGHT

1076.99

TOTAL PALLETS

1.00
