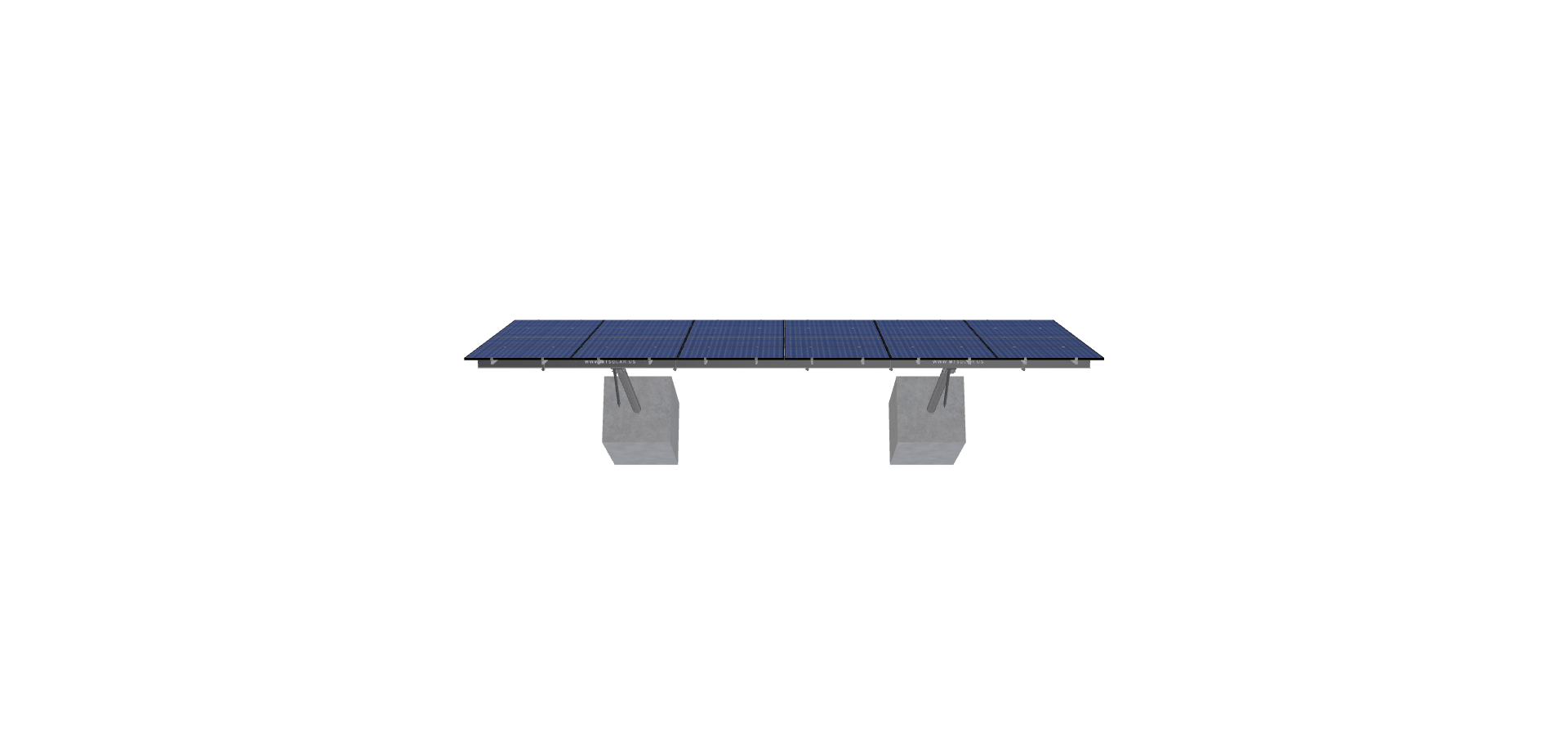

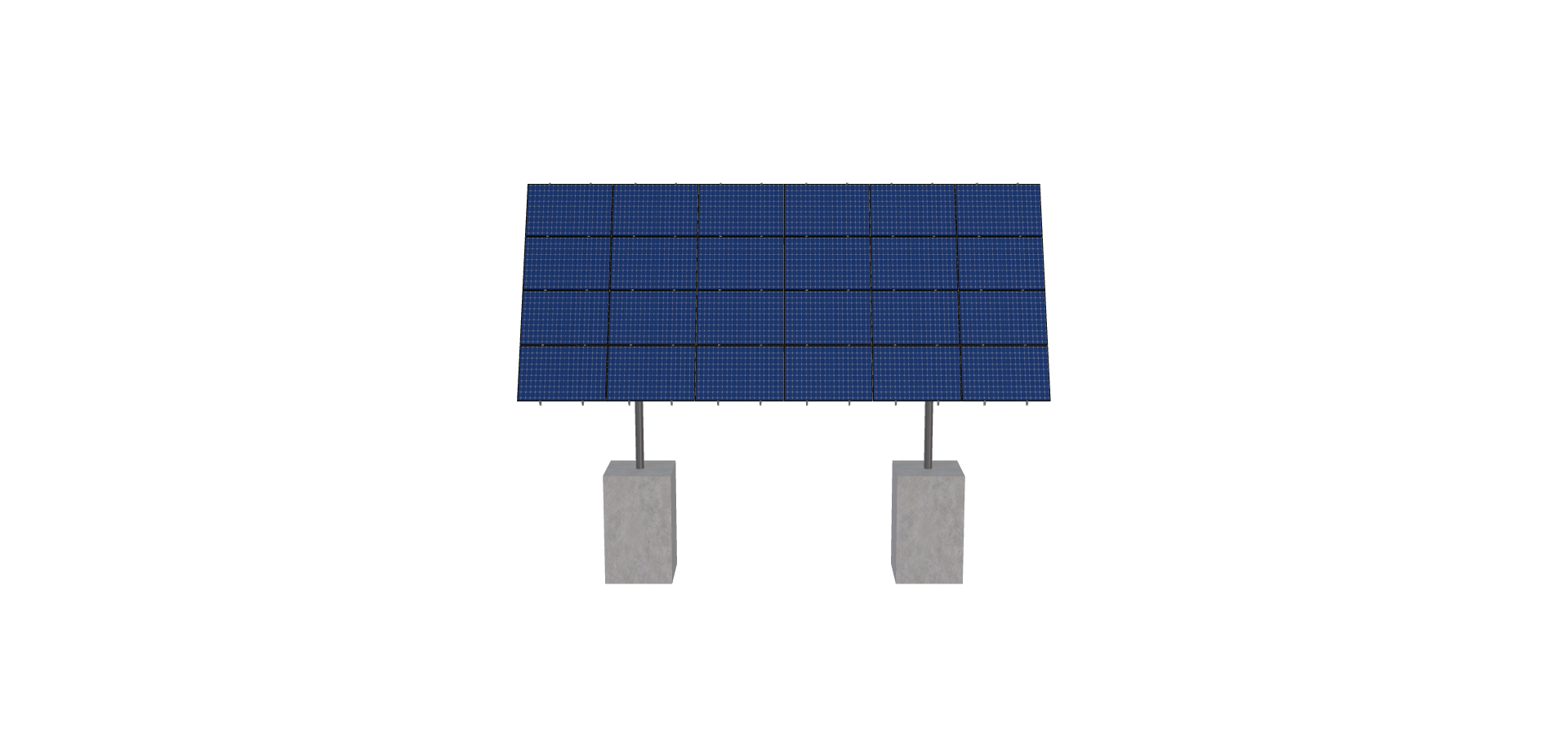

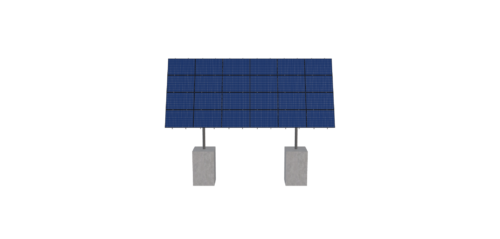

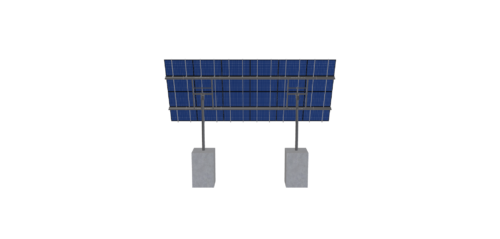

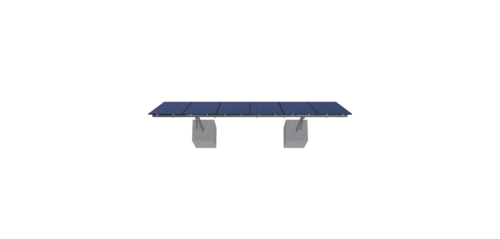

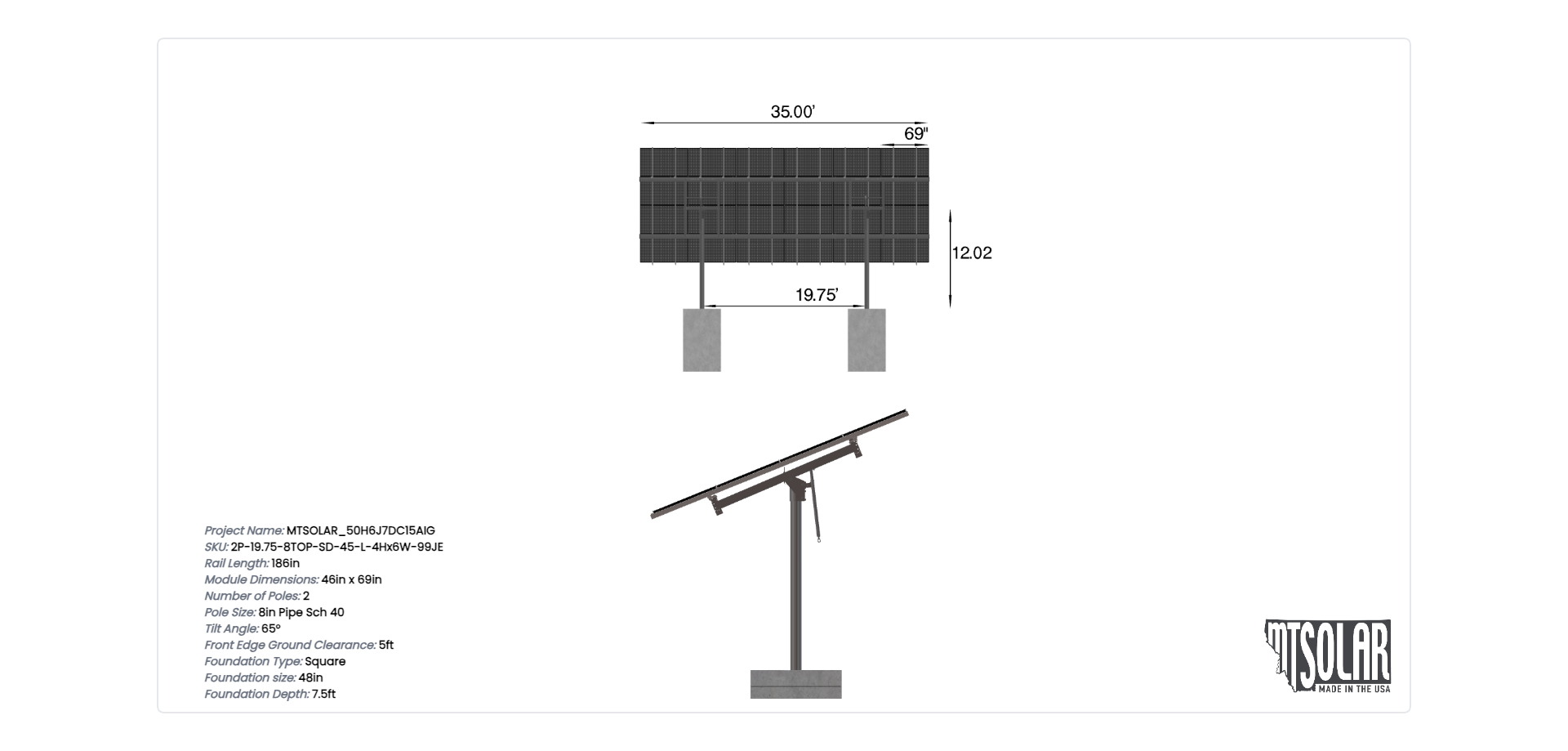

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69 inches by 46 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 2P-19.75-8TOP-SD-45-L-4Hx6W-99JE Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69 inches by 46 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 1466.82 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

2P-19.75-8TOP-SD-45-L-4HX6W-99JE

DUTY SIZE

SD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

2.00

POLE SPACING

19.75

POLE HEIGHT

12.02

WING SPAN

45.00

MAX FOUNDATION DEPTH

7.50

TILT ANGLE

65.00

CANTILEVER

417.00

GROUND CLEARANCE

5.00

NO POLES

2.00

MODULE AREA

542.50

ARRAY WIDTH

35.00

ARRAY HEIGHT

15.50

RAIL LENGTH

186.00

MODULE LENGTH

69.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

34.75

GROUND TO TOP

18.97

PROJECTED PANEL HEIGHT

13.90

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

MTSOLAR, 50H6J7DC15AIG

SITE ADDRESS

29070, WOODLAND, RD, MOQUAH, WI, 54806, USA

MODULE WIDTH

46.00

NUMBER ROWS

4.00

NUMBER COLUMNS

6.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

8312.45

TOTAL WEIGHT

1466.82

TOTAL PALLETS

2.00
