MTSOLAR_5KLG6G9D993F – V1Jb

$13,913.76

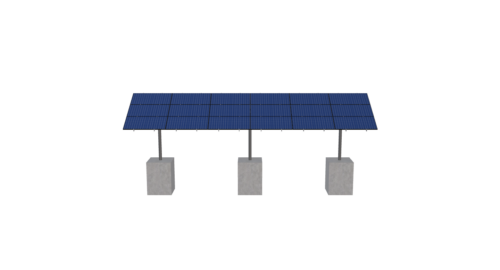

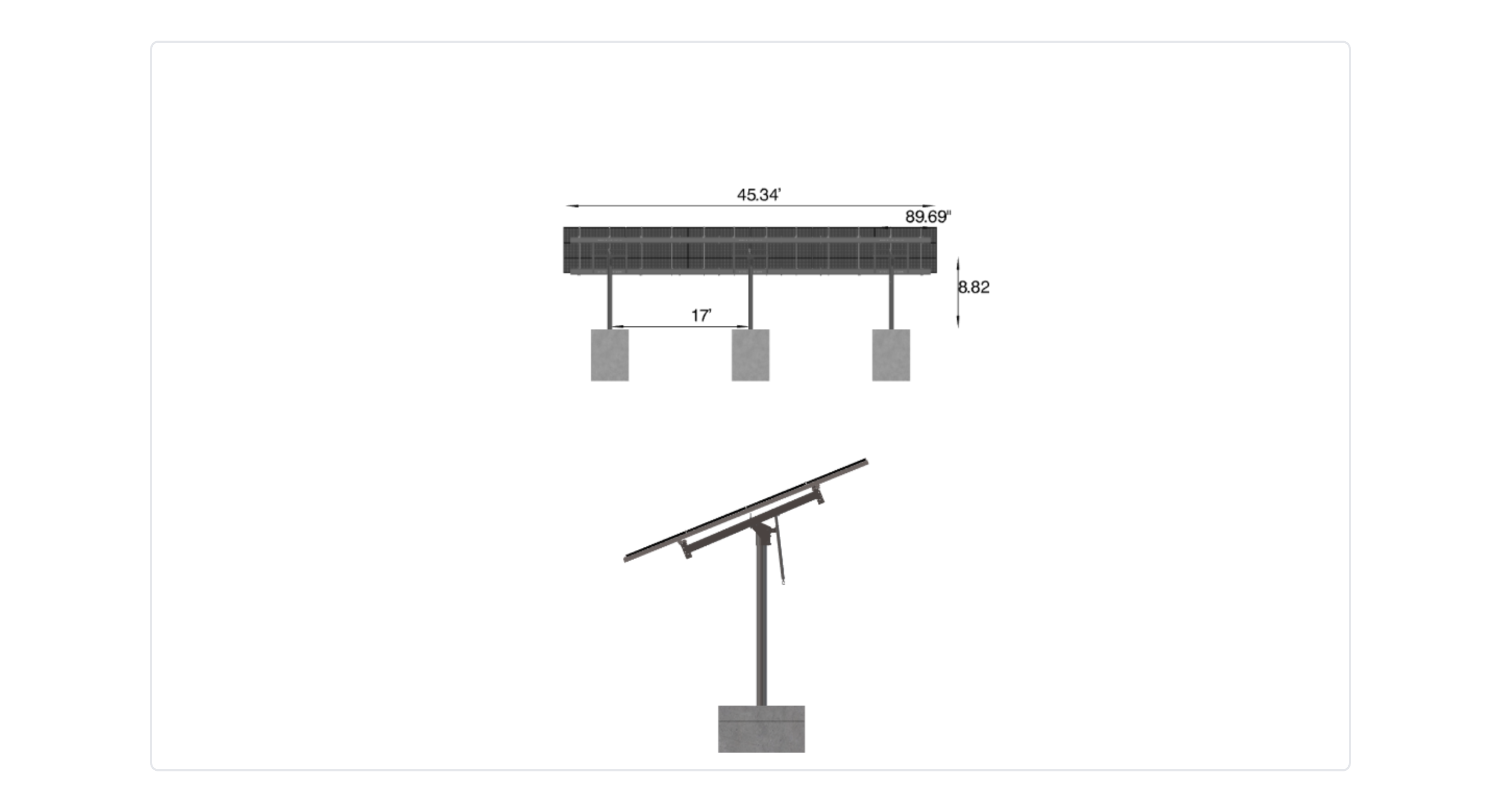

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.69 inches by 44.65 inches and an array layout of 6 wide by 3 high.
This mount fits on 3 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 3P-17-10TOP-XD-12-L-3Hx6W-AAA3 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.69 inches by 44.65 inches and an array layout of 6 wide by 3 high.
This mount fits on 3 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 2600.37 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

3P-17-10TOP-XD-12-L-3HX6W-AAA3

DUTY SIZE

XD

POLE SIZE

10IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

3.00

POLE SPACING

17.00

POLE HEIGHT

8.82

WING SPAN

12.00

MAX FOUNDATION DEPTH

6.25

TILT ANGLE

30.00

CANTILEVER

522.00

GROUND CLEARANCE

6.00

NO POLES

3.00

MODULE AREA

511.83

ARRAY WIDTH

45.34

ARRAY HEIGHT

11.29

RAIL LENGTH

135.45

MODULE LENGTH

89.69

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

43.50

GROUND TO TOP

11.61

PROJECTED PANEL HEIGHT

5.58

WIND SPEED OVERRIDE

140.00

SNOW LOAD OVERRIDE

100.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

MTSOLAR, 5KLG6G9D993F, -, V1JB

SITE ADDRESS

7, HILLSIDE, RD, NORTH, HAMPTON, NH, 03862, USA

MODULE WIDTH

44.65

NUMBER ROWS

3.00

NUMBER COLUMNS

6.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

XD

POLE OVERRIDE

10, 40

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

13913.76

TOTAL WEIGHT

2600.37

TOTAL PALLETS

3.00
