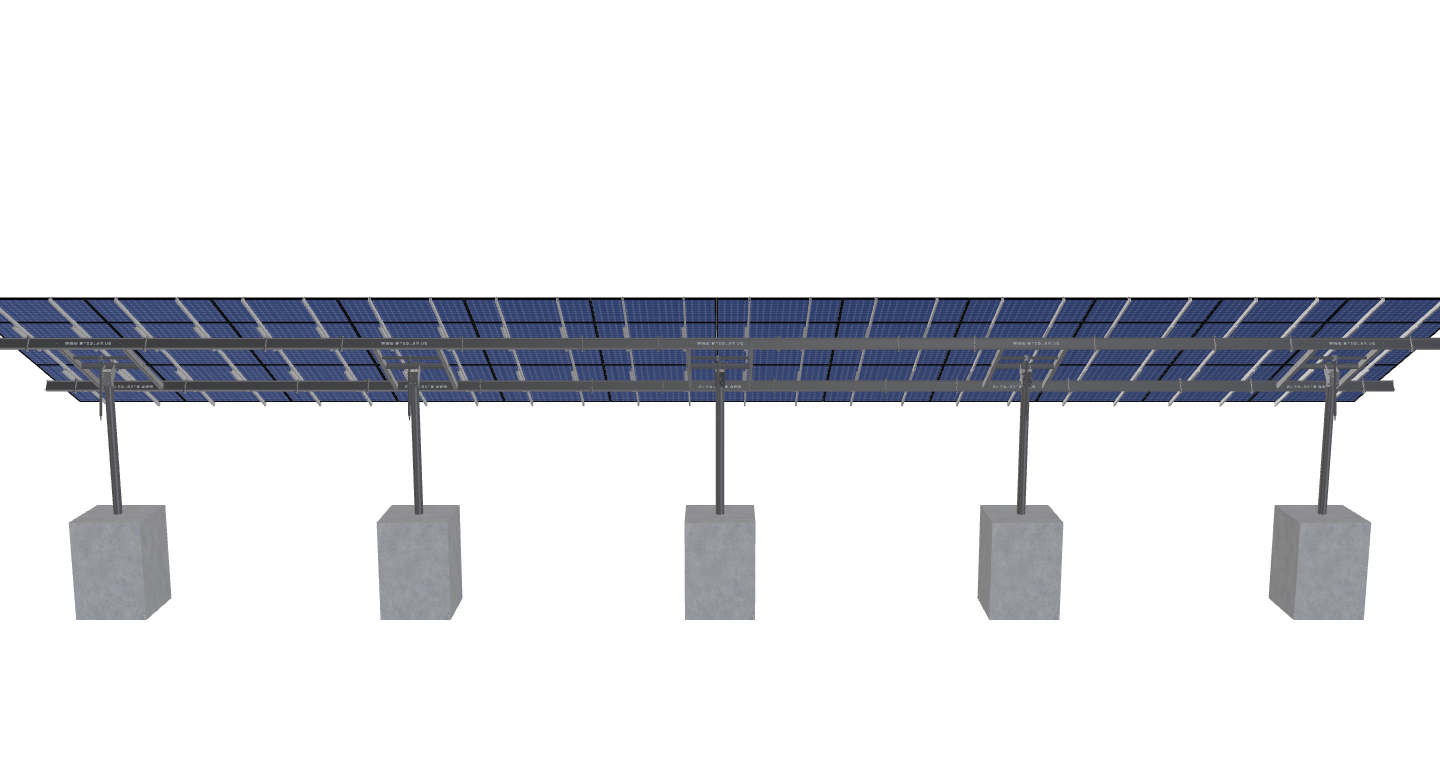

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.6 inches by 44.6 inches and an array layout of 12 wide by 5 high.
This mount fits on 5 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

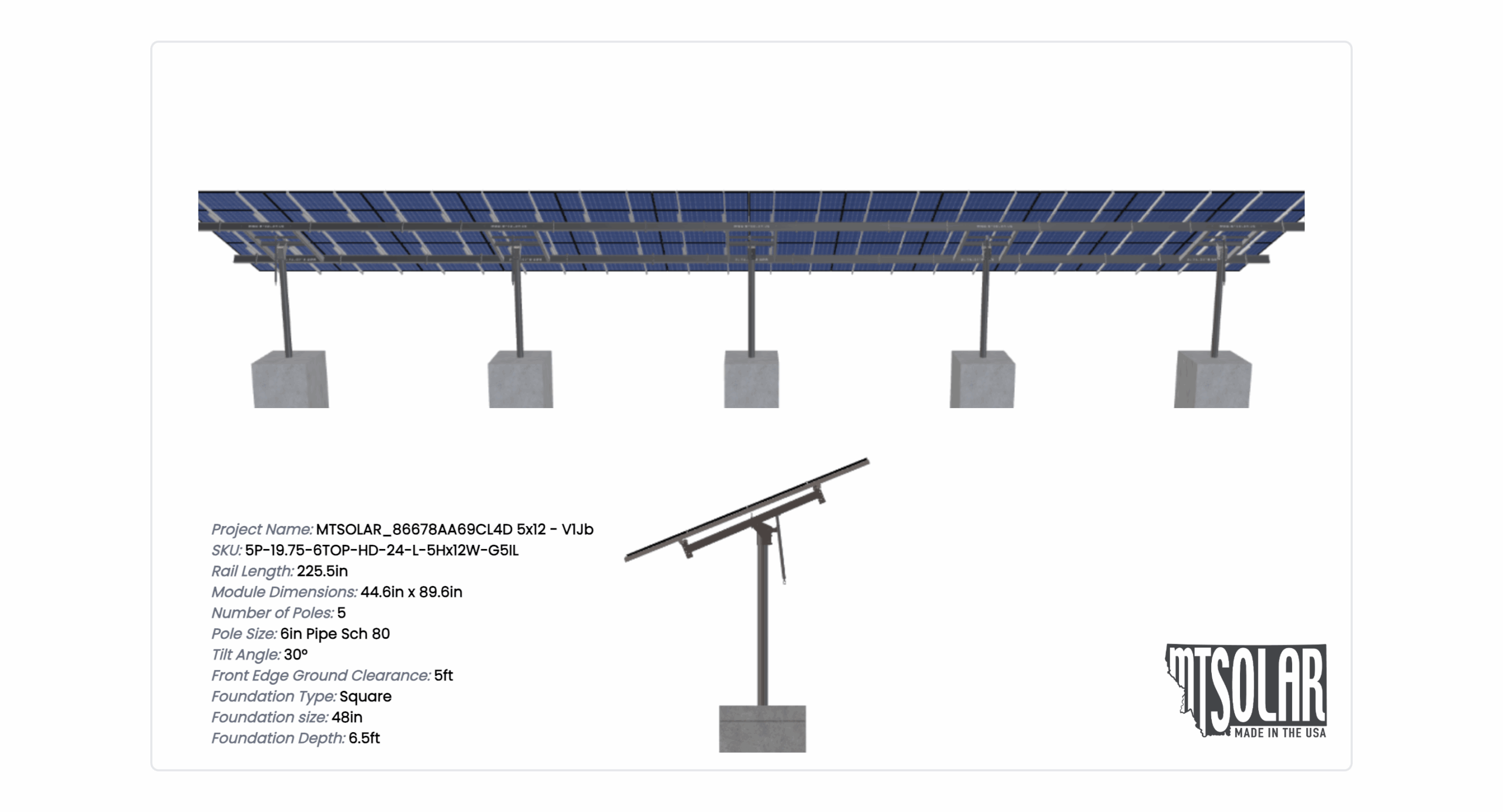

See 3D Model Here
MTSOLAR_86678AA69CL4D 5×12 – V1Jb
$25,860.42
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.6 inches by 44.6 inches and an array layout of 12 wide by 5 high.
This mount fits on 5 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 4980.99 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 5P-19.75-6TOP-HD-24-L-5HX12W-G5IL |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 5.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 9.70 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 6.50 |
| TILT ANGLE | 30.00 |
| CANTILEVER | 1086.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 5.00 |
| MODULE AREA | 1702.52 |
| ARRAY WIDTH | 90.60 |
| ARRAY HEIGHT | 18.79 |
| RAIL LENGTH | 225.50 |
| MODULE LENGTH | 89.60 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 90.50 |
| GROUND TO TOP | 14.40 |
| PROJECTED PANEL HEIGHT | 9.40 |
| WIND SPEED OVERRIDE | 115.00 |
| SNOW LOAD OVERRIDE | 30.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | JAMES |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 4064700903.00 |
| PROJECT ID | MTSOLAR, 86678AA69CL4D, 5X12, -, V1JB |
| SITE ADDRESS | WHITEHALL, MT, 59759, USA |
| MODULE INFO | APTOS, 550 |
| MODULE WIDTH | 44.60 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 12.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 25860.42 |
| TOTAL WEIGHT | 4980.99 |
| TOTAL PALLETS | 5.00 |
https://skycivquotes.s3.amazonaws.com/95f79568-daca-4e09-bb80-655f78d2deae.pdf |
|
| ID | 11294.00 |
| 3D Solar link |
