MTSOLAR_90EBCEA1HHE3

$3,876.99

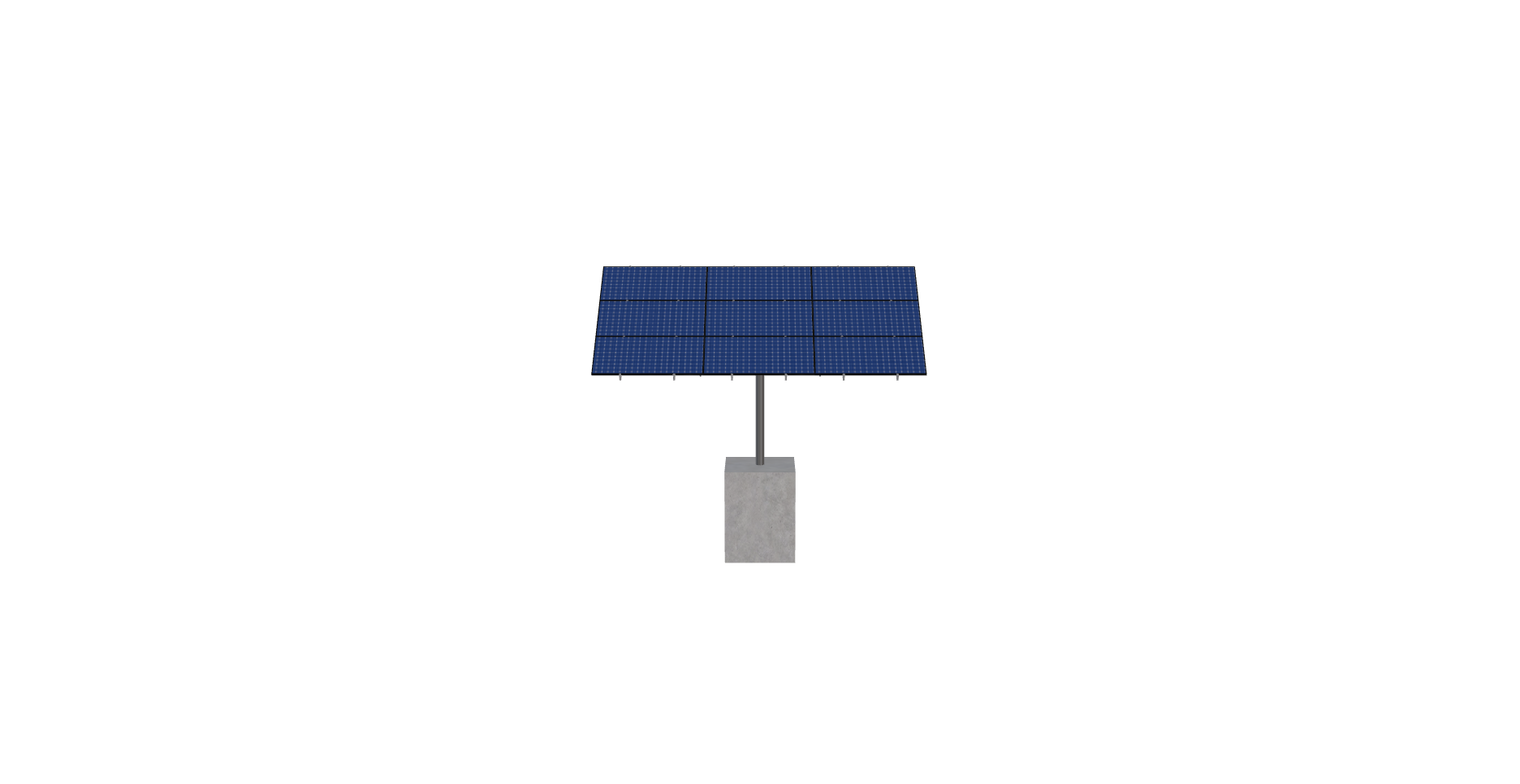

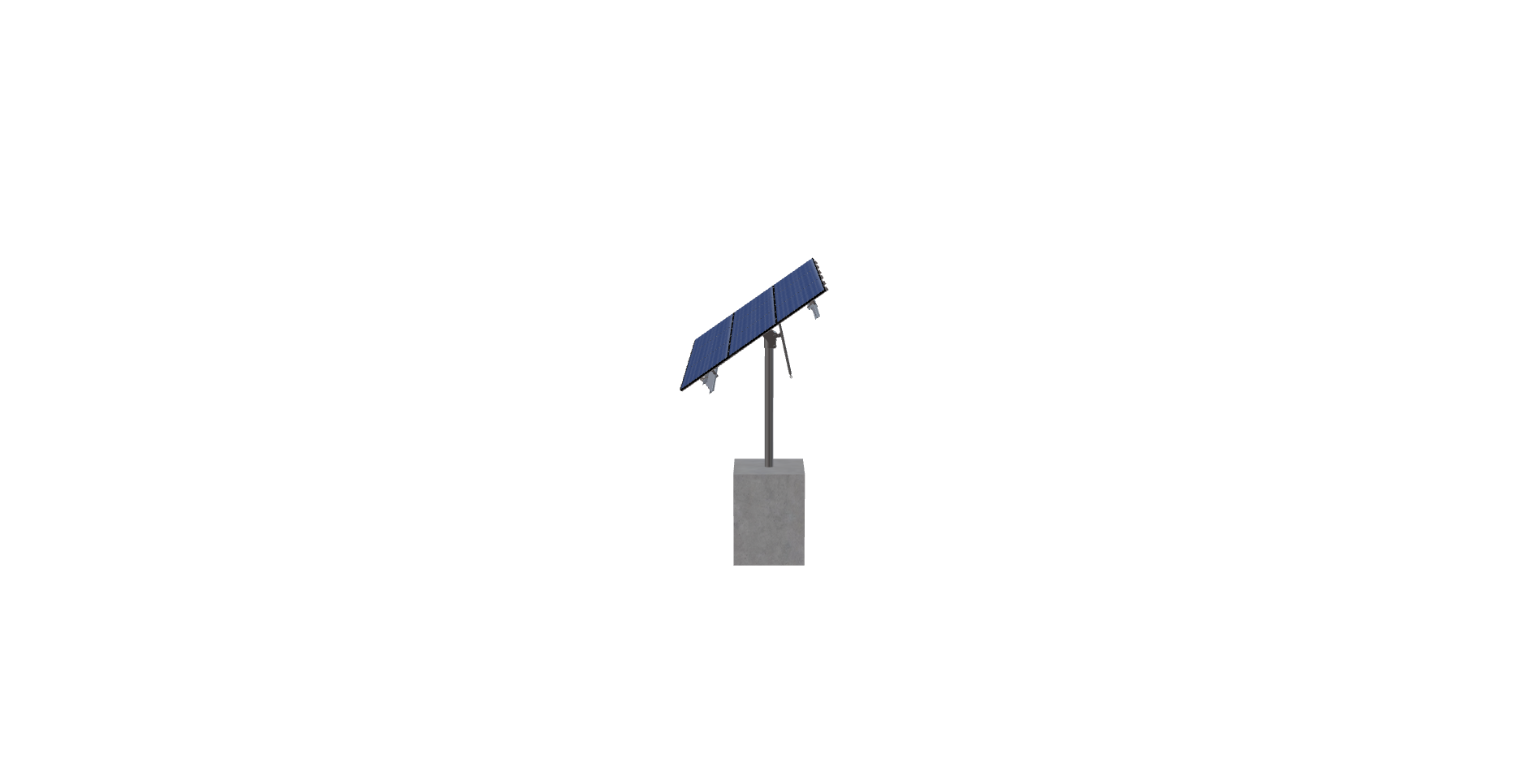

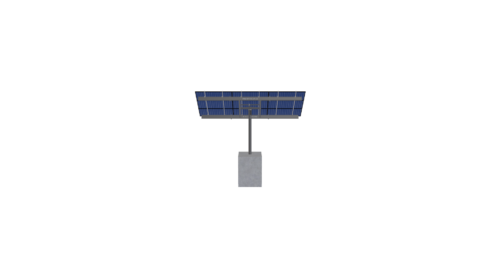

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.13 inches by 41.5 inches and an array layout of 3 wide by 3 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 1P-0-8TOP-SD-72-L-3Hx3W-CGHH Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.13 inches by 41.5 inches and an array layout of 3 wide by 3 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 709.38 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-8TOP-SD-72-L-3HX3W-CGHH

DUTY SIZE

SD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

9.01

WING SPAN

72.00

MAX FOUNDATION DEPTH

6.00

TILT ANGLE

35.00

CANTILEVER

234.00

GROUND CLEARANCE

6.00

NO POLES

1.00

MODULE AREA

218.22

ARRAY WIDTH

20.78

ARRAY HEIGHT

10.50

RAIL LENGTH

126.00

MODULE LENGTH

82.13

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

19.50

GROUND TO TOP

11.99

PROJECTED PANEL HEIGHT

5.95

PROJECT ID

MTSOLAR, 90EBCEA1HHE3

SITE ADDRESS

857C9CM8+QF

MODULE WIDTH

41.50

NUMBER ROWS

3.00

NUMBER COLUMNS

3.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

8, 40

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

115.00

SNOW LOAD OVERRIDE

15.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

3876.99

TOTAL WEIGHT

709.38

TOTAL PALLETS

1.00

pdf

https://skycivquotes.s3.amazonaws.com/dfd39584-7fc4-4111-afce-f85f0d9464ca.pdf

ID

7285.00
