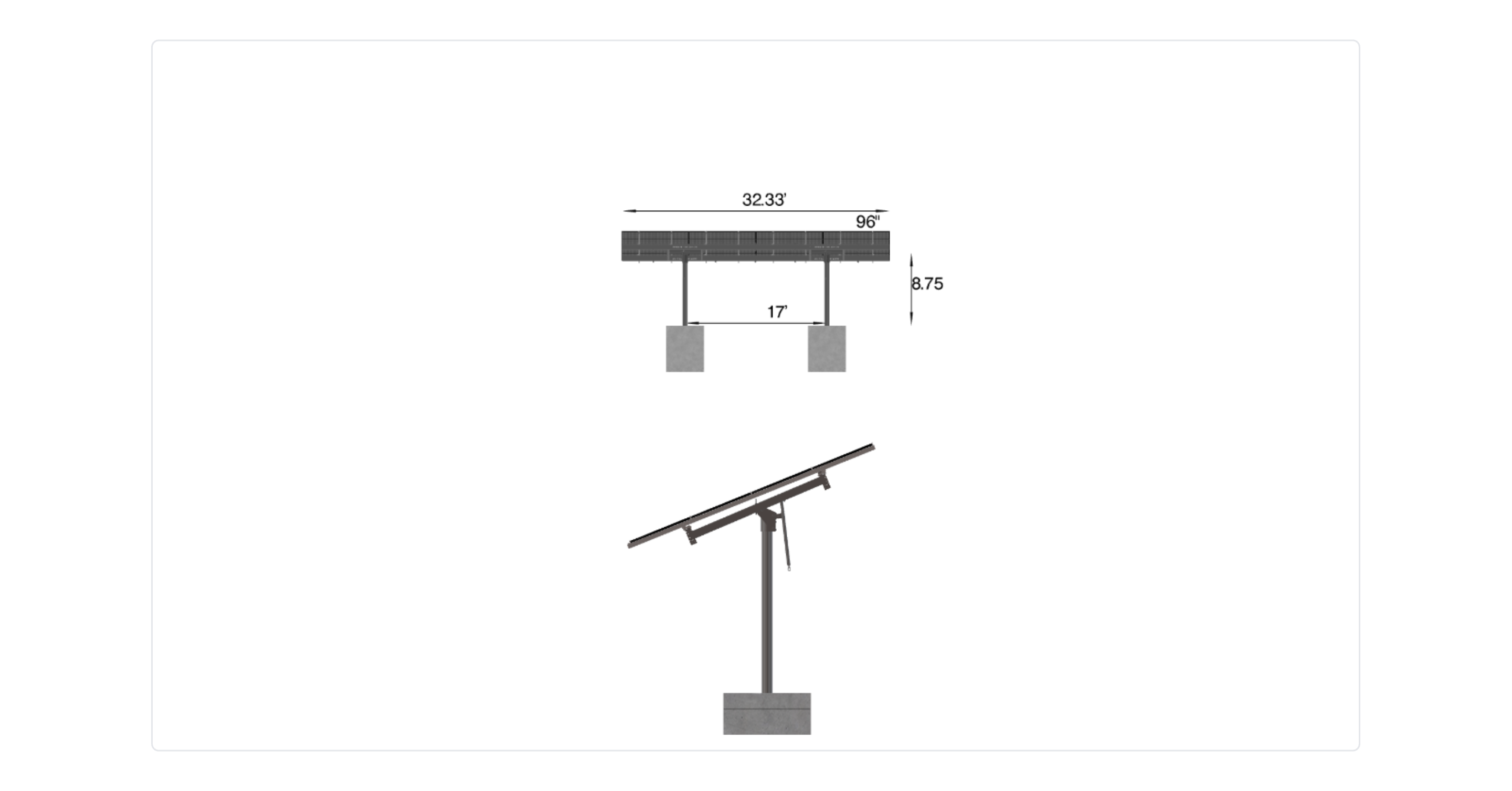

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 96 inches by 60 inches and an array layout of 4 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 2P-17-6TOP-HD-45-L-4Hx4W-K8DL Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 96 inches by 60 inches and an array layout of 4 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 1553.1 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

2P-17-6TOP-HD-45-L-4HX4W-K8DL

DUTY SIZE

HD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

2.00

POLE SPACING

17.00

POLE HEIGHT

8.75

WING SPAN

45.00

MAX FOUNDATION DEPTH

5.50

TILT ANGLE

10.00

CANTILEVER

384.00

GROUND CLEARANCE

7.00

NO POLES

2.00

MODULE AREA

652.06

ARRAY WIDTH

32.33

ARRAY HEIGHT

20.17

RAIL LENGTH

242.00

MODULE LENGTH

96.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

32.00

GROUND TO TOP

10.49

PROJECTED PANEL HEIGHT

3.47

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

MTSOLAR, 9E52H5HGH8D5

SITE ADDRESS

122, SHETLAND, LN, SMITHFIELD, NC, 27577, USA

MODULE WIDTH

60.00

NUMBER ROWS

4.00

NUMBER COLUMNS

4.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

8382.79

TOTAL WEIGHT

1553.10

TOTAL PALLETS

2.00
