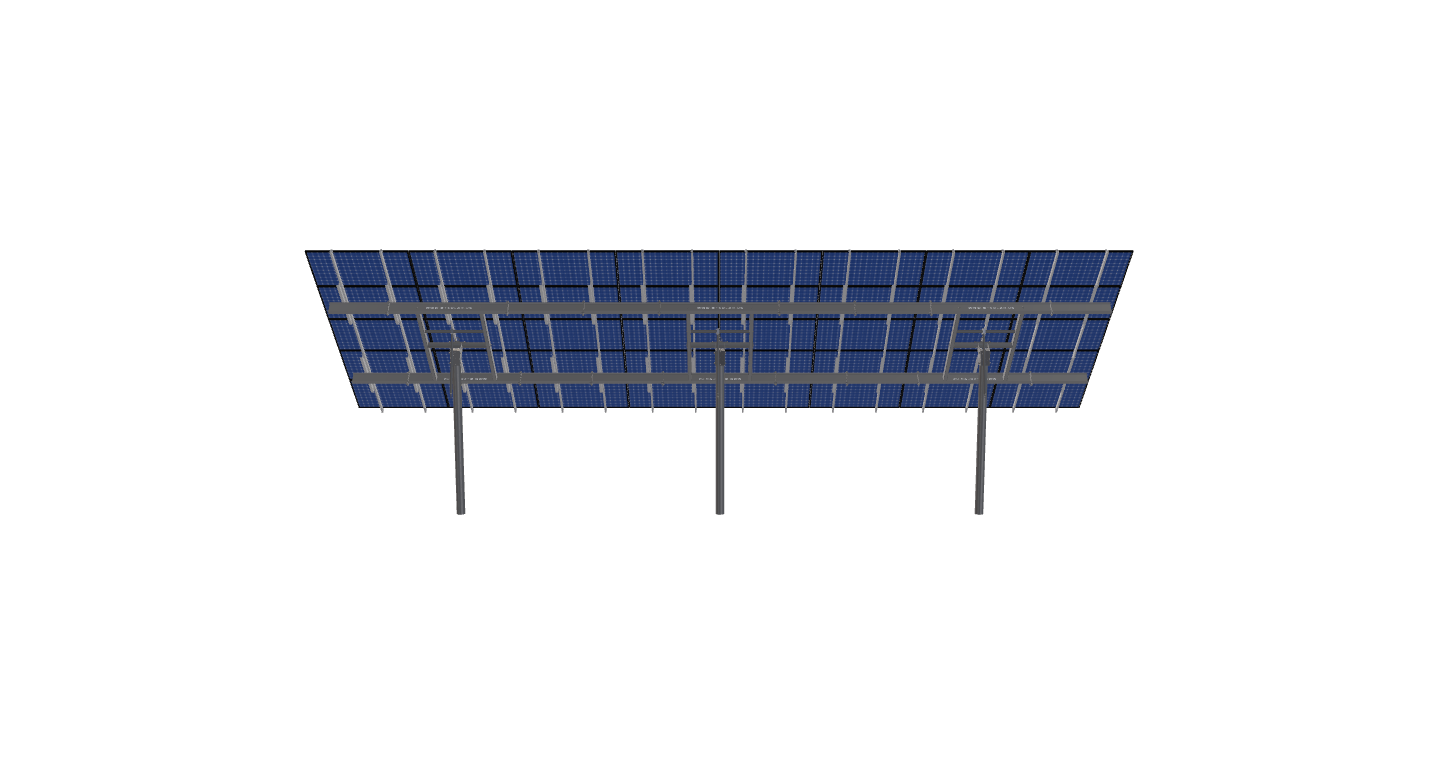

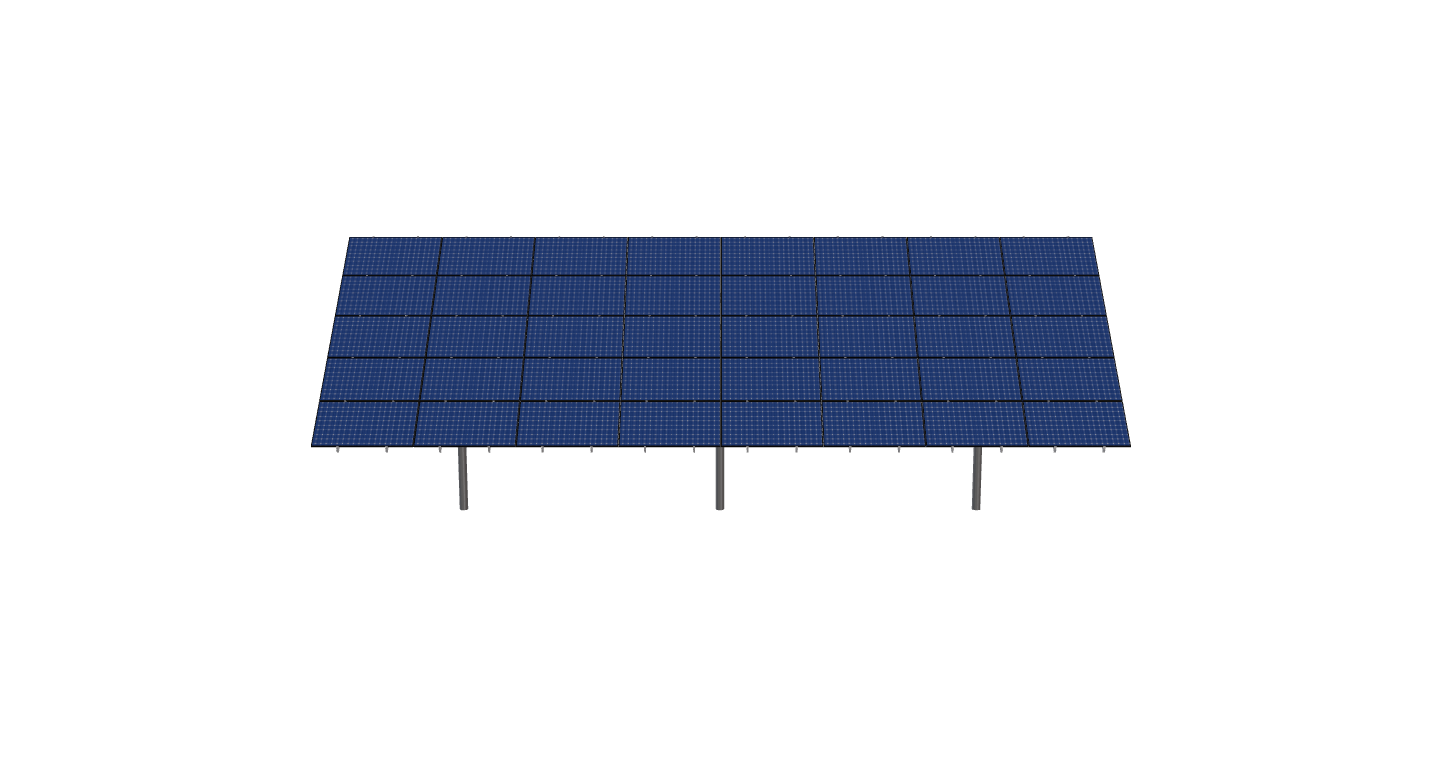

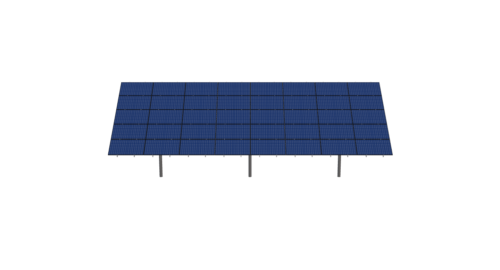

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74.8 inches by 40.9 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_9FBB32K798E39 SedRock – V1Jb
$16,188.61
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74.8 inches by 40.9 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2952.25 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-17-6TOP-HD-45-L-5HX8W-DH93 |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 11.10 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 7.00 |
| TILT ANGLE | 45.00 |
| CANTILEVER | 588.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 3.00 |
| MODULE AREA | 871.70 |
| ARRAY WIDTH | 50.53 |
| ARRAY HEIGHT | 17.25 |
| RAIL LENGTH | 207.00 |
| MODULE LENGTH | 74.80 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 49.00 |
| GROUND TO TOP | 17.20 |
| PROJECTED PANEL HEIGHT | 12.20 |
| WIND SPEED OVERRIDE | 88.00 |
| SNOW LOAD OVERRIDE | 110.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | BRADY, LITTLE |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 918-527-3719 |
| PROJECT ID | MTSOLAR, 9FBB32K798E39, SEDROCK, -, V1JB |
| SITE ADDRESS | 362, GREEN, MOUNTAIN, DR, BRECKENRIDGE, CO, 80424, USA |
| MODULE INFO | |
| MODULE WIDTH | 40.90 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 8.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SEDIMENTARY |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 15417.72 |
| TOTAL WEIGHT | 2952.25 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/716d98dc-a3cc-49af-976b-e2ecc432510f.pdf |
|
| ID | 10863.00 |
| 3D Solar link |
