MTSOLAR_9JAI58G3I47E

$3,380.50

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.1 inches by 41.5 inches and an array layout of 2 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

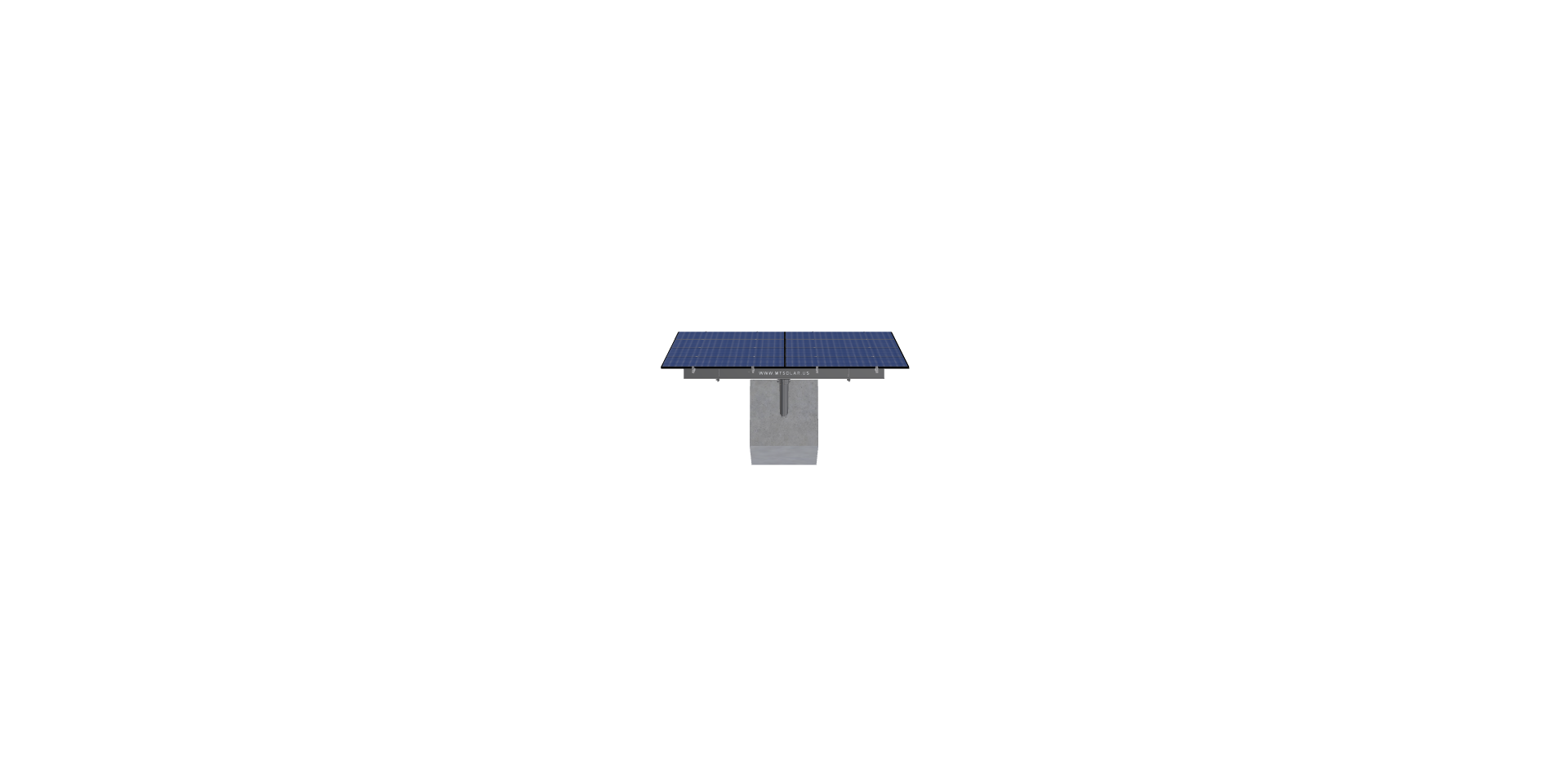

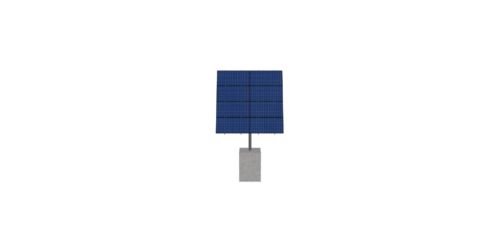

See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

Product price: $3,380.50
Total options:
Order total:
SKU: 1P-0-8TOP-SD-24-L-4Hx2W-LKAF Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.1 inches by 41.5 inches and an array layout of 2 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 578.44 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-8TOP-SD-24-L-4HX2W-LKAF

DUTY SIZE

SD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

10.34

WING SPAN

24.00

MAX FOUNDATION DEPTH

6.25

TILT ANGLE

65.00

CANTILEVER

138.00

GROUND CLEARANCE

4.00

NO POLES

1.00

MODULE AREA

193.90

ARRAY WIDTH

13.85

ARRAY HEIGHT

14.00

RAIL LENGTH

168.00

MODULE LENGTH

82.10

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

11.50

GROUND TO TOP

16.61

PROJECTED PANEL HEIGHT

12.54

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

MTSOLAR, 9JAI58G3I47E

SITE ADDRESS

1314, ALASKA, HWY, TOK, AK, 99780, USA

MODULE WIDTH

41.50

NUMBER ROWS

4.00

NUMBER COLUMNS

2.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

8, 40

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

3380.50

TOTAL WEIGHT

578.44

TOTAL PALLETS

1.00
