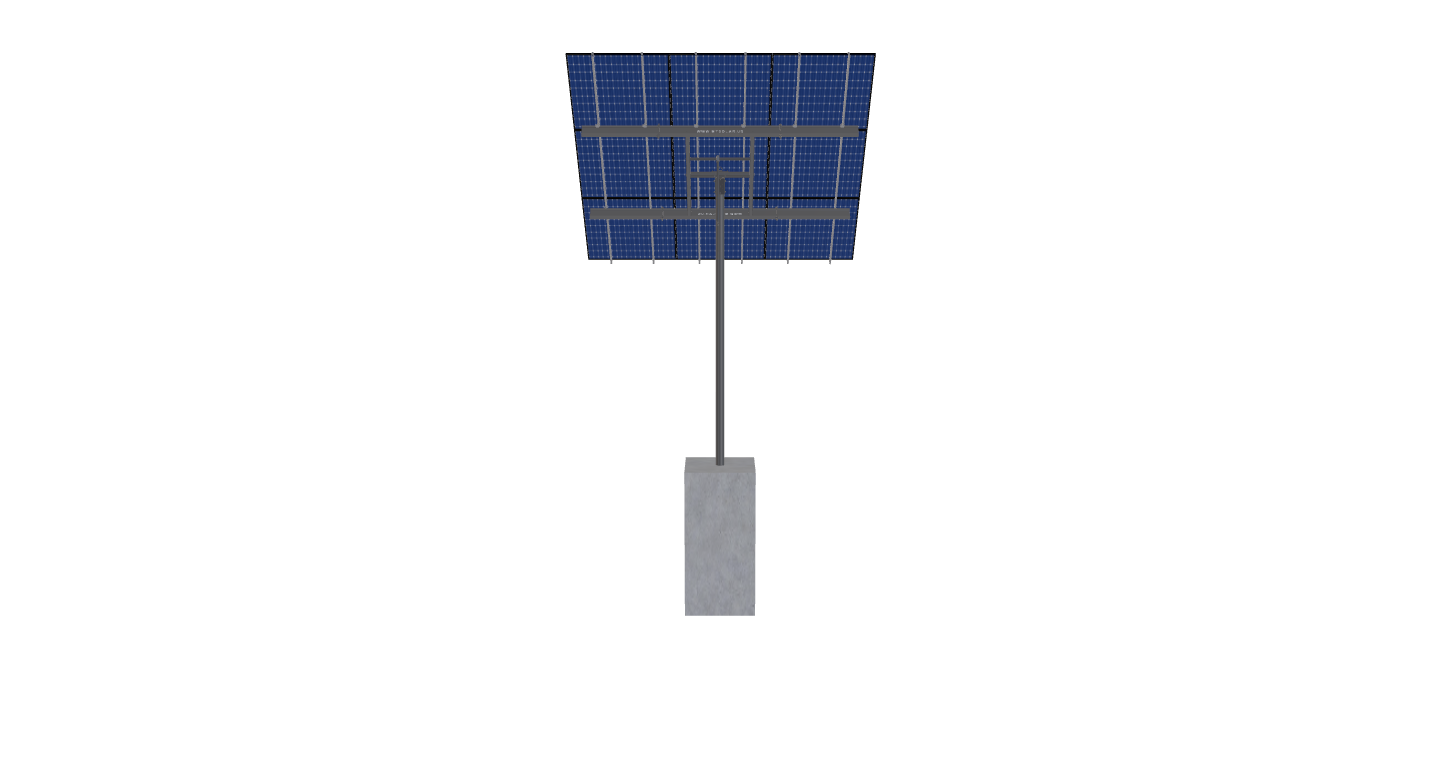

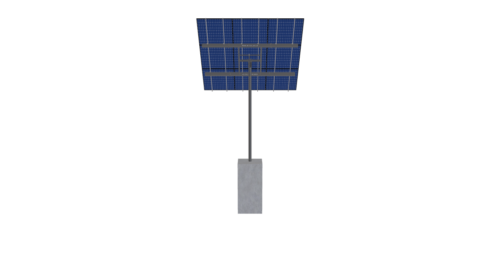

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 72.6 inches by 75.7 inches and an array layout of 3 wide by 3 high.
This mount fits on 1 – 10in Pipe Sch 80 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_A297L9L20KI6A 48in square – V1Jb
$4,502.69
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 72.6 inches by 75.7 inches and an array layout of 3 wide by 3 high.
This mount fits on 1 – 10in Pipe Sch 80 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 799.0899999999999 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-10TOP-HD-57-L-3HX3W-LI4I |
| DUTY SIZE | HD |
| POLE SIZE | 10IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 18.74 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 9.50 |
| TILT ANGLE | 45.00 |
| CANTILEVER | 204.00 |
| GROUND CLEARANCE | 12.00 |
| NO POLES | 1.00 |
| MODULE AREA | 350.52 |
| ARRAY WIDTH | 18.40 |
| ARRAY HEIGHT | 19.05 |
| RAIL LENGTH | 228.60 |
| MODULE LENGTH | 72.60 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 17.00 |
| GROUND TO TOP | 25.47 |
| PROJECTED PANEL HEIGHT | 13.47 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | DARREN |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | MTSOLAR, A297L9L20KI6A, 48IN, SQUARE, -, V1JB |
| SITE ADDRESS | SILVER, CITY, NM, 88061, USA |
| MODULE WIDTH | 75.70 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 4288.28 |
| TOTAL WEIGHT | 799.09 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/c3860f10-2059-46fc-94d4-506753ed219f.pdf |
|
| ID | 10716.00 |
| 3D Solar link |
