MTSOLAR_A6BC2IL16D9I

$12,242.19

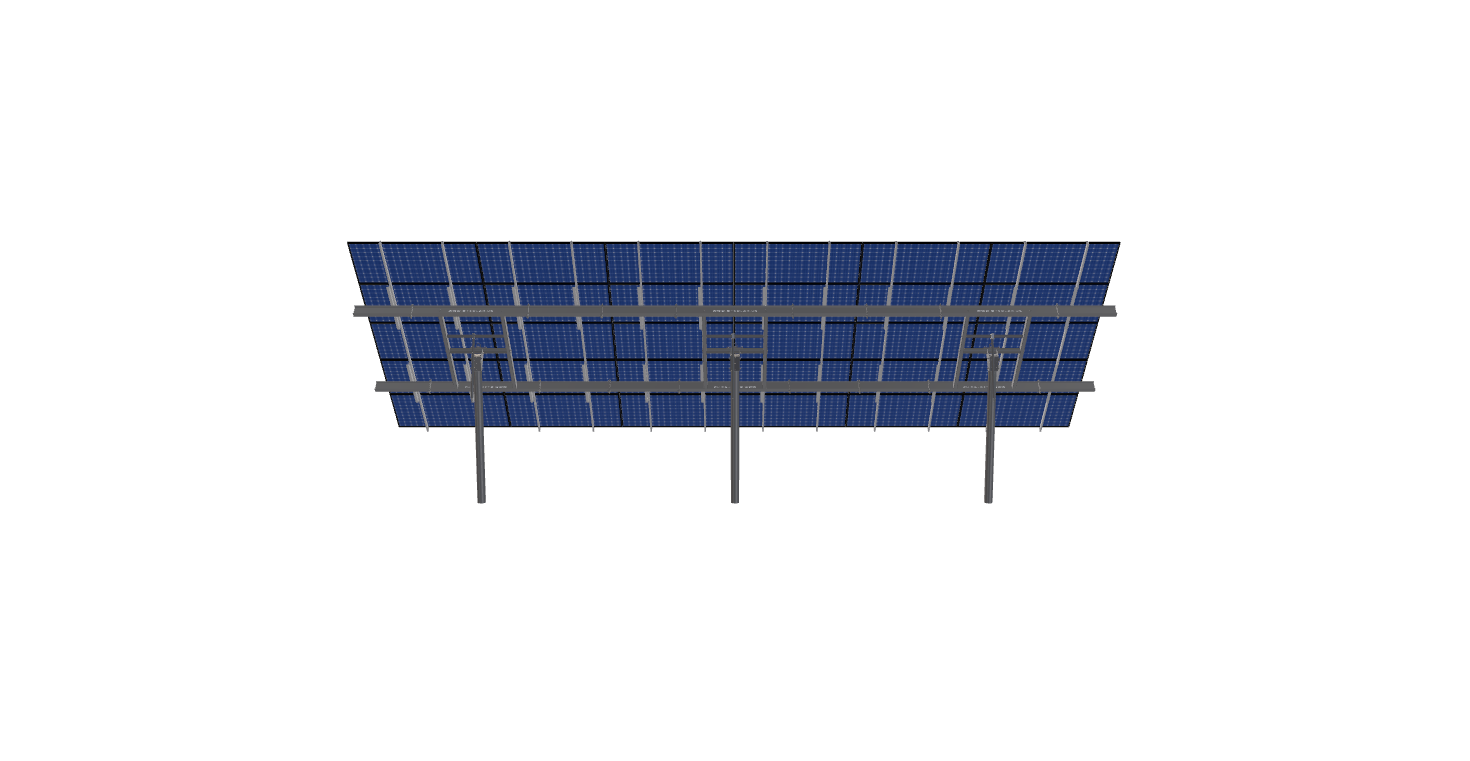

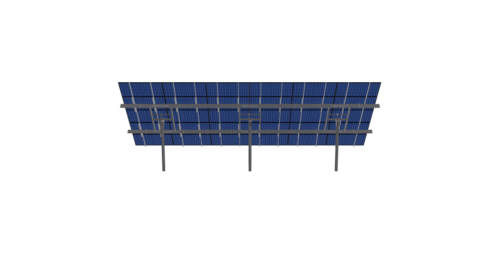

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 95.1 inches by 44.7 inches and an array layout of 6 wide by 5 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

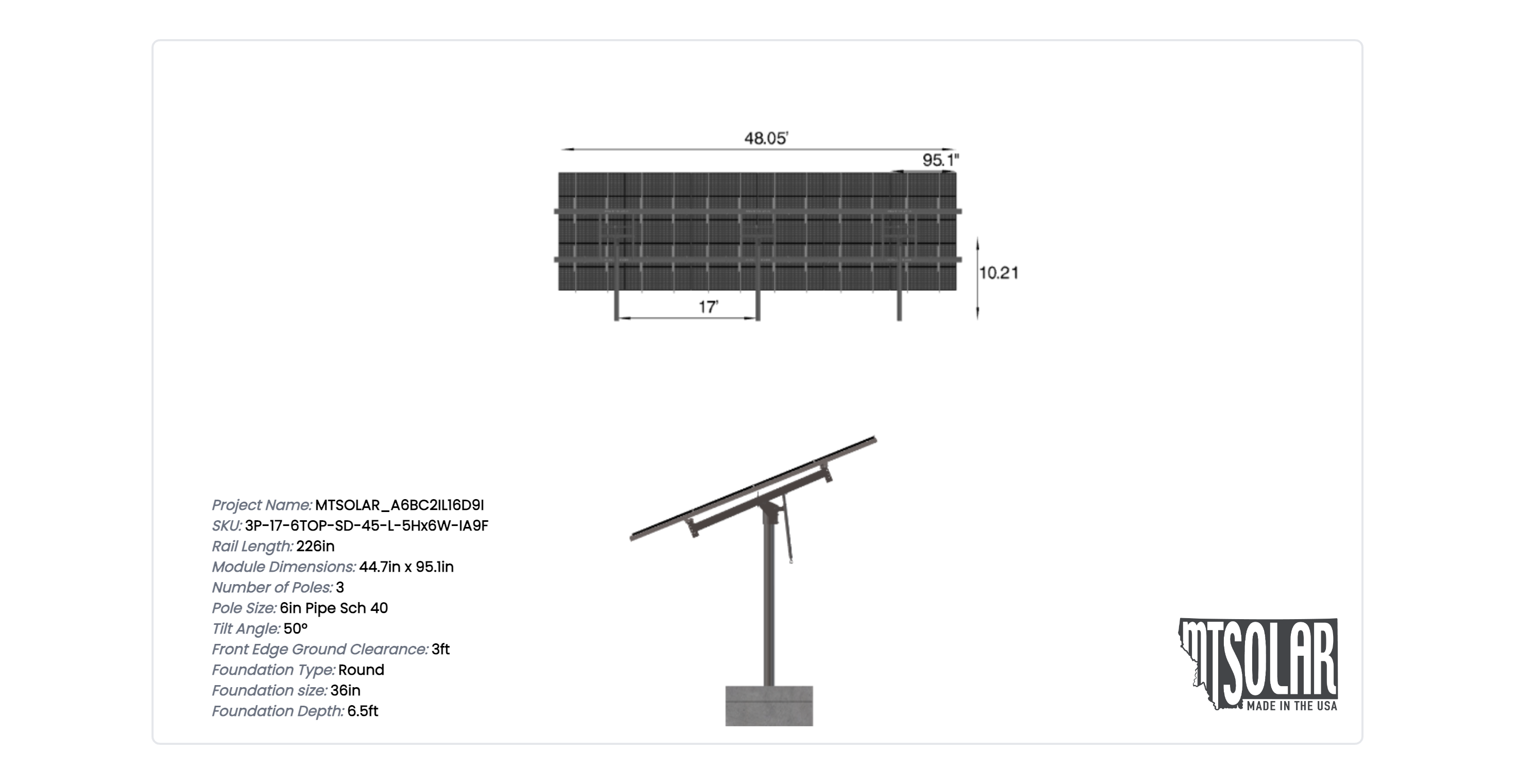

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 3P-17-6TOP-SD-45-L-5Hx6W-IA9F Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 95.1 inches by 44.7 inches and an array layout of 6 wide by 5 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 2384.64 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

3P-17-6TOP-SD-45-L-5HX6W-IA9F

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

3.00

POLE SPACING

17.00

POLE HEIGHT

10.21

WING SPAN

45.00

MAX FOUNDATION DEPTH

6.50

TILT ANGLE

50.00

CANTILEVER

588.00

GROUND CLEARANCE

3.00

NO POLES

3.00

MODULE AREA

904.94

ARRAY WIDTH

48.05

ARRAY HEIGHT

18.83

RAIL LENGTH

226.00

MODULE LENGTH

95.10

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

49.00

GROUND TO TOP

17.35

PROJECTED PANEL HEIGHT

14.27

PROJECT ID

MTSOLAR, A6BC2IL16D9I

SITE ADDRESS

101, INDIAN, PAINTBRUSH, DR, BOZEMAN, MT, 59718, USA

MODULE WIDTH

44.70

NUMBER ROWS

5.00

NUMBER COLUMNS

6.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

36, ROUND

FOUNDATION TYPE

ROUND

FOUNDATION SIZE

36.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

60.00

SNOW LOAD OVERRIDE

10.20

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

12242.19

TOTAL WEIGHT

2384.64

TOTAL PALLETS

3.00
