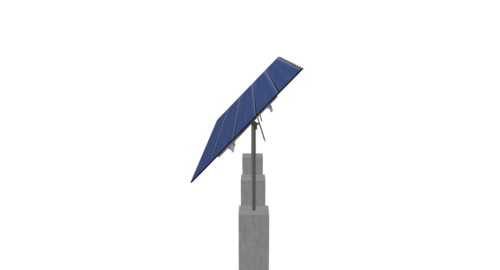

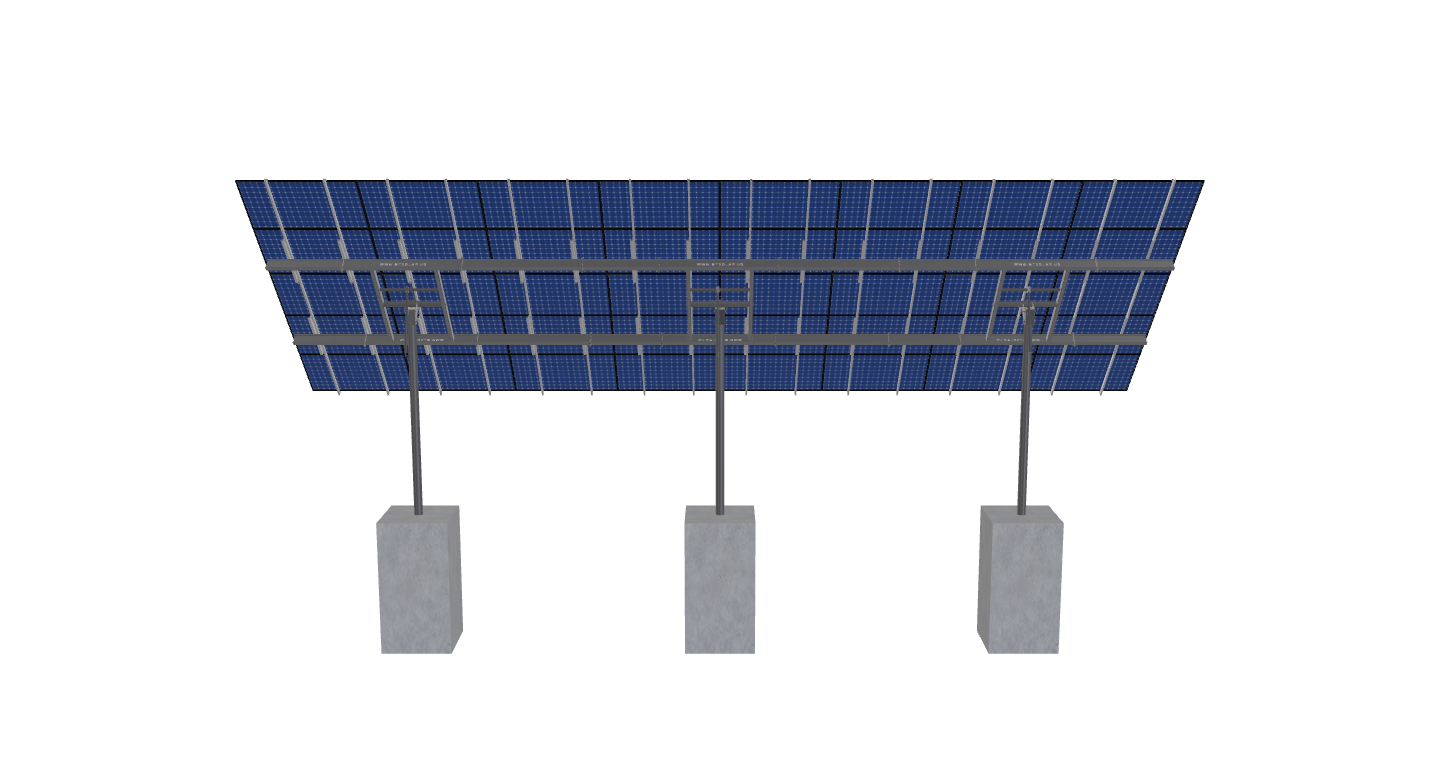

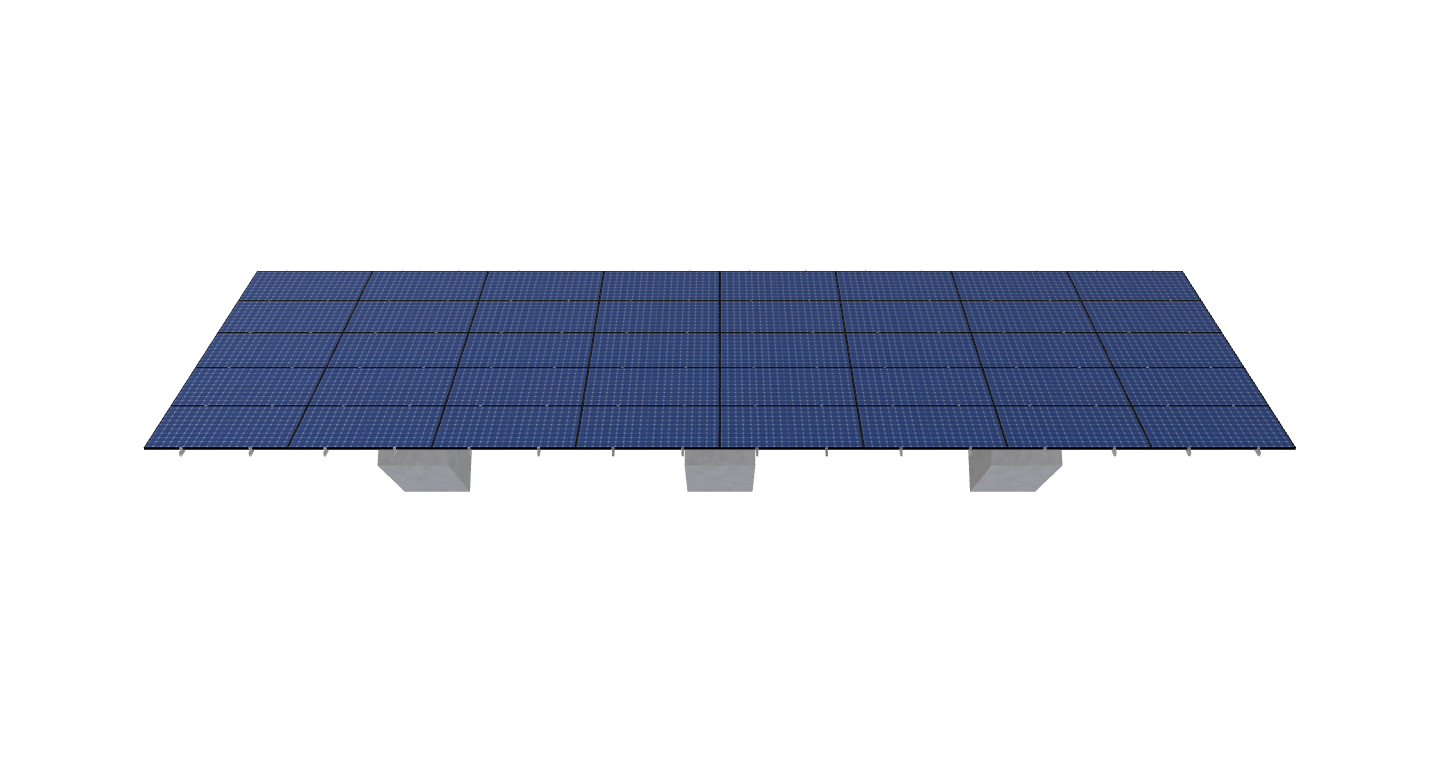

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 85.6 inches by 51.4 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

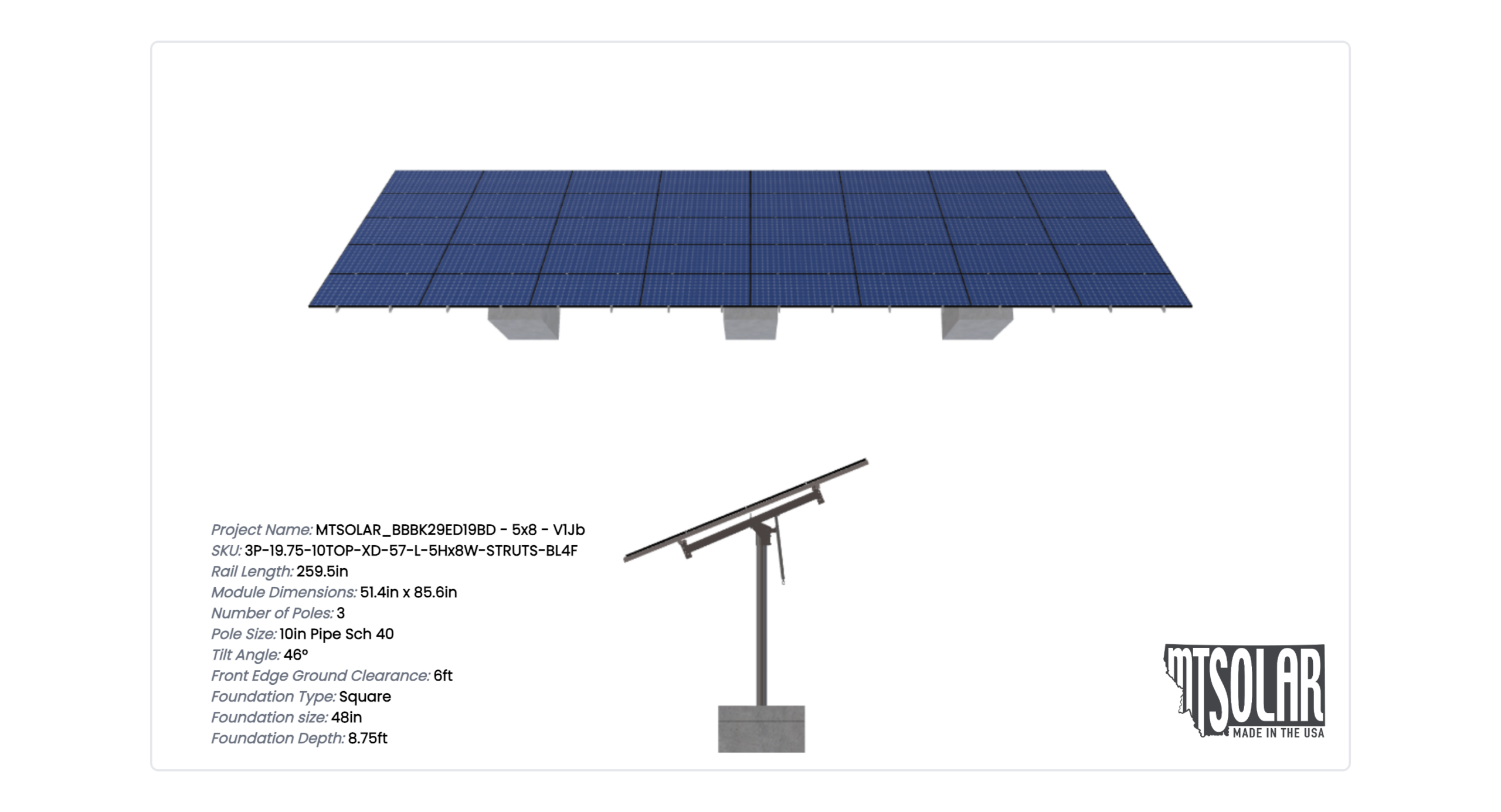

See 3D Model Here
MTSOLAR_BBBK29ED19BD – 5×8 – V1Jb
$17,526.38
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 85.6 inches by 51.4 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3544.37 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-19.75-10TOP-XD-57-L-5HX8W-STRUTS-BL4F |
| DUTY SIZE | XD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 13.78 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 8.75 |
| TILT ANGLE | 46.00 |
| CANTILEVER | 678.00 |
| GROUND CLEARANCE | 6.00 |
| NO POLES | 3.00 |
| MODULE AREA | 1248.48 |
| ARRAY WIDTH | 57.73 |
| ARRAY HEIGHT | 21.63 |
| RAIL LENGTH | 259.50 |
| MODULE LENGTH | 85.60 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 56.50 |
| GROUND TO TOP | 21.56 |
| PROJECTED PANEL HEIGHT | 15.56 |
| WIND SPEED OVERRIDE | 130.00 |
| SNOW LOAD OVERRIDE | 90.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | TRUE |
| DESIGNER NAME | STEVEN, LEWIS |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 7752876406.00 |
| PROJECT ID | MTSOLAR, BBBK29ED19BD, -, 5X8, -, V1JB |
| SITE ADDRESS | TONOPAH, NV, 89049, USA |
| MODULE WIDTH | 51.40 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 8.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 17526.38 |
| TOTAL WEIGHT | 3544.37 |
| TOTAL PALLETS | 3.00 |
