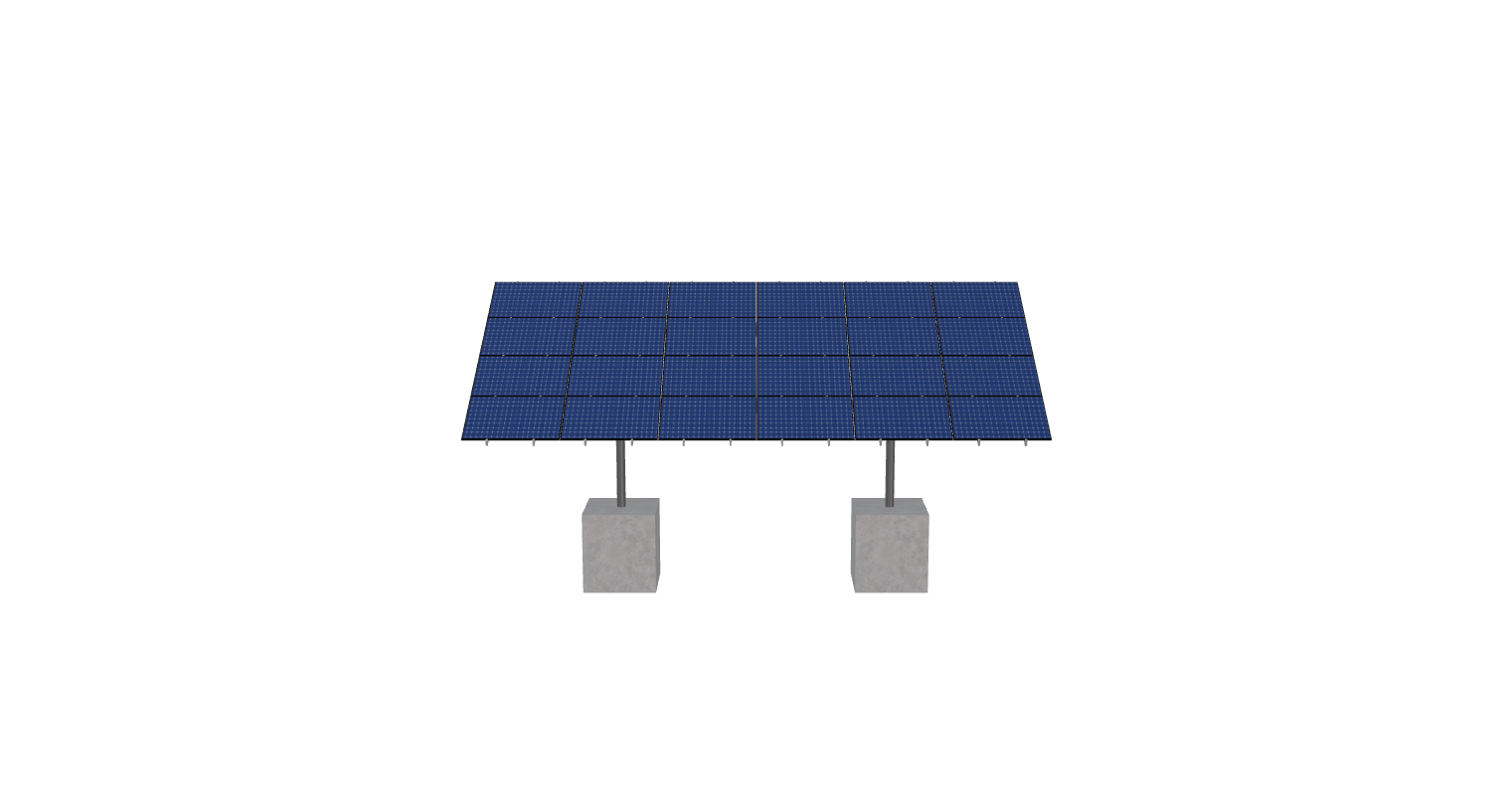

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 47.5 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_CLI7BJD2HAKE
$8,450.29
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 47.5 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1460.28 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-17-6TOP-SD-57-L-4HX6W-GL1B |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 9.00 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 5.00 |
| TILT ANGLE | 30.00 |
| CANTILEVER | 408.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 2.00 |
| MODULE AREA | 552.00 |
| ARRAY WIDTH | 34.50 |
| ARRAY HEIGHT | 16.00 |
| RAIL LENGTH | 192.00 |
| MODULE LENGTH | 68.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 34.00 |
| GROUND TO TOP | 13.00 |
| PROJECTED PANEL HEIGHT | 8.00 |
| DESIGNER NAME | RALPH, CIARLANTI |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 7204810540.00 |
| PROJECT ID | MTSOLAR, CLI7BJD2HAKE |
| SITE ADDRESS | 8665, DOUBLEHEADER, RANCH, RD, MORRISON, CO, 80465, USA |
| MODULE INFO | REC, PURE, RX, 450 |
| MODULE WIDTH | 47.50 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 75.00 |
| SNOW LOAD OVERRIDE | 30.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 8450.29 |
| TOTAL WEIGHT | 1460.28 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/ddd5b3fb-cf97-4de7-af12-b6ee91c9a27e.pdf |
|
| ID | 13306.00 |
| 3D Solar link |
