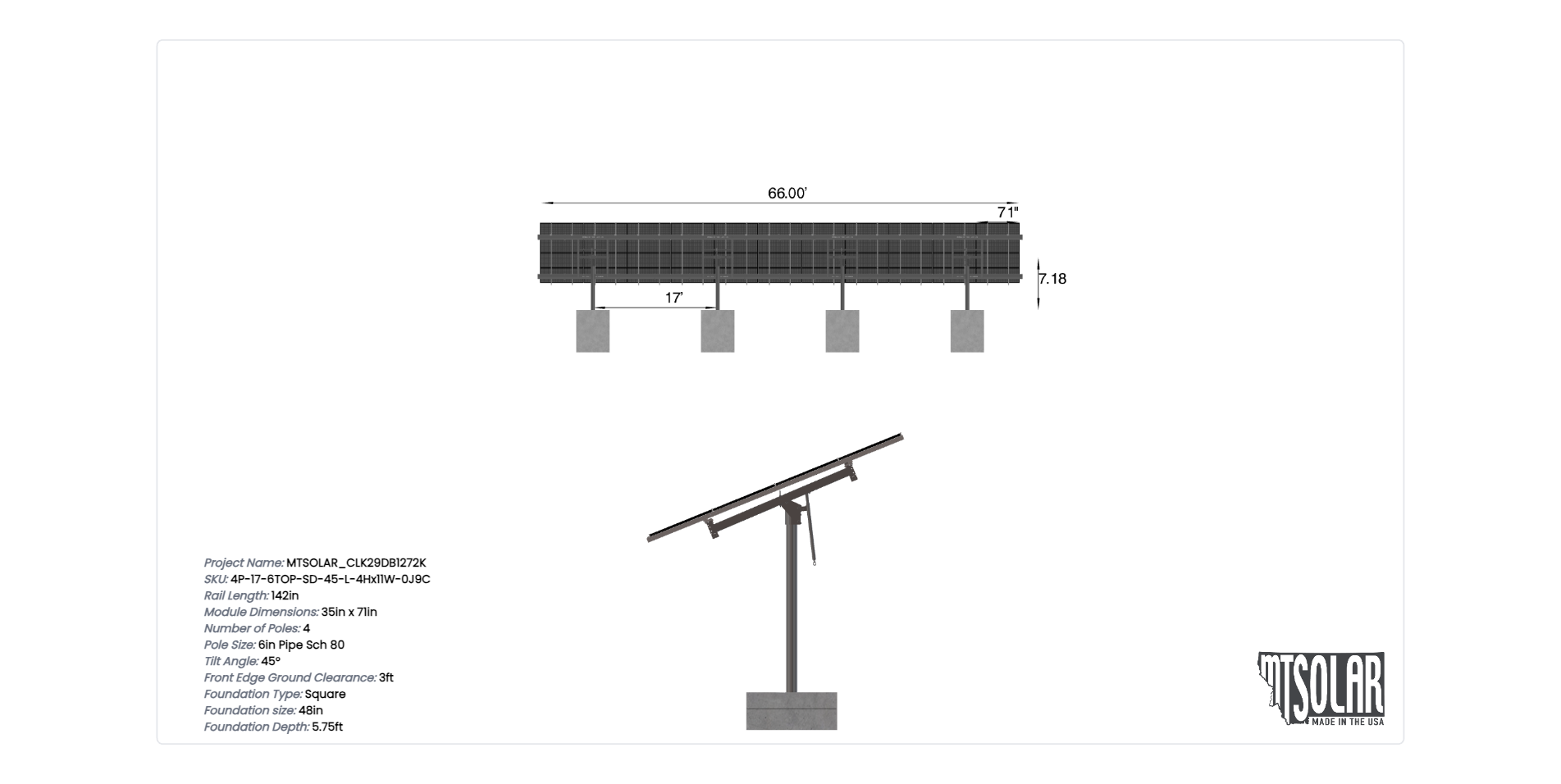

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 71 inches by 35 inches and an array layout of 11 wide by 4 high.
This mount fits on 4 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_CLK29DB1272K
$15,871.69
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 71 inches by 35 inches and an array layout of 11 wide by 4 high.
This mount fits on 4 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2797.42 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-17-6TOP-SD-45-L-4HX11W-0J9C |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 7.18 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 5.75 |
| TILT ANGLE | 45.00 |
| CANTILEVER | 792.00 |
| GROUND CLEARANCE | 3.00 |
| NO POLES | 4.00 |
| MODULE AREA | 781.00 |
| ARRAY WIDTH | 66.00 |
| ARRAY HEIGHT | 11.83 |
| RAIL LENGTH | 142.00 |
| MODULE LENGTH | 71.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 66.00 |
| GROUND TO TOP | 11.31 |
| PROJECTED PANEL HEIGHT | 8.25 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | MTSOLAR, CLK29DB1272K |
| SITE ADDRESS | 3005, HIGHLAND, RD, FISH, CREEK, WI, 54212, USA |
| MODULE WIDTH | 35.00 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 11.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 15871.69 |
| TOTAL WEIGHT | 2797.42 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/2f4547ad-0e80-4245-9d43-eb57cc5859e1.pdf |
|
| ID | 2210.00 |
| 3D Solar link |
