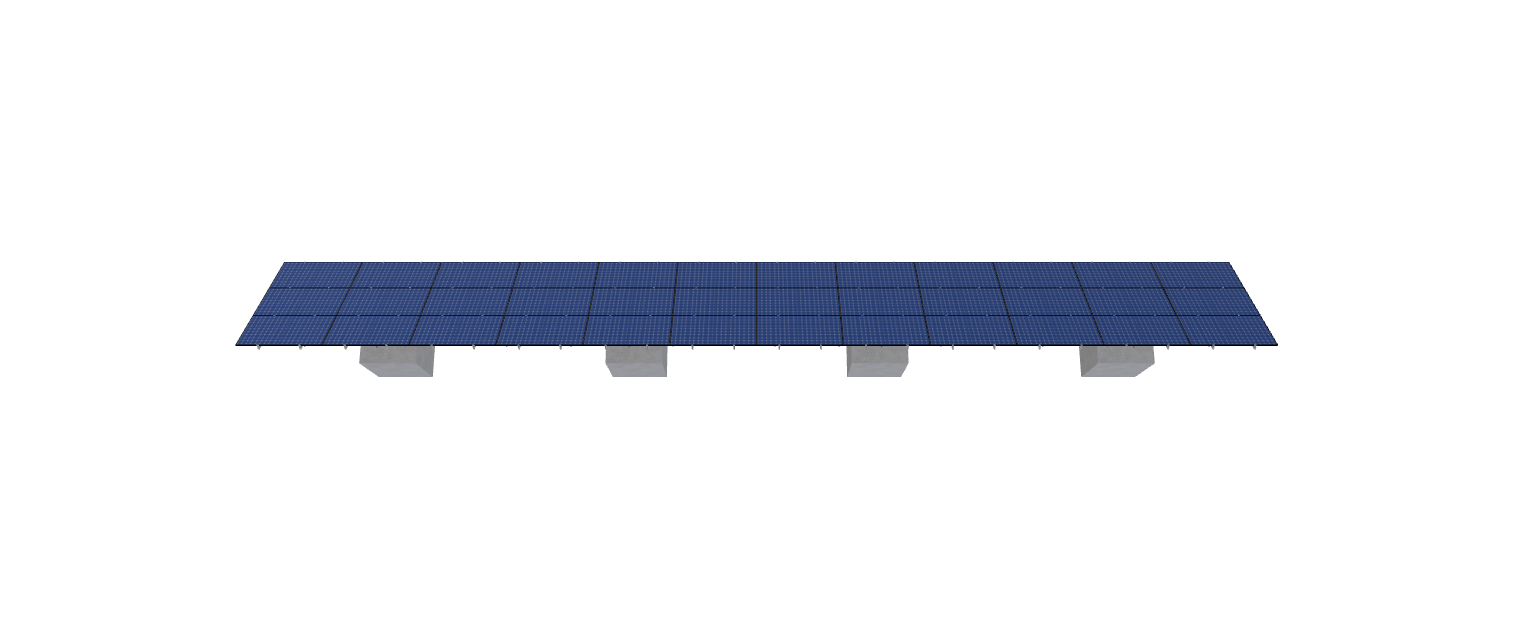

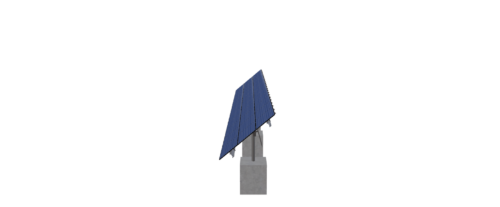

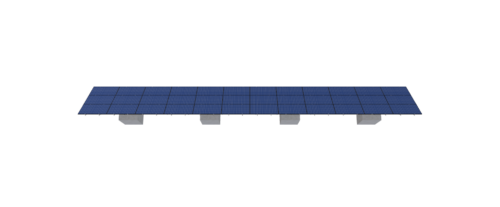

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75 inches by 45 inches and an array layout of 12 wide by 3 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_D88260A296I5
$19,237.21
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75 inches by 45 inches and an array layout of 12 wide by 3 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3401.2200000000003 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-19.75-6TOP-HD-45-L-3HX12W-388F |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 5.66 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 5.25 |
| TILT ANGLE | 40.00 |
| CANTILEVER | 891.00 |
| GROUND CLEARANCE | 2.00 |
| NO POLES | 4.00 |
| MODULE AREA | 864.50 |
| ARRAY WIDTH | 76.00 |
| ARRAY HEIGHT | 11.38 |
| RAIL LENGTH | 136.50 |
| MODULE LENGTH | 75.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 74.25 |
| GROUND TO TOP | 9.31 |
| PROJECTED PANEL HEIGHT | 7.31 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | TODD, KENNEDY |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 6077429163.00 |
| PROJECT ID | MTSOLAR, D88260A296I5 |
| SITE ADDRESS | 2240, MURPHY, RD, ATHENS, PA, 18810, USA |
| MODULE WIDTH | 45.00 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 12.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 18321.15 |
| TOTAL WEIGHT | 3401.22 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/367ee1c8-2267-48a2-a3d3-993fcb30bec1.pdf |
|
| ID | 10003.00 |
| 3D Solar link |
