This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 41.12 inches by 73.97 inches and an array layout of 4 wide by 3 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

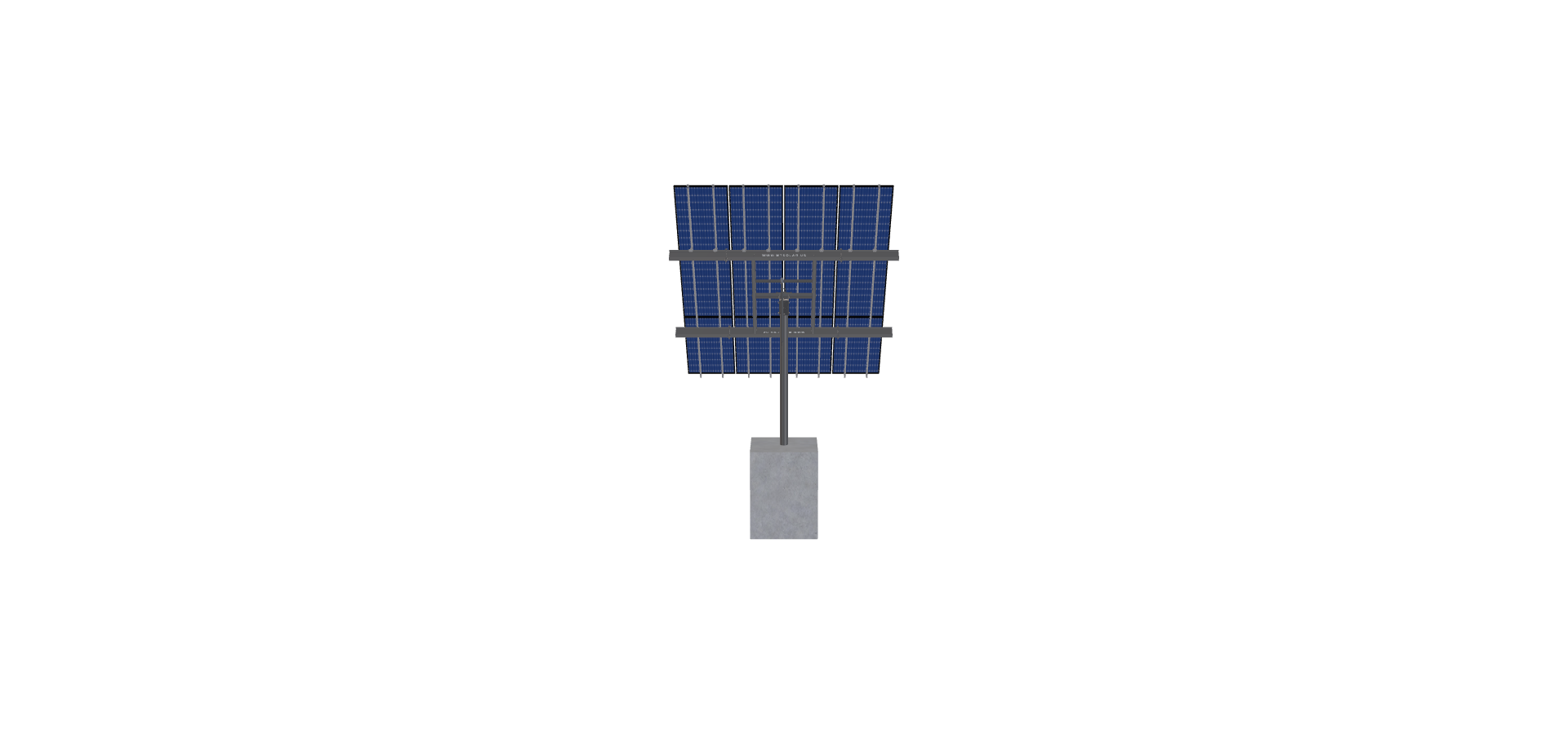

See 3D Model Here
MTSOLAR_DCGABB5BCJC6
$3,961.74
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 41.12 inches by 73.97 inches and an array layout of 4 wide by 3 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 671.6800000000001 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-6TOP-SD-45-L-3HX4W-AH7J |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 10.13 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 6.00 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 180.00 |
| GROUND CLEARANCE | 3.00 |
| NO POLES | 1.00 |
| MODULE AREA | 261.39 |
| ARRAY WIDTH | 14.04 |
| ARRAY HEIGHT | 18.62 |
| RAIL LENGTH | 223.41 |
| MODULE LENGTH | 41.12 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 15.00 |
| GROUND TO TOP | 17.21 |
| PROJECTED PANEL HEIGHT | 14.17 |
| PROJECT ID | MTSOLAR, DCGABB5BCJC6 |
| SITE ADDRESS | HOWARD, CO, USA |
| MODULE WIDTH | 73.97 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 4.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 105.00 |
| SNOW LOAD OVERRIDE | 43.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 3961.74 |
| TOTAL WEIGHT | 671.68 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/88f4bcde-3353-4213-a127-726ed96de259.pdf |
|
| ID | 6289.00 |
| 3D Solar link |
